1V0
NAVAJO LAKE
Public
PUB
3 miles NE of NAVAJO DAM, NM
View on
Map
Status
Operational
Coordinates
36° 48' 30"N
107° 39' 09"W
Elevation
6478' MSL
Pattern Alt
7478' MSL
Mag Variation
12E
Fuel
None Listed
FSS
ALBUQUERQUE (ABQ)
Sectional
DENVER
ARTCC
DENVER (ZDV)
Data Effective
5/16/24-6/13/24
KDRO (21nm)
VFR
11:53 AM MDT
RAW
Clear
Viz
10sm
Temp
70°F
Dew
19°F
Pres
30.01"Hg
Wind
VRB° 6kts
RMK
AO2 SLP094 T02111072 10211 20000 58014
KDRO 201753Z AUTO VRB06KT 10SM CLR 21/M07 A3001 RMK AO2 SLP094 T02111072 10211 20000 58014
Services
Frequencies & Documents
Freqs & Docs
TAF
NOTAM
Operations
Runways
Remarks
List Your Business
1V0 FBOs, Flight Schools and Ground Support
No FBOs, flight schools or aircraft ground support businesses are listed for this airport.
1V0 Ground Transportation (Taxi, Limo, Car Service)
No ground transportation services are listed for this airport.
1V0 Hotels
No hotels are listed for this airport.
1V0 Restaurants
No restaurants are listed for this airport.
1V0 Other Airport-Related Businesses
No other airport-related businesses are listed for this airport.
X
Send Message to Airport Company
Enter your information and message below.
Your Information
Business
x
UNICOM
--
CTAF
122.9
No communication frequencies available for this airport.

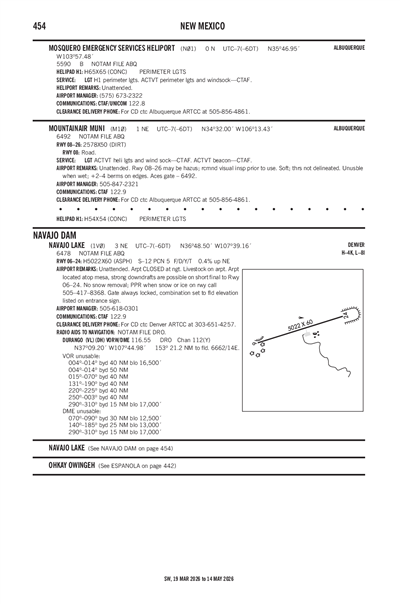

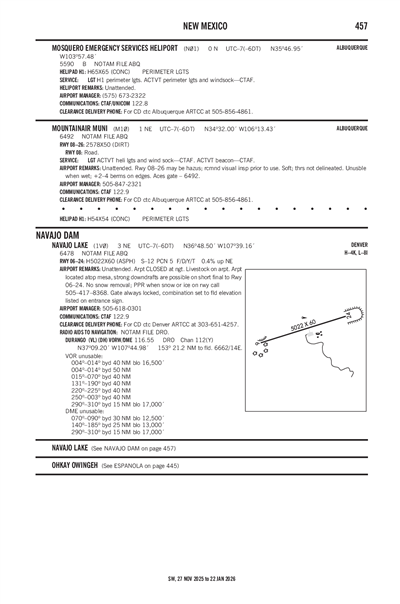

FAA A/FD Pages
FAA A/FD Page
Airport Diagrams
No Documents
Airport Minimums
No Documents
Departure Procedures
No Documents
Hotspot
No Documents
Standard Term. Arrival
No Documents
Instrument Approach
No Documents
Terminal Area Forecast
KDRO (21nm)
RAW
Reported
Mon, 5/20 11:40 AM MDT
Valid
Mon, 5/20 12:00 PM MDT - Tue, 5/21 12:00 PM MDT
VFR
12:00 PM MDT - 3:00 PM MDT
Scattered 25,000'
Viz
6sm
Wind
220° 10kts
Gusts 20kts
VFR
3:00 PM MDT - 6:00 PM MDT
Broken 25,000'
Few 12,000'
Viz
6sm
Wind
240° 20kts
Gusts 30kts
VFR
6:00 PM MDT - 12:00 AM MDT
Overcast 15,000'
Scattered 12,000'
Viz
6sm
Wind
250° 20kts
Gusts 35kts
VFR
12:00 AM MDT - 6:00 AM MDT
Broken 10,000'
Scattered 6,000'
Viz
6sm
Wind
240° 10kts
Gusts 20kts
VFR
6:00 AM MDT - 12:00 PM MDT
Scattered 25,000'
Few 10,000'
Viz
6sm
Wind
250° 7kts
KDRO 201740Z 2018/2118 22010G20KT P6SM SCT250
FM202100 24020G30KT P6SM FEW120 BKN250
FM210000 25020G35KT P6SM SCT120 OVC150
FM210600 24010G20KT P6SM SCT060 BKN100
FM211200 25007KT P6SM FEW100 SCT250
1V0
No NOTAM Available
ATC Tower
No
Attendance
UNATNDD
Owner
NM STATE HWY & TRANS DEPT
PO BOX 9830
ALBUQUERQUE, NM 87119
Phone: 505-244-1788
Manager
WILLIAM FITZPATRICK
3501 ACCESS RD C
ALBUQUERQUE, NM 87106
Phone: 505-417-8368
FSS
ALBUQUERQUE FSS (ABQ)
Toll Free: 1-800-WX-BRIEF
NOTAM
ABQ
Light Schedule
--
Lights
--
Beacon
N/A
Wind Indicator
Yes
Segmented Cir.
Yes
Landing Fee
No
Parking
Tie-Down
Int'l Operations
NOT a Landing Rights Airport
NOT an Airport of Entry
# Single Engine
0
# Multi Engine
0
# Jets
0
# Helicopters
0
# Military
0
# Ultralights
0
Airframe Repair
None
Pwrplant Repair
None
Bottled Oxygen
None
Bulk Oxygen
None
Other Services
None
Runway 06/24
Dimensions
5022 ft. x 60 ft.
Surface Type
ASPH
Surface Cond
Excellent
Treatment
NONE
Rwy Edge Lgts
Pavement Class
5 /F/D/Y/T
Single Wheel
12,000lbs
Double Wheel
--
Double Tandem
--
Dual Dbl Tand
--
Runway 06
Runway 24
True Heading
72°
252°
Traffic Pattern
Left
Left
Markings
BSC
BSC
Markings Condition
GOOD
GOOD
Latitude
36° 48' 22"N
36° 48' 38"N
Longitude
107° 39' 39"W
107° 38' 40"W
Elevation
6,457'
6,478'
Threshold Crossing Height
--
--
Visual Glide Path Angle
--
--
Visual Slope Indicator
--
--
Approach Lights
Centerline Lights
Runway End Identifier Lights
A110-1
NO SNOW REMOVAL; PPR WHEN SNOW OR ICE ON RWY CALL 505-417-8368.
A110-4
GATE ALWAYS LOCKED; COMBINATION SET TO FIELD ELEVATION LISTED ON ENTRANCE SIGN.
A110-6
LIVESTOCK ON ARPT.
A110-7
ARPT CLSD AT NIGHT.
A110-8
ARPT LCTD ATOP MESA; STRONG DOWNDRAFTS ARE POSSIBLE ON SHORT FINAL TO RWY 06/24.
A110-9
FOR CD CTC DENVER ARTCC AT 303-651-4257.
NAVAJO LAKE (IATA: 1V0) is a public airport located in NAVAJO DAM, NM.
