3AK
DRY BAY
Public
PUB
44 miles SE of YAKUTAT, AK
View on
Map
Status
Operational
Coordinates
59° 09' 52"N
138° 29' 20"W
Elevation
33' MSL
Pattern Alt
1033' MSL
Mag Variation
00E
Fuel
None Listed
FSS
JUNEAU (JNU)
Sectional
JUNEAU
ARTCC
ANCHORAGE (ZAN)
Data Effective
5/16/24-6/13/24
PAYA (42nm)
MVFR
11:33 AM AKDT
RAW
Overcast 4,600'
Broken 3,600'
Broken 2,200'
Viz
N/A
Temp
48°F
Dew
32°F
Pres
30.00"Hg
Wind
Calm
RMK
AO2 T0089 PWINO TSNO RVRNO $
PAYA 201933Z AUTO BKN022 BKN036 OVC046 09/ A3000 RMK AO2 T0089 PWINO TSNO RVRNO $
Services
Frequencies & Documents
Freqs & Docs
TAF
NOTAM
Operations
Runways
Remarks
List Your Business
3AK FBOs, Flight Schools and Ground Support
No FBOs, flight schools or aircraft ground support businesses are listed for this airport.
3AK Ground Transportation (Taxi, Limo, Car Service)
No ground transportation services are listed for this airport.
3AK Hotels
No hotels are listed for this airport.
3AK Restaurants
No restaurants are listed for this airport.
3AK Other Airport-Related Businesses
No other airport-related businesses are listed for this airport.
X
Send Message to Airport Company
Enter your information and message below.
Your Information
Business
x
UNICOM
--
CTAF
122.9
No communication frequencies available for this airport.

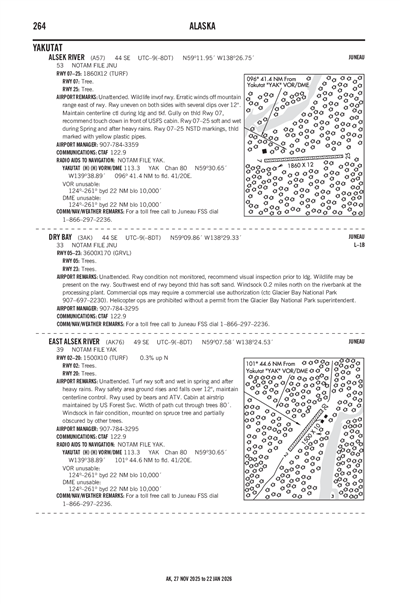

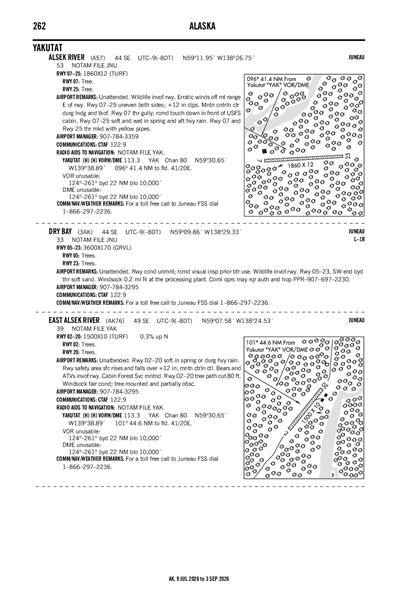

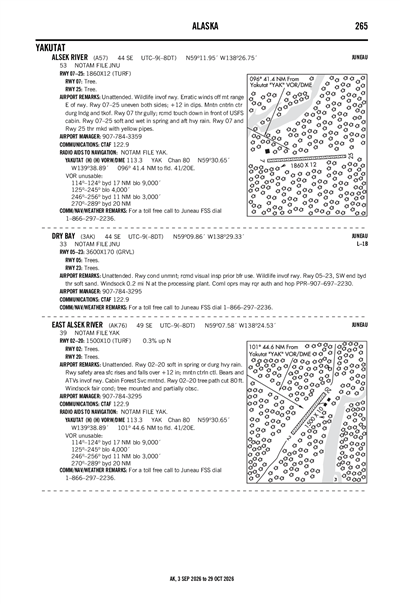

FAA A/FD Pages
FAA A/FD Page
Airport Diagrams
No Documents
Airport Minimums
No Documents
Departure Procedures
No Documents
Hotspot
No Documents
Standard Term. Arrival
No Documents
Instrument Approach
No Documents
Terminal Area Forecast
PAYA (42nm)
RAW
Reported
Mon, 5/20 10:31 AM AKDT
Valid
Mon, 5/20 11:00 AM AKDT - Tue, 5/21 10:00 AM AKDT
VFR
11:00 AM AKDT - 3:00 PM AKDT
Showers in vicinity
Overcast 3,500'
Scattered 1,300'
Viz
6sm
Wind
100° 7kts
MVFR
Temporary
11:00 AM AKDT - 3:00 PM AKDT
Overcast 2,500'
Broken 1,300'
Viz
N/A
Wind
Calm
MVFR
3:00 PM AKDT - 4:00 PM AKDT
Overcast 2,500'
Viz
6sm
Wind
140° 7kts
VFR
4:00 PM AKDT - 1:00 AM AKDT
Overcast 5,000'
Viz
6sm
Wind
280° 6kts
VFR
1:00 AM AKDT - 10:00 AM AKDT
Broken 10,000'
Scattered 5,000'
Viz
6sm
Wind
Calm
PAYA 201831Z 2019/2118 10007KT P6SM VCSH SCT013 OVC035
TEMPO 2019/2023 BKN013 OVC025
FM202300 14007KT P6SM OVC025
FM210000 28006KT P6SM OVC050
FM210900 00000KT P6SM SCT050 BKN100 AMD LTD TO CLD VIS AND WIND
3AK
No NOTAM Available
ATC Tower
No
Attendance
UNATTNDD
Owner
GLACIER BAY NATIONAL PARK
P.O. BOX 137
YAKUTAT, AK 99689
Phone: 907-784-3295
Manager
DRY BAY DISTRICT RANGER
P.O. BOX 137
YAKUTAT, AK 99689
Phone: 907-784-3295
FSS
JUNEAU FSS (JNU)
Toll Free: 1-866-297-2236
NOTAM
JNU
Light Schedule
--
Lights
--
Beacon
N/A
Wind Indicator
Yes
Segmented Cir.
N/A
Landing Fee
No
Parking
None
Int'l Operations
No
# Single Engine
0
# Multi Engine
0
# Jets
0
# Helicopters
0
# Military
0
# Ultralights
0
Airframe Repair
None
Pwrplant Repair
None
Bottled Oxygen
None
Bulk Oxygen
None
Other Services
None
Runway 05/23
Dimensions
3600 ft. x 170 ft.
Surface Type
GRAVEL
Surface Cond
Fair
Treatment
NONE
Rwy Edge Lgts
Pavement Class
Single Wheel
--
Double Wheel
--
Double Tandem
--
Dual Dbl Tand
--
Runway 05
Runway 23
True Heading
Not Listed
Not Listed
Traffic Pattern
Markings
Markings Condition
Latitude
N/A
N/A
Longitude
N/A
N/A
Elevation
--
--
Threshold Crossing Height
--
--
Visual Glide Path Angle
--
--
Visual Slope Indicator
--
--
Approach Lights
Centerline Lights
Runway End Identifier Lights
A110-1
HELICOPTER OPERS ARE PROHIBITED WITHOUT A PERMIT FROM THE GLACIER BAY NATIONAL PARK SUPERINTENDENT.
A110-2
WILDLIFE MAY BE PRESENT ON THE RY.
A110-3
COMMERCIAL OPERS MAY REQUIRE A COMMERCIAL USE AUTHORIZATION (CTC GLACIER BAY NATIONAL PARK 907-697-2230).
A110-4
SW END OF RY BEYOND THLD HAS SOFT SAND.
A110-6
RY CONDITION NOT MONITORED; RECOMMEND VISUAL INSPECTION PRIOR TO USING.
DRY BAY (IATA: 3AK) is a public airport located in YAKUTAT, AK.
