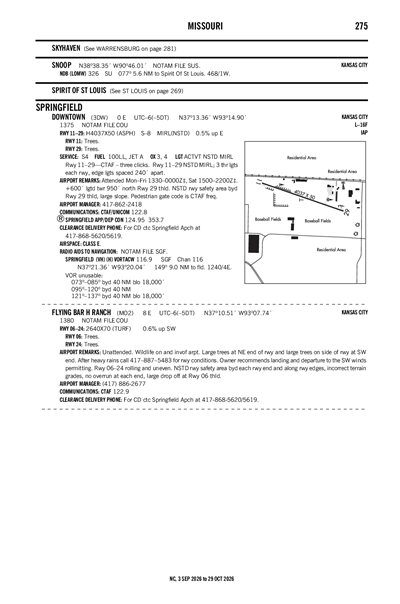

DOWNTOWN - Airport Diagram
LiveATC.net: Live Air Traffic - From Their Headsets to You

3DW
DOWNTOWN
PublicPUB

0 miles E of SPRINGFIELD, MO
View on Map
LiveATC.net: Live Air Traffic - From Their Headsets to You
Operational
37° 13' 22"N 93° 14' 54"W
1375' MSL
2375' MSL
01E
Jet A, 100LL
COLUMBIA (COU)
KANSAS CITY
KANSAS CITY (ZKC)
5/16/24-6/13/24
KSGF (7nm) VFR
12:52 PM CDT
Few 4,300'
10sm
80°F
66°F
29.91"Hg
230° 5kts
AO2 SLP114 60011 T02670189 10272 20178 53019
KSGF 201752Z 23005KT 10SM FEW043 27/19 A2991 RMK AO2 SLP114 60011 T02670189 10272 20178 53019
List Your Business

3DW FBOs, Flight Schools and Ground Support

Promote Listing
Springfield Flying Service
Freq: 122.8
Phone: (417) 862-2418
No Rating Available
0 Reviews (Read | Sign In To Write)
Phillips 66
As of 5/9
 100LL Jet A Jet A+ Mogas UL94
Self Serve 5.59 4.92
Full Serve 5.59 4.92

3DW Ground Transportation (Taxi, Limo, Car Service)

No ground transportation services are listed for this airport.

3DW Hotels

No hotels are listed for this airport.

3DW Restaurants

No restaurants are listed for this airport.

3DW Other Airport-Related Businesses

No other airport-related businesses are listed for this airport.
X

Send Message to Airport Company
Enter your information and message below.

Your Information

Processing
122.8 122.8

No communication frequencies available for this airport.

FAA A/FD Pages

Airport Diagrams

  • No Documents

Airport Minimums

Departure Procedures

  • No Documents

Hotspot

  • No Documents

Standard Term. Arrival

  • No Documents

Instrument Approach

Terminal Area Forecast

KSGF (7nm)
Mon, 5/20 12:20 PM CDT
Mon, 5/20 1:00 PM CDT - Tue, 5/21 1:00 PM CDT
VFR
1:00 PM CDT - 9:00 PM CDT
Scattered 4,000'
6sm
180° 9kts
VFR
9:00 PM CDT - 4:00 AM CDT
Few 25,000'
6sm
140° 9kts
VFR
4:00 AM CDT - 8:00 AM CDT
Few 25,000'
6sm
160° 11kts
Shear 200° 40kts @ 2000'
VFR
8:00 AM CDT - 1:00 PM CDT
Scattered 3,000'
6sm
180° 16kts
Gusts 27kts
KSGF 201720Z 2018/2118 18009KT P6SM SCT040
   FM210200 14009KT P6SM FEW250
   FM210900 16011KT P6SM FEW250 WS020/20040KT
   FM211300 18016G27KT P6SM SCT030
3DW
Domestic
5/14/240410Z !COU 05/292 3DW OBST TOWER LGT (ASR 1005717) 370901.60N0932005.10W (6.0NM SW 3DW) 1672.6FT (411.7FT AGL) U/S 2405140410-2405290310
5/8/240221Z !COU 05/155 3DW OBST TOWER LGT (ASR 1006331) 370406.00N0931832.00W (9.7NM SSW 3DW) 1843.8FT (603.7FT AGL) U/S 2405080221-2408072359
5/7/240613Z !COU 05/128 3DW OBST TOWER LGT (ASR 1253727) 371948.10N0931541.50W (6.5NM N 3DW) 1515.7FT (255.9FT AGL) U/S 2405070613-2405220513
5/2/241706Z !COU 05/043 3DW OBST TOWER LGT (ASR 1296568) 372247.20N0930456.70W (12.4NM NE 3DW) 1593.2FT (266.1FT AGL) U/S 2405021706-2406161705
4/3/242138Z !COU 04/057 3DW OBST TOWER LGT (ASR 1222855) 372218.50N0930941.60W (9.9NM NNE 3DW) 2029.2FT (620.1FT AGL) U/S 2404032138-2407032359
No
MON-FRI 0730-1800
SAT 0900-1600
SHERMAN STREET ACQUISITION CO INC
605 N. SHERMAN ST
SPRINGFIELD, MO 65803
BRADLEY BYRON
2546 E DIVISION ST
SPRINGFIELD, MO 65803
Phone: 417-862-2418
COLUMBIA FSS (COU)
Toll Free: 1-800-WX-BRIEF
COU
--
ACTVT NSTD MIRL RWY 11/29 - CTAF-THREE CLICKS.
N/A
Yes - Lighted
No
No
Hanger, Tie-Down
NOT a Landing Rights Airport
NOT an Airport of Entry
37
3
2
0
0
0
Major
Major
High & Low Pressure
None
None

Runway 11/29

4037 ft. x 50 ft.
ASPH
Good
NONE
NSTD

8,000lbs
--
--
--
  Runway 11 Runway 29
True Heading 109°289°
Traffic Pattern Left Left
Markings NPI NPI
Markings Condition FAIR FAIR
Latitude 37° 13' 28"N 37° 13' 15"N
Longitude 93° 15' 18"W 93° 14' 30"W
Elevation 1,355' 1,375'
Threshold Crossing Height -- --
Visual Glide Path Angle -- --
Visual Slope Indicator -- --
Approach Lights
Centerline Lights
Runway End Identifier Lights
A110-1600 FT LGTD TOWER 950 FT N OF RY 29 THLD.
A110-3NTSD RY SAFETY AREA BYD RY 29 THLD; LARGE SLOPE.
A110-5PEDESTRIAN GATE CODE IS CTAF FREQ.
A110-6FOR CD CTC SPRINGFIELD APCH AT 417-868-5620/5619.
DOWNTOWN (IATA: 3DW) is a public airport located in SPRINGFIELD, MO.
