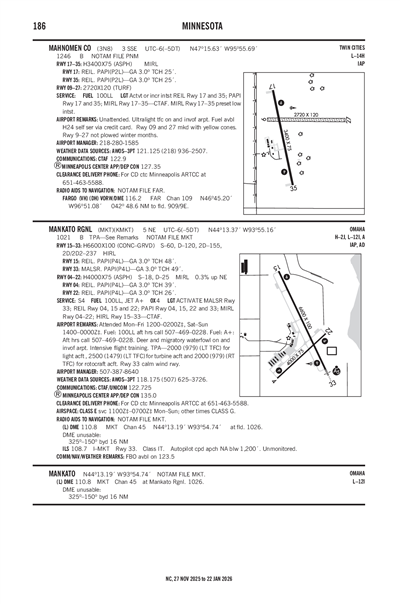

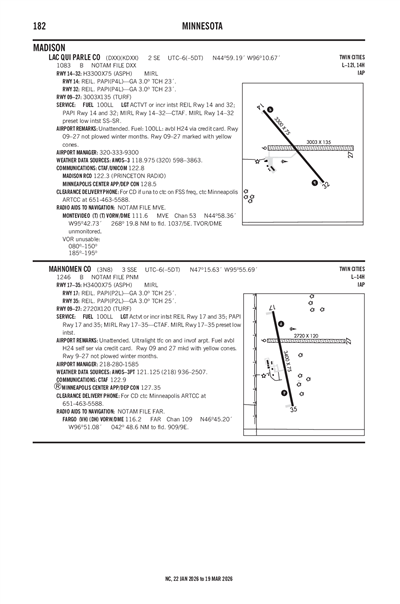

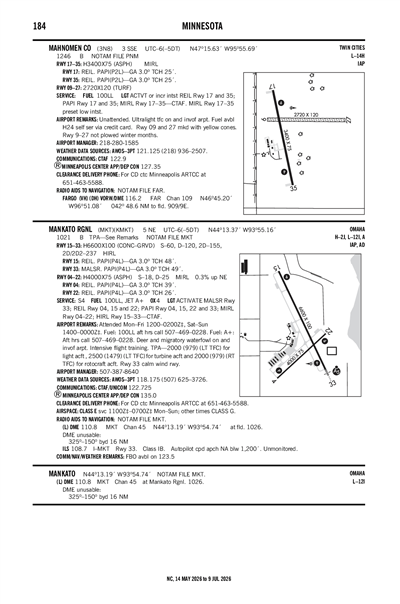

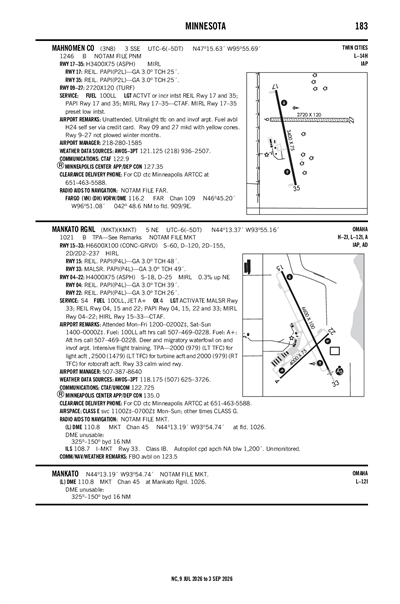

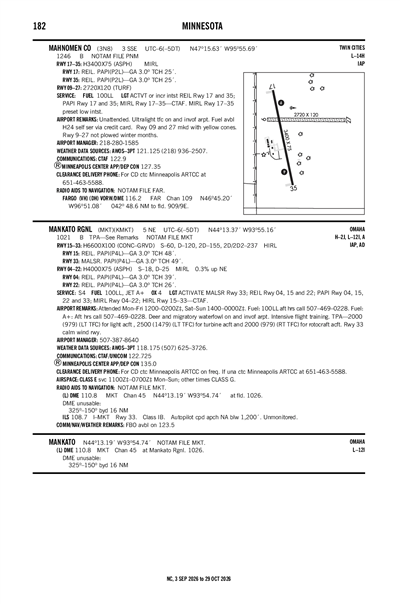

MAHNOMEN COUNTY - Airport Diagram
LiveATC.net: Live Air Traffic - From Their Headsets to You

3N8
MAHNOMEN COUNTY
PublicPUB

3 miles SSE of MAHNOMEN, MN
View on Map
LiveATC.net: Live Air Traffic - From Their Headsets to You
Operational
47° 15' 38"N 95° 55' 41"W
1246' MSL
2246' MSL
02E
100LL
PRINCETON (PNM)
TWIN CITIES
MINNEAPOLIS (ZMP)
5/16/24-6/13/24
K3N8 MVFR
3:35 PM CDT
Overcast 4,000'
Broken 3,400'
Broken 2,400'
10sm
66°F
56°F
29.84"Hg
270° 7kts
AO2 T01870134
K3N8 202035Z AUTO 27007KT 10SM BKN024 BKN034 OVC040 19/13 A2984 RMK AO2 T01870134
List Your Business

3N8 FBOs, Flight Schools and Ground Support

No FBOs, flight schools or aircraft ground support businesses are listed for this airport.

3N8 Ground Transportation (Taxi, Limo, Car Service)

No ground transportation services are listed for this airport.

3N8 Hotels

No hotels are listed for this airport.

3N8 Restaurants

No restaurants are listed for this airport.

3N8 Other Airport-Related Businesses

No other airport-related businesses are listed for this airport.
X

Send Message to Airport Company
Enter your information and message below.

Your Information

Processing
-- 122.9

AWOS-3PT

AWOS-3PT
218-936-2507
 121.125

FAA A/FD Pages

Airport Diagrams

  • No Documents

Airport Minimums

Departure Procedures

  • No Documents

Hotspot

  • No Documents

Standard Term. Arrival

  • No Documents

Instrument Approach

Terminal Area Forecast

KFAR (41nm)
Mon, 5/20 12:58 PM CDT
Mon, 5/20 1:00 PM CDT - Tue, 5/21 1:00 PM CDT
MVFR
1:00 PM CDT - 5:00 PM CDT
Overcast 2,000'
6sm
320° 6kts
MVFR
5:00 PM CDT - 11:00 PM CDT
Overcast 3,000'
6sm
350° 11kts
VFR
11:00 PM CDT - 6:00 AM CDT
Broken 12,000'
6sm
020° 6kts
VFR
6:00 AM CDT - 11:00 AM CDT
Overcast 11,000'
6sm
050° 7kts
VFR
11:00 AM CDT - 1:00 PM CDT
Overcast 6,000'
6sm
040° 13kts
KFAR 201758Z 2018/2118 32006KT P6SM OVC020
   FM202200 35011KT P6SM OVC030
   FM210400 02006KT P6SM BKN120
   FM211100 05007KT P6SM OVC110
   FM211600 04013KT P6SM OVC060
3N8
Domestic
5/8/241400Z !PNM 05/097 3N8 OBST TOWER LGT (ASN 2017-AGL-17141-OE) 472303N0955830W (7.7NM NNW 3N8) 1629FT (412FT AGL) U/S 2405081400-2406221359
4/27/240739Z !PNM 04/241 3N8 OBST WIND TURBINE LGT (ASN 2013-WTE-7017-OE) 470521N0955135W (10.7NM SSE 3N8) 1775FT (265FT AGL) U/S 2404270739-2406110739
4/24/241351Z !PNM 04/211 3N8 OBST TOWER LGT (ASR 1272710) 471339.30N0954700.80W (6.2NM ESE 3N8) 1869.8FT (419.9FT AGL) U/S 2404241351-2406242359
No
UNATNDD
COUNTY OF MAHNOMEN
PO BOX 379
MAHNOMEN, MN 56557-0379
Phone: 218-935-5669
BILL NELSON
PO BOX 379
MAHNOMEN, MN 56557-0379
Phone: 218-280-1585
PRINCETON FSS (PNM)
Toll Free: 1-800-WX-BRIEF
PNM
--
ACTVT OR INCR INTST REIL RWY 17 & 35; PAPI RWY 17 & 35; MIRL RWY 17/35 - CTAF. MIRL RWY 17/35 PRESET LOW INTST.
N/A
Yes - Lighted
No
No
Tie-Down
No
20
3
0
0
0
0
None
None
None
None
Crop Dusting

Runway 09/27

2720 ft. x 120 ft.
TURF
Good
NONE


--
--
--
--
  Runway 09 Runway 27
True Heading 90°270°
Traffic Pattern
Markings
Markings Condition
Latitude 47° 15' 41"N 47° 15' 41"N
Longitude 95° 55' 54"W 95° 55' 15"W
Elevation 1,243' 1,244'
Threshold Crossing Height -- --
Visual Glide Path Angle -- --
Visual Slope Indicator -- --
Approach Lights
Centerline Lights
Runway End Identifier Lights

Runway 17/35

3400 ft. x 75 ft.
ASPH
Fair
NONE
MED

--
--
--
--
  Runway 17 Runway 35
True Heading 168°348°
Traffic Pattern Left Left
Markings NPI NPI
Markings Condition GOOD GOOD
Latitude 47° 15' 52"N 47° 15' 19"N
Longitude 95° 55' 51"W 95° 55' 41"W
Elevation 1,241' 1,243'
Threshold Crossing Height 25 ft. AGL 25 ft. AGL
Visual Glide Path Angle 3° 3°
Visual Slope Indicator P2L P2L
Approach Lights
Centerline Lights
Runway End Identifier Lights Yes Yes
A110-1ULTRALIGHT TFC ON & INVOF ARPT.
A110-4FOR CD CTC MINNEAPOLIS ARTCC AT 651-463-5588.
MAHNOMEN COUNTY (IATA: 3N8) is a public airport located in MAHNOMEN, MN.
