40D
THREE LAKES MUNI
Public
PUB
3 miles SE of THREE LAKES, WI
View on
Map
Status
Operational
Coordinates
45° 47' 24"N
89° 07' 17"W
Elevation
1637' MSL
Pattern Alt
2437' MSL
Mag Variation
01W
Fuel
None Listed
FSS
GREEN BAY (GRB)
Sectional
GREEN BAY
ARTCC
MINNEAPOLIS (ZMP)
Data Effective
5/16/24-6/13/24
KEGV (10nm)
MVFR
12:35 PM CDT
RAW
Light Rain
Overcast 4,700'
Broken 1,000'
Viz
10sm
Temp
59°F
Dew
59°F
Pres
29.88"Hg
Wind
180° 4kts
RMK
AO2 T01500150
KEGV 201735Z AUTO 18004KT 10SM -RA BKN010 OVC047 15/15 A2988 RMK AO2 T01500150
Services
Frequencies & Documents
Freqs & Docs
TAF
NOTAM
Operations
Runways
Remarks
List Your Business
40D FBOs, Flight Schools and Ground Support
No FBOs, flight schools or aircraft ground support businesses are listed for this airport.
40D Ground Transportation (Taxi, Limo, Car Service)
No ground transportation services are listed for this airport.
40D Hotels
No hotels are listed for this airport.
40D Restaurants
No restaurants are listed for this airport.
40D Other Airport-Related Businesses
No other airport-related businesses are listed for this airport.
X
Send Message to Airport Company
Enter your information and message below.
Your Information
Business
x
UNICOM
122.7
CTAF
122.7
No communication frequencies available for this airport.

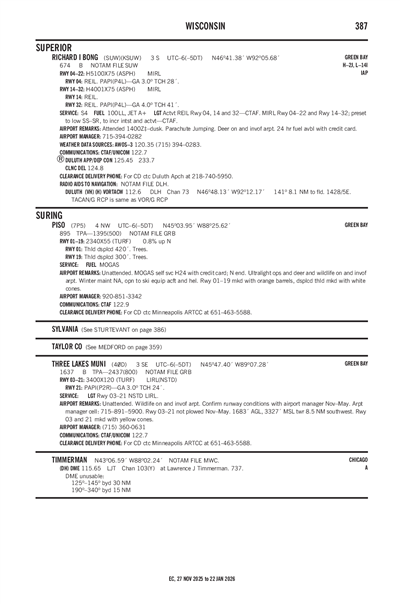

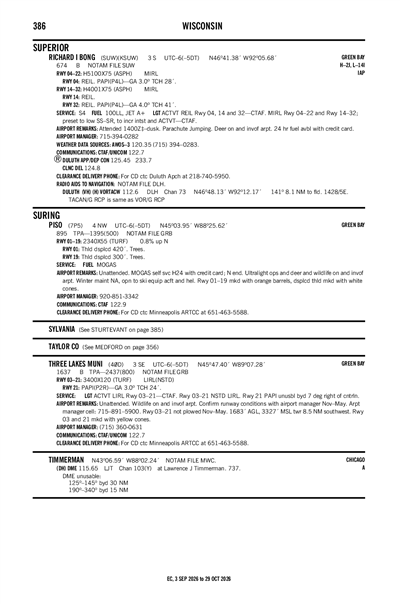

FAA A/FD Pages
FAA A/FD Page
Airport Diagrams
No Documents
Airport Minimums
No Documents
Departure Procedures
No Documents
Hotspot
No Documents
Standard Term. Arrival
No Documents
Instrument Approach
No Documents
Terminal Area Forecast
KRHI (18nm)
RAW
Reported
Mon, 5/20 12:47 PM CDT
Valid
Mon, 5/20 1:00 PM CDT - Tue, 5/21 1:00 PM CDT
MVFR
1:00 PM CDT - 2:00 PM CDT
Light Showers and Rain
Overcast 1,000'
Viz
6sm
Wind
180° 8kts
MVFR
2:00 PM CDT - 7:00 PM CDT
Overcast 1,200'
Viz
6sm
Wind
220° 5kts
MVFR
7:00 PM CDT - 10:00 PM CDT
Broken 2,800'
Scattered 400'
Viz
6sm
Wind
VRB° 3kts
MVFR
10:00 PM CDT - 1:00 AM CDT
Broken 2,400'
Scattered 300'
Viz
6sm
Wind
VRB° 3kts
LIFR
1:00 AM CDT - 9:00 AM CDT
Fog
Broken 1,000'
Broken 400'
Viz
0.5sm
Wind
VRB° 3kts
MVFR
9:00 AM CDT - 1:00 PM CDT
Broken 2,100'
Scattered 500'
Viz
6sm
Wind
120° 6kts
KRHI 201747Z 2018/2118 18008KT P6SM -SHRA OVC010
FM201900 22005KT P6SM OVC012
FM210000 VRB03KT P6SM SCT004 BKN028
FM210300 VRB03KT P6SM SCT003 BKN024
FM210600 VRB03KT 1/2SM FG BKN004 BKN010
FM211400 12006KT P6SM SCT005 BKN021
40D
Domestic
5/6/24
0504Z
!GRB 05/063 40D OBST TOWER LGT (ASR 1044673) 454003.00N0891229.00W (8.2NM SSW 40D) 3325.8FT (1681.8FT AGL) U/S 2405060504-2409062359
2/13/24
1647Z
!GRB 02/197 40D AD AP SFC COND NOT REP 2402131647-2412312359
ATC Tower
No
Attendance
UNATNDD
Owner
TOWN OF THREE LAKES
P.O. BOX 565
THREE LAKES, WI 54562
Phone: 715-546-3316
Manager
JORDAN GENSLER
6181 GENSLER RD
THREE LAKES, WI 54562-0562
Phone: (715) 360-0631
FSS
GREEN BAY FSS (GRB)
Toll Free: 1-800-WX-BRIEF
NOTAM
GRB
Light Schedule
Sunset to Sunrise
Lights
--
Beacon
N/A
Wind Indicator
Yes
Segmented Cir.
No
Landing Fee
No
Parking
Tie-Down
Int'l Operations
NOT a Landing Rights Airport
NOT an Airport of Entry
# Single Engine
6
# Multi Engine
1
# Jets
0
# Helicopters
0
# Military
0
# Ultralights
1
Airframe Repair
None
Pwrplant Repair
None
Bottled Oxygen
None
Bulk Oxygen
None
Other Services
None
Runway 03/21
Dimensions
3400 ft. x 120 ft.
Surface Type
TURF
Surface Cond
Good
Treatment
NONE
Rwy Edge Lgts
NSTD
Pavement Class
Single Wheel
--
Double Wheel
--
Double Tandem
--
Dual Dbl Tand
--
Runway 03
Runway 21
True Heading
26°
206°
Traffic Pattern
Left
Left
Markings
Markings Condition
Latitude
45° 47' 09"N
45° 47' 39"N
Longitude
89° 07' 27"W
89° 07' 06"W
Elevation
1,637'
1,637'
Threshold Crossing Height
--
24 ft. AGL
Visual Glide Path Angle
--
3°
Visual Slope Indicator
--
P2L
Approach Lights
Centerline Lights
Runway End Identifier Lights
A110-1
1683 FT AGL/3327 FT MSL TWR 8.5 NM SW.
A110-2
CONFIRM RUNWAY CONDITIONS WITH AIRPORT MANAGER NOV - MAY.
A110-3
FOR CD CTC MINNEAPOLIS ARTCC AT 651-463-5588.
THREE LAKES MUNI (IATA: 40D) is a public airport located in THREE LAKES, WI.
