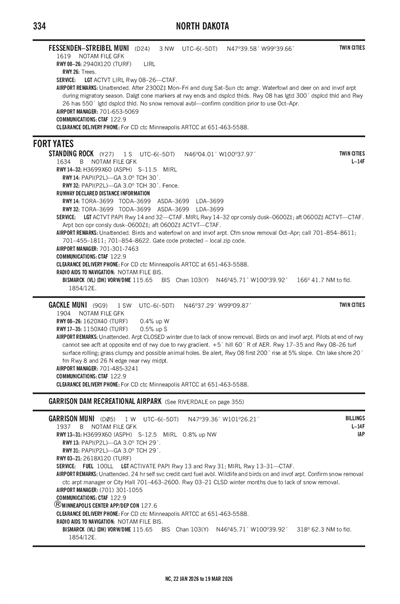

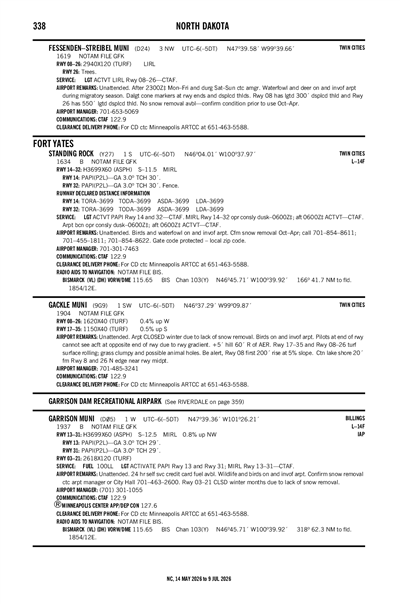

GACKLE MUNI - Airport Diagram
LiveATC.net: Live Air Traffic - From Their Headsets to You

9G9
GACKLE MUNI
PublicPUB

1 miles SW of GACKLE, ND
View on Map
LiveATC.net: Live Air Traffic - From Their Headsets to You
Operational
46° 37' 18"N 99° 09' 52"W
1904' MSL
2904' MSL
08E
None Listed
GRAND FORKS (GFK)
TWIN CITIES
MINNEAPOLIS (ZMP)
5/16/24-6/13/24
KJMS (27nm) VFR
11:56 AM CDT
Few 2,000'
10sm
59°F
51°F
29.89"Hg
330° 10kts
AO2 SLP124 T01500106
KJMS 201656Z AUTO 33010KT 10SM FEW020 15/11 A2989 RMK AO2 SLP124 T01500106
List Your Business

9G9 FBOs, Flight Schools and Ground Support

No FBOs, flight schools or aircraft ground support businesses are listed for this airport.

9G9 Ground Transportation (Taxi, Limo, Car Service)

No ground transportation services are listed for this airport.

9G9 Hotels

No hotels are listed for this airport.

9G9 Restaurants

No restaurants are listed for this airport.

9G9 Other Airport-Related Businesses

No other airport-related businesses are listed for this airport.
X

Send Message to Airport Company
Enter your information and message below.

Your Information

Processing
-- 122.9

No communication frequencies available for this airport.

FAA A/FD Pages

Airport Diagrams

  • No Documents

Airport Minimums

  • No Documents

Departure Procedures

  • No Documents

Hotspot

  • No Documents

Standard Term. Arrival

  • No Documents

Instrument Approach

  • No Documents

Terminal Area Forecast

KJMS (27nm)
Mon, 5/20 12:24 PM CDT
Mon, 5/20 1:00 PM CDT - Tue, 5/21 1:00 PM CDT
VFR
1:00 PM CDT - 7:00 PM CDT
Broken 12,000'
Scattered 6,000'
Few 2,000'
6sm
330° 11kts
VFR
7:00 PM CDT - 8:00 AM CDT
Broken 20,000'
Scattered 7,000'
6sm
VRB° 4kts
VFR
8:00 AM CDT - 10:00 AM CDT
Broken 10,000'
Scattered 3,000'
6sm
050° 9kts
VFR
10:00 AM CDT - 12:00 PM CDT
Broken 9,000'
Scattered 3,500'
6sm
040° 13kts
VFR
12:00 PM CDT - 1:00 PM CDT
Overcast 9,000'
Scattered 3,000'
6sm
030° 16kts
KJMS 201724Z 2018/2118 33011KT P6SM FEW020 SCT060 BKN120
   FM210000 VRB04KT P6SM SCT070 BKN200
   FM211300 05009KT P6SM SCT030 BKN100
   FM211500 04013KT P6SM SCT035 BKN090
   FM211700 03016KT P6SM SCT030 OVC090
9G9
Domestic
8/23/211331Z !GFK 08/194 9G9 RWY 17/35 CHANGED TO 1700FT X 40FT. DECLARED DIST: RWY 17 TORA 1700FT TODA 1700FT ASDA 1700FT LDA 1700FT. RWY 35 TORA 1700FT TODA 1700FT ASDA 1700FT LDA 1700FT. 2108231331-PERM
No
UNATNDD
TOWN OF GACKLE
P.O. BOX 57
GACKLE, ND 58442
Phone: 701-320-3655
LARRY LARSON
P.O. BOX 141
GACKLE, ND 58442
Phone: 701-485-3241
GRAND FORKS FSS (GFK)
Toll Free: 1-800-WX-BRIEF
GFK
--
--
N/A
Yes
No
No
Tie-Down
NOT a Landing Rights Airport
NOT an Airport of Entry
0
0
0
0
0
0
None
None
None
None
None

Runway 08/26

1620 ft. x 40 ft.
TURF
Fair
NONE


--
--
--
--
  Runway 08 Runway 26
True Heading 90°270°
Traffic Pattern Left Left
Markings
Markings Condition
Latitude 46° 37' 20"N 46° 37' 20"N
Longitude 99° 10' 10"W 99° 09' 46"W
Elevation 1,897' 1,891'
Threshold Crossing Height -- --
Visual Glide Path Angle -- --
Visual Slope Indicator -- --
Approach Lights
Centerline Lights
Runway End Identifier Lights

Runway 17/35

1150 ft. x 40 ft.
TURF
Fair
NONE


--
--
--
--
  Runway 17 Runway 35
True Heading 180°360°
Traffic Pattern Left Left
Markings
Markings Condition
Latitude 46° 37' 20"N 46° 37' 09"N
Longitude 99° 09' 44"W 99° 09' 44"W
Elevation 1,893' 1,899'
Threshold Crossing Height -- --
Visual Glide Path Angle -- --
Visual Slope Indicator -- --
Approach Lights
Centerline Lights
Runway End Identifier Lights
A110-15 FT HILL 60 FT R OF AER 8.
A110-10CTN - LAKE SHORE 20 FT FM RWY 8 & 26 N EDGE NEAR RWY MIDPT.
A110-2PILOTS AT END OF RWY CANNOT SEE ACFT AT OPPOSITE END DUE TO RWY GRADIENT.
A110-3ARPT CLSD WINTER DUE TO LACK OF SNOW REMOVAL.
A110-5BIRDS ON & INVOF ARPT.
A110-6BE ALERT, RY 8 FIRST 200' RISE AT 5% SLOPE.
A110-9FOR CD CTC MINNEAPOLIS ARTCC AT 651-463-5588.
GACKLE MUNI (IATA: 9G9) is a public airport located in GACKLE, ND.
