9K8
KINGMAN/CLYDE CESSNA FLD
Public
PUB
1 miles NW of KINGMAN, KS
View on
Map
Status
Operational
Coordinates
37° 40' 08"N
98° 07' 26"W
Elevation
1607' MSL
Pattern Alt
2607' MSL
Mag Variation
06E
Fuel
100LL
FSS
WICHITA (ICT)
Sectional
WICHITA
ARTCC
KANSAS CITY (ZKC)
Data Effective
5/16/24-6/13/24
KHUT (27nm)
VFR
1:59 PM CDT
RAW
Overcast 3,500'
Scattered 2,700'
Viz
10sm
Temp
77°F
Dew
66°F
Pres
29.78"Hg
Wind
180° 8kts
RMK
AO2 T02500189
KHUT 201859Z 18008KT 10SM SCT027 OVC035 25/19 A2978 RMK AO2 T02500189
Services
Frequencies & Documents
Freqs & Docs
TAF
NOTAM
Operations
Runways
Remarks
List Your Business
9K8 FBOs, Flight Schools and Ground Support
Promote Listing
Kingman Airport
Freq: 122.8
Phone: (620) 532-1279
0 Reviews
(
Read
|
Sign In To Write
)
Independent
As of
5/14
100LL
Jet
A
Jet
A+
Mogas
UL94
Self Serve
6.25
4.50
Full Serve
9K8 Ground Transportation (Taxi, Limo, Car Service)
No ground transportation services are listed for this airport.
9K8 Hotels
No hotels are listed for this airport.
9K8 Restaurants
No restaurants are listed for this airport.
9K8 Other Airport-Related Businesses
No other airport-related businesses are listed for this airport.
X
Send Message to Airport Company
Enter your information and message below.
Your Information
Business
x
UNICOM
122.8
CTAF
122.8
AWOS-3PT
AWOS-3PT
620-532-1272
119.325

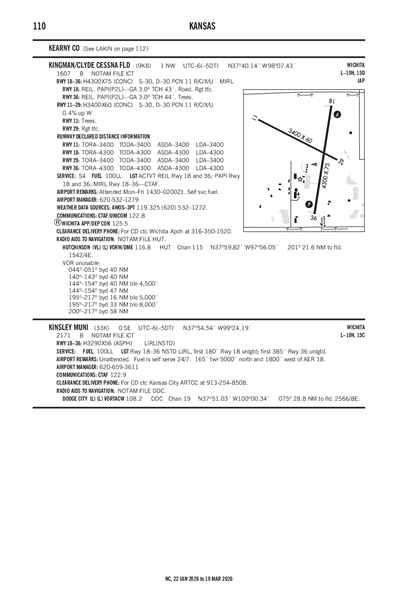

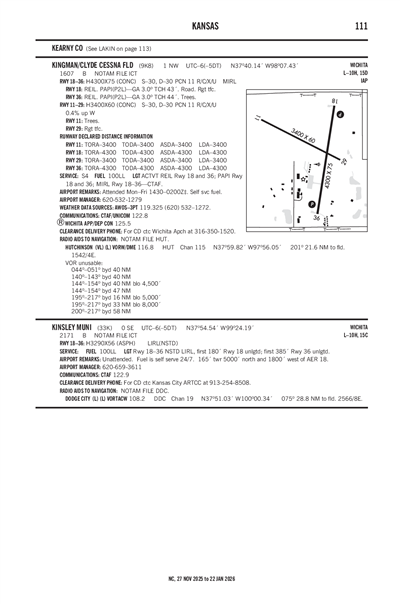

FAA A/FD Pages
FAA A/FD Page
Airport Diagrams
No Documents
Airport Minimums
TAKEOFF MINIMUMS
Departure Procedures
No Documents
Hotspot
No Documents
Standard Term. Arrival
No Documents
Instrument Approach
RNAV (GPS) RWY 18
RNAV (GPS) RWY 36
Terminal Area Forecast
KHUT (27nm)
RAW
Reported
Mon, 5/20 12:22 PM CDT
Valid
Mon, 5/20 1:00 PM CDT - Tue, 5/21 1:00 PM CDT
MVFR
1:00 PM CDT - 6:00 PM CDT
Broken 2,600'
Viz
6sm
Wind
180° 17kts
VFR
6:00 PM CDT - 3:00 AM CDT
Few 13,000'
Viz
6sm
Wind
130° 10kts
VFR
3:00 AM CDT - 1:00 PM CDT
Few 23,000'
Viz
6sm
Wind
170° 14kts
Gusts 24kts
Shear 190° 45kts @ 2000'
KHUT 201722Z 2018/2118 18017KT P6SM BKN026
FM202300 13010KT P6SM FEW130
FM210800 17014G24KT P6SM FEW230 WS020/19045KT
9K8
FDC
9/26/23
1324Z
!FDC 3/4977 9K8 IAP KINGMAN/CLYDE CESSNA FLD, KINGMAN, KS.
RNAV (GPS) RWY 36, AMDT 1B...
LP MDA 2280/HAT 683 ALL CATS, VIS CAT C 2. LNAV MDA 2280/HAT 683 ALL CATS, VIS CAT C 2. CIRCLING MDA 2280/HAA 673 ALL CATS, VIS CAT C 2. VDP NA. DISREGARD BUGAC STEPDOWN FIX AND STEPDOWN FIX ALTITUDE.
2309261324-2509261324EST
ATC Tower
No
Attendance
MON-FRI 0830-2000
Owner
CITY OF KINGMAN
324 NORTH MAIN
KINGMAN, KS 67068
Phone: 620-532-3111
Manager
EZRA OLSON
PO BOX 262
KINGMAN, KS 67068
Phone: (620) 532-1279
FSS
WICHITA FSS (ICT)
Toll Free: 1-800-WX-BRIEF
NOTAM
ICT
Light Schedule
--
Lights
ACTVT REIL RWY 18 & 36; PAPI RWY 18 & 36; MIRL 18/36 - CTAF.
Beacon
N/A
Wind Indicator
Yes - Lighted
Segmented Cir.
Yes
Landing Fee
No
Parking
Hanger, Tie-Down
Int'l Operations
No
# Single Engine
31
# Multi Engine
2
# Jets
0
# Helicopters
0
# Military
0
# Ultralights
0
Airframe Repair
Major
Pwrplant Repair
Major
Bottled Oxygen
None
Bulk Oxygen
None
Other Services
Crop Dusting
Pilot Instruction
Aircraft Rental
Runway 11/29
Dimensions
3400 ft. x 60 ft.
Surface Type
CONC
Surface Cond
Good
Treatment
NONE
Rwy Edge Lgts
Pavement Class
11 /R/C/X/U
Single Wheel
30,000lbs
Double Wheel
30,000lbs
Double Tandem
--
Dual Dbl Tand
--
Runway 11
Runway 29
True Heading
116°
296°
Traffic Pattern
Right
Markings
BSC
BSC
Markings Condition
GOOD
GOOD
Latitude
37° 40' 20"N
37° 40' 05"N
Longitude
98° 07' 52"W
98° 07' 14"W
Elevation
1,607'
1,592'
Threshold Crossing Height
--
--
Visual Glide Path Angle
--
--
Visual Slope Indicator
--
--
Approach Lights
Centerline Lights
Runway End Identifier Lights
Runway 18/36
Dimensions
4300 ft. x 75 ft.
Surface Type
CONC
Surface Cond
Fair
Treatment
NONE
Rwy Edge Lgts
MED
Pavement Class
11 /R/C/X/U
Single Wheel
30,000lbs
Double Wheel
30,000lbs
Double Tandem
--
Dual Dbl Tand
--
Runway 18
Runway 36
True Heading
188°
8°
Traffic Pattern
Right
Left
Markings
NPI
NPI
Markings Condition
GOOD
GOOD
Latitude
37° 40' 26"N
37° 39' 44"N
Longitude
98° 07' 17"W
98° 07' 24"W
Elevation
1,599'
1,596'
Threshold Crossing Height
43 ft. AGL
44 ft. AGL
Visual Glide Path Angle
3°
3°
Visual Slope Indicator
P2L
P2L
Approach Lights
Centerline Lights
Runway End Identifier Lights
Yes
Yes
A110-1
FOR CD CTC WICHITA APCH AT 316-350-1520.
KINGMAN/CLYDE CESSNA FLD (IATA: 9K8) is a public airport located in KINGMAN, KS.
