MIDDLETON MUNI/MOREY FLD - Airport Diagram

C29

MIDDLETON MUNI/MOREY FLD

PublicPUB

5 miles NW of MIDDLETON, WI

View on Map

Status

Operational

Coordinates

43° 06' 52"N 89° 31' 54"W

Elevation

928' MSL

Pattern Alt

1928' MSL

Mag Variation

01W

Fuel

Jet A+, 100LL

FSS

GREEN BAY (GRB)

Sectional

CHICAGO

ARTCC

CHICAGO (ZAU)

Data Effective

5/16/24-6/13/24

KC29 VFR

8:35 AM CDT RAW

Clear

Viz

10sm

Temp

63°F

Dew

62°F

Pres

29.90"Hg

Wind

100° 4kts

RMK

AO1 T01710168

KC29 201335Z AUTO 10004KT 10SM CLR 17/17 A2990 RMK AO1 T01710168

List Your Business

C29 FBOs, Flight Schools and Ground Support

Promote Listing

Morey Airplane Co.

Freq: 123.0

Phone: (608) 836-1711

0 Reviews (Read | Sign In To Write)

Other

As of 5/14	100LL	Jet A	Jet A+	Mogas	UL94
Self Serve	5.90		5.45
Full Serve	6.10		5.50		6.70

C29 Ground Transportation (Taxi, Limo, Car Service)

No ground transportation services are listed for this airport.

C29 Hotels

No hotels are listed for this airport.

C29 Restaurants

No restaurants are listed for this airport.

C29 Other Airport-Related Businesses

No other airport-related businesses are listed for this airport.

Your Information

Business

UNICOM 123.0 CTAF 123.0

AWOS-3

608-833-1686

118.675

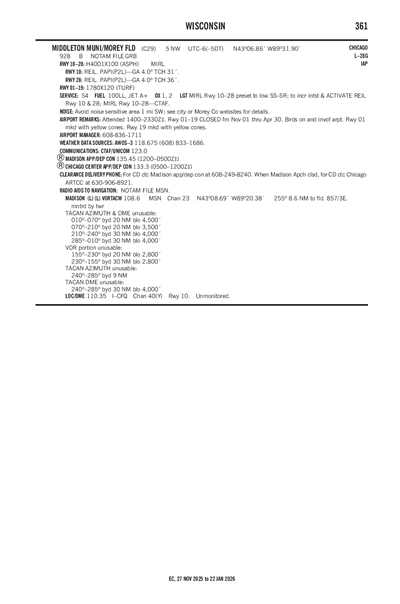

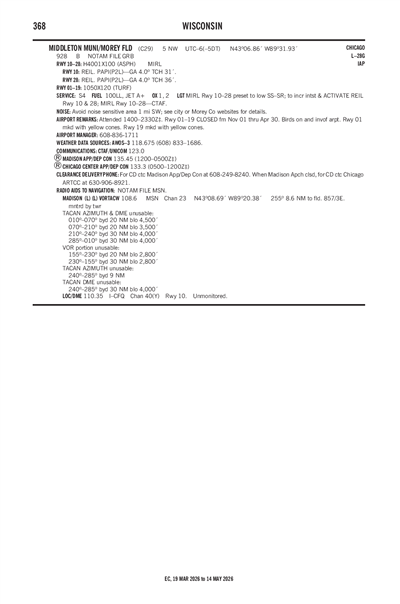

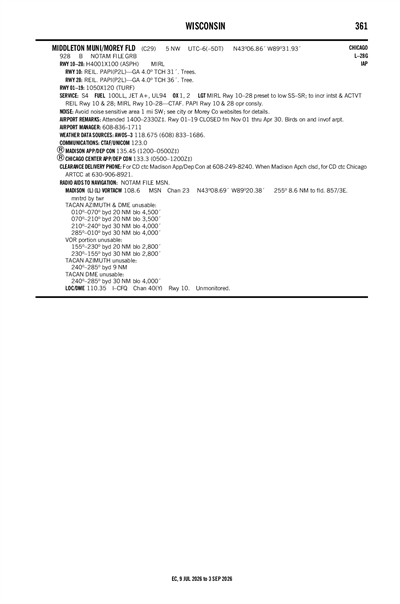

FAA A/FD Pages

FAA A/FD Page

Airport Diagrams

No Documents

Airport Minimums

Departure Procedures

No Documents

Hotspot

No Documents

Standard Term. Arrival

No Documents

Instrument Approach

Terminal Area Forecast

KMSN (8nm)

RAW

Reported

Mon, 5/20 6:38 AM CDT

Valid

Mon, 5/20 7:00 AM CDT - Tue, 5/21 7:00 AM CDT

VFR

7:00 AM CDT - 9:00 AM CDT

Broken 10,000'
Few 6,000'

Viz

6sm

Wind

130° 6kts

VFR

Temporary 7:00 AM CDT - 8:00 AM CDT

Light Showers and Rain and Mist

No Clouds

Viz

6sm

Wind

Calm

VFR

9:00 AM CDT - 12:00 PM CDT

Broken 8,000'
Scattered 3,500'

Viz

6sm

Wind

200° 13kts

Gusts 21kts

MVFR

12:00 PM CDT - 5:00 PM CDT

Light Thunderstorm and Rain

Broken 3,500'

Viz

4sm

Wind

200° 10kts

Gusts 20kts

MVFR

5:00 PM CDT - 9:00 PM CDT

Broken 2,100'

Viz

6sm

Wind

230° 8kts

VFR

9:00 PM CDT - 7:00 AM CDT

Scattered 11,000'

Viz

6sm

Wind

VRB° 4kts

KMSN 201138Z 2012/2112 13006KT P6SM FEW060 BKN100
   TEMPO 2012/2013 6SM -SHRA BR
   FM201400 20013G21KT P6SM SCT035 BKN080
   FM201700 20010G20KT 4SM -TSRA BKN035CB
   FM202200 23008KT P6SM BKN021
   FM210200 VRB04KT P6SM SCT110

C29

Domestic
4/13/221943Z	!GRB 04/260 C29 COM GND COM OUTLET 121.725 U/S 2204131943-PERM
FDC
2/7/241958Z	!FDC 4/2509 C29 IAP MIDDLETON MUNI/MOREY FLD, MIDDLETON, WI. LOC/DME RWY 10, AMDT 1B... RNAV (GPS) RWY 10, AMDT 2... RNAV (GPS) RWY 28, AMDT 2C... CIRCLING RWY 28 NA AT NIGHT. 2402071958-2609181958EST

ATC Tower

Attendance

0800-1730

Owner

CITY OF MIDDLETON
7426 HUBBARD AVENUE
MIDDLETON, WI 53562
Phone: 608-827-1050

Manager

RICHARD MOREY
8300 AIRPORT ROAD, 7426 HUBBARD AVE
MIDDLETON, WI 53562
Phone: 608-836-1711

FSS

GREEN BAY FSS (GRB)
Toll Free: 1-800-WX-BRIEF

NOTAM

GRB

Light Schedule

Lights

MIRL RWY 10/28 PRESET TO LOW SS-SR; TO INCR INTST & ACTVT REIL RWY 10 & 28; MIRL RWY 10/28 - CTAF.

Beacon

N/A

Wind Indicator

Yes - Lighted

Segmented Cir.

Landing Fee

Parking

Hanger, Tie-Down

Int'l Operations

NOT a Landing Rights Airport
NOT an Airport of Entry

# Single Engine

# Multi Engine

# Jets

# Helicopters

# Military

# Ultralights

Airframe Repair

Major

Pwrplant Repair

Major

Bottled Oxygen

None

Bulk Oxygen

High & Low Pressure

Other Services

Charter Service
Pilot Instruction
Aircraft Rental

Runway 01/19

Dimensions

1780 ft. x 120 ft.

Surface Type

TURF

Surface Cond

Good

Treatment

NONE

Rwy Edge Lgts

Pavement Class

Single Wheel

Double Wheel

Double Tandem

Dual Dbl Tand

	Runway 01	Runway 19
True Heading	7°	187°
Traffic Pattern
Markings	NSTD	NSTD
Markings Condition	FAIR	FAIR
Latitude	43° 06' 46"N	43° 07' 03"N
Longitude	89° 31' 42"W	89° 31' 39"W
Elevation	926'	928'
Threshold Crossing Height	--	--
Visual Glide Path Angle	--	--
Visual Slope Indicator	--	--
Approach Lights
Centerline Lights
Runway End Identifier Lights

Runway 10/28

Dimensions

4001 ft. x 100 ft.

Surface Type

ASPH

Surface Cond

Fair

Treatment

NONE

Rwy Edge Lgts

MED

Pavement Class

Single Wheel

Double Wheel

Double Tandem

Dual Dbl Tand

	Runway 10	Runway 28
True Heading	100°	280°
Traffic Pattern		Left
Markings	NPI	NPI
Markings Condition	FAIR	FAIR
Latitude	43° 06' 54"N	43° 06' 47"N
Longitude	89° 32' 26"W	89° 31' 33"W
Elevation	928'	927'
Threshold Crossing Height	31 ft. AGL	36 ft. AGL
Visual Glide Path Angle	4°	4°
Visual Slope Indicator	P2L	P2L
Approach Lights
Centerline Lights
Runway End Identifier Lights	Yes	Yes

A110-10	FOR CD CTC MADISON APP/DEP CON AT 608-249-8240. WHEN MADISON APCH CLSD, FOR CD CTC CHICAGO ARTCC AT 630-906-8921.
A110-11	RWY 01/19 CLSD FM NOV 01 THRU APR 30.
A110-4	BIRDS ON & INVOF ARPT.
A110-6	AVOID NOISE SENSITIVE AREA 1 MI SW; SEE CITY OR MOREY CO WEBSITES FOR DETAILS.

MIDDLETON MUNI/MOREY FLD (IATA: C29) is a public airport located in MIDDLETON, WI.
