GILA BEND MUNI - Airport Diagram
LiveATC.net: Live Air Traffic - From Their Headsets to You

E63
GILA BEND MUNI
PublicPUB

2 miles E of GILA BEND, AZ
View on Map
LiveATC.net: Live Air Traffic - From Their Headsets to You
Operational
32° 57' 37"N 112° 40' 25"W
789' MSL
1589' MSL
13E
100LL
PRESCOTT (PRC)
PHOENIX
ALBUQUERQUE (ZAB)
5/16/24-6/13/24
KGXF (5nm) VFR
1:55 PM MST
Broken 20,000'
Scattered 17,000'
Few 12,000'
Few 10,000'
10sm
90°F
38°F
29.83"Hg
190° 16kts
AO2A RAB1956E00RAB00E10 ACC DSNT SW-W-N ACSL DSNT NW-N SLP089 P0000 60000 T03210031 58017 FZRANO $
KGXF 202055Z 19016KT 10SM FEW100 FEW120 SCT170 BKN200 BKN250 32/03 A2983 RMK AO2A RAB1956E00RAB00E10 ACC DSNT SW-W-N ACSL DSNT NW-N SLP089 P0000 60000 T03210031 58017 FZRANO $
List Your Business

E63 FBOs, Flight Schools and Ground Support

Promote Listing
Imperial Flying Service
Freq: 122.8
Phone: (760) 353-1182
No Rating Available
0 Reviews (Read | Sign In To Write)
Independent
As of 5/8
 100LL Jet A Jet A+ Mogas UL94
Self Serve 5.45
Full Serve

E63 Ground Transportation (Taxi, Limo, Car Service)

No ground transportation services are listed for this airport.

E63 Hotels

No hotels are listed for this airport.

E63 Restaurants

No restaurants are listed for this airport.

E63 Other Airport-Related Businesses

No other airport-related businesses are listed for this airport.
X

Send Message to Airport Company
Enter your information and message below.

Your Information

Processing
122.8 122.8

No communication frequencies available for this airport.

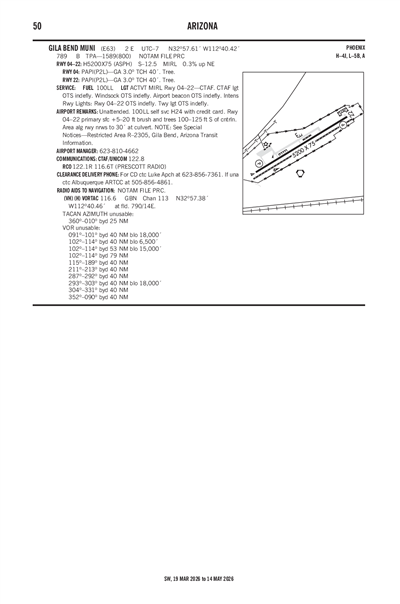

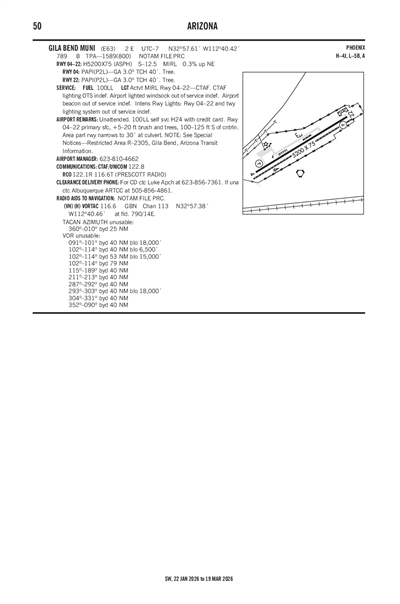

FAA A/FD Pages

Airport Diagrams

  • No Documents

Airport Minimums

  • No Documents

Departure Procedures

  • No Documents

Hotspot

  • No Documents

Standard Term. Arrival

  • No Documents

Instrument Approach

  • No Documents

Terminal Area Forecast

KLUF (38nm)
Mon, 5/20 1:47 PM MST
Mon, 5/20 1:00 PM MST - Tue, 5/21 7:00 PM MST
VFR
1:00 PM MST - 6:00 PM MST
Broken 15,000'
Scattered 12,000'
6sm
29.73"Hg
130° 12kts
Gusts 18kts
VFR
Becoming 6:00 PM MST - 9:00 PM MST
Scattered 20,000'
Scattered 13,000'
6sm
29.73"Hg
130° 9kts
VFR
Becoming 9:00 PM MST - 1:00 PM MST
Sky Clear
6sm
29.76"Hg
VRB° 6kts
VFR
Becoming 1:00 PM MST - 7:00 PM MST
Sky Clear
6sm
29.82"Hg
210° 12kts
TAF COR KLUF 202047Z 2020/2202 13012G18KT 9999 SCT120 BKN150 QNH2974INS
   BECMG 2101/2102 13009KT 9999 SCT130 SCT200 QNH2973INS
   BECMG 2104/2105 VRB06KT 9999 SKC QNH2976INS
   BECMG 2120/2121 21012KT 9999 SKC QNH2982INS TX32/2023Z TN19/2113Z
E63
Domestic
5/22/240200Z !PRC 05/095 E63 AIRSPACE SEE GBN 05/094 AIRDROP 2405220200-2405220500
5/22/240110Z !PRC 05/126 E63 AIRSPACE SEE GBN 05/125 AIRDROP AVOIDANCE ADZ 2405220110-2405220400
4/29/242055Z !PRC 04/240 E63 OBST TOWER LGT (ASR 1006797) 325630.40N1124057.00W (1.2NM SSW E63) 983.9FT (195.9FT AGL) U/S 2404292055-2407280400
No
UNATNDD
TOWN OF GILA BEND
PO BOX A
GILA BEND, AZ 85337
Phone: 623-810-4662
COREY DRURY
TOWN OF GILA BEND, DEPT. OF PUB WKS P.O. BOX A
GILA BEND, AZ 85337
Phone: 623-810-4662
PRESCOTT FSS (PRC)
Toll Free: 1-800-WX-BRIEF
PRC
--
ACTVT MIRL RWY 04/22. CTAF LIGHTING OTS INDEF.
N/A
AIRPORT BEACON OUT OF SERVICE INDEF.
Yes - Lighted
Yes
No
Tie-Down
NOT a Landing Rights Airport
NOT an Airport of Entry
2
0
0
0
0
0
None
None
None
None
None

Runway 04/22

5200 ft. x 75 ft.
ASPH
Good
NONE
MED

12,000lbs
--
--
--
  Runway 04 Runway 22
True Heading 57°237°
Traffic Pattern Left Left
Markings NPI NPI
Markings Condition GOOD GOOD
Latitude 32° 57' 23"N 32° 57' 50"N
Longitude 112° 40' 51"W 112° 39' 59"W
Elevation 774' 789'
Threshold Crossing Height 40 ft. AGL 40 ft. AGL
Visual Glide Path Angle 3° 3°
Visual Slope Indicator P2L P2L
Approach Lights
Centerline Lights No No
Runway End Identifier Lights No No
A110-4FOR CD CTC LUKE APCH AT 623-856-7361. IF UNA CTC ALBUQUERQUE ARTCC AT 505-856-4861.
A110-5AREA ALONGSIDE RWY NARROWS TO 30 FT AT CULVERT.
GILA BEND MUNI (IATA: E63) is a public airport located in GILA BEND, AZ.
