F35
POSSUM KINGDOM
Public
PUB
12 miles SW of GRAFORD, TX
View on
Map
Status
Operational
Coordinates
32° 55' 24"N
98° 26' 13"W
Elevation
1008' MSL
Pattern Alt
2008' MSL
Mag Variation
07E
Fuel
None Listed
FSS
FORT WORTH (FTW)
Sectional
DALLAS-FT WORTH
ARTCC
FORT WORTH (ZFW)
Data Effective
5/16/24-6/13/24
KRPH (13nm)
VFR
2:35 PM CDT
RAW
Clear
Viz
10sm
Temp
90°F
Dew
69°F
Pres
29.76"Hg
Wind
190° 8kts
RMK
AO2 T03210205
KRPH 201935Z AUTO 19008KT 10SM CLR 32/21 A2976 RMK AO2 T03210205
Services
Frequencies & Documents
Freqs & Docs
TAF
NOTAM
Operations
Runways
Remarks
List Your Business
F35 FBOs, Flight Schools and Ground Support
No FBOs, flight schools or aircraft ground support businesses are listed for this airport.
F35 Ground Transportation (Taxi, Limo, Car Service)
No ground transportation services are listed for this airport.
F35 Hotels
No hotels are listed for this airport.
F35 Restaurants
No restaurants are listed for this airport.
F35 Other Airport-Related Businesses
No other airport-related businesses are listed for this airport.
X
Send Message to Airport Company
Enter your information and message below.
Your Information
Business
x
UNICOM
--
CTAF
122.9
No communication frequencies available for this airport.

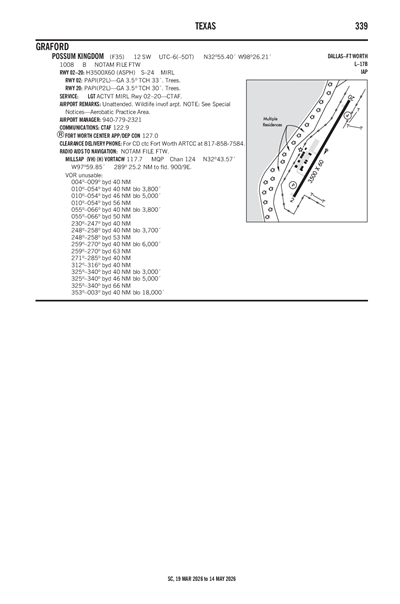

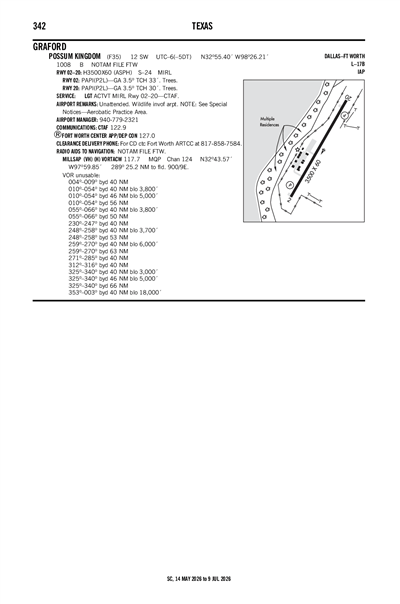

FAA A/FD Pages
FAA A/FD Page
Airport Diagrams
No Documents
Airport Minimums
TAKEOFF MINIMUMS
Departure Procedures
No Documents
Hotspot
No Documents
Standard Term. Arrival
No Documents
Instrument Approach
RNAV (GPS) RWY 02
RNAV (GPS) RWY 20
Terminal Area Forecast
KNFW (51nm)
RAW
Reported
Mon, 5/20 9:57 AM CDT
Valid
Mon, 5/20 10:00 AM CDT - Tue, 5/21 10:00 AM CDT
VFR
10:00 AM CDT - 7:00 PM CDT
Few 5,000'
Viz
6sm
Pres
29.70"Hg
Wind
170° 18kts
Gusts 25kts
VFR
7:00 PM CDT - 3:00 AM CDT
Scattered 25,000'
Few 6,000'
Viz
6sm
Pres
29.68"Hg
Wind
170° 12kts
Gusts 18kts
MVFR
3:00 AM CDT - 10:00 AM CDT
Overcast 4,000'
Broken 2,000'
Viz
6sm
Pres
29.73"Hg
Wind
170° 15kts
Gusts 22kts
TAF KNFW 2015/2115 17018G25KT 9999 FEW050 QNH2970INS
FM210000 17012G18KT 9999 FEW060 SCT250 QNH2968INS
FM210800 17015G22KT 9999 BKN020 OVC040 QNH2972INS TX33/2020Z TN23/2111Z FN20046
F35
Domestic
5/18/24
0846Z
!FTW 05/536 F35 OBST TOWER LGT (ASR 1047222) 325455.30N0982251.30W (2.9NM E F35) 1524.9FT (363.8FT AGL) U/S 2405180846-2407020846
3/28/24
1819Z
!FTW 03/832 F35 RWY 20 PAPI U/S 2403281819-2406012359
3/28/24
1819Z
!FTW 03/831 F35 RWY 02 PAPI U/S 2403281819-2406012359
ATC Tower
No
Attendance
UNATNDD
Owner
BRAZOS RIVER AUTHORITY
4400 COBBS DRIVE
WACO, TX 76710
Phone: 254-776-1441
Manager
TROY WEATHERHEAD
301 OBSERVATION POINT ROAD
GRAFORD, TX 76449
Phone: 940-779-2321
FSS
FORT WORTH FSS (FTW)
Toll Free: 1-800-WX-BRIEF
NOTAM
FTW
Light Schedule
--
Lights
ACTVT MIRL RWY 02/20 - CTAF.
Beacon
N/A
Wind Indicator
Yes - Lighted
Segmented Cir.
Yes
Landing Fee
No
Parking
Tie-Down
Int'l Operations
No
# Single Engine
18
# Multi Engine
2
# Jets
0
# Helicopters
2
# Military
0
# Ultralights
0
Airframe Repair
None
Pwrplant Repair
None
Bottled Oxygen
None
Bulk Oxygen
None
Other Services
None
Runway 02/20
Dimensions
3500 ft. x 60 ft.
Surface Type
ASPH
Surface Cond
Fair
Treatment
NONE
Rwy Edge Lgts
MED
Pavement Class
Single Wheel
24,000lbs
Double Wheel
--
Double Tandem
--
Dual Dbl Tand
--
Runway 02
Runway 20
True Heading
31°
211°
Traffic Pattern
Markings
BSC
BSC
Markings Condition
FAIR
FAIR
Latitude
32° 55' 09"N
32° 55' 39"N
Longitude
98° 26' 23"W
98° 26' 02"W
Elevation
1,008'
1,008'
Threshold Crossing Height
33 ft. AGL
30 ft. AGL
Visual Glide Path Angle
3.5°
3.5°
Visual Slope Indicator
P2L
P2L
Approach Lights
Centerline Lights
Runway End Identifier Lights
A110-1
WILDLIFE INVOF ARPT.
A110-2
FOR CD CTC FORT WORTH ARTCC AT 817-858-7584.
POSSUM KINGDOM (IATA: F35) is a public airport located in GRAFORD, TX.
