H57
BISMARCK MEML
Public
PUB
1 miles SE of BISMARCK, MO
View on
Map
Status
Operational
Coordinates
37° 45' 32"N
90° 37' 01"W
Elevation
1038' MSL
Pattern Alt
2038' MSL
Mag Variation
02E
Fuel
None Listed
FSS
SAINT LOUIS (STL)
Sectional
ST LOUIS
ARTCC
KANSAS CITY (ZKC)
Data Effective
5/16/24-6/13/24
KFAM (9nm)
VFR
2:56 PM CDT
RAW
Broken 10,000'
Scattered 4,400'
Viz
10sm
Temp
83°F
Dew
66°F
Pres
29.93"Hg
Wind
190° 9kts
RMK
AO2 SLP138 T02830189
KFAM 201956Z AUTO 19009KT 10SM SCT044 BKN100 28/19 A2993 RMK AO2 SLP138 T02830189
Services
Frequencies & Documents
Freqs & Docs
TAF
NOTAM
Operations
Runways
Remarks
List Your Business
H57 FBOs, Flight Schools and Ground Support
No FBOs, flight schools or aircraft ground support businesses are listed for this airport.
H57 Ground Transportation (Taxi, Limo, Car Service)
No ground transportation services are listed for this airport.
H57 Hotels
No hotels are listed for this airport.
H57 Restaurants
No restaurants are listed for this airport.
H57 Other Airport-Related Businesses
No other airport-related businesses are listed for this airport.
X
Send Message to Airport Company
Enter your information and message below.
Your Information
Business
x
UNICOM
--
CTAF
122.9
No communication frequencies available for this airport.

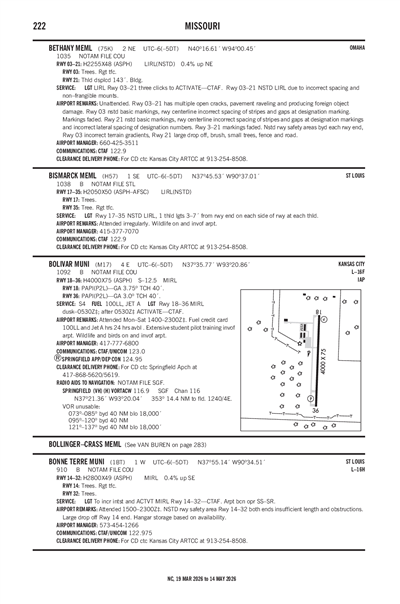

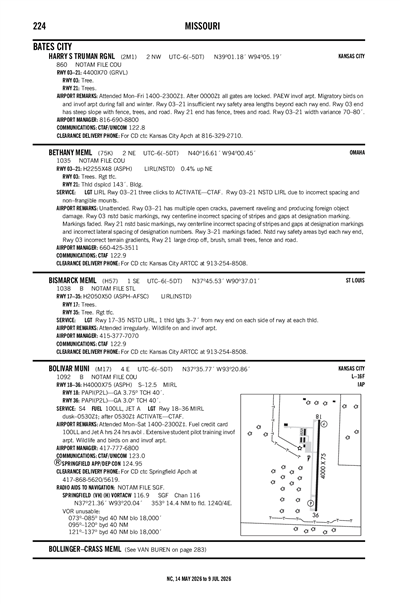

FAA A/FD Pages
FAA A/FD Page
Airport Diagrams
No Documents
Airport Minimums
No Documents
Departure Procedures
No Documents
Hotspot
No Documents
Standard Term. Arrival
No Documents
Instrument Approach
No Documents
Terminal Area Forecast
KCPS (53nm)
RAW
Reported
Mon, 5/20 12:36 PM CDT
Valid
Mon, 5/20 1:00 PM CDT - Tue, 5/21 1:00 PM CDT
VFR
1:00 PM CDT - 3:00 PM CDT
Broken 15,000'
Few 6,000'
Viz
6sm
Wind
190° 10kts
Gusts 16kts
VFR
3:00 PM CDT - 5:00 PM CDT
Thunderstorm in vicinity
Broken 12,000'
Scattered 6,000'
Viz
6sm
Wind
200° 8kts
VFR
5:00 PM CDT - 10:00 AM CDT
Scattered 25,000'
Viz
6sm
Wind
190° 7kts
VFR
10:00 AM CDT - 1:00 PM CDT
Few 25,000'
Viz
6sm
Wind
180° 13kts
Gusts 21kts
KCPS 201736Z 2018/2118 19010G16KT P6SM FEW060 BKN150
FM202000 20008KT P6SM VCTS SCT060 BKN120CB
FM202200 19007KT P6SM SCT250
FM211500 18013G21KT P6SM FEW250
H57
Domestic
5/17/24
1841Z
!STL 05/346 H57 OBST TOWER LGT (ASR 1267639) 373129.00N0904932.00W (17.3NM SW H57) 1981.6FT (461.3FT AGL) U/S 2405171841-2408312359
5/16/24
1813Z
!STL 05/329 H57 OBST TOWER LGT (ASR 1245257) 373852.20N0903733.40W (6.7NM S H57) 1948.2FT (348.1FT AGL) U/S 2405161813-2406161800
4/25/24
1849Z
!STL 04/506 H57 OBST TOWER LGT (ASR 1006250) 373129.00N0904931.00W (17.3NM SW H57) 1970.1FT (446.2FT AGL) U/S 2404251849-2407252359
4/24/24
0633Z
!STL 04/452 H57 OBST TOWER LGT (ASR 1006193) 372951.00N0904558.00W (17.3NM SSW H57) 1906.8FT (419.0FT AGL) U/S 2404240633-2407262359
1/1/24
1806Z
!STL 01/007 H57 RWY 17/35 REDL U/S 2401011806-2406302359
1/1/24
1804Z
!STL 01/005 H57 AD AP ABN U/S 2401011804-2406302359
ATC Tower
No
Attendance
IREG
Owner
CITY OF BISMARCK
924 CENTER ST BOX 27
BISMARCK, MO 63624
Phone: 573-734-2125
Manager
JUSTIN KITCHELL
166 OLD IRONDALE ROAD, PO BOX 262
BISMARCK, MO 63624
Phone: 573-315-9326
FSS
SAINT LOUIS FSS (STL)
Toll Free: 1-800-WX-BRIEF
NOTAM
STL
Light Schedule
Sunset to Sunrise
Lights
--
Beacon
N/A
Wind Indicator
Yes
Segmented Cir.
Yes
Landing Fee
No
Parking
Tie-Down
Int'l Operations
NOT a Landing Rights Airport
NOT an Airport of Entry
# Single Engine
8
# Multi Engine
0
# Jets
0
# Helicopters
0
# Military
0
# Ultralights
0
Airframe Repair
None
Pwrplant Repair
None
Bottled Oxygen
None
Bulk Oxygen
None
Other Services
None
Runway 17/35
Dimensions
2050 ft. x 50 ft.
Surface Type
ASPH
Surface Cond
Good
Treatment
AFSC
Rwy Edge Lgts
NSTD
Pavement Class
Single Wheel
--
Double Wheel
--
Double Tandem
--
Dual Dbl Tand
--
Runway 17
Runway 35
True Heading
175°
355°
Traffic Pattern
Left
Right
Markings
BSC
BSC
Markings Condition
FAIR
FAIR
Latitude
37° 45' 42"N
37° 45' 22"N
Longitude
90° 37' 02"W
90° 36' 59"W
Elevation
1,022'
1,023'
Threshold Crossing Height
--
--
Visual Glide Path Angle
--
--
Visual Slope Indicator
--
--
Approach Lights
Centerline Lights
Runway End Identifier Lights
A110-3
WILDLIFE ON & INVOF ARPT.
A110-4
FOR CD CTC KANSAS CITY ARTCC AT 913-254-8508.
BISMARCK MEML (IATA: H57) is a public airport located in BISMARCK, MO.
