KAJZ
BLAKE FLD
PublicPUB

3 miles N of DELTA, CO
View on Map
LiveATC.net: Live Air Traffic - From Their Headsets to You
Operational
38° 47' 08"N 108° 03' 43"W
5193' MSL
6200' MSL
10E
Jet A, 100LL
DENVER (DEN)
DENVER
DENVER (ZDV)
5/16/24-6/13/24
KMTJ (19nm) VFR
5:53 AM MDT
Clear
10sm
58°F
18°F
29.92"Hg
170° 8kts
AO2 SLP055 T01441078 10172 20122 53006
KMTJ 201153Z AUTO 17008KT 10SM CLR 14/M08 A2992 RMK AO2 SLP055 T01441078 10172 20122 53006
List Your Business

KAJZ FBOs, Flight Schools and Ground Support

Promote Listing
Smiling Aviation
Freq: 122.8
Phone: (970) 874-5181
No Rating Available
0 Reviews (Read | Sign In To Write)
Avfuel
As of 5/14
 100LL Jet A Jet A+ Mogas UL94
Self Serve 5.74 6.75
Full Serve 6.49 7.45

KAJZ Ground Transportation (Taxi, Limo, Car Service)

No ground transportation services are listed for this airport.

KAJZ Hotels

No hotels are listed for this airport.

KAJZ Restaurants

No restaurants are listed for this airport.

KAJZ Other Airport-Related Businesses

No other airport-related businesses are listed for this airport.
X

Send Message to Airport Company
Enter your information and message below.

Your Information

Processing
122.8 122.8

AWOS-3

AWOS-3
970-874-3251
 134.0

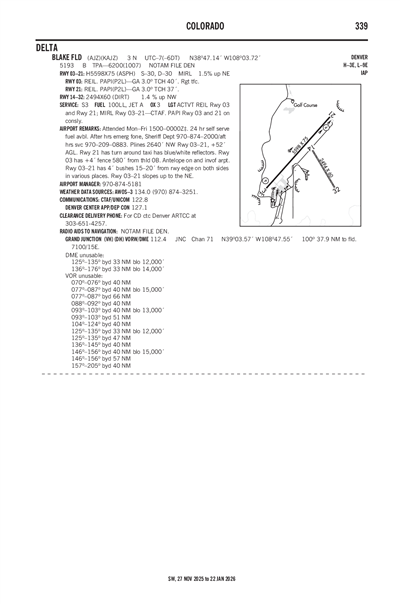

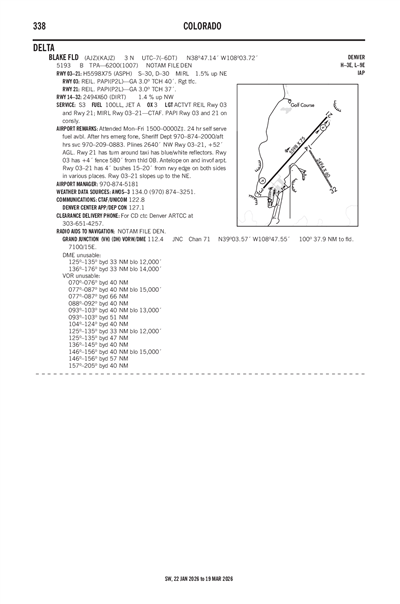

FAA A/FD Pages

Airport Diagrams

  • No Documents

Airport Minimums

Departure Procedures

  • No Documents

Hotspot

  • No Documents

Standard Term. Arrival

  • No Documents

Instrument Approach

Terminal Area Forecast

KMTJ (19nm)
Mon, 5/20 5:40 AM MDT
Mon, 5/20 6:00 AM MDT - Tue, 5/21 6:00 AM MDT
VFR
6:00 AM MDT - 11:00 AM MDT
Scattered 25,000'
Few 13,000'
6sm
200° 9kts
VFR
11:00 AM MDT - 4:00 PM MDT
Few 25,000'
Few 14,000'
6sm
220° 14kts
Gusts 22kts
VFR
4:00 PM MDT - 12:00 AM MDT
Broken 25,000'
Scattered 15,000'
6sm
220° 19kts
Gusts 33kts
VFR
12:00 AM MDT - 2:00 AM MDT
Broken 11,000'
Broken 10,000'
6sm
200° 14kts
Gusts 20kts
VFR
2:00 AM MDT - 6:00 AM MDT
Showers in vicinity
Broken 11,000'
Scattered 9,000'
6sm
200° 7kts
KMTJ 201140Z 2012/2112 20009KT P6SM FEW130 SCT250
   FM201700 22014G22KT P6SM FEW140 FEW250
   FM202200 22019G33KT P6SM SCT150 BKN250
   FM210600 20014G20KT P6SM BKN100 BKN110
   FM210800 20007KT P6SM VCSH SCT090 BKN110
KAJZ
Domestic
1/22/241400Z !DEN 01/490 AJZ AIRSPACE PJE WI AN AREA DEFINED AS 4NM RADIUS OF AJZ SFC-15000FT DLY 1400-0200 2401221400-2412310200
9/21/182200Z !DEN 09/464 AJZ RWY 14/32 COMMISSIONED 2494FT X 60FT DIRT NOT LGTD.
DECLARED DIST: RWY 14 TORA 2494FT TODA 2494FT ASDA 2494FT LDA
2494FT. RWY 32 TORA 2494FT TODA 2494FT ASDA 2494FT LDA 2494FT.
1809212200-PERM
FDC
2/13/232105Z !FDC 3/5497 AJZ IAP BLAKE FLD, DELTA, CO.
RNAV (GPS) RWY 3, ORIG-A...
CHANGE NOTE TO READ: WHEN LOCAL ALTIMETER SETTING NOT RECEIVED, USE MONTROSE ALTIMETER SETTING: INCREASE #LPV DA TO 5529 FEET AND VISIBILITY ALL CATS 3/8 SM, INCREASE LPV DA TO 5670 FEET AND VISIBILITY ALL CATS 1/2 SM, INCREASE LNAV/VNAV DA TO 5979 FEET AND VISIBILITY ALL CATS 1/2 SM. INCREASE ALL LNAV MDA 140 FEET AND VISIBILITY CAT B 1/4 SM, CAT C 1/2 SM AND CIRCLING CAT A 1/4 SM.
2302132105-2502142105EST
No
MON-FRI 0800-1700
AFT HRS EMERG FONE, SHERIFF DEPT 970-874-2000/AFT HRS SVC 970-209-0883.
COUNTY OF DELTA
DELTA COUNTY
DELTA, CO 81416
Phone: (970) 874-5181
MARK HUSMANN
870 - 1575 ROAD
DELTA, CO 81416
Phone: 970-874-5181
DENVER FSS (DEN)
Toll Free: 1-800-WX-BRIEF
DEN
--
ACTVT REIL RWY 03 & 21; MIRL RWY 03/21 - CTAF. PAPI RWY 03 & 21 ON CONSLY.
N/A
Yes - Lighted
Yes
No
Hanger, Tie-Down
NOT a Landing Rights Airport
NOT an Airport of Entry
62
4
0
1
0
0
Major
Minor
High Pressure
None
Air Ambulance
Glider Service
Pilot Instruction
Aircraft Rental
Glider Towing

Runway 03/21

5598 ft. x 75 ft.
ASPH
Good
NONE
MED

30,000lbs
30,000lbs
--
--
  Runway 03 Runway 21
True Heading 42°222°
Traffic Pattern Right Left
Markings NPI NPI
Markings Condition GOOD GOOD
Latitude 38° 46' 50"N 38° 47' 32"N
Longitude 108° 04' 13"W 108° 03' 26"W
Elevation 5,111' 5,193'
Threshold Crossing Height 40 ft. AGL 37 ft. AGL
Visual Glide Path Angle 3° 3°
Visual Slope Indicator P2L P2L
Approach Lights
Centerline Lights
Runway End Identifier Lights Yes Yes

Runway 14/32

2494 ft. x 60 ft.
DIRT
Good
NONE


--
--
--
--
  Runway 14 Runway 32
True Heading 149°329°
Traffic Pattern
Markings
Markings Condition
Latitude 38° 47' 12"N 38° 46' 51"N
Longitude 108° 03' 38"W 108° 03' 22"W
Elevation 5,152' 5,116'
Threshold Crossing Height -- --
Visual Glide Path Angle -- --
Visual Slope Indicator -- --
Approach Lights
Centerline Lights
Runway End Identifier Lights
A110-1ANTELOPE ON AND INVOF ARPT.
A110-3RY 21 HAS TURN AROUND TAXI HAS BLUE/WHITE REFLECTORS.
A110-4RY 03/21 SLOPES UP TO THE NE.
A110-5RY 03/21 HAS 4 FT BUSHES 15-20 FT FROM RY EDGE ON BOTH SIDES IN VARIOUS PLACES.
A110-624 HOUR SELF SERVE FUEL AVBL.
A110-7RY 3 HAS +4 FT FENCE 580 FT FM THLD OB.
A110-8POWER LINES 2640' NW RY 03/21, +52 FT AGL.
A110-9FOR CD CTC DENVER ARTCC AT 303-651-4257.
BLAKE FLD (ICAO: KAJZ, IATA: AJZ) is a public airport located in DELTA, CO.
