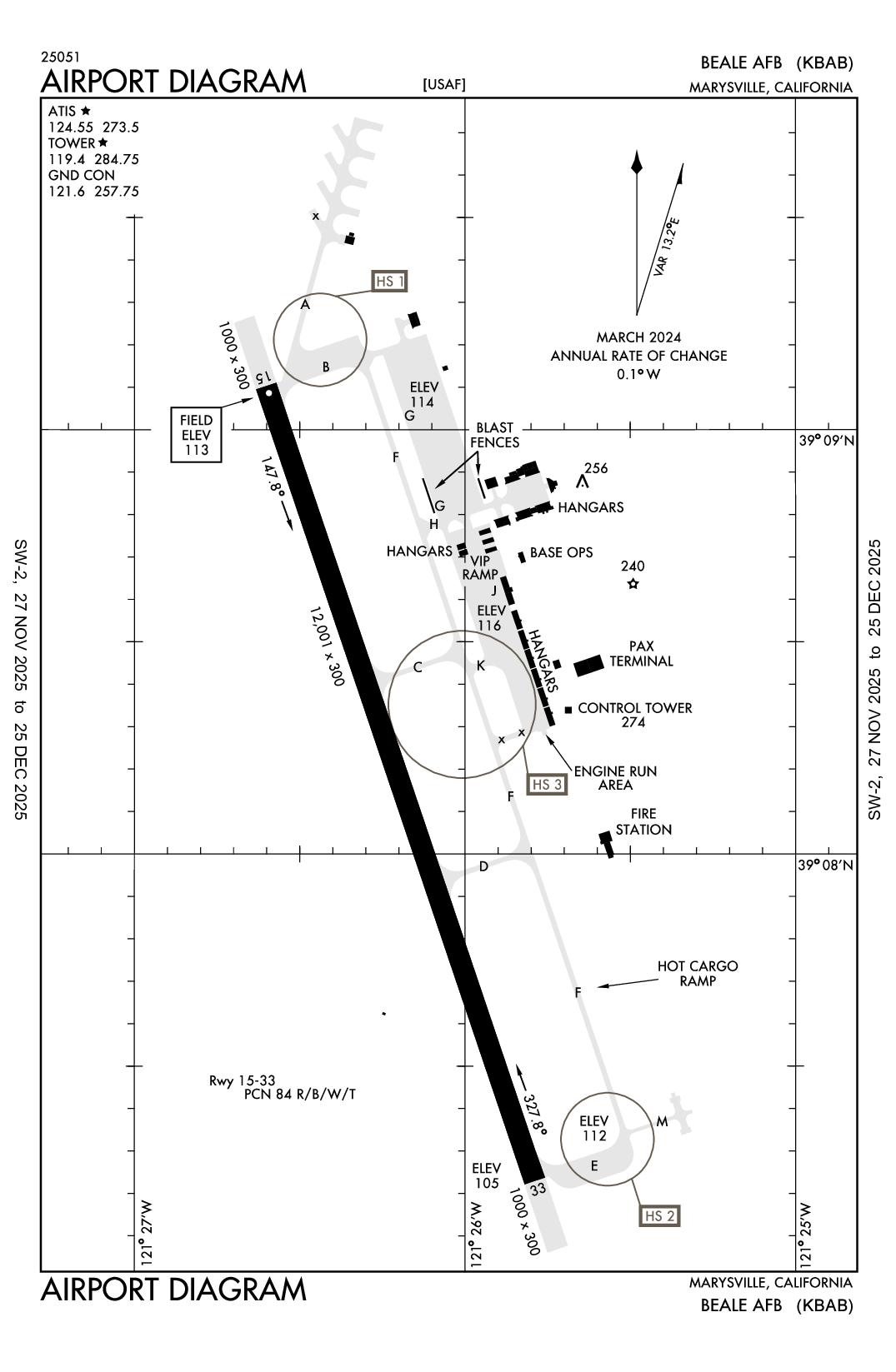

BEALE AFB - Airport Diagram
LiveATC.net: Live Air Traffic - From Their Headsets to You

KBAB
BEALE AFB
PrivatePVT

6 miles E of MARYSVILLE, CA
View on Map
LiveATC.net: Live Air Traffic - From Their Headsets to You
Operational
39° 08' 10"N 121° 26' 12"W
113' MSL
1113' MSL
16E
None Listed
RANCHO MURIETA (RIU)
SAN FRANCISCO
OAKLAND (ZOA)
5/16/24-6/13/24
KBAB VFR
10:55 AM PDT
Clear
10sm
73°F
37°F
29.92"Hg
320° 12kts
AO2A SLP134 T02300025 10233 20101 58002 $
KBAB 201755Z 32012KT 10SM CLR 23/03 A2992 RMK AO2A SLP134 T02300025 10233 20101 58002 $
List Your Business

KBAB FBOs, Flight Schools and Ground Support

No FBOs, flight schools or aircraft ground support businesses are listed for this airport.

KBAB Ground Transportation (Taxi, Limo, Car Service)

No ground transportation services are listed for this airport.

KBAB Hotels

No hotels are listed for this airport.

KBAB Restaurants

No restaurants are listed for this airport.

KBAB Other Airport-Related Businesses

No other airport-related businesses are listed for this airport.
X

Send Message to Airport Company
Enter your information and message below.

Your Information

Processing
-- --

ATIS

ATIS
Hours: OPER DURG WING OPER.
 124.55

Emergency

EMERG
 121.5

Ground

GND/P
 121.6

Tower

LCL/P
 119.4

Other

PTD
 141.1
SOF
 139.6

Terminal Area Forecast

KBAB
Mon, 5/20 4:00 AM PDT
Mon, 5/20 4:00 AM PDT - Tue, 5/21 10:00 AM PDT
VFR
4:00 AM PDT - 8:00 AM PDT
Few 25,000'
6sm
29.85"Hg
VRB° 6kts
VFR
Becoming 8:00 AM PDT - 7:00 PM PDT
Sky Clear
6sm
29.82"Hg
310° 12kts
Gusts 18kts
VFR
Becoming 7:00 PM PDT - 10:00 AM PDT
Sky Clear
6sm
29.82"Hg
350° 6kts
TAF KBAB 201100Z 2011/2117 VRB06KT 9999 FEW250 QNH2985INS
   BECMG 2015/2016 31012G18KT 9999 SKC QNH2981INS
   BECMG 2102/2103 35006KT 9999 SKC QNH2981INS TX30/2023Z TN14/2013Z
KBAB
Military
5/21/241730Z AIRSPACE: UAS OPERATIONS WITHIN 1/4 NM RADIUS OF GPS POINT N39° 11' 12.82'' W121° 25' 55.34 SFC 250FT OR BELOW AGL.
5/20/241523Z M0509/24 NOTAMC M0505/24
5/20/241510Z USE CAUTION FOR MEN AND EQUIPMENT CONDUCTING MOWING OPERATIONS IN INFIELDS BETWEEN TWY CHARLIE AND TWY ECHO.
5/20/241455Z M0507/24 NOTAMC M0504/24
5/19/242015Z M0503/24 NOTAMC M0501/24
5/19/241829Z M0500/24 NOTAMC M0490/24
5/17/241933Z M0498/24 NOTAMC M0491/24
5/14/241457Z !KBAB M0479/24 BAB OBST CRANE 390907N1212601W (0.5NM E BAB) 262FT MSL
(140FT AGL) ERECTED DAILY MON-FRI 1300-0030Z 2405141457-2408092359
5/7/241300Z !KBAB M0447/24 BAB OBST CRANE 390919N1212610W (0.40NM NE BAB) 240FT MSL
(115FT AGL) FLAGGED AND LGTD ERECTED DAILY MON-FRI 0600-1700L 2405071300-2407310001
5/1/241547Z !KBAB M0424/24 BAB OBST CRANE 390919N1212611W (0.4NM NE BAB) 245FT MSL
(120FT AGL) ERECTED MON-FRI 1300Z-2300Z 2405011547-2407012359
4/30/241426Z RWY 15/33 THE FIRST 3000 FEET ON BOTH ENDS OF RWY 15/33 CENTERLINE MARKINGS OBSCURED BY RUBBER.
4/26/241818Z SOUTH PUMPHOUSE BLDG SOUTH OBSTRUCTION LIGHT OUT OF SERVICE. 38°8'39N 121°26'14W.
4/16/241726Z TWY G CLOSED ABEAM PARKING SPOTS CARGO1 AND CARGO3. TAXI/TOW OPERATIONS MAY BE APPROVED BY EXCEPTION WITH AFM APPROVAL.
4/16/241726Z TAXILANE GOLF RESTRICTED TO WINGSPANS LESS THAN 200 FT BETWEEN PARKING SPOT TANKER 1 AND TAXILANE BRAVO.
4/2/242110Z TWY A RESTRICTED TO WINGSPANS OF 131 FT OR LESS. A1 PARKING SPOT CLOSED DUE TO BEING LOCATED IN THE CLEAR ZONE
3/7/241822Z USE CAUTION: SIGNS ARE FADED BUT READABLE AT THE FOLLOWING LOCATIONS: ALL WEST-FACING RUNWAY ILS BOUNDARY SIGNS (INST HOLD LINE), ALL WEST-FACING RUNWAY SAFETY AREA BOUNDARY SIGNS (VFR HOLD LINE), SOUTH-FACING TWY D DIRECTION SIGN/TWY F LOCATION SIGN, WEST-FACING TWY F DIRECTION SIGN/TWY D LOCATION SIGN, SOUTH-FACING TWY C DIRECTION SIGN/TWY F LOCATION SIGN, WEST-FACING TWY F DIRECTION SIGN/TWY C LOCATION SIGN.
Yes
ALL
OPR H24 FR 1400Z++ MON THRU 0600Z++ SAT (2200L FRI), AND/OR BY NOTAM; CLSD WKEND AND HOL, OPENING AT 1400Z++ THE NEXT DUTY DAY.
USAF
BEALE AFB
MARYSVILLE, CA 95903
BASE OPERATIONS (USAF)
9TH CBAT SUP GP (SAC) BEALE AFB
MARYSVILLE, CA 95903
Phone: 530-634-4823
RANCHO MURIETA FSS (RIU)
Toll Free: 1-800-WX-BRIEF
BAB
Sunset to Sunrise
--
N/A
Yes
No
No
Hangar
Landing Rights Airport
NOT an Airport of Entry
0
0
0
0
4
0
Minor
Minor
Low Pressure
Low Pressure
Cargo Handling

Runway 15/33

12001 ft. x 300 ft.

CONC
GRVD
HIGH
84 /R/B/W/T
--
--
--
--
  Runway 15 Runway 33
True Heading 161°341°
Traffic Pattern Left
Markings PIR PIR
Markings Condition GOOD GOOD
Latitude 39° 09' 06"N 39° 07' 14"N
Longitude 121° 26' 36"W 121° 25' 47"W
Elevation 113' 105'
Threshold Crossing Height 54 ft. AGL 51 ft. AGL
Visual Glide Path Angle 2.75° 3°
Visual Slope Indicator P4L P4L
Approach Lights ALSF1 ALSF1
Centerline Lights No No
Runway End Identifier Lights No No
A110-1BEARING STRENGTH RWY 15/33: S160 T300 ST175 ST175 SBTT620 TT490 TDT840.
A110-12CSTMS/AG/IMG: 24 HR PN RQR FOR CSTMS AND AG.
A110-13MISC: TRAN ACFT EXP PROGRESSIVE TAXI. NO COMSEC MATERIAL AVBL. TRAN AIRCREW SHOULD PLAN TO ARR WITH APPROPRIATE COMSEC TO COMPLETE ENTIRE MSN. RWY 15-33 GROOVED. CLASS C AIRSPACE CONT.
A110-15RWY LGTS: RY 15, SF.
A110-16CAUTION: BEALE AFB IS LCTD ON A MAJ MIGRATORY BIRD FLYWAY.
A110-17BEARING STRENGTH RWY 15/33: S81, T122, ST175, SBTT590, TT490, TDT840.
A110-19PMSV METRO: WX OBSN AVBL H24 VIA AUTO OBSN SYS; WX SVC AVBL 1 HR PRIOR TO AFLD OPR HRS AND DUR FCST SEVERE WX DSN 368-9134, C530-634-9134. DUR WX FLT CLOSURES REMOTE BRIEFING SVC AVBL FROM 25 OP WX SQ DSN 228-6598/6599/6588.
A110-2JASU: (AM32A-60A) (A/M32A-86) 7(MC-1A) (MC-2A).
A110-20PMSV METRO: WHEN AUTO OBSN SYS INOP, OBST FR 325-060 DEG, 080-220 DEG, AND 245-280 DEG MAY IMPACT PREVAILING VIS.
A110-21CAUTION: USE EXTREME CAUTION FOR UNMANNED ACFT ACT IN VCNTY OF BEALE AFB.
A110-22CSTMS/AG/IMG: LTD CSTMS/AG AVBL TO MIL ACFT ONLY, 24 HR PN RQR. CTC AFLD MGT AT C530-634-2002 OR DSN 368-2002.
A110-23ATIS: OPR WHEN AERODROME IS OPEN.
A110-24FOR CD WHEN ATCT IS CLSD CTC NORCAL APCH AT 916-361-6874
A110-25MISC: NO SPACE-A PAX SUPPORT AVBL ON WKENDS, HOL, AND ACC FAMILY DAYS.
A110-26RSTD: VIP PRKG RSTD TO ACFT WITH WINGSPAN 85 FT OR LESS. LRGR DV ACFT WILL PARK ON CARGO SPOTS.
A110-27MISC: WX SVC AVBL H24. CURRENT WX OBSN AVBL VIA ATIS OR CTC ATC.
A110-3FUEL: J8.
A110-30SVC TRAN ALERT: LAV CART AVBL FOR TSNT ACFT WITH PRIOR CDN. AIRCREW WILL HAVE TO PERFORM THEIR OWN LAV SVC AND CLEANUP.
A110-31SVC TRAN ALERT: NO POTABLE WATER OR ICE SVC.
A110-32AFRC: 940TH COMD POST, DSN 368-1960, C530-634-1960.
A110-33MISC: FOR SUPPORT OUTSIDE OF AIRFIELD OPR HRS (I.E., WKENDS, WING DOWN DAYS AND HOL) CTC BEALE 9RW COMMAND POST, DSN 368-5700, C530-634-5700.
A110-34MISC: STORAGE OF CLASSIFIED MTRL UNAVBL AT AIRFIELD MGMT; CTC COMMAND POST DSN 368-5700, C530-634-5700, H24 PRIOR.
A110-4FLUID: W SP LPOX LOX.
A110-5RWYLGTS: RY 33, SF.
A110-6OIL: O-128-133-148.
A110-7TRAN ALERT: SVC AVBL 1500-0600Z++ MON-FRI EXC FEDERAL HOL. ACFT THAT ARR AFTER 0600Z++ WILL NOT BE SVCD UNTIL NEXT DUTY DAY. FLEET SVC AVBL, 24 HR PN.
A110-8RSTD: PPR 24 HR PN, CTC BASE OPS DSN 368-2002/9120, C530-634-2002/9120. ISSUED PPR VALID 1 HR +/- ETA, EARLY/LATE ARR/DEP MUST RE-COORD.
A110-9RSTD: NO UNANNOUNCED ACFT PRACTICE APCH. INBOUND TSNT ACFT OBTAIN APVL FROM CTL TWR DSN 368-9140 FOR ACFT PRACTICE APCH PRIOR TO FLT. LTD PRKG AVBL.
BEALE AFB (ICAO: KBAB, IATA: BAB) is a private airport located in MARYSVILLE, CA.
