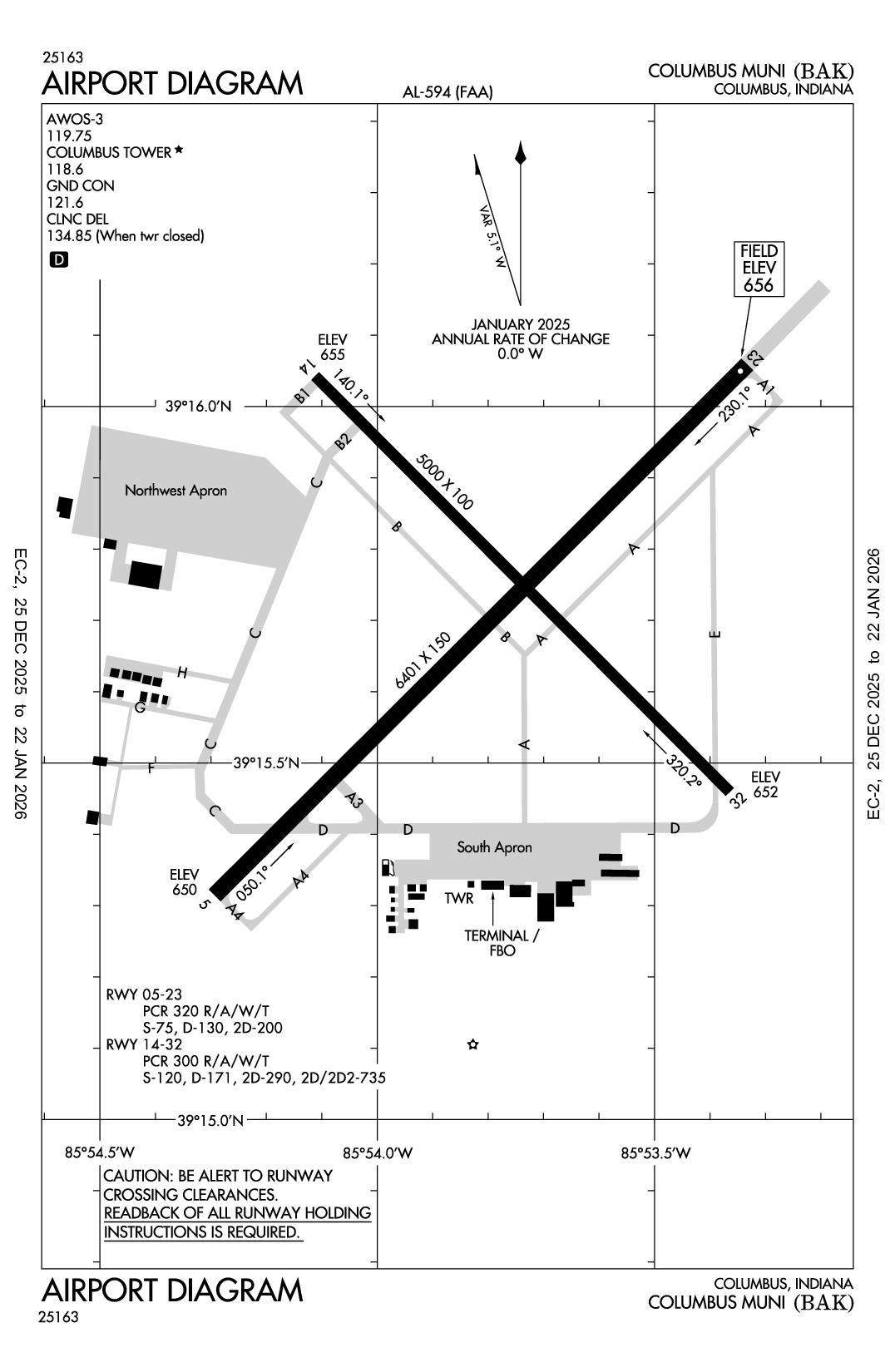

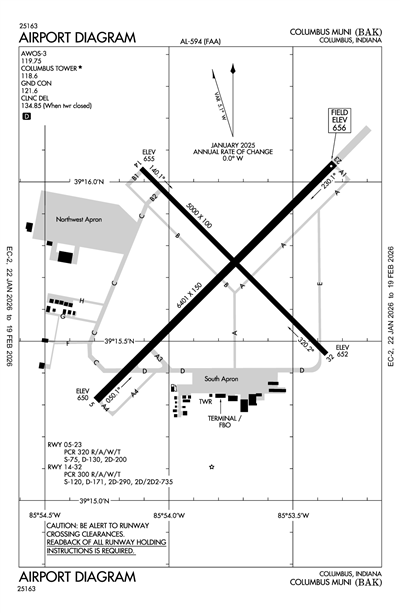

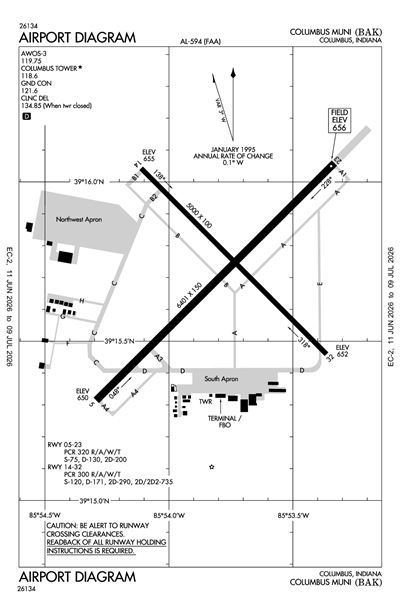

COLUMBUS MUNI - Airport Diagram
LiveATC.net: Live Air Traffic - From Their Headsets to You

KBAK
COLUMBUS MUNI
PublicPUB

3 miles N of COLUMBUS, IN
View on Map
LiveATC.net: Live Air Traffic - From Their Headsets to You
Operational
39° 15' 43"N 85° 53' 47"W
656' MSL
1656' MSL
03W
Jet A, 100LL
TERRE HAUTE (HUF)
ST LOUIS
INDIANAPOLIS (ZID)
5/16/24-6/13/24
KBAK VFR
10:45 AM EDT
Clear
10sm
81°F
63°F
30.01"Hg
240° 4kts
KBAK 201445Z 24004KT 10SM CLR 27/17 A3001
List Your Business

KBAK FBOs, Flight Schools and Ground Support

Promote Listing
Jet Access
Freq: 122.95
Phone: (812) 372-1819
No Rating Available
0 Reviews (Read | Sign In To Write)
Titan
As of 5/14
 100LL Jet A Jet A+ Mogas UL94
Self Serve
Full Serve 5.99 5.99
Promote Listing
Columbus Municipal Airport
Freq: 122.95
Phone: (812) 376-2519
No Rating Available
0 Reviews (Read | Sign In To Write)
Titan
As of 4/26
 100LL Jet A Jet A+ Mogas UL94
Self Serve 5.19
Full Serve

KBAK Ground Transportation (Taxi, Limo, Car Service)

No ground transportation services are listed for this airport.

KBAK Hotels

No hotels are listed for this airport.

KBAK Restaurants

No restaurants are listed for this airport.

KBAK Other Airport-Related Businesses

No other airport-related businesses are listed for this airport.
X

Send Message to Airport Company
Enter your information and message below.

Your Information

Processing
122.95 118.6

AWOS-3

AWOS-3
812-376-7584
 119.75

Ground

GND/P
 121.6

Tower

LCL/P
 118.6

FAA A/FD Pages

Airport Diagrams

Airport Minimums

Departure Procedures

  • No Documents

Hotspot

  • No Documents

Standard Term. Arrival

  • No Documents

Instrument Approach

Terminal Area Forecast

KIND (33nm)
Mon, 5/20 7:20 AM EDT
Mon, 5/20 8:00 AM EDT - Tue, 5/21 2:00 PM EDT
VFR
8:00 AM EDT - 11:00 AM EDT
Scattered 25,000'
6sm
160° 4kts
VFR
11:00 AM EDT - 9:00 PM EDT
Few 5,000'
6sm
200° 10kts
Gusts 17kts
VFR
9:00 PM EDT - 2:00 PM EDT
Broken 25,000'
Scattered 10,000'
6sm
200° 6kts
KIND 201120Z 2012/2118 16004KT P6SM SCT250
   FM201500 20010G17KT P6SM FEW050
   FM210100 20006KT P6SM SCT100 BKN250
KBAK
Domestic
5/3/241215Z !BAK 05/002 BAK AD AP ABN U/S 2405031215-2405311500
4/25/240524Z !BAK 04/021 BAK OBST TOWER LGT (ASR 1035495) 391344.00N0855846.00W (4.4NM WSW BAK) 934.1FT (303.1FT AGL) U/S 2404250524-2406090523
4/2/241200Z !BAK 04/003 BAK OBST TOWER LGT (ASR 1245997) 391822.60N0855749.20W (4.1NM NW BAK) 945.9FT (291.0FT AGL) U/S 2404021200-2407010400
Yes
0600-2000
AFT HR - 812-372-1819.
CITY OF COLUMBUS
4770 RAY BOLL BLVD
COLUMBUS, IN 47203
Phone: 812-376-2519
BRIAN PAYNE
4770 RAY BOLL BLVD
COLUMBUS, IN 47203
Phone: 812-376-2519
TERRE HAUTE FSS (HUF)
Toll Free: 1-800-WX-BRIEF
BAK
--
WHEN ATCT CLSD ACTVT MALSR RWY 23; REIL RWY 05, 14 & 32; HIRL RWY 05/23; MIRL RWY 14/32 - CTAF. PAPI RWY 5, 14, 23 & 32 ON CONSLY.
N/A
Yes - Lighted
No
No
Hanger, Tie-Down
NOT a Landing Rights Airport
NOT an Airport of Entry
53
8
5
3
0
0
Major
Major
None
High Pressure
Air Freight
Avionics
Charter Service
Pilot Instruction
Aircraft Rental
Aircraft Sales
Annual Surveying

Runway 05/23

6401 ft. x 150 ft.
CONC
Excellent
GRVD
HIGH
56 /R/B/W/T
75,000lbs
130,000lbs
200,000lbs
--
  Runway 05 Runway 23
True Heading 45°225°
Traffic Pattern Left Left
Markings PIR PIR
Markings Condition GOOD GOOD
Latitude 39° 15' 19"N 39° 16' 04"N
Longitude 85° 54' 18"W 85° 53' 20"W
Elevation 650' 656'
Threshold Crossing Height 50 ft. AGL 52 ft. AGL
Visual Glide Path Angle 3° 3°
Visual Slope Indicator P4L P4L
Approach Lights MALSR
Centerline Lights No No
Runway End Identifier Lights Yes No

Runway 14/32

5000 ft. x 100 ft.
CONC
Excellent
GRVD
MED
48 /R/B/W/T
120,000lbs
171,000lbs
290,000lbs
735,000lbs
  Runway 14 Runway 32
True Heading 135°315°
Traffic Pattern Left Left
Markings NPI NPI
Markings Condition GOOD GOOD
Latitude 39° 16' 03"N 39° 15' 28"N
Longitude 85° 54' 07"W 85° 53' 22"W
Elevation 654' 652'
Threshold Crossing Height 45 ft. AGL 45 ft. AGL
Visual Glide Path Angle 3° 3°
Visual Slope Indicator P4L P4L
Approach Lights
Centerline Lights No No
Runway End Identifier Lights Yes Yes
A110-1SAWRS AVBL.
A110-3BIRDS ON & INVOF ARPT; HVY ACT AUG & SEP.
A110-4FICONS NOT MNTD 1700-0600.
A110-5ACFT SVCS - UNICOM.
COLUMBUS MUNI (ICAO: KBAK, IATA: BAK) is a public airport located in COLUMBUS, IN.
