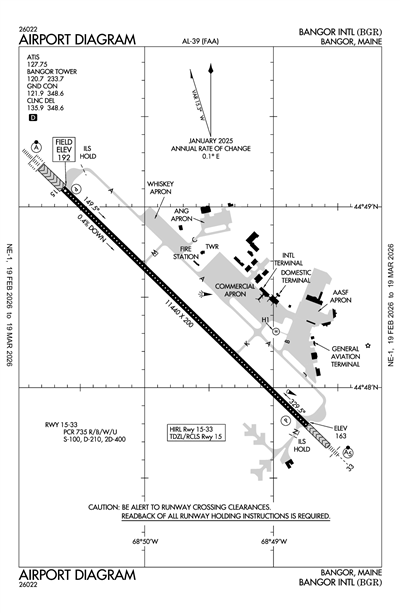

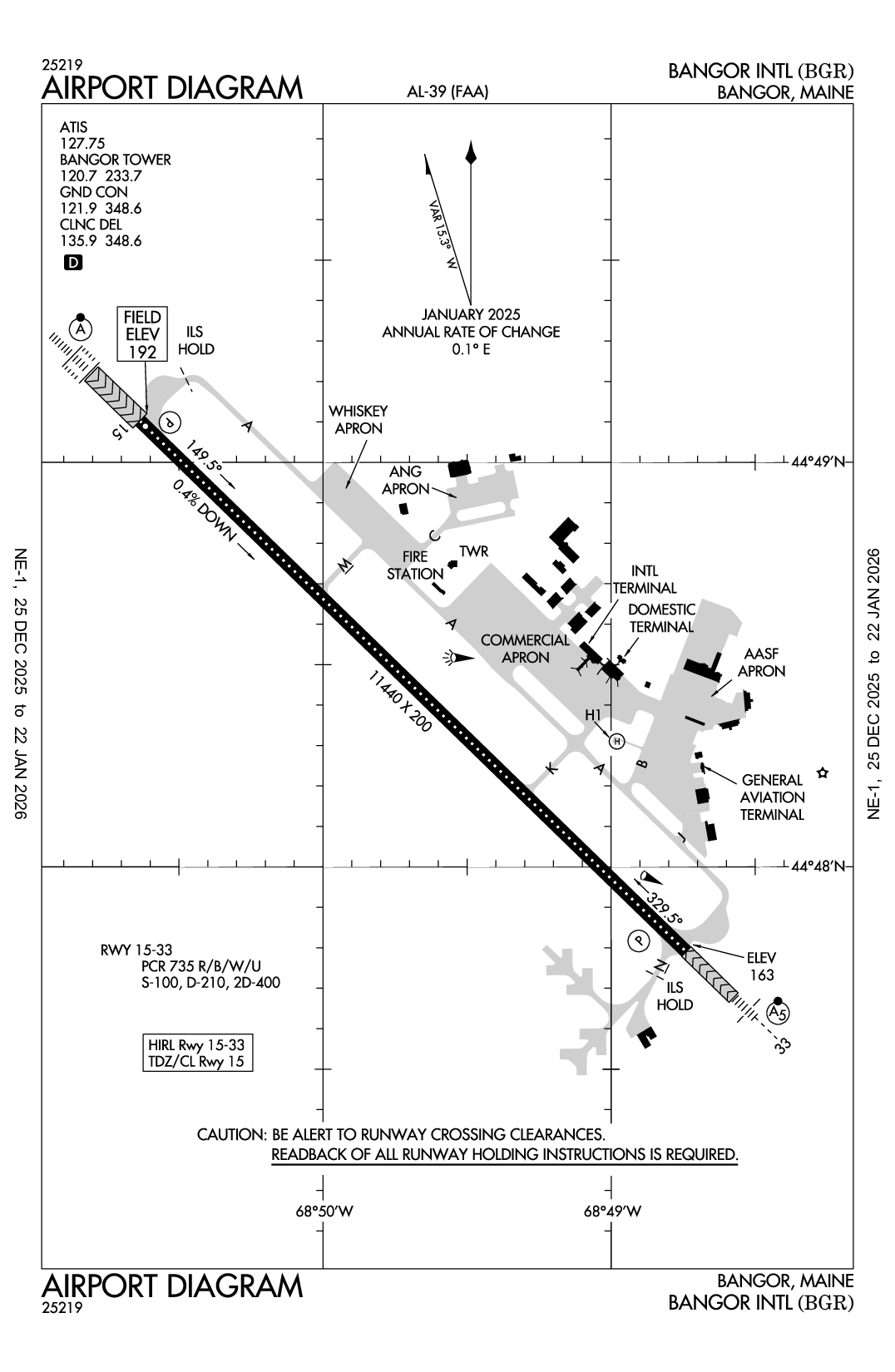

BANGOR INTL - Airport Diagram
LiveATC.net: Live Air Traffic - From Their Headsets to You

KBGR
BANGOR INTL
PublicPUB

3 miles W of BANGOR, ME
View on Map
LiveATC.net: Live Air Traffic - From Their Headsets to You
Operational
44° 48' 27"N 68° 49' 41"W
192' MSL
1192' MSL
16W
Jet A, 100LL
BANGOR (BGR)
HALIFAX
BOSTON (ZBW)
5/16/24-6/13/24
KBGR VFR
4:53 PM EDT
Scattered 25,000'
10sm
68°F
54°F
29.97"Hg
170° 13kts
AO2 SLP145 T02000122 57010
KBGR 202053Z 17013KT 10SM SCT250 20/12 A2997 RMK AO2 SLP145 T02000122 57010
List Your Business

KBGR FBOs, Flight Schools and Ground Support

Promote Listing
Bangor Aviation Services
Freq: 122.95
Phone: (207) 992-4582
Other: (207) 992-4623
No Rating Available
0 Reviews (Read | Sign In To Write)
Independent
As of 5/15
 100LL Jet A Jet A+ Mogas UL94
Self Serve
Full Serve 6.11 4.45 4.58

KBGR Ground Transportation (Taxi, Limo, Car Service)

No ground transportation services are listed for this airport.

KBGR Hotels

No hotels are listed for this airport.

KBGR Restaurants

No restaurants are listed for this airport.

KBGR Other Airport-Related Businesses

No other airport-related businesses are listed for this airport.
X

Send Message to Airport Company
Enter your information and message below.

Your Information

Processing
122.95 --

ATIS

ATIS
207-561-2524
 127.75

ASOS

ASOS
207-561-2515
 127.75

Approach/Departure

APCH/P DEP/P IC
 118.925
APCH/S DEP/S
 124.5

Clearance Delivery

CD/P
 135.9

Emergency

EMERG
 121.5

Ground

GND/P
 121.9

Tower

LCL/P
 120.7

Other

CLASS C
 118.925
CLASS C/S
 124.5
NG OPS
 41.2

FAA A/FD Pages

Airport Diagrams

Airport Minimums

Departure Procedures

Hotspot

  • No Documents

Standard Term. Arrival

  • No Documents

Instrument Approach

Terminal Area Forecast

KBGR
Mon, 5/20 1:20 PM EDT
Mon, 5/20 2:00 PM EDT - Tue, 5/21 2:00 PM EDT
MVFR
2:00 PM EDT - 3:00 PM EDT
Overcast 2,500'
6sm
VRB° 3kts
VFR
3:00 PM EDT - 12:00 AM EDT
Overcast 5,000'
6sm
190° 4kts
IFR
12:00 AM EDT - 2:00 AM EDT
Mist
Overcast 2,000'
2sm
190° 5kts
IFR
2:00 AM EDT - 7:00 AM EDT
Mist
Overcast 500'
2sm
190° 5kts
IFR
7:00 AM EDT - 10:00 AM EDT
Overcast 600'
6sm
200° 5kts
MVFR
10:00 AM EDT - 12:00 PM EDT
Overcast 1,200'
6sm
190° 6kts
VFR
12:00 PM EDT - 2:00 PM EDT
Scattered 9,000'
6sm
190° 7kts
KBGR 201720Z 2018/2118 VRB03KT P6SM OVC025
   FM201900 19004KT P6SM OVC050
   FM210400 19005KT 2SM BR OVC020
   FM210600 19005KT 2SM BR OVC005
   FM211100 20005KT P6SM OVC006
   FM211400 19006KT P6SM OVC012
   FM211600 19007KT P6SM SCT090
KBGR
Domestic
5/20/241200Z !BGR 05/116 BGR RWY 15/33 CLSD 2405201200-2405221900
5/20/241200Z !BGR 05/099 BGR RWY 15 PAPI U/S 2405201200-2405221900
5/20/241200Z !BGR 05/098 BGR RWY 33 PAPI U/S 2405201200-2405221900
5/20/241200Z !BGR 05/097 BGR RWY 15 ALS U/S 2405201200-2405221900
5/20/241200Z !BGR 05/096 BGR RWY 33 ALS U/S 2405201200-2405221900
5/20/241200Z !BGR 05/095 BGR NAV ILS RWY 15 U/S 2405201200-2405221900
5/20/241200Z !BGR 05/094 BGR NAV ILS RWY 33 U/S 2405201200-2405221900
1/11/241634Z !BGR 01/190 BGR NAV ILS RWY 15 CAT III NA 2401111634-2406282000EST
FDC
5/21/241100Z !FDC 4/6711 BGR IAP U.S. DOD BANGOR INTL, BANGOR, ME.
HI-ILS Z OR LOC Z RWY 15, AMDT 2...
PROCEDURE NA EXCEPT FOR ACFT EQUIPPED WITH SUITABLE RNAV SYSTEM WITH GPS,
BGR TACAN OUT OF SERVICE. 2405211100-2405281633EST
5/21/241100Z !FDC 4/6710 BGR IAP BANGOR INTL, Bangor, ME.
ILS Y OR LOC Y RWY 15, AMDT 7...
ILS Y RWY 15 (CAT II-III), AMDT 7...
MISSED APPROACH: CLIMB TO 1000 THEN CLIMBING LEFT TURN TO 3000 ON HEADING 340 AND MLT VOR/DME R-219 TO HOSEP/MLT 37.22 DME AND HOLD (DME REQUIRED),
BGR TACAN OUT OF SERVICE. 2405211100-2405281633EST
5/21/241100Z !FDC 4/6709 BGR IAP BANGOR INTL, Bangor, ME.
ILS OR LOC RWY 33, AMDT 13...
ILS RWY 33 (SA CAT I-II), AMDT 13...
MISSED APPROACH: CLIMB TO 1000 THEN CLIMBING RIGHT TURN TO 3000 ON HEADING 060 AND MLT VOR/DME R-219 TO HOSEP/MLT 37.22 DME AND HOLD (DME REQUIRED),
BGR TACAN OUT OF SERVICE. 2405211100-2405281633EST
5/21/241100Z !FDC 4/6671 BGR IAP BANGOR INTL, BANGOR, ME.
ILS Y OR LOC Y RWY 15, AMDT 7...
ILS RWY 15 (CAT II AND III) AMDT 7...
MISSED APPROACH: CLIMB TO 1000 THEN CLIMBING LEFT TURN TO 3000 ON HEADING 340 AND MLT VOR/DME R-219 TO HOSEP/MLT 37.22 DME AND HOLD (DME REQUIRED),
BGR VOR OUT OF SERVICE. 2405211100-2405281543EST
5/21/241100Z !FDC 4/6670 BGR IAP BANGOR INTL, BANGOR, ME.
ILS OR LOC RWY 33, AMDT 13...
ILS RWY 33 (SA CAT I AND II), AMDT 13...
MISSED APPROACH: CLIMB TO 1000 THEN CLIMBING RIGHT TURN TO 3000 ON HEADING 060 AND MLT VOR/DME R-219 TO HOSEP/MLT 37.22 DME AND HOLD.
RADAR REQUIRED FOR PROCEDURE ENTRY EXCEPT FOR ACFT EQUIPPED WITH SUITABLE RNAV SYSTEM WITH GPS,
BGR VOR OUT OF SERVICE. 2405211100-2405281543EST
6/29/230201Z !FDC 3/8442 BGR IAP BANGOR INTL, BANGOR, ME.
ILS RWY 33 (SA CAT I - II), AMDT 13 ...
ILS Y RWY 15 (CAT II - III), AMDT 7 ...
PROCEDURE NA EXC FOR RDO ALTIMETER TOLERANT ACFT AND ACFT USING APPROVED ALTERNATIVE METHODS OF COMPLIANCE DUE TO 5G C-BAND INTERFERENCE PLUS SEE AIRWORTHINESS DIRECTIVE 2023-10-02 AND 5G C-BAND DOMESTIC NOTICES. 2306290201-2506290152EST
Yes
ALL
CITY OF BANGOR
73 HARLOW STREET
BANGOR, ME 04401
Phone: 207-992-4200
TONY CARUSO
BANGOR INTERNATIONAL ARPT, 287 GODFREY BLVD.
BANGOR, ME 04401
Phone: 207-992-4600
BANGOR FSS (BGR)
Toll Free: 1-800-WX-BRIEF
BGR
--
--
N/A
Yes - Lighted
No
Yes
Hanger, Tie-Down
Landing Rights Airport
NOT an Airport of Entry
33
2
1
4
28
0
Major
Major
Low Pressure
Low Pressure
Air Freight
Cargo Handling
Charter Service
Pilot Instruction
Aircraft Sales

Runway 15/33

11440 ft. x 200 ft.
ASPH
Good
GRVD
HIGH
120/R/A/W/T
100,000lbs
210,000lbs
400,000lbs
--
  Runway 15 Runway 33
True Heading 134°314°
Traffic Pattern Left
Markings PIR PIR
Markings Condition GOOD GOOD
Latitude 44° 49' 06"N 44° 47' 47"N
Longitude 68° 50' 38"W 68° 48' 44"W
Elevation 192' 163'
Threshold Crossing Height 55 ft. AGL 57 ft. AGL
Visual Glide Path Angle 3° 3°
Visual Slope Indicator P4L P4L
Approach Lights ALSF2 MALSR
Centerline Lights Yes Yes
Runway End Identifier Lights

Runway H1

100 ft. x 100 ft.
CONC
Good
NONE


--
--
--
--
  Runway H1 Runway
True Heading Not ListedNot Listed
Traffic Pattern
Markings
Markings Condition
Latitude N/A N/A
Longitude N/A N/A
Elevation -- --
Threshold Crossing Height -- --
Visual Glide Path Angle -- --
Visual Slope Indicator -- --
Approach Lights
Centerline Lights
Runway End Identifier Lights
A110-10ANG: CAUTION: BASH PHASE II PERIOD SEP-NOV, APR-MAY. EXPECT INCREASED BIRD ACTIVITY. CONTACT BASE OPS/COMMAND POST/SOF FOR CURRENT BIRDWATCH COND.
A110-12FUEL: A++ (MIL).
A110-13SVC MIL-FLUID: OFF-BASE CONTRACTED LOX AVBL H24-RQR 24 HR NOTICE.
A110-14ANG: OPR 1100-1930Z++ MON-FRI, CLSD WKEND AND HOL. PPR RQRD FOR ANG RAMP. CTC AFLD MGMT DSN 698-7232, C207-404-7232 FOR PPR DURG OPR HRS. PRE-COORD ALL TRNSPN RQMNTS AND HAZ CARGO WITH PPR REQ.
A110-15ANG: PPR VALID +/- 1 HR UNLESS PRIOR CDN. 3 HR OUT CALL, 30 MIN OUT CALL 311.0 TO CFM CSTMS/AG AND TRAN SVC. COMMAND POST C207-404-7788 H24.
A110-2ANG: TRANSIENT ACFT MAY BE DIVERTED TO CIVILIAN SIDE DURING NON-DUTY HRS & WEEKENDS. FEE REQUIRED; NO ANG TRANSIENT ALERT.
A110-4TFC PAT: RWY 33 LEFT TFC, TURBO JET TFC 2000' MSL UNLESS OTHERWISE INSTR.
A110-5MISC: RWY 15-33 GROOVED.
A110-8ARNG: OPR 1230-2100Z++ MON-FRI EXC HOL. LTD MAINT. J8. PPR MAY-OCT SVC DSN 626-1100.
BANGOR INTL (ICAO: KBGR, IATA: BGR) is a public airport located in BANGOR, ME.
