iFlightPlanner



...

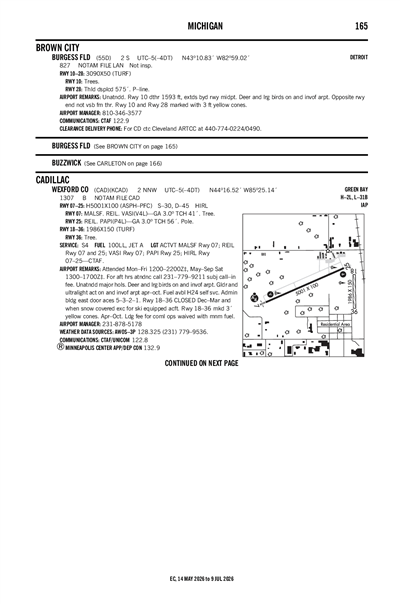

WEXFORD COUNTY - Airport Diagram
LiveATC.net: Live Air Traffic - From Their Headsets to You

KCAD
WEXFORD COUNTY
PublicPUB

2 miles N of CADILLAC, MI
View on Map
LiveATC.net: Live Air Traffic - From Their Headsets to You
Operational
44° 16' 31"N 85° 25' 08"W
1306' MSL
2306' MSL
04W
Jet A, 100LL
LANSING (LAN)
GREEN BAY
MINNEAPOLIS (ZMP)
5/16/24-6/13/24
KCAD VFR
3:15 PM EDT
Clear
10sm
77°F
57°F
29.87"Hg
150° 9kts
Gusts 14kts
AO2
KCAD 201915Z AUTO 15009G14KT 10SM CLR 25/14 A2987 RMK AO2
List Your Business

KCAD FBOs, Flight Schools and Ground Support

Promote Listing
Wexford County Airport
Freq: 122.8
Phone: (231) 779-9525
No Rating Available
0 Reviews (Read | Sign In To Write)
Avfuel
As of 5/14
 100LL Jet A Jet A+ Mogas UL94
Self Serve 6.05 5.59
Full Serve

KCAD Ground Transportation (Taxi, Limo, Car Service)

No ground transportation services are listed for this airport.

KCAD Hotels

No hotels are listed for this airport.

KCAD Restaurants

No restaurants are listed for this airport.

KCAD Other Airport-Related Businesses

No other airport-related businesses are listed for this airport.
X

Send Message to Airport Company
Enter your information and message below.

Your Information

Processing
122.8 122.8

AWOS-3P

AWOS-3P
231-779-9536
 128.325

FAA A/FD Pages

Airport Diagrams

  • No Documents

Airport Minimums

Departure Procedures

  • No Documents

Hotspot

  • No Documents

Standard Term. Arrival

  • No Documents

Instrument Approach

Terminal Area Forecast

KTVC (29nm)
Mon, 5/20 1:31 PM EDT
Mon, 5/20 2:00 PM EDT - Tue, 5/21 2:00 PM EDT
VFR
2:00 PM EDT - 6:00 PM EDT
Overcast 15,000'
Scattered 10,000'
Few 5,000'
6sm
180° 9kts
VFR
6:00 PM EDT - 8:00 PM EDT
Light Showers and Rain and Thunderstorm in vicinity
Overcast 4,000'
6sm
270° 6kts
MVFR
8:00 PM EDT - 2:00 AM EDT
Light Showers and Rain and Thunderstorm in vicinity
Overcast 2,000'
3sm
290° 5kts
IFR
2:00 AM EDT - 7:00 AM EDT
Showers in vicinity
Overcast 600'
6sm
250° 4kts
LIFR
7:00 AM EDT - 1:00 PM EDT
Broken 300'
6sm
Calm
VFR
1:00 PM EDT - 2:00 PM EDT
Broken 9,000'
6sm
190° 4kts
KTVC 201731Z 2018/2118 18009KT P6SM FEW050 SCT100 OVC150
   FM202200 27006KT 6SM -SHRA VCTS OVC040CB
   FM210000 29005KT 3SM -SHRA VCTS OVC020CB
   FM210600 25004KT P6SM VCSH OVC006
   FM211100 00000KT P6SM BKN003
   FM211700 19004KT P6SM BKN090
KCAD
Domestic
5/21/241230Z !CAD 05/005 CAD NAV ILS RWY 07 U/S 2405211230-2405212200
5/18/241400Z !CAD 05/003 CAD AIRSPACE GLD WI AN AREA DEFINED AS 5NM RADIUS OF CAD SFC-7000FT AVOIDANCE ADZ
SAT SUN 1400-2100 2405181400-2410202100
5/18/240538Z !CAD 05/004 CAD OBST TOWER LGT (ASR 1256114) 441755.80N0852419.20W (1.5NM NNE CAD) 1448.8FT (128.0FT AGL) U/S 2405180538-2406020438
5/2/241612Z !CAD 05/001 CAD OBST TOWER LGT (ASR 1204896) 441251.40N0852357.60W (3.8NM SSE CAD) 1700.1FT (259.8FT AGL) U/S 2405021612-2408301612
4/28/240859Z !CAD 04/009 CAD OBST TOWER LGT (ASR 1007144) 441316.00N0852406.00W (3.3NM SSE CAD) 1759.8FT (316.9FT AGL) U/S 2404280859-2405280001
4/28/240247Z !CAD 04/008 CAD OBST TOWER LGT (ASR 1055925) 442000.70N0852417.20W (3.6NM NE CAD) 1672.9FT (253.9FT AGL) U/S 2404280247-2408260247
No
MON-FRI 0700-1700
MAY-SEP SAT 0800-1200
OCT-APR SAT UNATNDD
SUN UNATNDD
FOR AFT HRS ATNDNC CALL 231-779-9211 SUBJ CALL-IN FEE. UNATNDD MAJOR HOLS.
WEXFORD CO ARPT AUTH
8040 E 34 RD
CADILLAC, MI 49601-9015
Phone: 231-779-9525
KEITH NEWELL
8040 E 34 RD
CADILLAC, MI 49601-9015
Phone: 231-878-5178
LANSING FSS (LAN)
Toll Free: 1-800-WX-BRIEF
CAD
--
ACTVT MALSF RWY 07; REIL RWY 07 & 25; VASI RWY 07; PAPI RWY 25; HIRL RWY 07/25 - CTAF.
N/A
Yes - Lighted
Yes
No
Hanger, Tie-Down
NOT a Landing Rights Airport
NOT an Airport of Entry
43
3
0
1
0
0
Major
Major
None
None
Charter Service
Glider Service
Pilot Instruction
Aircraft Rental
Glider Towing

Runway 07/25

5000 ft. x 100 ft.
ASPH
Good
PFC
HIGH

30,000lbs
45,000lbs
--
--
  Runway 07 Runway 25
True Heading 66°246°
Traffic Pattern Left Left
Markings PIR PIR
Markings Condition GOOD GOOD
Latitude 44° 16' 22"N 44° 16' 42"N
Longitude 85° 25' 51"W 85° 24' 48"W
Elevation 1,306' 1,298'
Threshold Crossing Height 41 ft. AGL 56 ft. AGL
Visual Glide Path Angle 3° 3°
Visual Slope Indicator V2L P4L
Approach Lights MALSF
Centerline Lights No No
Runway End Identifier Lights Yes Yes

Runway 18/36

2006 ft. x 150 ft.
TURF
Fair
NONE


--
--
--
--
  Runway 18 Runway 36
True Heading 179°359°
Traffic Pattern Left Left
Markings
Markings Condition
Latitude 44° 16' 39"N 44° 16' 19"N
Longitude 85° 24' 40"W 85° 24' 39"W
Elevation 1,294' 1,296'
Threshold Crossing Height -- --
Visual Glide Path Angle -- --
Visual Slope Indicator -- --
Approach Lights
Centerline Lights No No
Runway End Identifier Lights No No
A110-3DEER & LRG BIRDS ON & INVOF ARPT.
A110-4ADMIN BLDG EAST DOOR ACES 5-3-2-1.
A110-5GLDR & ULTRALIGHT ACT ON & INVOF ARPT APR-OCT.
A110-6FOR CD CTC MINNEAPOLIS ARTCC AT 651-463-5588.
WEXFORD COUNTY (ICAO: KCAD, IATA: CAD) is a public airport located in CADILLAC, MI.
