KCNP
BILLY G RAY FLD
Public
PUB
1 miles S of CHAPPELL, NE
View on
Map
Status
Operational
Coordinates
41° 04' 39"N
102° 27' 51"W
Elevation
3682' MSL
Pattern Alt
4682' MSL
Mag Variation
10E
Fuel
100LL
FSS
COLUMBUS (OLU)
Sectional
CHEYENNE
ARTCC
DENVER (ZDV)
Data Effective
5/16/24-6/13/24
K1IW (18nm)
MVFR
10:55 AM MDT
RAW
Broken 2,400'
Viz
10sm
Temp
58°F
Dew
42°F
Pres
29.94"Hg
Wind
060° 13kts
Gusts 18kts
RMK
AO2 SLP114 T01420055 $
K1IW 201655Z AUTO 06013G18KT 10SM BKN024 14/06 A2994 RMK AO2 SLP114 T01420055 $
Services
Frequencies & Documents
Freqs & Docs
TAF
NOTAM
Operations
Runways
Remarks
List Your Business
KCNP FBOs, Flight Schools and Ground Support
No FBOs, flight schools or aircraft ground support businesses are listed for this airport.
KCNP Ground Transportation (Taxi, Limo, Car Service)
No ground transportation services are listed for this airport.
KCNP Hotels
No hotels are listed for this airport.
KCNP Restaurants
No restaurants are listed for this airport.
KCNP Other Airport-Related Businesses
No other airport-related businesses are listed for this airport.
X
Send Message to Airport Company
Enter your information and message below.
Your Information
Business
x
UNICOM
--
CTAF
122.9
No communication frequencies available for this airport.
FAA A/FD Pages
FAA A/FD Page

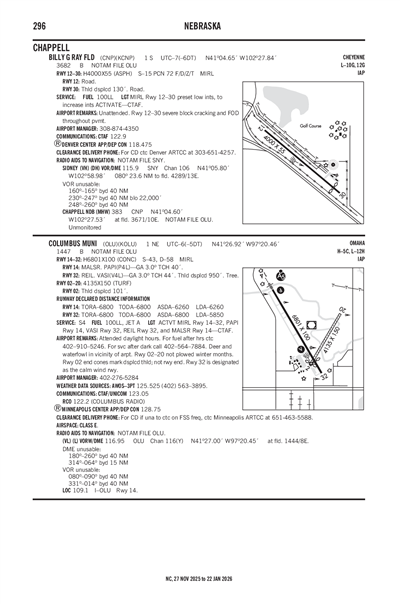

Airport Diagrams
No Documents
Airport Minimums
TAKEOFF MINIMUMS
Departure Procedures
No Documents
Hotspot
No Documents
Standard Term. Arrival
No Documents
Instrument Approach
NDB OR GPS RWY 30
Terminal Area Forecast
KSNY (24nm)
RAW
Reported
Mon, 5/20 11:33 AM MDT
Valid
Mon, 5/20 12:00 PM MDT - Tue, 5/21 12:00 PM MDT
VFR
12:00 PM MDT - 5:00 PM MDT
Few 15,000'
Viz
6sm
Wind
100° 12kts
Gusts 22kts
VFR
5:00 PM MDT - 7:00 PM MDT
Thunderstorm in vicinity
Broken 10,000'
Viz
6sm
Wind
080° 15kts
Gusts 25kts
MVFR
7:00 PM MDT - 2:00 AM MDT
Light Thunderstorm and Rain
Overcast 5,000'
Viz
3sm
Wind
VRB° 16kts
Gusts 28kts
MVFR
2:00 AM MDT - 7:00 AM MDT
Light Showers and Rain and Mist and Thunderstorm in vicinity
Overcast 1,500'
Scattered 700'
Viz
5sm
Wind
020° 15kts
Gusts 25kts
IFR
7:00 AM MDT - 12:00 PM MDT
Light Showers and Rain and Mist
Overcast 700'
Viz
2sm
Wind
330° 15kts
Gusts 25kts
KSNY 201733Z 2018/2118 10012G22KT P6SM FEW150
FM202300 08015G25KT P6SM VCTS BKN100CB
FM210100 VRB16G28KT 3SM -TSRA OVC050CB
FM210800 02015G25KT 5SM -SHRA BR VCTS SCT007 OVC015CB
FM211300 33015G25KT 2SM -SHRA BR OVC007 AMD NOT SKED
KCNP
Domestic
12/13/23
1346Z
!OLU 12/055 CNP RWY 12 /30 REDL U/S 2312131346-2406132111EST
FDC
5/6/24
1617Z
!FDC 4/9213 CNP IAP BILLY G RAY FLD, CHAPPELL, NE.
NDB OR GPS RWY 30, AMDT 2C...
PROCEDURE NA EXCEPT FOR ACFT EQUIPPED WITH SUITABLE RNAV SYSTEM WITH GPS,
SNY VOR
OUT OF SERVICE
. 2405061617-2409241617EST
ATC Tower
No
Attendance
UNATNDD
Owner
CHAPPELL AIRPORT AUTHORITY
PO BOX 546
CHAPPELL, NE 69129-0546
Phone: 308-874-2708
Manager
CHRIS RAY
PO BOX 546
CHAPPELL, NE 69129-0546
Phone: 308-874-4350
FSS
COLUMBUS FSS (OLU)
Toll Free: 1-800-WX-BRIEF
NOTAM
OLU
Light Schedule
--
Lights
MIRL RWY 12/30 PRESET LOW INTST; TO INCR INTST ACTVT - CTAF.
Beacon
N/A
Wind Indicator
Yes - Lighted
Segmented Cir.
No
Landing Fee
No
Parking
Tie-Down
Int'l Operations
No
# Single Engine
6
# Multi Engine
0
# Jets
0
# Helicopters
0
# Military
0
# Ultralights
0
Airframe Repair
None
Pwrplant Repair
None
Bottled Oxygen
None
Bulk Oxygen
None
Other Services
None
Runway 12/30
Dimensions
4000 ft. x 55 ft.
Surface Type
ASPH
Surface Cond
Poor
Treatment
NONE
Rwy Edge Lgts
MED
Pavement Class
72 /F/D/Z/T
Single Wheel
15,000lbs
Double Wheel
--
Double Tandem
--
Dual Dbl Tand
--
Runway 12
Runway 30
True Heading
130°
310°
Traffic Pattern
Left
Left
Markings
NPI
NPI
Markings Condition
FAIR
FAIR
Latitude
41° 04' 52"N
41° 04' 26"N
Longitude
102° 28' 11"W
102° 27' 31"W
Elevation
3,681'
3,678'
Threshold Crossing Height
--
--
Visual Glide Path Angle
--
--
Visual Slope Indicator
--
--
Approach Lights
Centerline Lights
Runway End Identifier Lights
A110-1
FOR CD CTC DENVER ARTCC AT 303-651-4257.
BILLY G RAY FLD (ICAO: KCNP, IATA: CNP) is a public airport located in CHAPPELL, NE.
