KCQF
H L SONNY CALLAHAN
Public
PUB
3 miles SE of FAIRHOPE, AL
View on
Map
Status
Operational
Coordinates
30° 27' 38"N
87° 52' 37"W
Elevation
91' MSL
Pattern Alt
1091' MSL
Mag Variation
01W
Fuel
Jet A+, 100LL
FSS
ANNISTON (ANB)
Sectional
NEW ORLEANS
ARTCC
JACKSONVILLE (ZJX)
Data Effective
5/16/24-6/13/24
KCQF
VFR
7:35 AM CDT
RAW
Clear
Viz
10sm
Temp
72°F
Dew
66°F
Pres
29.94"Hg
Wind
070° 4kts
RMK
AO2
KCQF 201235Z AUTO 07004KT 10SM CLR 22/19 A2994 RMK AO2
Services
Frequencies & Documents
Freqs & Docs
TAF
NOTAM
Operations
Runways
Remarks
List Your Business
KCQF FBOs, Flight Schools and Ground Support
Promote Listing
Continental Aerospace Technologies
Freq: 123.0
Phone: (251) 436-8668 x1
0 Reviews
(
Read
|
Sign In To Write
)
Phillips 66
As of
5/4
100LL
Jet
A
Jet
A+
Mogas
UL94
Self Serve
Full Serve
6.50
6.00
KCQF Ground Transportation (Taxi, Limo, Car Service)
No ground transportation services are listed for this airport.
KCQF Hotels
No hotels are listed for this airport.
KCQF Restaurants
No restaurants are listed for this airport.
KCQF Other Airport-Related Businesses
No other airport-related businesses are listed for this airport.
X
Send Message to Airport Company
Enter your information and message below.
Your Information
Business
x
UNICOM
123.0
CTAF
123.0
AWOS-3PT
AWOS-3PT
251-928-3242
118.425

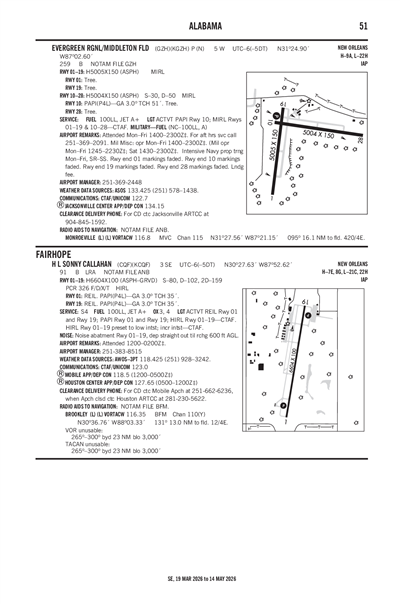

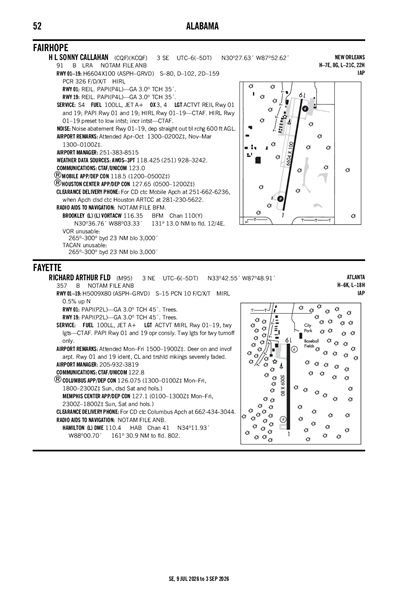

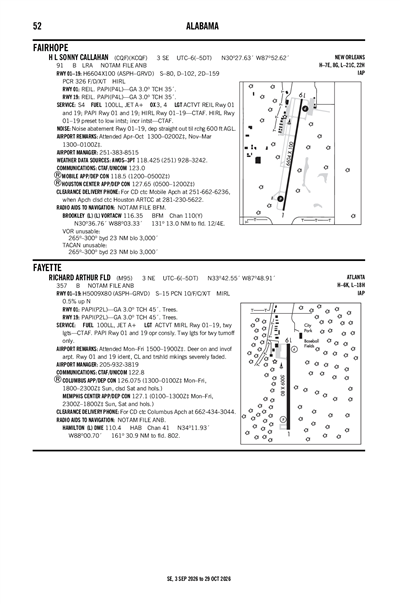

FAA A/FD Pages
FAA A/FD Page
Airport Diagrams
No Documents
Airport Minimums
ALTERNATE MINIMUMS
TAKEOFF MINIMUMS
Departure Procedures
No Documents
Hotspot
No Documents
Standard Term. Arrival
No Documents
Instrument Approach
RNAV (GPS) RWY 01
RNAV (GPS) RWY 19
VOR/DME-A
Terminal Area Forecast
KBFM (13nm)
RAW
Reported
Mon, 5/20 6:28 AM CDT
Valid
Mon, 5/20 7:00 AM CDT - Tue, 5/21 7:00 AM CDT
VFR
7:00 AM CDT - 11:00 AM CDT
Sky Clear
Viz
6sm
Wind
030° 5kts
VFR
11:00 AM CDT - 1:00 PM CDT
Few 3,000'
Viz
6sm
Wind
090° 6kts
VFR
1:00 PM CDT - 1:00 AM CDT
Scattered 3,500'
Viz
6sm
Wind
150° 6kts
VFR
1:00 AM CDT - 7:00 AM CDT
Few 30,000'
Viz
6sm
Wind
100° 4kts
KBFM 201128Z 2012/2112 03005KT P6SM SKC
FM201600 09006KT P6SM FEW030
FM201800 15006KT P6SM SCT035
FM210600 10004KT P6SM FEW300
KCQF
Domestic
5/20/24
1200Z
!ANB 05/802 CQF AIRSPACE SEE BFM 05/012 UAS DLY 1200-0030 2405201200-2405250030
5/3/24
1345Z
!ANB 05/100 CQF AD AP ABN U/S 2405031345-2405312359
4/24/24
2130Z
!ANB 04/747 CQF OBST TOWER LGT (ASR 1065471) 302252.00N0874900.00W (5.6NM SSE CQF) 440.0FT (399.9FT AGL) U/S 2404242130-2405242359
3/15/24
1427Z
!ANB 03/413 CQF TWY A EDGE LGT U/S 2403151427-2405312359
12/29/23
1654Z
!ANB 12/746 CQF APRON EAST RAMP N 30FT
CLSD
2312291654-2406302359
ATC Tower
No
Attendance
0600-2000
Owner
FAIRHOPE AIRPORT AUTHORITY
PO DRAWER 429
FAIRHOPE, AL 36533
Phone: 251-383-8515
Manager
DAVE FRIEDEL
PO DRAWER 429
FAIRHOPE, AL 36533
Phone: 251-383-8515
FSS
ANNISTON FSS (ANB)
Toll Free: 1-800-WX-BRIEF
NOTAM
ANB
Light Schedule
--
Lights
ACTVT REIL RWY 01 & 19; PAPI RWY 01 & 19; HIRL RWY 01/19 - CTAF. HIRL RWY 01/19 PRESET TO LOW INTST; INCR INTST - CTAF.
Beacon
N/A
Wind Indicator
Yes - Lighted
Segmented Cir.
No
Landing Fee
No
Parking
Hanger, Tie-Down
Int'l Operations
Landing Rights Airport
NOT an Airport of Entry
# Single Engine
43
# Multi Engine
8
# Jets
2
# Helicopters
9
# Military
0
# Ultralights
0
Airframe Repair
Major
Pwrplant Repair
Major
Bottled Oxygen
High & Low Pressure
Bulk Oxygen
None
Other Services
Avionics
Pilot Instruction
Aircraft Rental
Runway 01/19
Dimensions
6604 ft. x 100 ft.
Surface Type
ASPH
Surface Cond
Fair
Treatment
GRVD
Rwy Edge Lgts
HIGH
Pavement Class
Single Wheel
36,000lbs
Double Wheel
58,000lbs
Double Tandem
--
Dual Dbl Tand
--
Runway 01
Runway 19
True Heading
9°
189°
Traffic Pattern
Left
Left
Markings
PIR
PIR
Markings Condition
FAIR
FAIR
Latitude
30° 27' 06"N
30° 28' 10"N
Longitude
87° 52' 43"W
87° 52' 31"W
Elevation
87'
91'
Threshold Crossing Height
35 ft. AGL
35 ft. AGL
Visual Glide Path Angle
3°
3°
Visual Slope Indicator
P4L
P4L
Approach Lights
Centerline Lights
Runway End Identifier Lights
Yes
Yes
A110-1
NOISE ABATEMENT RWY 01 & 19, DEP STRAIGHT OUT TIL RCHG 600 FT AGL.
A110-2
FOR CD CTC MOBILE APCH AT 251-662-6236, WHEN APCH CLSD CTC HOUSTON ARTCC AT 281-230-5622.
H L SONNY CALLAHAN (ICAO: KCQF, IATA: CQF) is a public airport located in FAIRHOPE, AL.
