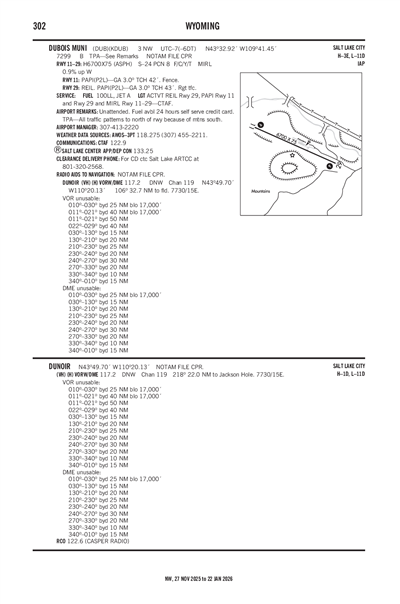

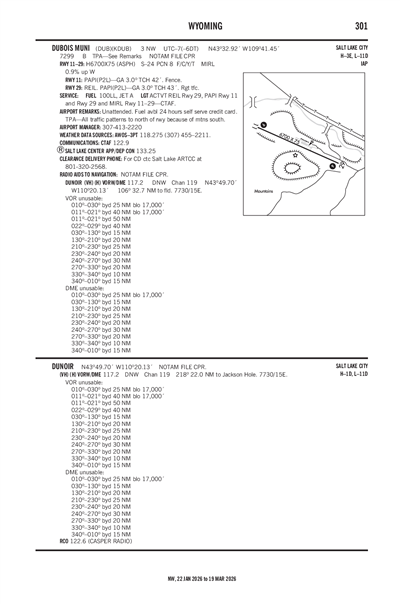

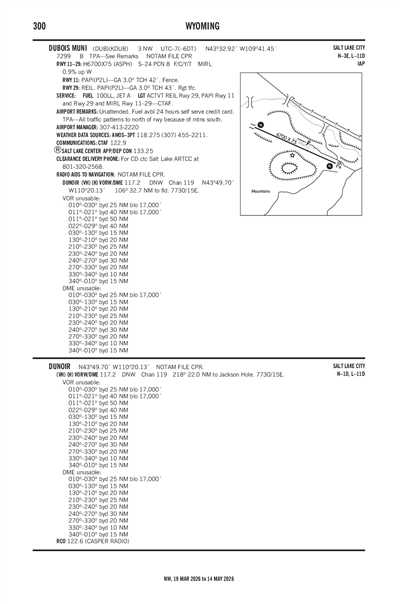

DUBOIS MUNI - Airport Diagram
LiveATC.net: Live Air Traffic - From Their Headsets to You

KDUB
DUBOIS MUNI
PublicPUB

3 miles NW of DUBOIS, WY
View on Map
LiveATC.net: Live Air Traffic - From Their Headsets to You
Operational
43° 32' 55"N 109° 41' 27"W
7299' MSL
8299' MSL
15E
Jet A, 100LL
CASPER (CPR)
SALT LAKE CITY
SALT LAKE CITY (ZLC)
5/16/24-6/13/24
KDUB VFR
11:40 AM MDT
Overcast 7,500'
Scattered 6,500'
10sm
45°F
25°F
29.92"Hg
130° 3kts
AO2
KDUB 201740Z AUTO 13003KT 10SM SCT065 OVC075 07/M04 A2992 RMK AO2
List Your Business

KDUB FBOs, Flight Schools and Ground Support

Promote Listing
Wildlife Air
Phone: (307) 455-2061
No Rating Available
0 Reviews (Read | Sign In To Write)
Phillips 66
As of 5/17
 100LL Jet A Jet A+ Mogas UL94
Self Serve 6.30 6.15
Full Serve

KDUB Ground Transportation (Taxi, Limo, Car Service)

No ground transportation services are listed for this airport.

KDUB Hotels

No hotels are listed for this airport.

KDUB Restaurants

No restaurants are listed for this airport.

KDUB Other Airport-Related Businesses

No other airport-related businesses are listed for this airport.
X

Send Message to Airport Company
Enter your information and message below.

Your Information

Processing
-- 122.9

AWOS-3PT

AWOS-3PT
307-455-2211
 118.275

FAA A/FD Pages

Airport Diagrams

  • No Documents

Airport Minimums

  • No Documents

Departure Procedures

  • No Documents

Hotspot

  • No Documents

Standard Term. Arrival

  • No Documents

Instrument Approach

  • No Documents

Terminal Area Forecast

KPNA (46nm)
Mon, 5/20 11:23 AM MDT
Mon, 5/20 12:00 PM MDT - Tue, 5/21 12:00 PM MDT
VFR
12:00 PM MDT - 2:00 PM MDT
Light Showers and Rain
Overcast 6,000'
Scattered 3,000'
6sm
VRB° 6kts
VFR
2:00 PM MDT - 6:00 PM MDT
Light Showers and Rain
Overcast 6,000'
Scattered 3,000'
6sm
300° 10kts
Gusts 18kts
VFR
6:00 PM MDT - 4:00 AM MDT
Overcast 5,000'
6sm
310° 10kts
VFR
4:00 AM MDT - 11:00 AM MDT
Broken 15,000'
Scattered 10,000'
6sm
300° 8kts
VFR
11:00 AM MDT - 12:00 PM MDT
Light Showers and Rain
Overcast 8,000'
Scattered 5,000'
6sm
330° 12kts
Gusts 22kts
KPNA 201723Z 2018/2118 VRB06KT P6SM -SHRA SCT030 OVC060
   FM202000 30010G18KT P6SM -SHRA SCT030 OVC060
   FM210000 31010KT P6SM OVC050
   FM211000 30008KT P6SM SCT100 BKN150
   FM211700 33012G22KT P6SM -SHRA SCT050 OVC080
KDUB
No NOTAM Available
No
UNATNDD
TOWN OF DUBOIS
BOX 555
DUBOIS, WY 82513
Phone: 307-455-2345
TIM SCHELL
P.O. BOX 2046
DUBOIS, WY 82513
Phone: 307-455-2100
CASPER FSS (CPR)
Toll Free: 1-800-WX-BRIEF
CPR
--
ACTVT REIL RWY 29; PAPI 11 & 29; MIRL RWY 11/29 - CTAF.
N/A
Yes - Lighted
Yes
No
Tie-Down
NOT a Landing Rights Airport
NOT an Airport of Entry
14
0
0
0
0
0
None
None
None
None
None

Runway 11/29

6700 ft. x 75 ft.
ASPH
Good
NONE
MED
8 /F/C/Y/T
24,000lbs
--
--
--
  Runway 11 Runway 29
True Heading 114°294°
Traffic Pattern Left Right
Markings NPI NPI
Markings Condition GOOD GOOD
Latitude 43° 33' 09"N 43° 32' 42"N
Longitude 109° 42' 09"W 109° 40' 45"W
Elevation 7,299' 7,239'
Threshold Crossing Height 42 ft. AGL 43 ft. AGL
Visual Glide Path Angle 3° 3°
Visual Slope Indicator P2L P2L
Approach Lights
Centerline Lights
Runway End Identifier Lights Yes
A110-1ALL TFC PATTERNS TO NORTH OF RWY BECAUSE OF MTNS SOUTH.
A110-2FOR CD CTC SALT LAKE ARTCC AT 801-320-2568.
DUBOIS MUNI (ICAO: KDUB, IATA: DUB) is a public airport located in DUBOIS, WY.
