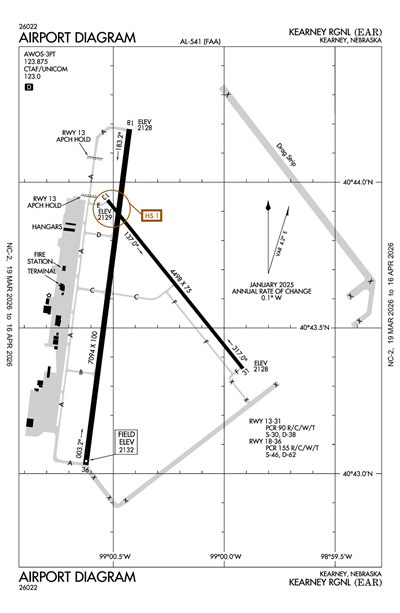

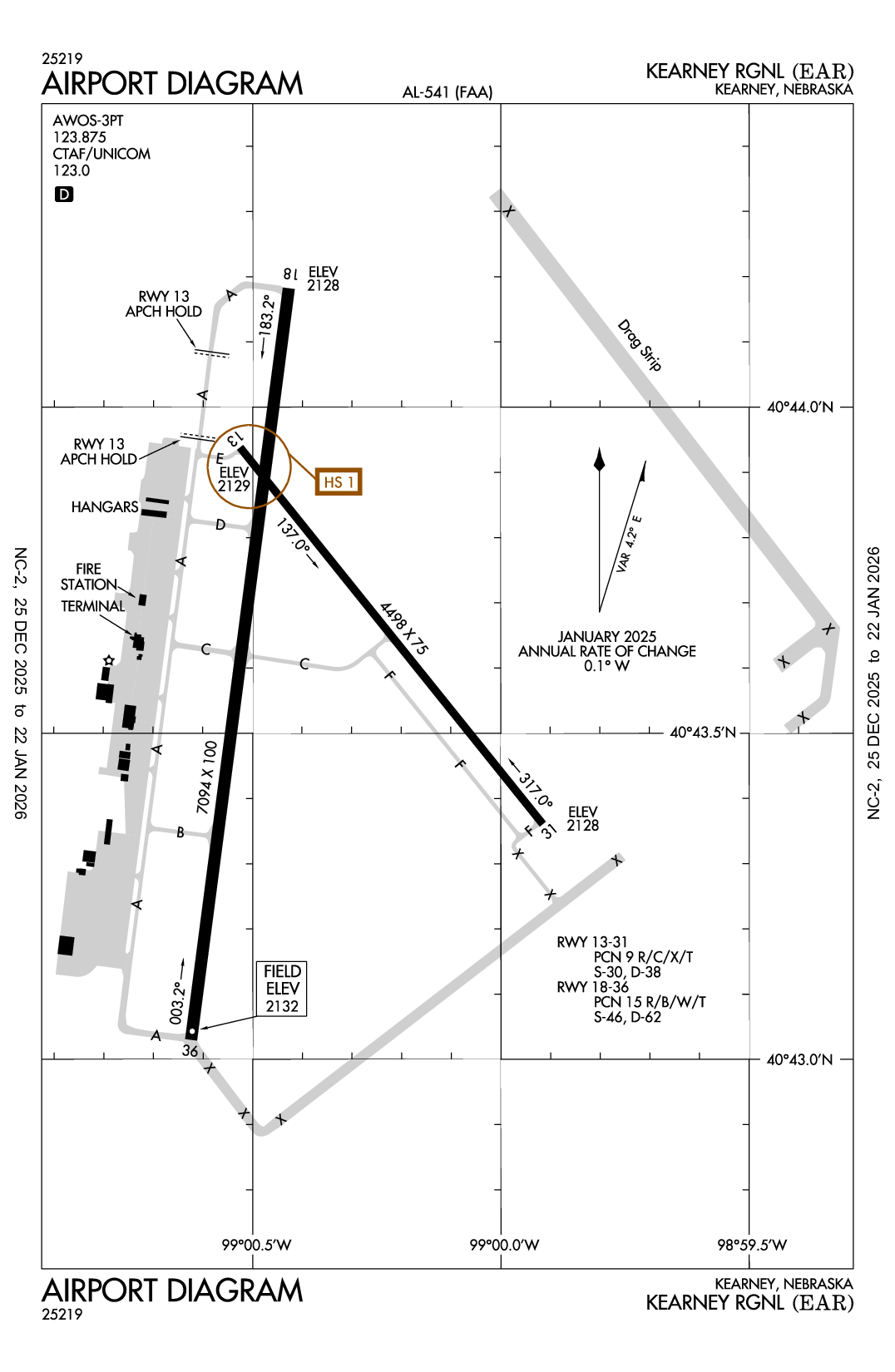

KEARNEY RGNL - Airport Diagram
LiveATC.net: Live Air Traffic - From Their Headsets to You

KEAR
KEARNEY RGNL
PublicPUB

4 miles NE of KEARNEY, NE
View on Map
LiveATC.net: Live Air Traffic - From Their Headsets to You
Operational
40° 43' 37"N 99° 00' 24"W
2132' MSL
3132' MSL
05E
Jet A, 100LL
COLUMBUS (OLU)
OMAHA
MINNEAPOLIS (ZMP)
5/16/24-6/13/24
KEAR MVFR
11:56 AM CDT
Overcast 1,500'
10sm
68°F
60°F
29.86"Hg
020° 12kts
AO2 SLP099 T02000156
KEAR 201656Z AUTO 02012KT 10SM OVC015 20/16 A2986 RMK AO2 SLP099 T02000156
List Your Business

KEAR FBOs, Flight Schools and Ground Support

KEAR Ground Transportation (Taxi, Limo, Car Service)

No ground transportation services are listed for this airport.

KEAR Hotels

No hotels are listed for this airport.

KEAR Restaurants

No restaurants are listed for this airport.

KEAR Other Airport-Related Businesses

No other airport-related businesses are listed for this airport.
X

Send Message to Airport Company
Enter your information and message below.

Your Information

Processing
123.0 123.0

AWOS-3PT

AWOS-3PT
308-237-5608
 123.875

FAA A/FD Pages

Airport Diagrams

Airport Minimums

Departure Procedures

  • No Documents

Hotspot

Standard Term. Arrival

  • No Documents

Instrument Approach

Terminal Area Forecast

KEAR
Mon, 5/20 12:20 PM CDT
Mon, 5/20 1:00 PM CDT - Tue, 5/21 1:00 PM CDT
MVFR
1:00 PM CDT - 3:00 PM CDT
Overcast 2,000'
6sm
020° 9kts
VFR
3:00 PM CDT - 7:00 PM CDT
Broken 4,000'
6sm
030° 9kts
VFR
7:00 PM CDT - 1:00 AM CDT
Light Showers and Rain
Broken 4,000'
6sm
060° 9kts
IFR
1:00 AM CDT - 4:00 AM CDT
Light Showers and Rain and Mist and Thunderstorm in vicinity
Broken 1,000'
Few 700'
2sm
050° 12kts
IFR
4:00 AM CDT - 7:00 AM CDT
Light Showers and Rain and Mist
Overcast 700'
3sm
050° 12kts
MVFR
7:00 AM CDT - 11:00 AM CDT
Mist
Overcast 1,000'
5sm
010° 17kts
Gusts 25kts
VFR
11:00 AM CDT - 1:00 PM CDT
Light Showers and Rain and Thunderstorm in vicinity
Broken 4,000'
6sm
330° 19kts
Gusts 26kts
KEAR 201720Z 2018/2118 02009KT P6SM OVC020
   FM202000 03009KT P6SM BKN040
   FM210000 06009KT P6SM -SHRA BKN040
   FM210600 05012KT 2SM -SHRA BR VCTS FEW007 BKN010CB
   FM210900 05012KT 3SM -SHRA BR OVC007
   FM211200 01017G25KT 5SM BR OVC010
   FM211600 33019G26KT P6SM -SHRA VCTS BKN040CB
KEAR
Domestic
5/21/241800Z !EAR 05/008 EAR SVC AUTOMATED WX BCST SYSTEM NOT AVBL 2405211800-2405212100
5/21/241330Z !EAR 05/010 EAR COM REMOTE COM OUTLET U/S 2405211330-2405211800
5/20/241443Z !EAR 05/009 EAR OBST TOWER LGT (ASN 2022-ACE-6446-OE) 405009N0991517W (13.0NM WNW EAR) 2546FT (250FT AGL) U/S 2405201443-2407041430
5/19/241615Z !EAR 05/007 EAR SVC AUTOMATED WX BCST SYSTEM NOT AVBL 2405191615-2405232359EST
5/19/241137Z !EAR 05/006 EAR COM REMOTE COM OUTLET 122.6 U/S 2405191137-2405222000EST
5/12/240514Z !EAR 05/003 EAR OBST TOWER LGT (ASN 2022-ACE-2892-OE) 404005N0990452W (4.9NM SW EAR) 2339FT (195FT AGL) U/S 2405120514-2406260514
4/26/241546Z !EAR 04/016 EAR OBST TOWER LGT (ASR 1037057) 410016.00N0991420.00W (19.7NM NNW EAR) 2559.1FT (298.6FT AGL) U/S 2404261546-2406252359
4/19/241822Z !EAR 04/008 EAR AD AP WINDCONE PRI LGT U/S 2404191822-2405312200
FDC
3/20/241225Z !FDC 4/9022 EAR IAP KEARNEY RGNL, KEARNEY, NE.
RNAV (GPS) RWY 18, AMDT 1...
CHANGE PLANVIEW NOTE TO READ: PROCEDURE NA FOR ARRIVALS AT ADRUM ON
V8 EAST BOUND, AND FOR ARRIVALS AT YOZLE ON V6 WEST BOUND. CHART
APT ELEV 2132. CHANGE PBN REQUIREMENTS NOTE TO READ: RNP APCH -
GPS. CIRCLING CAT A/B/C HAA 548, CAT D HAA 708. DELETE PROFILE
NOTE: *LNAV ONLY. DELETE VDP AT *1.6 NM TO RW18. CHART VDP 1.6 NM
TO RW18.
THIS IS RNAV (GPS) RWY 18, AMDT 1A. 2403201225-PERM
No
0600-2000
CITY OF KEARNEY
P.O. BOX 1180
KEARNEY, NE 68848
Phone: 308-233-3212
JAMES LYNAUGH
P.O. BOX 1180
KEARNEY, NE 68848
Phone: 308-234-2318
COLUMBUS FSS (OLU)
Toll Free: 1-800-WX-BRIEF
EAR
--
HIRL RWY 18/36 PRESET ON LOW INTST; TO INCR INTST & ACTVT REIL RWY 18; MALSR RWY 36; PAPI RWYS 13, 18, 31, & 36; AND MIRL RWY 13/31 - CTAF.
N/A
Yes - Lighted
Yes
No
Hanger, Tie-Down
NOT a Landing Rights Airport
NOT an Airport of Entry
25
3
3
2
0
0
Major
Major
None
None
Air Freight
Crop Dusting
Air Ambulance
Charter Service
Pilot Instruction
Aircraft Rental
Aircraft Sales

Runway 13/31

4498 ft. x 75 ft.
CONC
Excellent
NONE
MED
9 /R/C/X/T
30,000lbs
38,000lbs
--
--
  Runway 13 Runway 31
True Heading 141°321°
Traffic Pattern Left Left
Markings NPI NPI
Markings Condition GOOD GOOD
Latitude 40° 43' 56"N 40° 43' 22"N
Longitude 99° 00' 31"W 98° 59' 55"W
Elevation 2,129' 2,128'
Threshold Crossing Height 43 ft. AGL 44 ft. AGL
Visual Glide Path Angle 3° 3°
Visual Slope Indicator P2L P2L
Approach Lights
Centerline Lights
Runway End Identifier Lights

Runway 18/36

7094 ft. x 100 ft.
CONC
Excellent
NONE
HIGH
15 /R/B/W/T
46,000lbs
62,000lbs
--
--
  Runway 18 Runway 36
True Heading 187°7°
Traffic Pattern Left Left
Markings NPI PIR
Markings Condition GOOD GOOD
Latitude 40° 44' 11"N 40° 43' 02"N
Longitude 99° 00' 26"W 99° 00' 37"W
Elevation 2,128' 2,132'
Threshold Crossing Height 46 ft. AGL 43 ft. AGL
Visual Glide Path Angle 3° 3°
Visual Slope Indicator P4L P4L
Approach Lights MALSR
Centerline Lights
Runway End Identifier Lights Yes
A110-1BE ALERT WHEN TAXIING ON APRON DUE TO SEVERAL CLOSED AREAS.
A110-2AIR CARRIER OPS ARE NOT AUTHORIZED IN EXCESS OF 15 MINUTES BEFORE OR AFTER SCHEDULED ARRIVAL/DEPARTURE TIMES WITHOUT PRIOR COORDINATION WITH AMGR AND CONFIRMATION THAT ARFF IS AVBL PRIOR TO LDNG OR TKOF.
A110-3FOR CD IF UNA TO CTC ON FSS FREQ, CTC MINNEAPOLIS ARTCC AT 651-463-5588.
KEARNEY RGNL (ICAO: KEAR, IATA: EAR) is a public airport located in KEARNEY, NE.
