COLLEGEDALE MUNI - Airport Diagram
LiveATC.net: Live Air Traffic - From Their Headsets to You

KFGU
COLLEGEDALE MUNI
PublicPUB

2 miles SE of COLLEGEDALE, TN
View on Map
LiveATC.net: Live Air Traffic - From Their Headsets to You
Operational
35° 02' 40"N 85° 01' 12"W
860' MSL
1900' MSL
02W
Jet A, 100LL
NASHVILLE (BNA)
ATLANTA
ATLANTA (ZTL)
5/16/24-6/13/24
KCHA (9nm) VFR
10:53 AM EDT
Scattered 25,000'
Scattered 2,200'
10sm
76°F
64°F
30.05"Hg
VRB° 5kts
AO2 SLP169 T02440178 51009
KCHA 201453Z VRB05KT 10SM SCT022 SCT250 24/18 A3005 RMK AO2 SLP169 T02440178 51009
List Your Business

KFGU FBOs, Flight Schools and Ground Support

Promote Listing
Collegedale Municipal Airport
Freq: 122.7
Phone: (423) 236-5008
No Rating Available
0 Reviews (Read | Sign In To Write)
Titan
As of 4/26
 100LL Jet A Jet A+ Mogas UL94
Self Serve 5.79 5.55
Full Serve

KFGU Ground Transportation (Taxi, Limo, Car Service)

No ground transportation services are listed for this airport.

KFGU Hotels

No hotels are listed for this airport.

KFGU Restaurants

No restaurants are listed for this airport.

KFGU Other Airport-Related Businesses

No other airport-related businesses are listed for this airport.
X

Send Message to Airport Company
Enter your information and message below.

Your Information

Processing
122.7 122.7

AWOS-2

AWOS-2
423-236-4028
 118.675

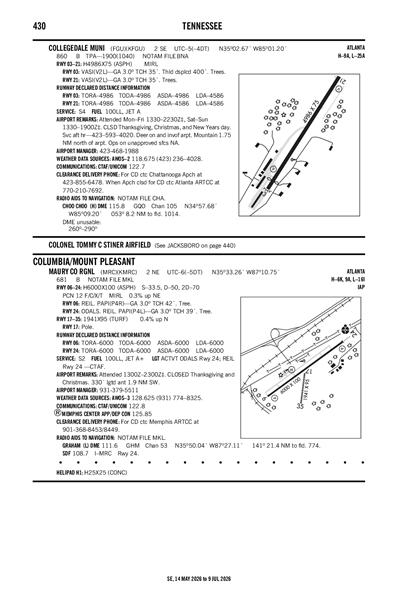

FAA A/FD Pages

Airport Diagrams

  • No Documents

Airport Minimums

  • No Documents

Departure Procedures

  • No Documents

Hotspot

  • No Documents

Standard Term. Arrival

  • No Documents

Instrument Approach

  • No Documents

Terminal Area Forecast

KCHA (9nm)
Mon, 5/20 7:20 AM EDT
Mon, 5/20 8:00 AM EDT - Tue, 5/21 8:00 AM EDT
VFR
8:00 AM EDT - 8:00 PM EDT
Few 5,000'
6sm
200° 5kts
VFR
8:00 PM EDT - 8:00 AM EDT
Scattered 25,000'
6sm
Calm
KCHA 201120Z 2012/2112 20005KT P6SM FEW050
   FM210000 00000KT P6SM SCT250
KFGU
Domestic
5/10/240619Z !BNA 05/357 FGU OBST TOWER LGT (ASR 1219138) 350545.30N0850033.50W (3.1NM NE FGU) 1259.8FT (319.9FT AGL) U/S 2405100619-2405250519
5/10/240123Z !BNA 05/349 FGU OBST TOWER LGT (ASR 1213299) 345723.00N0844434.80W (14.5NM ESE FGU) 1354.0FT (263.1FT AGL) U/S 2405100123-2405250023
5/9/241922Z !BNA 05/342 FGU OBST TOWER LGT (ASR 1043009) 350853.80N0850121.80W (6.2NM N FGU) 1770.0FT (350.1FT AGL) U/S 2405091922-2406102359
5/9/241408Z !BNA 05/328 FGU OBST TOWER LGT (ASN 2018-ASO-797-OE) 351413N0850518W (12.0NM NNW FGU) 1085FT (396FT AGL) U/S 2405091408-2408281200
4/26/241705Z !BNA 04/522 FGU OBST TOWER LGT (ASR 1202145) 350136.50N0845934.40W (1.7NM SE FGU) 1276.2FT (283.1FT AGL) U/S 2404261705-2407260400
3/27/240020Z !BNA 03/535 FGU OBST TOWER LGT (ASR 1200906) 350540.80N0845345.20W (6.9NM ENE FGU) 1356.3FT (262.1FT AGL) U/S 2403270020-2406240400
3/16/240641Z !BNA 03/332 FGU OBST TOWER LGT (ASR UNKNOWN) 351259.00N0850537.03W (9.8NM NNW FGU) 1082FT (396FT) U/S 2403160641-2406192359
1/17/191952Z !BNA 01/294 FGU RWY 03 VASI OUT OF SERVICE 1901171952-PERM
1/17/191952Z !BNA 01/293 FGU RWY 21 VASI OUT OF SERVICE 1901171952-PERM
No
MON - FRI 0830-1730
SAT-SUN 0830-1400
CLSD THANKSGIVING, CHRISTMAS & NEW YEARS DAY.
SVC AFT HR - 423-593-4020
CITY OF COLLEGEDALE
P.O. BOX 1880
COLLEGEDALE, TN 37315-1880
Phone: 423-396-3135
RYAN BYFORD
P.O. BOX 1880
COLLEGEDALE, TN 37315-1880
Phone: 423-468-1988
NASHVILLE FSS (BNA)
Toll Free: 1-800-WX-BRIEF
BNA
Sunset to Sunrise
--
N/A
Yes - Lighted
Yes
No
Hanger, Tie-Down
No
92
2
0
2
0
0
Major
Major
None
None
Pilot Instruction
Aircraft Rental

Runway 03/21

4986 ft. x 75 ft.
ASPH
Good
NONE
MED

--
--
--
--
  Runway 03 Runway 21
True Heading 27°207°
Traffic Pattern Left Left
Markings NPI NPI
Markings Condition GOOD GOOD
Latitude 35° 02' 18"N 35° 03' 02"N
Longitude 85° 01' 26"W 85° 00' 59"W
Elevation 860' 860'
Threshold Crossing Height 35 ft. AGL 35 ft. AGL
Visual Glide Path Angle 3° 3°
Visual Slope Indicator V2L V2L
Approach Lights
Centerline Lights
Runway End Identifier Lights No No
A110-2DEER ON AND INVOF ARPT.
A110-3FOR CD CTC CHATTANOOGA APCH AT 423-855-6478. WHEN APCH CLSD FOR CD CTC ATLANTA ARTCC AT 770-210-7692.
A110-4OPS ON UNAPPROVED SFCS NA.
COLLEGEDALE MUNI (ICAO: KFGU, IATA: FGU) is a public airport located in COLLEGEDALE, TN.
