KLBR
CLARKSVILLE/RED RIVER CTY-J D TRISSELL FLD
Public
PUB
3 miles SW of CLARKSVILLE, TX
View on
Map
Status
Operational
Coordinates
33° 35' 34"N
95° 03' 51"W
Elevation
440' MSL
Pattern Alt
1440' MSL
Mag Variation
02E
Fuel
None Listed
FSS
FORT WORTH (FTW)
Sectional
DALLAS-FT WORTH
ARTCC
FORT WORTH (ZFW)
Data Effective
5/16/24-6/13/24
KPRX (20nm)
VFR
1:56 PM CDT
RAW
Clear
Viz
10sm
Temp
87°F
Dew
69°F
Pres
29.86"Hg
Wind
190° 16kts
RMK
AO2 SLP105 T03060206
KPRX 201856Z AUTO 19016KT 10SM CLR 31/21 A2986 RMK AO2 SLP105 T03060206
Services
Frequencies & Documents
Freqs & Docs
TAF
NOTAM
Operations
Runways
Remarks
List Your Business
KLBR FBOs, Flight Schools and Ground Support
No FBOs, flight schools or aircraft ground support businesses are listed for this airport.
KLBR Ground Transportation (Taxi, Limo, Car Service)
No ground transportation services are listed for this airport.
KLBR Hotels
No hotels are listed for this airport.
KLBR Restaurants
No restaurants are listed for this airport.
KLBR Other Airport-Related Businesses
No other airport-related businesses are listed for this airport.
X
Send Message to Airport Company
Enter your information and message below.
Your Information
Business
x
UNICOM
--
CTAF
122.9
No communication frequencies available for this airport.

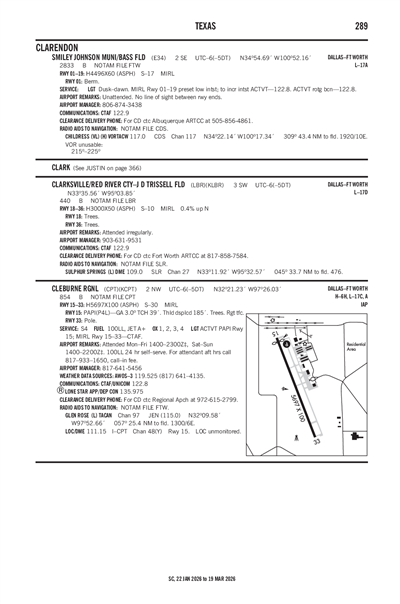

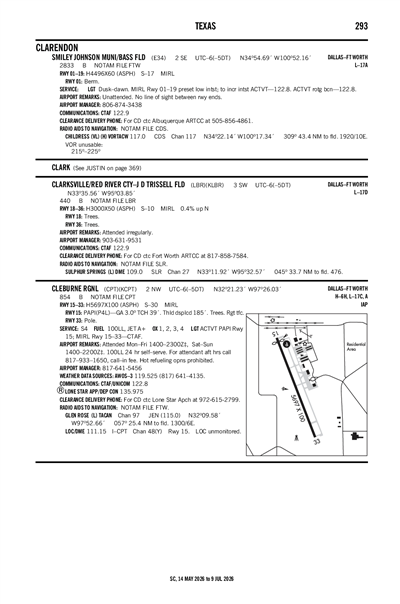

FAA A/FD Pages
FAA A/FD Page
Airport Diagrams
No Documents
Airport Minimums
No Documents
Departure Procedures
No Documents
Hotspot
No Documents
Standard Term. Arrival
No Documents
Instrument Approach
No Documents
Terminal Area Forecast
KTXK (55nm)
RAW
Reported
Mon, 5/20 12:27 PM CDT
Valid
Mon, 5/20 1:00 PM CDT - Tue, 5/21 1:00 PM CDT
VFR
1:00 PM CDT - 8:00 PM CDT
Scattered 5,000'
Viz
6sm
Wind
180° 10kts
VFR
8:00 PM CDT - 1:00 AM CDT
Few 25,000'
Viz
6sm
Wind
160° 5kts
VFR
1:00 AM CDT - 6:00 AM CDT
Scattered 25,000'
Viz
6sm
Wind
160° 5kts
VFR
6:00 AM CDT - 11:00 AM CDT
Scattered 25,000'
Few 2,500'
Viz
6sm
Wind
170° 5kts
MVFR
Temporary
7:00 AM CDT - 10:00 AM CDT
Broken 1,500'
Viz
6sm
Wind
Calm
VFR
11:00 AM CDT - 1:00 PM CDT
Broken 3,500'
Viz
6sm
Wind
180° 10kts
KTXK 201727Z 2018/2118 18010KT P6SM SCT050
FM210100 16005KT P6SM FEW250
FM210600 16005KT P6SM SCT250
FM211100 17005KT P6SM FEW025 SCT250
TEMPO 2112/2115 P6SM BKN015
FM211600 18010KT P6SM BKN035
KLBR
Domestic
5/18/24
0438Z
!LBR 05/015 LBR OBST TOWER LGT (ASR 1223806) 333517.40N0945506.50W (7.3NM E LBR) 726.7FT (319.9FT AGL) U/S 2405180438-2406020338
5/15/24
0420Z
!LBR 05/014 LBR OBST TOWER LGT (ASR 1223965) 333314.50N0944606.20W (15.0NM E LBR) 783.8FT (319.9FT AGL) U/S 2405150420-2405300320
5/12/24
0038Z
!LBR 05/011 LBR OBST TOWER LGT (ASR 1243829) 332852.90N0951219.20W (9.8NM SW LBR) 759.8FT (309.7FT AGL) U/S 2405120038-2405262338
5/11/24
2357Z
!LBR 05/010 LBR OBST TOWER LGT (ASR 1052595) 332521.60N0950905.00W (11.1NM SSW LBR) 850.7FT (500.0FT AGL) U/S 2405112357-2405262257
ATC Tower
No
Attendance
IREG
Owner
CLARKSVILLE-RED RIVER CO
400 N. WALNUT
CLARKSVILLE, TX 75426
Phone: (903) 427-0370
Manager
DAN HALLEY
550 S AUSTIN
AVERY, TX 75554
Phone: (903) 631-9531
FSS
FORT WORTH FSS (FTW)
Toll Free: 1-800-WX-BRIEF
NOTAM
LBR
Light Schedule
Sunset to Sunrise
Lights
--
Beacon
N/A
Wind Indicator
Yes - Lighted
Segmented Cir.
Yes
Landing Fee
No
Parking
Hanger, Tie-Down
Int'l Operations
NOT a Landing Rights Airport
NOT an Airport of Entry
# Single Engine
18
# Multi Engine
0
# Jets
0
# Helicopters
0
# Military
0
# Ultralights
0
Airframe Repair
None
Pwrplant Repair
None
Bottled Oxygen
None
Bulk Oxygen
None
Other Services
Crop Dusting
Pilot Instruction
Aircraft Rental
Runway 18/36
Dimensions
3000 ft. x 50 ft.
Surface Type
ASPH
Surface Cond
Fair
Treatment
NONE
Rwy Edge Lgts
MED
Pavement Class
Single Wheel
10,000lbs
Double Wheel
--
Double Tandem
--
Dual Dbl Tand
--
Runway 18
Runway 36
True Heading
179°
359°
Traffic Pattern
Left
Left
Markings
BSC
BSC
Markings Condition
GOOD
GOOD
Latitude
33° 35' 48"N
33° 35' 19"N
Longitude
95° 03' 51"W
95° 03' 51"W
Elevation
435'
422'
Threshold Crossing Height
--
--
Visual Glide Path Angle
--
--
Visual Slope Indicator
--
--
Approach Lights
Centerline Lights
Runway End Identifier Lights
A110-1
FOR CD CTC FORT WORTH ARTCC AT 817-858-7584.
CLARKSVILLE/RED RIVER CTY-J D TRISSELL FLD (ICAO: KLBR, IATA: LBR) is a public airport located in CLARKSVILLE, TX.
