iFlightPlanner



...

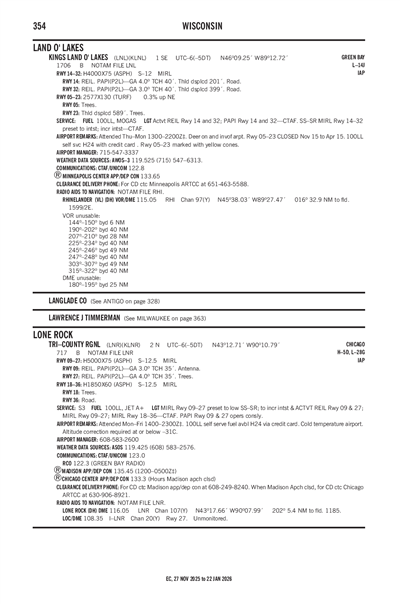

KINGS LAND O' LAKES - Airport Diagram
LiveATC.net: Live Air Traffic - From Their Headsets to You

KLNL
KINGS LAND O' LAKES
PublicPUB

1 miles SE of LAND O' LAKES, WI
View on Map
LiveATC.net: Live Air Traffic - From Their Headsets to You
Operational
46° 09' 15"N 89° 12' 43"W
1706' MSL
2706' MSL
02W
100LL, MOGAS
GREEN BAY (GRB)
GREEN BAY
MINNEAPOLIS (ZMP)
5/16/24-6/13/24
KLNL IFR
1:55 PM CDT
Overcast 1,100'
Broken 700'
10sm
61°F
57°F
29.87"Hg
Calm
AO2 T01620141
KLNL 201855Z AUTO 00000KT 10SM BKN007 OVC011 16/14 A2987 RMK AO2 T01620141
List Your Business

KLNL FBOs, Flight Schools and Ground Support

Promote Listing
Kings Land O' Lakes Airport
Freq: 122.8
Phone: (715) 547-3337
No Rating Available
0 Reviews (Read | Sign In To Write)
World Fuel
As of 5/14
 100LL Jet A Jet A+ Mogas UL94
Self Serve 6.10 5.15
Full Serve

KLNL Ground Transportation (Taxi, Limo, Car Service)

No ground transportation services are listed for this airport.

KLNL Hotels

No hotels are listed for this airport.

KLNL Restaurants

No restaurants are listed for this airport.

KLNL Other Airport-Related Businesses

No other airport-related businesses are listed for this airport.
X

Send Message to Airport Company
Enter your information and message below.

Your Information

Processing
122.8 122.8

AWOS-3

AWOS-3
715-547-6313
 119.525

FAA A/FD Pages

Airport Diagrams

  • No Documents

Airport Minimums

Departure Procedures

  • No Documents

Hotspot

  • No Documents

Standard Term. Arrival

  • No Documents

Instrument Approach

Terminal Area Forecast

KRHI (33nm)
Mon, 5/20 12:47 PM CDT
Mon, 5/20 1:00 PM CDT - Tue, 5/21 1:00 PM CDT
MVFR
1:00 PM CDT - 2:00 PM CDT
Light Showers and Rain
Overcast 1,000'
6sm
180° 8kts
MVFR
2:00 PM CDT - 7:00 PM CDT
Overcast 1,200'
6sm
220° 5kts
MVFR
7:00 PM CDT - 10:00 PM CDT
Broken 2,800'
Scattered 400'
6sm
VRB° 3kts
MVFR
10:00 PM CDT - 1:00 AM CDT
Broken 2,400'
Scattered 300'
6sm
VRB° 3kts
LIFR
1:00 AM CDT - 9:00 AM CDT
Fog
Broken 1,000'
Broken 400'
0.5sm
VRB° 3kts
MVFR
9:00 AM CDT - 1:00 PM CDT
Broken 2,100'
Scattered 500'
6sm
120° 6kts
KRHI 201747Z 2018/2118 18008KT P6SM -SHRA OVC010
   FM201900 22005KT P6SM OVC012
   FM210000 VRB03KT P6SM SCT004 BKN028
   FM210300 VRB03KT P6SM SCT003 BKN024
   FM210600 VRB03KT 1/2SM FG BKN004 BKN010
   FM211400 12006KT P6SM SCT005 BKN021
KLNL
FDC
2/23/231817Z !FDC 3/8980 LNL IAP KINGS LAND O' LAKES,
LAND O' LAKES, WI.
RNAV (GPS) RWY 14, AMDT 1...
RNAV (GPS) RWY 32, AMDT 1...
NOTE: PROCEDURE NA AT NIGHT.
2302231817-2502231817EST
No
TUES-SAT 0700-1600
TOWN OF LAND O'LAKES
BOX 660
LAND O'LAKES, WI 54540
Phone: 715-547-3255
BRUCE GARRISON
PO BOX 327
LAND O'LAKES, WI 54540
Phone: 715-547-3337
GREEN BAY FSS (GRB)
Toll Free: 1-800-WX-BRIEF
LNL
--
ACTVT REIL RWY 14 & 32; PAPI RWY 14 & 32 - CTAF. MIRL RWY 14/32 PRESET TO LOW SS-SR; TO INCR INTST & ACTVT - CTAF.
N/A
Yes - Lighted
Yes
No
Hanger, Tie-Down
NOT a Landing Rights Airport
NOT an Airport of Entry
14
0
0
0
0
0
None
None
None
None
None

Runway 05/23

2577 ft. x 130 ft.
TURF
Fair
NONE


--
--
--
--
  Runway 05 Runway 23
True Heading 50°230°
Traffic Pattern
Markings
Markings Condition
Latitude 46° 09' 06"N 46° 09' 23"N
Longitude 89° 12' 58"W 89° 12' 30"W
Elevation 1,697' 1,704'
Threshold Crossing Height -- --
Visual Glide Path Angle -- --
Visual Slope Indicator -- --
Approach Lights
Centerline Lights
Runway End Identifier Lights

Runway 14/32

4000 ft. x 75 ft.
ASPH
Excellent
NONE
MED

12,000lbs
--
--
--
  Runway 14 Runway 32
True Heading 143°323°
Traffic Pattern Left Left
Markings NPI NPI
Markings Condition GOOD GOOD
Latitude 46° 09' 31"N 46° 08' 59"N
Longitude 89° 12' 60"W 89° 12' 25"W
Elevation 1,706' 1,704'
Threshold Crossing Height 40 ft. AGL 40 ft. AGL
Visual Glide Path Angle 4° 3°
Visual Slope Indicator P2L P2L
Approach Lights
Centerline Lights No No
Runway End Identifier Lights Yes Yes
A110-1OCNL DEER ON & INVOF ARPT.
A110-5FOR CD CTC MINNEAPOLIS ARTCC AT 651-463-5588.
KINGS LAND O' LAKES (ICAO: KLNL, IATA: LNL) is a public airport located in LAND O' LAKES, WI.
