KLYV
QUENTIN AANENSON FLD
Public
PUB
2 miles S of LUVERNE, MN
View on
Map
Status
Operational
Coordinates
43° 37' 00"N
96° 13' 04"W
Elevation
1435' MSL
Pattern Alt
2435' MSL
Mag Variation
03E
Fuel
Jet A, 100LL
FSS
PRINCETON (PNM)
Sectional
OMAHA
ARTCC
MINNEAPOLIS (ZMP)
Data Effective
5/16/24-6/13/24
KLYV
MVFR
1:15 PM CDT
RAW
Broken 3,000'
Viz
10sm
Temp
73°F
Dew
61°F
Pres
29.80"Hg
Wind
300° 6kts
RMK
AO2
KLYV 201815Z AUTO 30006KT 10SM BKN030 23/16 A2980 RMK AO2
Services
Frequencies & Documents
Freqs & Docs
TAF
NOTAM
Operations
Runways
Remarks
List Your Business
KLYV FBOs, Flight Schools and Ground Support
Promote Listing
Tailwinds Aircraft Services
Freq: 122.7
Phone: (507) 283-5041
Other: (605) 413-5028
0 Reviews
(
Read
|
Sign In To Write
)
Independent
As of
4/26
100LL
Jet
A
Jet
A+
Mogas
UL94
Self Serve
5.25
Full Serve
4.60
KLYV Ground Transportation (Taxi, Limo, Car Service)
No ground transportation services are listed for this airport.
KLYV Hotels
No hotels are listed for this airport.
KLYV Restaurants
No restaurants are listed for this airport.
KLYV Other Airport-Related Businesses
No other airport-related businesses are listed for this airport.
X
Send Message to Airport Company
Enter your information and message below.
Your Information
Business
x
UNICOM
122.7
CTAF
122.7
AWOS-3
AWOS-3
507-283-5027
119.825

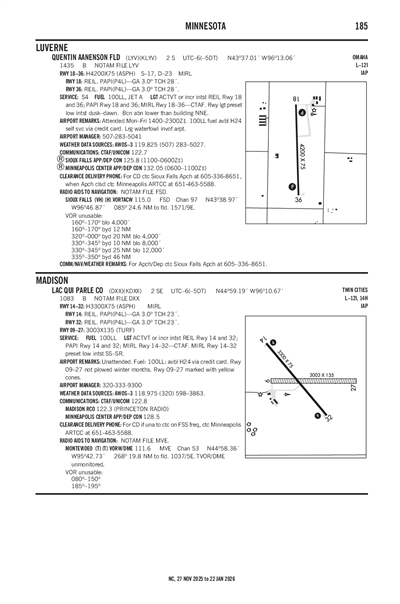

FAA A/FD Pages
FAA A/FD Page
Airport Diagrams
No Documents
Airport Minimums
ALTERNATE MINIMUMS
TAKEOFF MINIMUMS
Departure Procedures
No Documents
Hotspot
No Documents
Standard Term. Arrival
No Documents
Instrument Approach
RNAV (GPS) RWY 18
RNAV (GPS) RWY 36
Terminal Area Forecast
KFSD (24nm)
RAW
Reported
Mon, 5/20 12:20 PM CDT
Valid
Mon, 5/20 1:00 PM CDT - Tue, 5/21 1:00 PM CDT
VFR
1:00 PM CDT - 12:00 AM CDT
Scattered 15,000'
Few 2,500'
Viz
6sm
Wind
350° 8kts
VFR
12:00 AM CDT - 4:00 AM CDT
Overcast 3,500'
Viz
6sm
Wind
030° 10kts
MVFR
1:00 AM CDT - 4:00 AM CDT
Thunderstorm and Rain and Mist
Overcast 1,500'
Viz
4sm
Wind
Calm
IFR
4:00 AM CDT - 7:00 AM CDT
Light Showers and Rain
Overcast 900'
Viz
6sm
Wind
030° 12kts
Gusts 19kts
LIFR
4:00 AM CDT - 7:00 AM CDT
Light Thunderstorm and Rain and Mist
Overcast 400'
Viz
4sm
Wind
Calm
IFR
7:00 AM CDT - 10:00 AM CDT
Showers and Rain and Mist and Thunderstorm in vicinity
Overcast 600'
Viz
5sm
Wind
050° 13kts
Gusts 21kts
IFR
10:00 AM CDT - 1:00 PM CDT
Showers and Rain and Mist
Overcast 500'
Viz
4sm
Wind
040° 14kts
Gusts 22kts
LIFR
10:00 AM CDT - 1:00 PM CDT
Light Thunderstorm and Rain and Mist
Overcast 300'
Viz
2sm
Wind
Calm
KFSD 201720Z 2018/2118 35008KT P6SM FEW025 SCT150
FM210500 03010KT P6SM OVC035
PROB30 2106/2109 4SM TSRA BR OVC015CB
FM210900 03012G19KT P6SM -SHRA OVC009
PROB30 2109/2112 4SM -TSRA BR OVC004CB
FM211200 05013G21KT 5SM SHRA BR VCTS OVC006CB
FM211500 04014G22KT 4SM SHRA BR OVC005
PROB30 2115/2118 2SM -TSRA BR OVC003CB
KLYV
Domestic
5/20/24
0649Z
!LYV 05/002 LYV OBST TOWER LGT (ASR 1023798) 434228.00N0960416.00W (8.4NM NE LYV) 2020.0FT (490.2FT AGL) U/S 2405200649-2409170649
4/21/24
1520Z
!LYV 04/003 LYV AIRSPACE PJE WI AN AREA DEFINED AS 3NM RADIUS OF LYV SFC-12000FT SUN SAT 1520-0100 2404211520-2410310100
11/21/23
1634Z
!LYV 11/006 LYV RWY 36 PAPI U/S 2311211634-2405252111EST
11/21/23
1633Z
!LYV 11/005 LYV RWY 18 PAPI U/S 2311211633-2405252111EST
ATC Tower
No
Attendance
MON-FRI 0800-1700
Owner
CITY OF LUVERNE
305 E LUVERNE ST, PO BOX 659
LUVERNE, MN 56156-1611
Phone: 507-449-2388
Manager
BEN BAUM
941 US HIGHWAY 75, PO BOX 659
LUVERNE, MN 56156-4197
Phone: 507-283-5041
FSS
PRINCETON FSS (PNM)
Toll Free: 1-800-WX-BRIEF
NOTAM
LYV
Light Schedule
--
Lights
ACTVT OR INCR INTST REIL RWY 18 & 36; PAPI RWY 18 & 36; MIRL RWY 18/36 - CTAF. RWY LGT PRESET LOW INTST DUSK-DAWN.
Beacon
N/A
ABN LWR THAN BLDG NNE.
Wind Indicator
Yes - Lighted
Segmented Cir.
No
Landing Fee
No
Parking
Tie-Down
Int'l Operations
NOT a Landing Rights Airport
NOT an Airport of Entry
# Single Engine
15
# Multi Engine
0
# Jets
0
# Helicopters
0
# Military
0
# Ultralights
0
Airframe Repair
Major
Pwrplant Repair
Major
Bottled Oxygen
None
Bulk Oxygen
None
Other Services
Crop Dusting
Runway 18/36
Dimensions
4200 ft. x 75 ft.
Surface Type
ASPH
Surface Cond
Fair
Treatment
NONE
Rwy Edge Lgts
MED
Pavement Class
Single Wheel
17,000lbs
Double Wheel
23,000lbs
Double Tandem
--
Dual Dbl Tand
--
Runway 18
Runway 36
True Heading
178°
358°
Traffic Pattern
Left
Left
Markings
NPI
NPI
Markings Condition
GOOD
GOOD
Latitude
43° 37' 21"N
43° 36' 40"N
Longitude
96° 13' 05"W
96° 13' 03"W
Elevation
1,435'
1,428'
Threshold Crossing Height
28 ft. AGL
28 ft. AGL
Visual Glide Path Angle
3°
3°
Visual Slope Indicator
P4L
P4L
Approach Lights
Centerline Lights
No
No
Runway End Identifier Lights
Yes
Yes
A110-1
LRG WATERFOWL INVOF ARPT.
A110-3
FOR CD CTC SIOUX FALLS APCH AT 605-336-8651, WHEN APCH CLSD CTC MINNEAPOLIS ARTCC AT 651-463-5588.
QUENTIN AANENSON FLD (ICAO: KLYV, IATA: LYV) is a public airport located in LUVERNE, MN.
