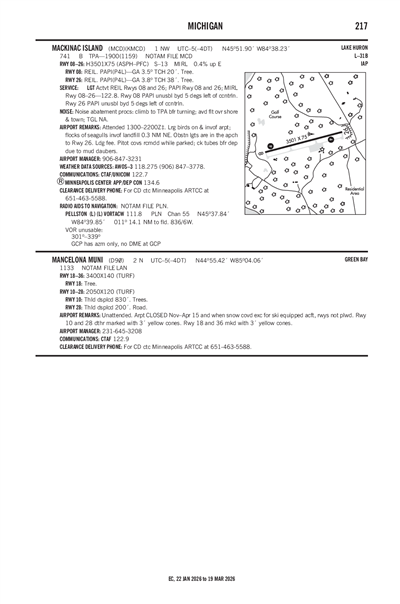

MACKINAC ISLAND - Airport Diagram
LiveATC.net: Live Air Traffic - From Their Headsets to You

KMCD
MACKINAC ISLAND
PublicPUB

1 miles NW of MACKINAC ISLAND, MI
View on Map
LiveATC.net: Live Air Traffic - From Their Headsets to You
Operational
45° 51' 54"N 84° 38' 14"W
741' MSL
1900' MSL
07W
None Listed
GREEN BAY (GRB)
LAKE HURON
MINNEAPOLIS (ZMP)
5/16/24-6/13/24
KMCD VFR
2:55 PM EDT
Broken 10,000'
10sm
60°F
42°F
29.89"Hg
110° 5kts
AO2 T01580057
KMCD 201855Z AUTO 11005KT 10SM BKN100 16/06 A2989 RMK AO2 T01580057
List Your Business

KMCD FBOs, Flight Schools and Ground Support

No FBOs, flight schools or aircraft ground support businesses are listed for this airport.

KMCD Ground Transportation (Taxi, Limo, Car Service)

No ground transportation services are listed for this airport.

KMCD Hotels

No hotels are listed for this airport.

KMCD Restaurants

No restaurants are listed for this airport.

KMCD Other Airport-Related Businesses

No other airport-related businesses are listed for this airport.
X

Send Message to Airport Company
Enter your information and message below.

Your Information

Processing
122.7 122.7

AWOS-3

AWOS-3
906-847-3778
 118.275

FAA A/FD Pages

Airport Diagrams

  • No Documents

Airport Minimums

Departure Procedures

  • No Documents

Hotspot

  • No Documents

Standard Term. Arrival

  • No Documents

Instrument Approach

Terminal Area Forecast

KPLN (19nm)
Mon, 5/20 1:31 PM EDT
Mon, 5/20 2:00 PM EDT - Tue, 5/21 2:00 PM EDT
VFR
2:00 PM EDT - 8:00 PM EDT
Broken 20,000'
6sm
210° 7kts
VFR
8:00 PM EDT - 1:00 AM EDT
Light Showers and Rain and Thunderstorm in vicinity
Overcast 4,000'
6sm
190° 4kts
IFR
1:00 AM EDT - 4:00 AM EDT
Light Showers and Rain and Mist
Overcast 800'
6sm
020° 5kts
LIFR
4:00 AM EDT - 12:00 PM EDT
Mist and Showers in vicinity
Broken 400'
5sm
360° 5kts
VFR
12:00 PM EDT - 2:00 PM EDT
Broken 12,000'
6sm
030° 4kts
KPLN 201731Z 2018/2118 21007KT P6SM BKN200
   FM210000 19004KT 6SM -SHRA VCTS OVC040CB
   FM210500 02005KT 6SM -SHRA BR OVC008
   FM210800 36005KT 5SM BR VCSH BKN004
   FM211600 03004KT P6SM BKN120
KMCD
No NOTAM Available
No
0800-1700
MACKINAC ISLAND STATE PARK CMSN
PO BOX 370
MACKINAC ISLAND, MI 49757-0370
Phone: 906-847-3231
MYRON JOHNSON
PO BOX 370
MACKINAC ISLAND, MI 49757-0370
Phone: 906-847-3231
GREEN BAY FSS (GRB)
Toll Free: 1-800-WX-BRIEF
MCD
--
ACTVT REIL RWY 08 & 26; PAPI RWY 08 & 26; MIRL RWY 08/26 - 122.8.
N/A
Yes - Lighted
Yes
Yes
Tie-Down
NOT a Landing Rights Airport
NOT an Airport of Entry
1
0
0
0
0
0
None
None
None
None
None

Runway 08/26

3501 ft. x 75 ft.
ASPH
Good
PFC
MED

13,000lbs
--
--
--
  Runway 08 Runway 26
True Heading 75°255°
Traffic Pattern Left Left
Markings NPI NPI
Markings Condition GOOD GOOD
Latitude 45° 51' 50"N 45° 51' 58"N
Longitude 84° 38' 37"W 84° 37' 50"W
Elevation 729' 741'
Threshold Crossing Height 20 ft. AGL 38 ft. AGL
Visual Glide Path Angle 3.5° 3.8°
Visual Slope Indicator P4L P4L
Approach Lights
Centerline Lights
Runway End Identifier Lights Yes Yes
A110-1LRG BIRDS ON & INVOF ARPT; FLOCKS OF SEAGULLS INVOF LANDFILL 0.3 NM NE.
A110-3NOISE ABATEMENT PROCS: CLIMB TO TPA BFR TURNING; AVD FLT OVR SHORE & TOWN; TGL NA.
A110-4OBSTN LGTS ARE IN THE APCH TO RWY 26.
A110-5PITOT COVS RCMDD WHILE PARKED; CK TUBES BFR DEP DUE TO MUD DAUBERS.
A110-6FOR CD CTC MINNEAPOLIS ARTCC AT 651-463-5588.
MACKINAC ISLAND (ICAO: KMCD, IATA: MCD) is a public airport located in MACKINAC ISLAND, MI.
