iFlightPlanner



...

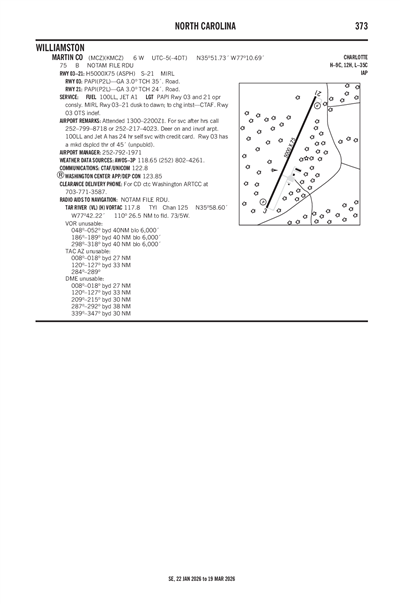

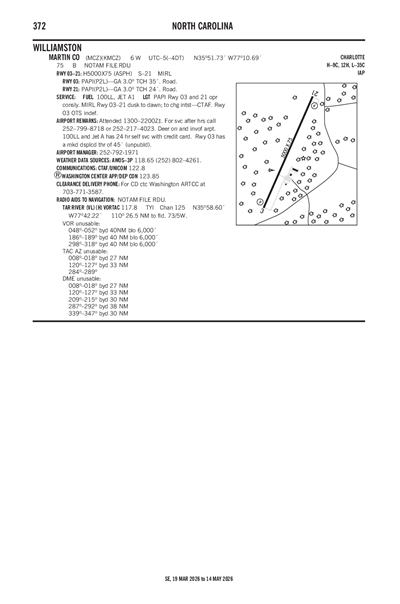

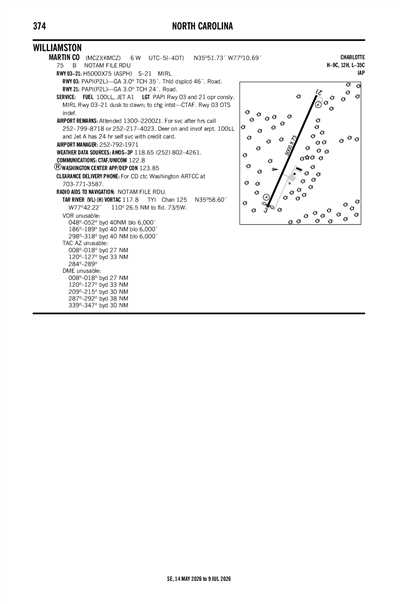

MARTIN COUNTY - Airport Diagram
LiveATC.net: Live Air Traffic - From Their Headsets to You

KMCZ
MARTIN COUNTY
PublicPUB

6 miles W of WILLIAMSTON, NC
View on Map
LiveATC.net: Live Air Traffic - From Their Headsets to You
Operational
35° 51' 44"N 77° 10' 42"W
75' MSL
1075' MSL
09W
Jet A-1, 100LL
RALEIGH (RDU)
CHARLOTTE
WASHINGTON (ZDC)
5/16/24-6/13/24
KMCZ VFR
1:25 PM EDT
Broken 3,400'
10sm
75°F
60°F
30.01"Hg
050° 6kts
Gusts 15kts
AO2 T02400156
KMCZ 201725Z AUTO 05006G15KT 10SM BKN034 24/16 A3001 RMK AO2 T02400156
List Your Business

KMCZ FBOs, Flight Schools and Ground Support

Promote Listing
Juliet Charlie Aviation
Freq: 122.8
Phone: (252) 792-1971
Other: (252) 799-8718
No Rating Available
0 Reviews (Read | Sign In To Write)
Titan
As of 5/1
 100LL Jet A Jet A+ Mogas UL94
Self Serve 5.65
Full Serve 6.05

KMCZ Ground Transportation (Taxi, Limo, Car Service)

No ground transportation services are listed for this airport.

KMCZ Hotels

No hotels are listed for this airport.

KMCZ Restaurants

No restaurants are listed for this airport.

KMCZ Other Airport-Related Businesses

No other airport-related businesses are listed for this airport.
X

Send Message to Airport Company
Enter your information and message below.

Your Information

Processing
122.8 122.8

AWOS-3P

AWOS-3P
252-802-4261
 118.65

FAA A/FD Pages

Airport Diagrams

  • No Documents

Airport Minimums

Departure Procedures

  • No Documents

Hotspot

  • No Documents

Standard Term. Arrival

  • No Documents

Instrument Approach

Terminal Area Forecast

KPGV (17nm)
Mon, 5/20 1:31 PM EDT
Mon, 5/20 2:00 PM EDT - Tue, 5/21 2:00 PM EDT
VFR
2:00 PM EDT - 6:00 PM EDT
Broken 3,500'
6sm
040° 10kts
VFR
6:00 PM EDT - 5:00 AM EDT
Scattered 3,500'
6sm
VRB° 6kts
IFR
5:00 AM EDT - 9:00 AM EDT
Mist
Broken 1,000'
2sm
VRB° 6kts
MVFR
9:00 AM EDT - 11:00 AM EDT
Broken 1,200'
6sm
VRB° 6kts
VFR
11:00 AM EDT - 2:00 PM EDT
Scattered 2,500'
6sm
VRB° 6kts
KPGV 201731Z 2018/2118 04010KT P6SM BKN035
   FM202200 VRB06KT P6SM SCT035
   FM210900 VRB06KT 2SM BR BKN010
   FM211300 VRB06KT P6SM BKN012
   FM211500 VRB06KT P6SM SCT025 AMD LTD TO CLD VIS AND WIND
KMCZ
Domestic
5/16/241505Z !RDU 05/217 MCZ OBST TOWER LGT (ASR 1234730) 354918.00N0770914.00W (2.7NM SSE MCZ) 371.7FT (305.8FT AGL) U/S 2405161505-2405310400
5/9/240923Z !RDU 05/105 MCZ OBST TOWER LGT (ASR 1225831) 355750.50N0771843.40W (8.8NM NW MCZ) 404.5FT (324.8FT AGL) U/S 2405090923-2407052359
4/27/241849Z !RDU 04/355 MCZ OBST TOWER LGT (ASR 1241890) 355425.00N0770030.80W (8.7NM ENE MCZ) 364.2FT (331.4FT AGL) U/S 2404271849-2405312359
11/29/232009Z !RDU 11/305 MCZ OBST TOWER LGT (ASR 1215602) 355133.00N0770700.00W (3.0NM E MCZ) 482.0FT (430.1FT AGL) U/S 2311292009-2405312359
No
0800-1700
FOR SVC AFT HRS CALL 252-799-8718 OR 252-217-4023.
COUNTY OF MARTIN
305 E. MAIN STREET, PO BOX 668
WILLIAMSTON, NC 27892
Phone: 252-789-4300
JESSE COUNCIL, JULIET CHARLIE AVIAT
2135 AIRPORT RD
WILLIAMSTON, NC 27892
Phone: 252-792-1971
RALEIGH FSS (RDU)
Toll Free: 1-800-WX-BRIEF
RDU
--
PAPI RWY 03 & 21 OPR CONT. MIRL RWY 03/21 DUSK TO DAWN; TO CHG INTST - CTAF.
N/A
Yes - Lighted
Yes
No
Hanger, Tie-Down
No
13
0
0
2
0
0
None
None
None
None
Pilot Instruction

Runway 03/21

5000 ft. x 75 ft.
ASPH
Good
NONE
MED

21,000lbs
--
--
--
  Runway 03 Runway 21
True Heading 24°204°
Traffic Pattern Left Left
Markings NPI NPI
Markings Condition POOR POOR
Latitude 35° 51' 21"N 35° 52' 07"N
Longitude 77° 10' 54"W 77° 10' 29"W
Elevation 65' 74'
Threshold Crossing Height 35 ft. AGL 24 ft. AGL
Visual Glide Path Angle 3° 3°
Visual Slope Indicator P2L P2L
Approach Lights
Centerline Lights
Runway End Identifier Lights
A110-1DEER ON AND INVOF ARPT.
A110-2FOR CD CTC WASHINGTON ARTCC AT 703-771-3587.
A110-3RWY 03 HAS 10-15 FT DROP-OFF 70 FT FM CNTRLN BOTH SIDES.
MARTIN COUNTY (ICAO: KMCZ, IATA: MCZ) is a public airport located in WILLIAMSTON, NC.
