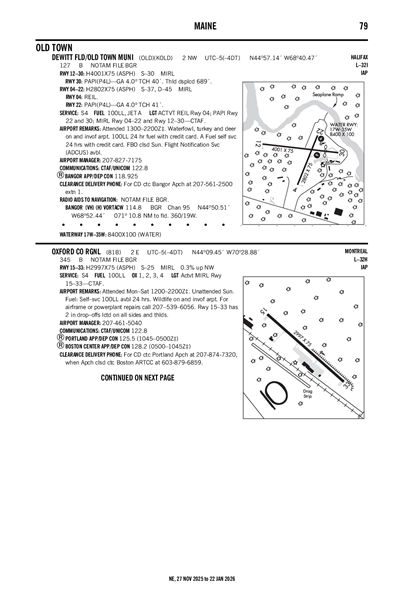

DEWITT FLD/OLD TOWN MUNI - Airport Diagram
LiveATC.net: Live Air Traffic - From Their Headsets to You

KOLD
DEWITT FLD/OLD TOWN MUNI
PublicPUB

2 miles NW of OLD TOWN, ME
View on Map
LiveATC.net: Live Air Traffic - From Their Headsets to You
Operational
44° 57' 08"N 68° 40' 28"W
126' MSL
1126' MSL
15W
Jet A, 100LL
BANGOR (BGR)
HALIFAX
BOSTON (ZBW)
5/16/24-6/13/24
KBGR (11nm) VFR
2:53 PM EDT
Scattered 4,100'
10sm
71°F
56°F
29.99"Hg
170° 11kts
AO2 SLP153 T02170133
KBGR 201853Z 17011KT 10SM SCT041 22/13 A2999 RMK AO2 SLP153 T02170133
List Your Business

KOLD FBOs, Flight Schools and Ground Support

Promote Listing
Old Town Municipal Airport
Freq: 122.8
Phone: (207) 827-7175
No Rating Available
0 Reviews (Read | Sign In To Write)
Phillips 66
As of 5/15
 100LL Jet A Jet A+ Mogas UL94
Self Serve 6.05 4.48
Full Serve

KOLD Ground Transportation (Taxi, Limo, Car Service)

No ground transportation services are listed for this airport.

KOLD Hotels

No hotels are listed for this airport.

KOLD Restaurants

No restaurants are listed for this airport.

KOLD Other Airport-Related Businesses

No other airport-related businesses are listed for this airport.
X

Send Message to Airport Company
Enter your information and message below.

Your Information

Processing
122.8 122.8

No communication frequencies available for this airport.

FAA A/FD Pages

Airport Diagrams

  • No Documents

Airport Minimums

Departure Procedures

  • No Documents

Hotspot

  • No Documents

Standard Term. Arrival

  • No Documents

Instrument Approach

Terminal Area Forecast

KBGR (11nm)
Mon, 5/20 1:20 PM EDT
Mon, 5/20 2:00 PM EDT - Tue, 5/21 2:00 PM EDT
MVFR
2:00 PM EDT - 3:00 PM EDT
Overcast 2,500'
6sm
VRB° 3kts
VFR
3:00 PM EDT - 12:00 AM EDT
Overcast 5,000'
6sm
190° 4kts
IFR
12:00 AM EDT - 2:00 AM EDT
Mist
Overcast 2,000'
2sm
190° 5kts
IFR
2:00 AM EDT - 7:00 AM EDT
Mist
Overcast 500'
2sm
190° 5kts
IFR
7:00 AM EDT - 10:00 AM EDT
Overcast 600'
6sm
200° 5kts
MVFR
10:00 AM EDT - 12:00 PM EDT
Overcast 1,200'
6sm
190° 6kts
VFR
12:00 PM EDT - 2:00 PM EDT
Scattered 9,000'
6sm
190° 7kts
KBGR 201720Z 2018/2118 VRB03KT P6SM OVC025
   FM201900 19004KT P6SM OVC050
   FM210400 19005KT 2SM BR OVC020
   FM210600 19005KT 2SM BR OVC005
   FM211100 20005KT P6SM OVC006
   FM211400 19006KT P6SM OVC012
   FM211600 19007KT P6SM SCT090
KOLD
Domestic
5/6/240657Z !BGR 05/031 OLD OBST TOWER LGT (ASR 1258416) 450433.80N0684050.00W (7.6NM N OLD) 478.7FT (329.7FT AGL) U/S 2405060657-2408092359
3/18/241326Z !BGR 03/102 OLD OBST TOWER LGT (ASR 1022417) 445149.90N0681914.10W (15.7NM ESE OLD) 896.0FT (311.0FT AGL) U/S 2403181326-2406182359
FDC
5/21/241100Z !FDC 4/6708 OLD IAP DEWITT FLD/OLD TOWN MUNI, OLD TOWN, ME.
VOR RWY 22, AMDT 6...
PROCEDURE NA EXCEPT FOR AIRCRAFT EQUIPPED WITH SUITABLE RNAV SYSTEM WITH GPS,
BGR TACAN OUT OF SERVICE. 2405211100-2405281633EST
4/28/231842Z !FDC 3/8372 OLD ODP DEWITT FLD/OLD TOWN MUNI, OLD TOWN, ME.
TAKEOFF MINIMUMS AND (OBSTACLE) DEPARTURE PROCEDURES AMDT 1...
TAKE-OFF MINIMUMS RWY 17W, 35W: NA - ENVIRONMENTAL.
ALL OTHER DATA REMAINS AS PUBLISHED. 2304281842-2504281842EST
No
0800-1700
CITY OF OLD TOWN
265 MAIN ST
OLD TOWN, ME 04468
Phone: 207-827-3965
LANCE FARRAR
100 AIRPORT RD, PO BOX 558
OLD TOWN, ME 04468
Phone: 207-827-7175
BANGOR FSS (BGR)
Toll Free: 1-800-WX-BRIEF
BGR
--
ACTVT REIL RWY 04; PAPI RWY 22 & 30; MIRL RWY 04/22 - CTAF.
N/A
Yes - Lighted
Yes
No
Hanger, Tie-Down
NOT a Landing Rights Airport
NOT an Airport of Entry
45
1
0
8
0
0
Major
Major
None
None
Beaching Gear
Pilot Instruction
Aircraft Rental
Annual Surveying

Runway 04/22

2802 ft. x 75 ft.
ASPH
Good
NONE
MED

37,000lbs
45,000lbs
--
--
  Runway 04 Runway 22
True Heading 22°202°
Traffic Pattern Left Left
Markings NPI NPI
Markings Condition POOR POOR
Latitude 44° 56' 52"N 44° 57' 18"N
Longitude 68° 40' 32"W 68° 40' 18"W
Elevation 126' 122'
Threshold Crossing Height -- 41 ft. AGL
Visual Glide Path Angle -- 4°
Visual Slope Indicator -- P4L
Approach Lights
Centerline Lights No No
Runway End Identifier Lights Yes No

Runway 12/30

4001 ft. x 75 ft.
ASPH
Good
NONE
MED

30,000lbs
--
--
--
  Runway 12 Runway 30
True Heading 97°277°
Traffic Pattern Left Left
Markings NPI NPI
Markings Condition POOR POOR
Latitude 44° 57' 13"N 44° 57' 09"N
Longitude 68° 40' 58"W 68° 40' 03"W
Elevation 125' 119'
Threshold Crossing Height -- 40 ft. AGL
Visual Glide Path Angle -- 4°
Visual Slope Indicator -- P4L
Approach Lights
Centerline Lights No No
Runway End Identifier Lights No No

Runway 17W/35W

8400 ft. x 100 ft.

WATER
NONE


--
--
--
--
  Runway 17W Runway 35W
True Heading Not ListedNot Listed
Traffic Pattern Left Left
Markings
Markings Condition
Latitude N/A N/A
Longitude N/A N/A
Elevation 102' 102'
Threshold Crossing Height -- --
Visual Glide Path Angle -- --
Visual Slope Indicator -- --
Approach Lights
Centerline Lights No No
Runway End Identifier Lights No No
A110-1WATERFOWL, TURKEY & DEER ON & INVOF ARPT.
A110-2FBO CLSD SUN.
A110-3FOR CD CTC BANGOR APCH AT 207-561-2500 EXT 1.
DEWITT FLD/OLD TOWN MUNI (ICAO: KOLD, IATA: OLD) is a public airport located in OLD TOWN, ME.
