KOLS
NOGALES INTL
Public
PUB
7 miles NE of NOGALES, AZ
View on
Map
Status
Operational
Coordinates
31° 25' 04"N
110° 50' 52"W
Elevation
3955' MSL
Pattern Alt
4955' MSL
Mag Variation
09E
Fuel
Jet A, 100LL
FSS
PRESCOTT (PRC)
Sectional
PHOENIX
ARTCC
ALBUQUERQUE (ZAB)
Data Effective
5/16/24-6/13/24
KOLS
VFR
4:54 AM MST
RAW
Clear
Viz
10sm
Temp
55°F
Dew
25°F
Pres
30.01"Hg
Wind
Calm
RMK
AO2 SLP099 T01281039 10206 20128 53003
KOLS 201154Z AUTO 00000KT 10SM CLR 13/M04 A3001 RMK AO2 SLP099 T01281039 10206 20128 53003
Services
Frequencies & Documents
Freqs & Docs
TAF
NOTAM
Operations
Runways
Remarks
List Your Business
KOLS FBOs, Flight Schools and Ground Support
Promote Listing
Vertical Performance Aviation
Freq: 122.8
Phone: (520) 287-9120
Other: (520) 761-7880
0 Reviews
(
Read
|
Sign In To Write
)
EPIC
As of
5/16
100LL
Jet
A
Jet
A+
Mogas
UL94
Self Serve
Full Serve
6.95
6.50
6.56
KOLS Ground Transportation (Taxi, Limo, Car Service)
No ground transportation services are listed for this airport.
KOLS Hotels
No hotels are listed for this airport.
KOLS Restaurants
No restaurants are listed for this airport.
KOLS Other Airport-Related Businesses
No other airport-related businesses are listed for this airport.
X
Send Message to Airport Company
Enter your information and message below.
Your Information
Business
x
UNICOM
122.8
CTAF
122.8
ASOS
ASOS
520-287-9332
121.125

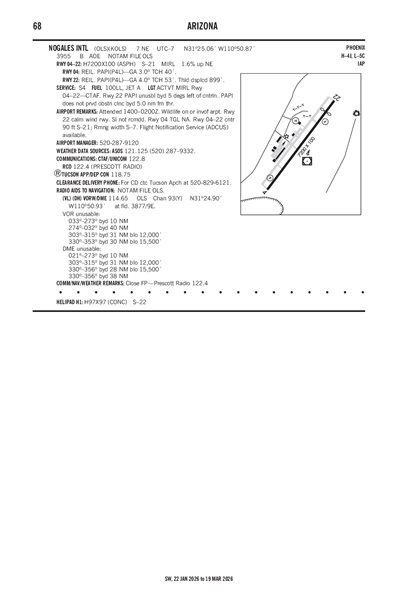

FAA A/FD Pages
FAA A/FD Page
Airport Diagrams
No Documents
Airport Minimums
ALTERNATE MINIMUMS
TAKEOFF MINIMUMS
Departure Procedures
NOGALES THREE (OBSTACLE)
Hotspot
No Documents
Standard Term. Arrival
No Documents
Instrument Approach
RNAV (GPS)-A
VOR-B
Terminal Area Forecast
KOLS
RAW
Reported
Mon, 5/20 4:20 AM MST
Valid
Mon, 5/20 5:00 AM MST - Tue, 5/21 5:00 AM MST
VFR
5:00 AM MST - 11:00 AM MST
Scattered 25,000'
Viz
6sm
Wind
VRB° 4kts
VFR
11:00 AM MST - 5:00 PM MST
Scattered 20,000'
Viz
6sm
Wind
250° 12kts
Gusts 25kts
VFR
5:00 PM MST - 8:00 PM MST
Scattered 25,000'
Viz
6sm
Wind
250° 14kts
Gusts 27kts
VFR
8:00 PM MST - 11:00 PM MST
Sky Clear
Viz
6sm
Wind
240° 6kts
VFR
11:00 PM MST - 5:00 AM MST
Sky Clear
Viz
6sm
Wind
080° 5kts
KOLS 201120Z 2012/2112 VRB04KT P6SM SCT250
FM201800 25012G25KT P6SM SCT200
FM210000 25014G27KT P6SM SCT250
FM210300 24006KT P6SM SKC
FM210600 08005KT P6SM SKC
KOLS
Domestic
5/10/24
0100Z
!OLS 05/002 OLS AD AP LGT ALL U/S DLY 0100-1200 2405100100-2405311200
2/27/24
2143Z
!OLS 02/009 OLS AD AP WINDCONE U/S 2402272143-2408312359
2/20/24
0000Z
!OLS 02/007 OLS AIRSPACE UAS WI AN AREA DEFINED AS 8NM RADIUS OF
312024.80N1105609.90W (6.5NM SW OLS) SFC-400FT AGL DLY 0000-2359
2402200000-2406302359
FDC
3/21/24
1249Z
!FDC 4/9765 OLS IAP NOGALES INTL, NOGALES, AZ.
RNAV (GPS)-A, ORIG ...
VOR-B, ORIG ...
PROCEDURE NA AT NIGHT. 2403211249-2603211249EST
ATC Tower
No
Attendance
0700-1900
Owner
SANTA CRUZ COUNTY
COUNTY COURTHOUSE
NOGALES, AZ 85621
Phone: 520-375-7930
Manager
LARRY TIFFIN
C/O SANTA CRUZ COUNTY, 2150 NORTH CONGRESS DRIVE
NOGALES, AZ 25621
Phone: 520-604-0396
FSS
PRESCOTT FSS (PRC)
Toll Free: 1-800-WX-BRIEF
NOTAM
OLS
Light Schedule
--
Lights
ACTVT MIRL RWY 04/22 - CTAF.
Beacon
N/A
Wind Indicator
Yes - Lighted
Segmented Cir.
Yes
Landing Fee
No
Parking
Hanger, Tie-Down
Int'l Operations
NOT a Landing Rights Airport
Airport of Entry
# Single Engine
9
# Multi Engine
6
# Jets
0
# Helicopters
0
# Military
0
# Ultralights
0
Airframe Repair
Major
Pwrplant Repair
Major
Bottled Oxygen
None
Bulk Oxygen
None
Other Services
Charter Service
Pilot Instruction
Aircraft Rental
Aircraft Sales
Runway 04/22
Dimensions
7200 ft. x 100 ft.
Surface Type
ASPH
Surface Cond
Good
Treatment
NONE
Rwy Edge Lgts
MED
Pavement Class
Single Wheel
21,000lbs
Double Wheel
--
Double Tandem
--
Dual Dbl Tand
--
Runway 04
Runway 22
True Heading
46°
226°
Traffic Pattern
Left
Left
Markings
NPI
NPI
Markings Condition
GOOD
GOOD
Latitude
31° 24' 39"N
31° 25' 28"N
Longitude
110° 51' 22"W
110° 50' 22"W
Elevation
3,839'
3,955'
Threshold Crossing Height
68 ft. AGL
17 ft. AGL
Visual Glide Path Angle
3°
4°
Visual Slope Indicator
P4L
P4L
Approach Lights
Centerline Lights
No
No
Runway End Identifier Lights
No
No
Runway H1
Dimensions
97 ft. x 97 ft.
Surface Type
CONC
Surface Cond
Good
Treatment
NONE
Rwy Edge Lgts
Pavement Class
Single Wheel
22,000lbs
Double Wheel
--
Double Tandem
--
Dual Dbl Tand
--
Runway H1
Runway
True Heading
79°
259°
Traffic Pattern
Markings
Markings Condition
Latitude
31° 25' 11"N
N/A
Longitude
110° 50' 56"W
N/A
Elevation
3,905'
--
Threshold Crossing Height
--
--
Visual Glide Path Angle
--
--
Visual Slope Indicator
--
--
Approach Lights
Centerline Lights
Runway End Identifier Lights
A110-2
CLOSE FP - PRESCOTT RADIO 122.4.
A110-6
WILDLIFE ON OR INVOF ARPT.
A110-7
FOR CD CTC TUCSON APCH AT 520-829-6121.
NOGALES INTL (ICAO: KOLS, IATA: OLS) is a public airport located in NOGALES, AZ.
