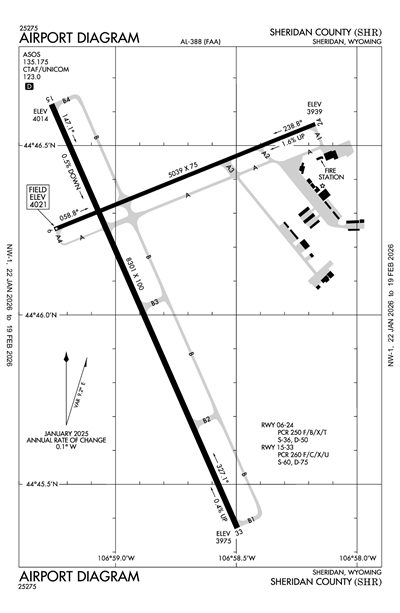

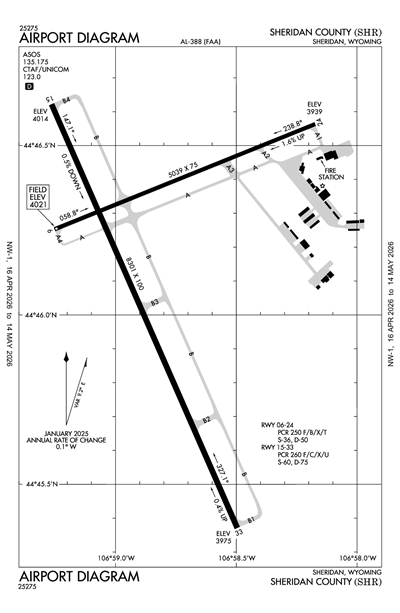

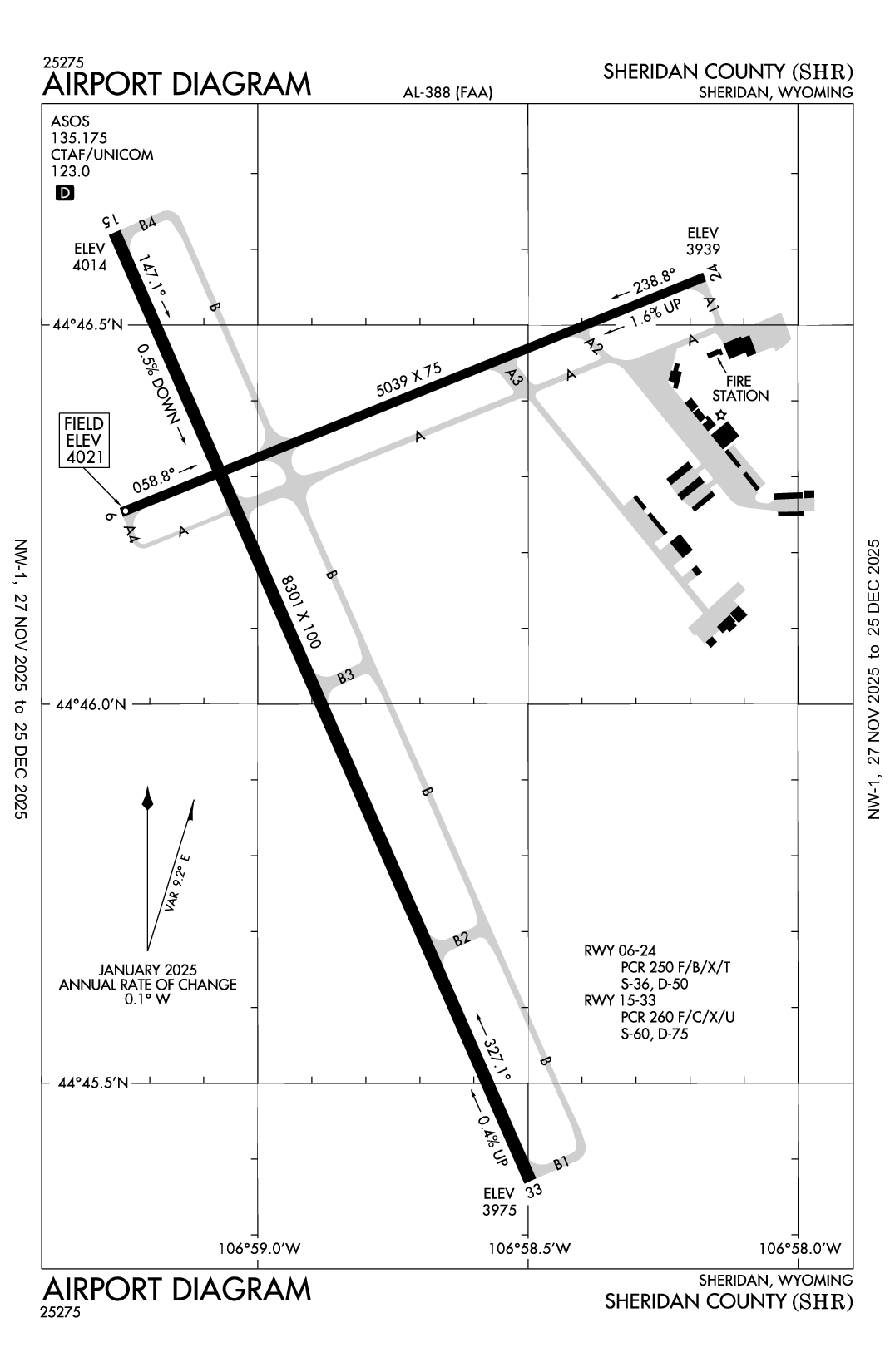

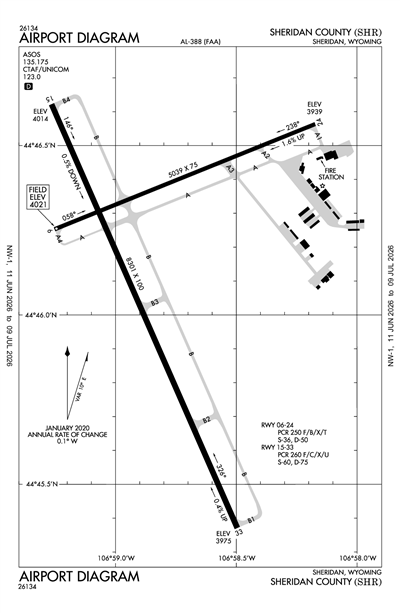

SHERIDAN COUNTY - Airport Diagram
LiveATC.net: Live Air Traffic - From Their Headsets to You

KSHR
SHERIDAN COUNTY
PublicPUB

2 miles SW of SHERIDAN, WY
View on Map
LiveATC.net: Live Air Traffic - From Their Headsets to You
Operational
44° 46' 09"N 106° 58' 49"W
4021' MSL
4821' MSL
10E
Jet A, Jet A-1+, 100
CASPER (CPR)
BILLINGS
SALT LAKE CITY (ZLC)
5/16/24-6/13/24
KSHR VFR
10:53 AM MDT
Overcast 3,500'
10sm
50°F
35°F
29.97"Hg
120° 6kts
AO2 SLP150 T01000017 $
KSHR 201653Z AUTO 12006KT 10SM OVC035 10/02 A2997 RMK AO2 SLP150 T01000017 $
List Your Business

KSHR FBOs, Flight Schools and Ground Support

Promote Listing
Bighorn Airways
Freq: 123.0
Phone: (307) 672-3421
No Rating Available
0 Reviews (Read | Sign In To Write)
Phillips 66
As of 5/2
 100LL Jet A Jet A+ Mogas UL94
Self Serve
Full Serve 6.55 7.10
Promote Listing
Wyoming Aviator
Freq: 123.0
Phone: (307) 751-6694
Other: (307) 763-3101
No Rating Available
0 Reviews (Read | Sign In To Write)
EPIC
As of 5/14
 100LL Jet A Jet A+ Mogas UL94
Self Serve 6.00
Full Serve

KSHR Ground Transportation (Taxi, Limo, Car Service)

No ground transportation services are listed for this airport.

KSHR Hotels

No hotels are listed for this airport.

KSHR Restaurants

No restaurants are listed for this airport.

KSHR Other Airport-Related Businesses

No other airport-related businesses are listed for this airport.
X

Send Message to Airport Company
Enter your information and message below.

Your Information

Processing
123.0 123.0

ASOS

ASOS
307-672-5349
 135.175

FAA A/FD Pages

Airport Diagrams

Airport Minimums

Departure Procedures

  • No Documents

Hotspot

  • No Documents

Standard Term. Arrival

  • No Documents

Instrument Approach

Terminal Area Forecast

KSHR
Mon, 5/20 5:20 AM MDT
Mon, 5/20 6:00 AM MDT - Tue, 5/21 6:00 AM MDT
VFR
6:00 AM MDT - 9:00 AM MDT
Overcast 6,000'
Scattered 3,000'
6sm
VRB° 4kts
VFR
9:00 AM MDT - 6:00 PM MDT
Showers in vicinity
Overcast 5,000'
6sm
120° 7kts
MVFR
6:00 PM MDT - 10:00 PM MDT
Light Showers and Rain
Overcast 3,000'
Scattered 1,500'
6sm
VRB° 6kts
MVFR
10:00 PM MDT - 6:00 AM MDT
Light Showers and Rain and Mist
Overcast 1,500'
Scattered 700'
6sm
320° 8kts
KSHR 201120Z 2012/2112 VRB04KT P6SM SCT030 OVC060
   FM201500 12007KT P6SM VCSH OVC050
   FM210000 VRB06KT P6SM -SHRA SCT015 OVC030
   FM210400 32008KT 6SM -SHRA BR SCT007 OVC015
KSHR
Domestic
5/13/241740Z !SHR 05/004 SHR RWY 15 PAPI LOW INTST U/S 2405131740-2405312000EST
No
DALGT
CONDS NOT MONITORED AT NGT AFT THE LAST ACR ARR TIL 0500L. SEE NOTAMS FOR THE MOST UP-TO-DATE CONDS AND UPDTS.
SHERIDAN COUNTY
908 W BRUNDAGE LANE
SHERIDAN, WY 82801-5896
Phone: 307-674-4222
E. ROBERT GILL
908 WEST BRUNDAGE LANE
SHERIDAN, WY 82801-5827
Phone: 307-674-4222
CASPER FSS (CPR)
Toll Free: 1-800-WX-BRIEF
SHR
--
ACTVT MALSR RWY 33; REIL RWY 06, 24, & 15; PAPI RWY 06, 24, 15 & 33; HIRL RWY 15/33; MIRL RWY 06/24 - CTAF.
N/A
Yes - Lighted
Yes
No
Hanger, Tie-Down
NOT a Landing Rights Airport
NOT an Airport of Entry
54
18
2
3
0
0
Major
Major
High Pressure
High & Low Pressure
Air Freight
Air Ambulance
Avionics
Cargo Handling
Charter Service
Glider Service
Pilot Instruction
Aircraft Rental

Runway 06/24

5039 ft. x 75 ft.
ASPH
Good
GRVD
MED
11 /F/B/X/U
36,000lbs
50,000lbs
--
--
  Runway 06 Runway 24
True Heading 68°248°
Traffic Pattern Left Left
Markings NPI NPI
Markings Condition GOOD GOOD
Latitude 44° 46' 15"N 44° 46' 34"N
Longitude 106° 59' 15"W 106° 58' 10"W
Elevation 4,021' 3,939'
Threshold Crossing Height 57 ft. AGL 39 ft. AGL
Visual Glide Path Angle 4° 3°
Visual Slope Indicator P4L P4L
Approach Lights
Centerline Lights
Runway End Identifier Lights Yes Yes

Runway 15/33

8301 ft. x 100 ft.
ASPH
Excellent
PFC
HIGH
22 /F/B/X/U
60,000lbs
75,000lbs
--
--
  Runway 15 Runway 33
True Heading 156°336°
Traffic Pattern
Markings NPI PIR
Markings Condition GOOD GOOD
Latitude 44° 46' 37"N 44° 45' 22"N
Longitude 106° 59' 16"W 106° 58' 30"W
Elevation 4,014' 3,975'
Threshold Crossing Height 50 ft. AGL 54 ft. AGL
Visual Glide Path Angle 3° 3°
Visual Slope Indicator P4L P4L
Approach Lights MALSR
Centerline Lights
Runway End Identifier Lights Yes
A110-4FW ACFT RSTRD TO RWYS & TWYS ONLY.
A110-6COLD TEMPERATURE AIRPORT. ALTITUDE CORRECTION REQUIRED AT OR BELOW -19C.
A110-7FOR CD IF UNA TO CTC ON FSS FREQ, CTC SALT LAKE ARTCC AT 801-320-2568.
SHERIDAN COUNTY (ICAO: KSHR, IATA: SHR) is a public airport located in SHERIDAN, WY.
