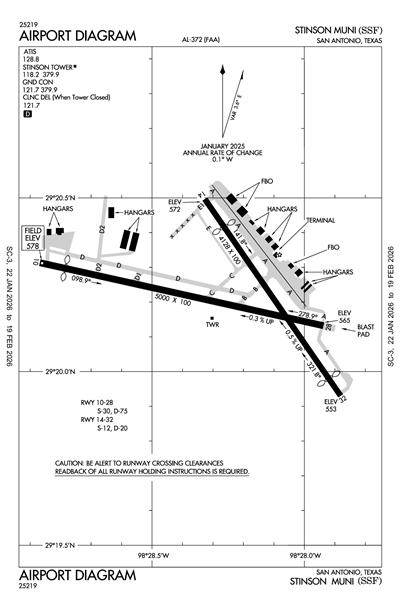

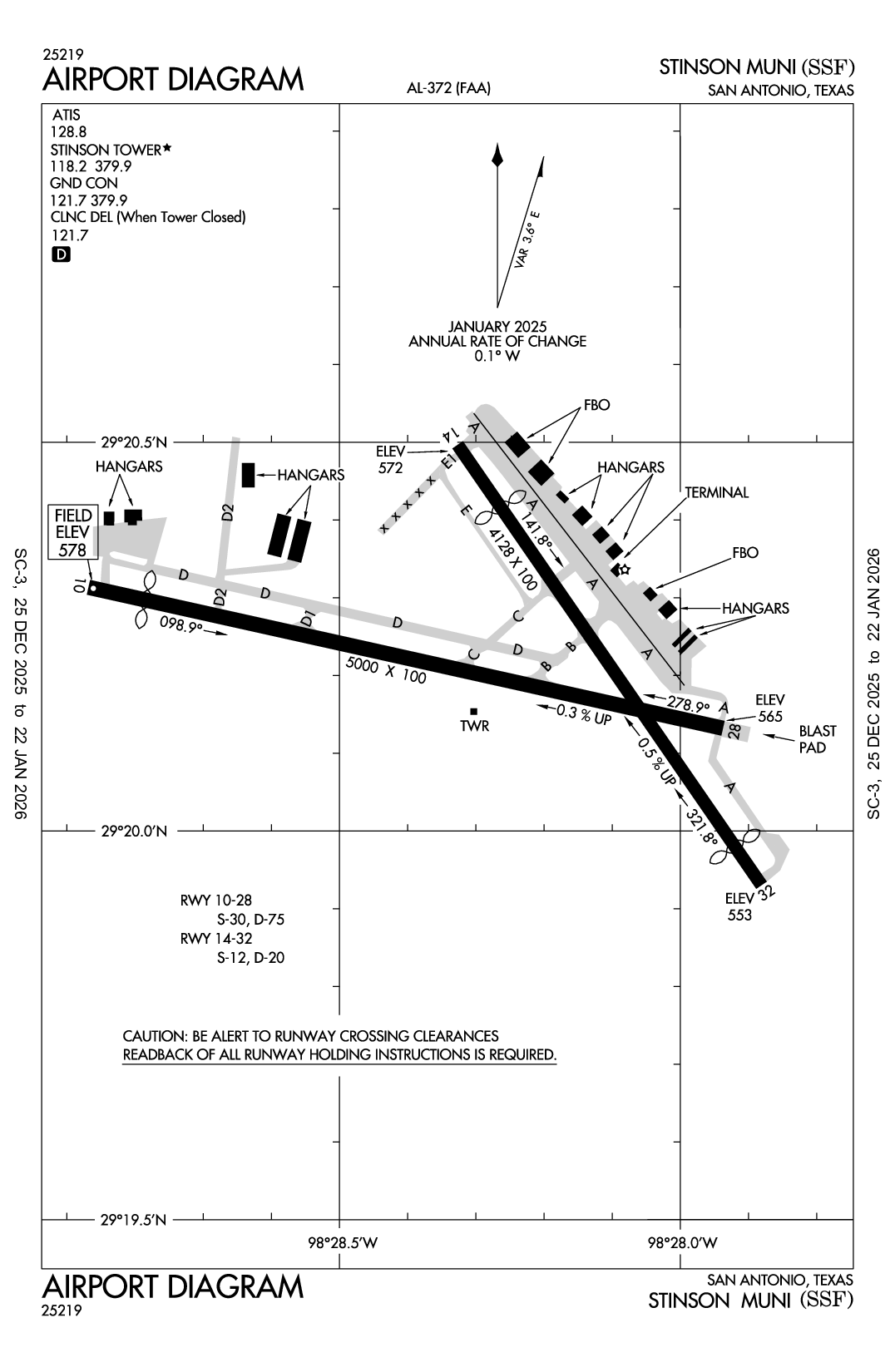

STINSON MUNI - Airport Diagram
LiveATC.net: Live Air Traffic - From Their Headsets to You

KSSF
STINSON MUNI
PublicPUB

6 miles S of SAN ANTONIO, TX
View on Map
LiveATC.net: Live Air Traffic - From Their Headsets to You
Operational
29° 20' 13"N 98° 28' 16"W
578' MSL
1578' MSL
08E
Jet A, 100LL
SAN ANGELO (SJT)
SAN ANTONIO
HOUSTON (ZHU)
5/16/24-6/13/24
KSSF MVFR
8:53 AM CDT
Mist
Broken 2,800'
Broken 1,600'
Broken 1,100'
4sm
79°F
73°F
29.85"Hg
180° 7kts
AO2 SLP094 T02610228
KSSF 201353Z 18007KT 4SM BR BKN011 BKN016 BKN028 26/23 A2985 RMK AO2 SLP094 T02610228
List Your Business

KSSF FBOs, Flight Schools and Ground Support

Promote Listing
GateOne
Freq: 122.95
Phone: (210) 922-1203
Other: (210) 922-1228
No Rating Available
0 Reviews (Read | Sign In To Write)
Other
As of 5/16
 100LL Jet A Jet A+ Mogas UL94
Self Serve 6.20 5.95
Full Serve 6.70 6.35 6.35

KSSF Ground Transportation (Taxi, Limo, Car Service)

No ground transportation services are listed for this airport.

KSSF Hotels

No hotels are listed for this airport.

KSSF Restaurants

No restaurants are listed for this airport.

KSSF Other Airport-Related Businesses

No other airport-related businesses are listed for this airport.
X

Send Message to Airport Company
Enter your information and message below.

Your Information

Processing
122.95 118.2

ATIS

ATIS
 128.8

Emergency

EMERG
 121.5

Ground

GND/P
 121.7

Tower

LCL/P
 118.2

Terminal Area Forecast

KSSF
Mon, 5/20 6:22 AM CDT
Mon, 5/20 7:00 AM CDT - Tue, 5/21 7:00 AM CDT
MVFR
7:00 AM CDT - 11:00 AM CDT
Broken 1,200'
6sm
160° 4kts
VFR
11:00 AM CDT - 1:00 PM CDT
Few 2,200'
6sm
170° 10kts
VFR
1:00 PM CDT - 12:00 AM CDT
Sky Clear
6sm
130° 12kts
MVFR
12:00 AM CDT - 7:00 AM CDT
Broken 1,500'
6sm
130° 8kts
KSSF 201122Z 2012/2112 16004KT P6SM BKN012
   FM201600 17010KT P6SM FEW022
   FM201800 13012KT P6SM SKC
   FM210500 13008KT P6SM BKN015
KSSF
Domestic
4/15/240538Z !SSF 04/023 SSF OBST TOWER LGT (ASR 1279702) 292056.10N0981755.80W (9.1NM E SSF) 785.1FT (249.0FT AGL) U/S 2404150538-2405300537
4/10/240415Z !SSF 04/016 SSF OBST TOWER LGT (ASR 1201264) 292021.00N0981641.00W (10.2NM E SSF) 802.8FT (274.9FT AGL) U/S 2404100415-2407090400
3/26/241752Z !SSF 03/038 SSF OBST TOWER LGT (ASR 1049318) 292303.80N0982719.30W (2.9NM NNE SSF) 947.8FT (251.0FT AGL) U/S 2403261752-2406240400
2/21/241414Z !SSF 02/026 SSF TWY A BTN RWY 09/27 AND HOLD BAY RWY 32 CLSD 2402211414-2406102359
2/21/241330Z !SSF 02/027 SSF RWY 09/27 CLSD EXC TAX 2402211330-2406220001
2/15/241639Z !SSF 02/018 SSF OBST TOWER LGT (ASR 1228187) 291724.90N0981521.00W (11.7NM ESE SSF) 1643.0FT (1103.0FT AGL) U/S 2402151639-2405312359
1/31/241736Z !SSF 01/037 SSF OBST TOWER LGT (ASR 1206963) 291629.80N0981553.00W (11.5NM ESE SSF) 2049.2FT (1514.1FT AGL) U/S 2401311736-2407312359
1/17/242142Z !SSF 01/023 SSF COM REMOTE COM OUTLET 379.9 U/S 2401172142-2406192359
12/28/232119Z !SSF 12/054 SSF OBST TOWER LGT (ASR 1056373) 291939.00N0982118.00W (6.2NM E SSF) 1545.9FT (1051.2FT AGL) U/S 2312282119-2412312359
4/2/191658Z !SSF 04/005 SSF OBST STACK (ASN UNKNOWN) 291826N0981923W (8.3NM E SSF) 1140FT (646FT AGL) NOT LGTD 1904021658-PERM
FDC
5/20/241055Z !FDC 4/6578 SSF IAP STINSON MUNI, SAN ANTONIO, TX.
VOR RWY 32, AMDT 14C...
ALTERNATE MINIMUMS NA EXCEPT FOR ACFT EQUIPPED WITH SUITABLE RNAV SYSTEM WITH GPS,
SSF VOR UNMONITORED. 2405201055-2406201055EST
5/13/241200Z !FDC 4/2816 SSF SID STINSON MUNI, SAN ANTONIO, TX.
ALAMO THREE DEPARTURE...
GOOCH SPRINGS TRANSITION NA EXCEPT FOR AIRCRAFT EQUIPPED WITH SUITABLE RNAV SYSTEM WITH GPS,
AGJ VORTAC OUT OF SERVICE. 2405131200-2407112100EST
2/5/241554Z !FDC 4/1330 SSF SID STINSON MUNI, SAN ANTONIO, TX.
ALAMO THREE DEPARTURE...
GOBBY TRANSITION: RIGHT TURN AT GOBBY NA FOR ACFT REQ FL240 AND ABV. HENLY TRANSITION: RIGHT TURN AT HENLY NA FOR ACFT REQ FL240 AND ABV. ALL OTHER DATA REMAINS AS PUBLISHED. 2402051554-2602051554EST
12/1/231732Z !FDC 3/9722 SSF SID STINSON MUNI, SAN ANTONIO, TX.
BOWIE SEVEN DEPARTURE...
CORPUS CHRISTI TRANSITION NA EXCEPT FOR ACFT EQUIPPED WITH SUITABLE RNAV SYSTEM WITH GPS.
LAREDO TRANSITION DME REQUIRED EXCEPT FOR ACFT EQUIPPED WITH SUITABLE RNAV SYSTEM WITH GPS,
THX VOR OUT OF SERVICE. 2312011732-2407121732EST
Yes
0700-2000
CITY OF SAN ANTONIO
8535 MISSION RD
SAN ANTONIO, TX 78214
Phone: 210-207-1800
MORRIS MARTIN
8535 MISSION RD
SAN ANTONIO, TX 78214
Phone: 210-207-1800
SAN ANGELO FSS (SJT)
Toll Free: 1-800-WX-BRIEF
SSF
--
DUSK-DAWN. MIRL RWY 09/27 & 14/32 PRESET MED INTST WHEN ATCT CLSD.
N/A
Yes - Lighted
No
No
Hanger, Tie-Down
NOT a Landing Rights Airport
NOT an Airport of Entry
60
9
0
8
0
0
Major
Major
None
None
Charter Service
Pilot Instruction
Aircraft Rental
Aircraft Sales

Runway 09/27

5000 ft. x 100 ft.
ASPH
Good
NONE
MED

30,000lbs
75,000lbs
--
--
  Runway 09 Runway 27
True Heading 103°283°
Traffic Pattern
Markings NPI NPI
Markings Condition GOOD GOOD
Latitude 29° 20' 19"N 29° 20' 08"N
Longitude 98° 28' 51"W 98° 27' 56"W
Elevation 578' 565'
Threshold Crossing Height 40 ft. AGL 40 ft. AGL
Visual Glide Path Angle 3° 3°
Visual Slope Indicator P4L P4L
Approach Lights
Centerline Lights
Runway End Identifier Lights Yes Yes

Runway 14/32

4128 ft. x 100 ft.
ASPH
Good
NONE
MED

12,000lbs
20,000lbs
--
--
  Runway 14 Runway 32
True Heading 145°325°
Traffic Pattern
Markings NPI NPI
Markings Condition GOOD GOOD
Latitude 29° 20' 30"N 29° 19' 56"N
Longitude 98° 28' 19"W 98° 27' 53"W
Elevation 572' 553'
Threshold Crossing Height 35 ft. AGL 40 ft. AGL
Visual Glide Path Angle 3° 3°
Visual Slope Indicator P2R P4L
Approach Lights
Centerline Lights
Runway End Identifier Lights Yes Yes
A110-1NUMEROUS ACFT OPERATING AT OR ABOVE 2500 FT MSL IN THE STINSON ARPT TFC AREA UNDER THE CTL OF SAN ANTONIO APCH.
A110-2PAEW ADJ ALL TWYS & RAMP AREAS MON-FRI 0700-1759.
A110-4FOR CD WHEN ATCT IS CLSD CTC SAT APCH AT 210-805-5516.
STINSON MUNI (ICAO: KSSF, IATA: SSF) is a public airport located in SAN ANTONIO, TX.
