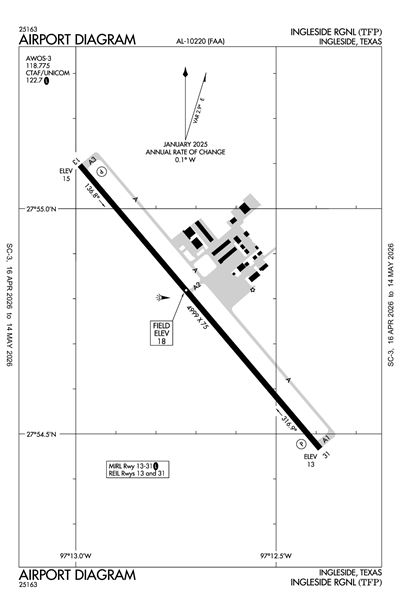

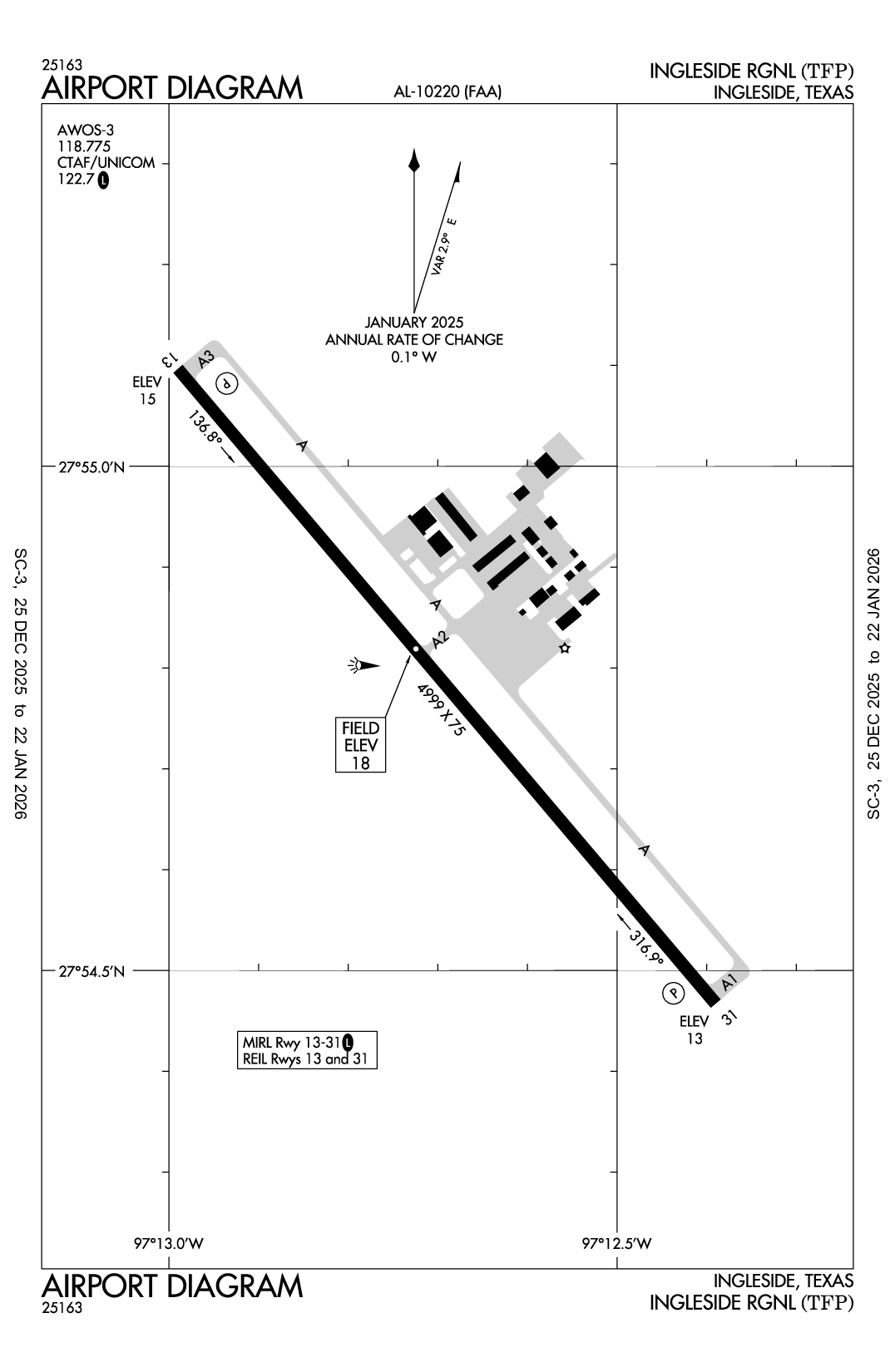

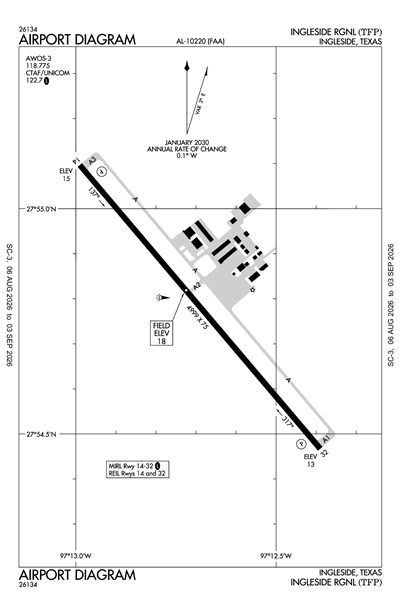

MCCAMPBELL-PORTER - Airport Diagram
LiveATC.net: Live Air Traffic - From Their Headsets to You

KTFP
MCCAMPBELL-PORTER
PublicPUB

2 miles N of INGLESIDE, TX
View on Map
LiveATC.net: Live Air Traffic - From Their Headsets to You
Operational
27° 54' 47"N 97° 12' 41"W
18' MSL
1018' MSL
07E
Jet A+, 100LL
SAN ANGELO (SJT)
BROWNSVILLE
HOUSTON (ZHU)
5/16/24-6/13/24
KRAS (9nm) MVFR
11:55 AM CDT
Overcast 2,700'
7sm
88°F
79°F
29.87"Hg
110° 7kts
AO2 T03090260
KRAS 201655Z AUTO 11007KT 7SM OVC027 31/26 A2987 RMK AO2 T03090260
List Your Business

KTFP FBOs, Flight Schools and Ground Support

No FBOs, flight schools or aircraft ground support businesses are listed for this airport.

KTFP Ground Transportation (Taxi, Limo, Car Service)

No ground transportation services are listed for this airport.

KTFP Hotels

No hotels are listed for this airport.

KTFP Restaurants

No restaurants are listed for this airport.

KTFP Other Airport-Related Businesses

No other airport-related businesses are listed for this airport.
X

Send Message to Airport Company
Enter your information and message below.

Your Information

Processing
122.7 122.7

AWOS-3

AWOS-3
361-758-8961
 118.775

FAA A/FD Pages

Airport Diagrams

  • No Documents

Airport Minimums

Departure Procedures

  • No Documents

Hotspot

  • No Documents

Standard Term. Arrival

  • No Documents

Instrument Approach

Terminal Area Forecast

KNGP (14nm)
Mon, 5/20 10:00 AM CDT
Mon, 5/20 10:00 AM CDT - Tue, 5/21 10:00 AM CDT
VFR
10:00 AM CDT - 1:00 PM CDT
Broken 5,000'
Scattered 2,500'
Scattered 1,500'
6sm
29.82"Hg
150° 12kts
MVFR
Temporary 10:00 AM CDT - 1:00 PM CDT
Broken 5,000'
Broken 2,500'
Scattered 1,500'
N/A
Calm
VFR
1:00 PM CDT - 8:00 PM CDT
Scattered 3,000'
6sm
29.73"Hg
100° 13kts
VFR
8:00 PM CDT - 4:00 AM CDT
Scattered 1,200'
6sm
29.76"Hg
120° 14kts
Gusts 20kts
MVFR
Temporary 12:00 AM CDT - 4:00 AM CDT
Mist
Broken 1,000'
4.97sm
Calm
MVFR
4:00 AM CDT - 9:00 AM CDT
Mist and Showers in vicinity
Broken 1,400'
Scattered 800'
4.97sm
29.73"Hg
150° 12kts
VFR
9:00 AM CDT - 10:00 AM CDT
Scattered 2,500'
Scattered 1,500'
6sm
29.76"Hg
140° 15kts
Gusts 22kts
TAF KNGP 2015/2115 15012KT 9999 SCT015 SCT025 BKN050 QNH2982INS
   TEMPO 2015/2018 SCT015 BKN025 BKN050
   FM201800 10013KT 9999 SCT030 QNH2973INS
   FM210100 12014G20KT 9999 SCT012 QNH2975INS
   TEMPO 2105/2109 8000 BR BKN010
   FM210900 15012KT 8000 BR VCSH SCT008 BKN014 QNH2973INS
   FM211400 14015G22KT 9999 SCT015 SCT025 QNH2976INS TX33/2020Z TN28/2112Z FN20044
KTFP
Domestic
4/30/241052Z !SJT 04/436 TFP RWY 31 PAPI U/S 2404301052-2405312200
4/30/241051Z !SJT 04/435 TFP RWY 13 PAPI U/S 2404301051-2405312200
4/20/241150Z !SJT 04/288 TFP OBST TOWER LGT (ASR 1053018) 275605.60N0970903.70W (3.5NM ENE TFP) 374.0FT (349.1FT AGL) U/S 2404201150-2407190400
3/14/241326Z !SJT 03/172 TFP OBST TOWER LGT (ASN 2015-ASW-4860-OE) 275322N0971613W (3.5NM WSW TFP) 234FT (210FT AGL) U/S 2403141326-2503312359
3/14/241326Z !SJT 03/171 TFP OBST TOWER LGT (ASN 2016-ASW-981-OE) 275323N0971613W (3.5NM WSW TFP) 234FT (210FT AGL) U/S 2403141326-2503312359
3/14/241325Z !SJT 03/170 TFP OBST TOWER LGT (ASN 2015-ASW-4859-OE) 275323N0971613W (3.5NM WSW TFP) 234FT (210FT AGL) U/S 2403141325-2503312359
3/14/241324Z !SJT 03/169 TFP OBST TOWER LGT (ASN 2016-ASW-980-OE) 275324N0971613W (3.5NM WSW TFP) 234FT (210FT AGL) U/S 2403141324-2503312359
3/14/241324Z !SJT 03/168 TFP OBST TOWER LGT (ASN 2015-ASW-4858-OE) 275323N0971613W (3.5NM WSW TFP) 234FT (210FT AGL) U/S 2403141324-2503312359
3/14/241323Z !SJT 03/167 TFP OBST TOWER LGT (ASN 2015-ASW-4857-OE) 275324N0971613W (3.5NM WSW TFP) 234FT (210FT AGL) U/S 2403141323-2503312359
FDC
3/22/231419Z !FDC 3/0880 TFP ODP MCCAMPBELL-PORTER, INGLESIDE, TX.
TAKEOFF MINIMUMS AND (OBSTACLE) DEPARTURE PROCEDURES ORIG...
TAKEOFF OBSTACLE NOTES:
NOTE: RWY 13: LIGHT POLES BEGINNING 9 FT FROM DER, 76 FT LEFT OF CENTERLINE, UP TO 3 FT AGL/15 FT MSL.
NOTE: RWY 31: LIGHT POLES BEGINNING 10 FT FROM DER, 18 FT LEFT OF CENTERLINE, UP TO 2 FT AGL/16 FT MSL.
ALL OTHER DATA REMAINS AS PUBLISHED. 2303221419-2503221417EST
No
0800-1630
SAN PATRICIO COUNTY
400 WEST SINTON ST.
SINTON, TX 78387
Phone: 361-364-9303
GARY LEE DAVIS
3141 FM 3512
ARANSAS PASS, TX 78336
Phone: 361-226-0112
SAN ANGELO FSS (SJT)
Toll Free: 1-800-WX-BRIEF
SJT
--
MIRL RWY 13/31 PRESET LOW INTST; TO INCR INTST ACTVT - CTAF.
N/A
Yes - Lighted
Yes
No
Hanger, Tie-Down
No
25
6
1
0
0
0
Major
Major
None
None
Pilot Instruction

Runway 13/31

4999 ft. x 75 ft.
ASPH
Good
NONE
MED

--
--
--
--
  Runway 13 Runway 31
True Heading 140°320°
Traffic Pattern
Markings NPI NPI
Markings Condition GOOD GOOD
Latitude 27° 55' 06"N 27° 54' 28"N
Longitude 97° 12' 59"W 97° 12' 23"W
Elevation 15' 13'
Threshold Crossing Height 39 ft. AGL 33 ft. AGL
Visual Glide Path Angle 3° 3°
Visual Slope Indicator P2L P2L
Approach Lights
Centerline Lights
Runway End Identifier Lights Yes Yes
A110-2FOR CD CTC CORPUS CHRISTI APCH AT 361-299-4230.
MCCAMPBELL-PORTER (ICAO: KTFP, IATA: TFP) is a public airport located in INGLESIDE, TX.
