KUGN

WAUKEGAN NTL

PublicPUB

35 miles N of CHICAGO/WAUKEGAN, IL

View on Map

Status

Operational

Coordinates

42° 25' 20"N 87° 52' 04"W

Elevation

728' MSL

Pattern Alt

1728' MSL

Mag Variation

03W

Fuel

Jet A, 100LL

FSS

KANKAKEE (IKK)

Sectional

CHICAGO

ARTCC

CHICAGO (ZAU)

Data Effective

5/16/24-6/13/24

KUGN VFR

7:51 AM CDT RAW

Broken 10,000'
Broken 7,000'
Broken 6,000'

Viz

10sm

Temp

60°F

Dew

46°F

Pres

29.91"Hg

Wind

Calm

RMK

AO2 LTG DSNT N AND NE SLP125 T01560078

KUGN 201251Z 00000KT 10SM BKN060 BKN070 BKN100 16/08 A2991 RMK AO2 LTG DSNT N AND NE SLP125 T01560078

List Your Business

KUGN FBOs, Flight Schools and Ground Support

Promote Listing

Signature Aviation

Freq: 131.85

Phone: (847) 336-9220

0 Reviews (Read | Sign In To Write)

Titan

As of 5/17	100LL	Jet A	Jet A+	Mogas	UL94
Self Serve	5.50
Full Serve	7.10	7.77

KUGN Ground Transportation (Taxi, Limo, Car Service)

No ground transportation services are listed for this airport.

KUGN Hotels

No hotels are listed for this airport.

KUGN Restaurants

No restaurants are listed for this airport.

KUGN Other Airport-Related Businesses

Promote Listing

Skill Aviation

Phone: (847) 599-9955

0 Reviews (Read | Sign In To Write)

Your Information

Business

UNICOM -- CTAF 120.05

ATIS

132.4

Emergency

EMERG

121.5

Ground

GND/P

121.65

Tower

LCL/P

120.05

FAA A/FD Pages

FAA A/FD Page

Airport Diagrams

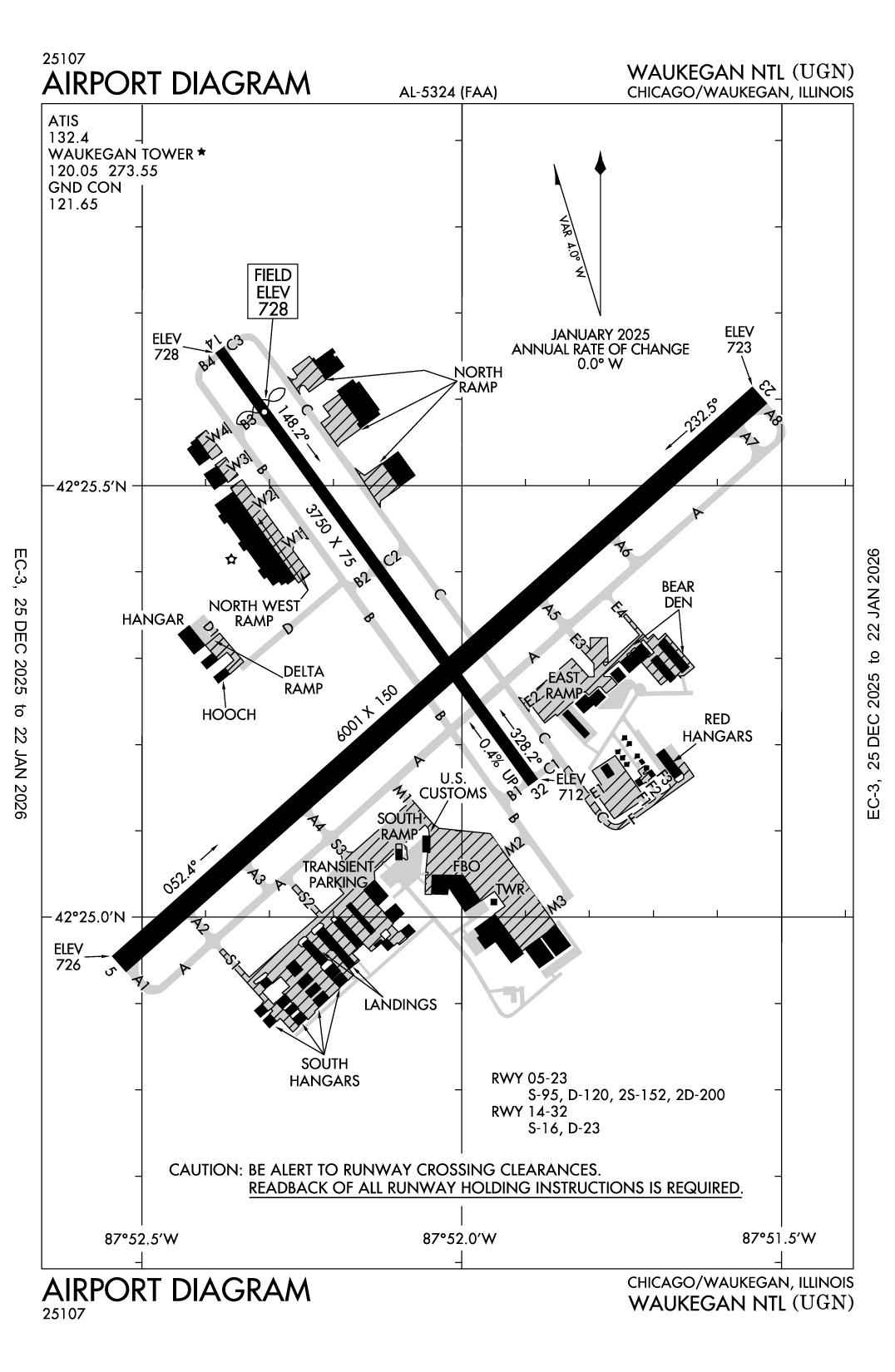

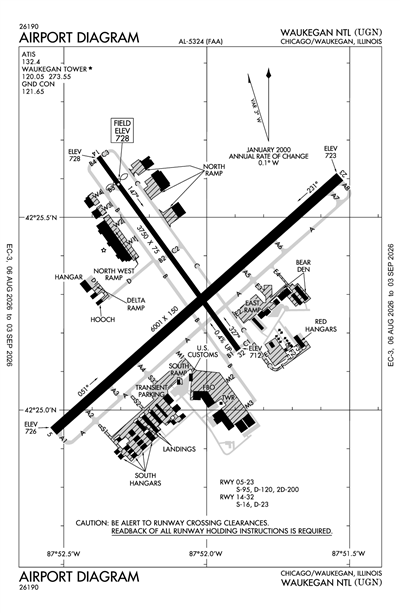

AIRPORT DIAGRAM

Airport Minimums

Departure Procedures

Hotspot

No Documents

Standard Term. Arrival

GOPAC THREE (RNAV)

Instrument Approach

Terminal Area Forecast

KENW (11nm)

RAW

Reported

Mon, 5/20 6:38 AM CDT

Valid

Mon, 5/20 7:00 AM CDT - Tue, 5/21 7:00 AM CDT

VFR

7:00 AM CDT - 11:00 AM CDT

Broken 15,000'
Few 6,000'

Viz

6sm

Wind

160° 6kts

VFR

Temporary 7:00 AM CDT - 8:00 AM CDT

Light Thunderstorm and Rain

Broken 6,000'

Viz

6sm

Wind

300° 8kts

VFR

11:00 AM CDT - 3:00 PM CDT

Broken 20,000'

Viz

6sm

Wind

140° 10kts

MVFR

3:00 PM CDT - 8:00 PM CDT

Light Thunderstorm and Rain

Broken 8,000'

Viz

4sm

Wind

200° 11kts

Gusts 19kts

VFR

8:00 PM CDT - 4:00 AM CDT

Broken 10,000'

Viz

6sm

Wind

240° 8kts

MVFR

4:00 AM CDT - 7:00 AM CDT

Broken 3,000'

Viz

6sm

Wind

VRB° 4kts

KENW 201138Z 2012/2112 16006KT P6SM FEW060 BKN150
   TEMPO 2012/2013 30008KT 6SM -TSRA BKN060CB
   FM201600 14010KT P6SM BKN200
   FM202000 20011G19KT 4SM -TSRA BKN080CB
   FM210100 24008KT P6SM BKN100
   FM210900 VRB04KT P6SM BKN030

KUGN

Domestic
5/7/240502Z	!UGN 05/003 UGN OBST TOWER LGT (ASR 1007618) 421944.00N0875445.00W (6.0NM SSW UGN) 1041.0FT (330.1FT AGL) U/S 2405070502-2406060001

ATC Tower

Yes

Attendance

ALL

Owner

WAUKEGAN PORT DISTRICT
PO BOX 620
WAUKEGAN, IL 60079
Phone: 847-244-0055

Manager

SKIP GOSS
2601 PLANE REST DRIVE
WAUKEGAN, IL 60087
Phone: 847-244-0055

FSS

KANKAKEE FSS (IKK)
Toll Free: 1-800-WX-BRIEF

NOTAM

UGN

Light Schedule

Lights

ACTVT MALSR RWY 23; REIL RWY 05; HIRL RWY 05/23; TWY LGTS - CTAF. WHEN ATCT CLSD, MIRL RWY 14/32 PRESET TO LOW INTST, TO INCR INTST & ACTVT - CTAF.

Beacon

N/A

Wind Indicator

Yes - Lighted

Segmented Cir.

Yes

Landing Fee

Parking

Hanger, Tie-Down

Int'l Operations

NOT a Landing Rights Airport
NOT an Airport of Entry

# Single Engine

# Multi Engine

# Jets

# Helicopters

# Military

# Ultralights

Airframe Repair

Major

Pwrplant Repair

Major

Bottled Oxygen

High & Low Pressure

Bulk Oxygen

High & Low Pressure

Other Services

Air Freight
Avionics
Cargo Handling
Charter Service
Pilot Instruction
Aircraft Rental

Runway 05/23

Dimensions

6001 ft. x 150 ft.

Surface Type

ASPH

Surface Cond

Good

Treatment

GRVD

Rwy Edge Lgts

HIGH

Pavement Class

Single Wheel

95,000lbs

Double Wheel

120,000lbs

Double Tandem

200,000lbs

Dual Dbl Tand

	Runway 05	Runway 23
True Heading	48°	228°
Traffic Pattern	Left	Right
Markings	PIR	PIR
Markings Condition	GOOD	GOOD
Latitude	42° 24' 57"N	42° 25' 36"N
Longitude	87° 52' 32"W	87° 51' 32"W
Elevation	726'	723'
Threshold Crossing Height	35 ft. AGL	52 ft. AGL
Visual Glide Path Angle	3°	3°
Visual Slope Indicator	V4L	V4L
Approach Lights		MALSR
Centerline Lights	No	No
Runway End Identifier Lights	Yes	No

Runway 14/32

Dimensions

3750 ft. x 75 ft.

Surface Type

ASPH

Surface Cond

Good

Treatment

NONE

Rwy Edge Lgts

MED

Pavement Class

Single Wheel

16,000lbs

Double Wheel

23,000lbs

Double Tandem

Dual Dbl Tand

	Runway 14	Runway 32
True Heading	144°	324°
Traffic Pattern	Left	Left
Markings	BSC	BSC
Markings Condition	GOOD	GOOD
Latitude	42° 25' 40"N	42° 25' 10"N
Longitude	87° 52' 23"W	87° 51' 53"W
Elevation	728'	712'
Threshold Crossing Height	30 ft. AGL	--
Visual Glide Path Angle	3.5°	--
Visual Slope Indicator	V4L	--
Approach Lights
Centerline Lights	No	No
Runway End Identifier Lights	No	No

A110-2	BIRDS ON & INVOF ARPT.
A110-5	FOR CD WHEN ATCT IS CLSD CTC CHICAGO APCH AT 847-289-0926.

WAUKEGAN NTL (ICAO: KUGN, IATA: UGN) is a public airport located in CHICAGO/WAUKEGAN, IL.
