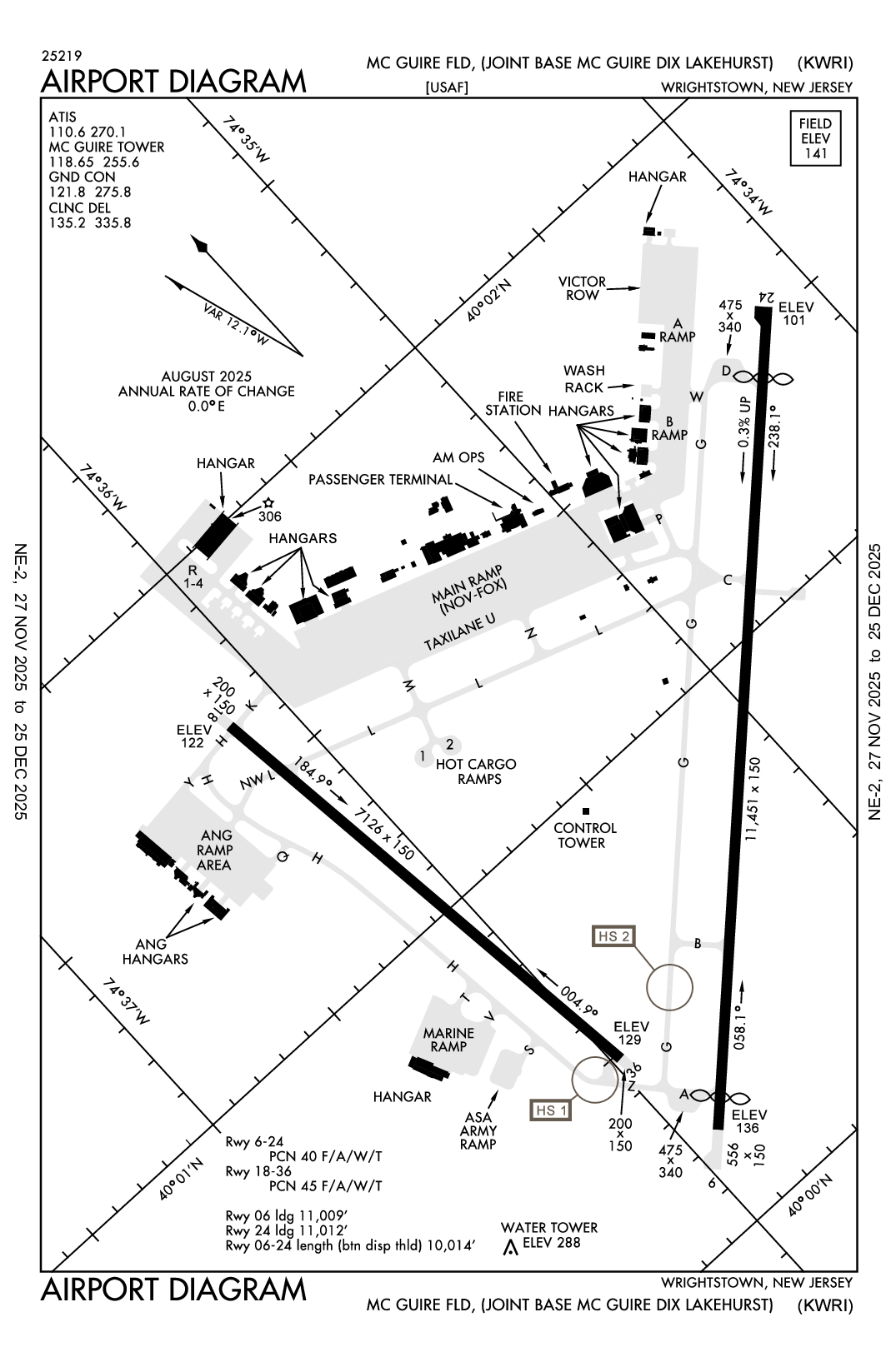

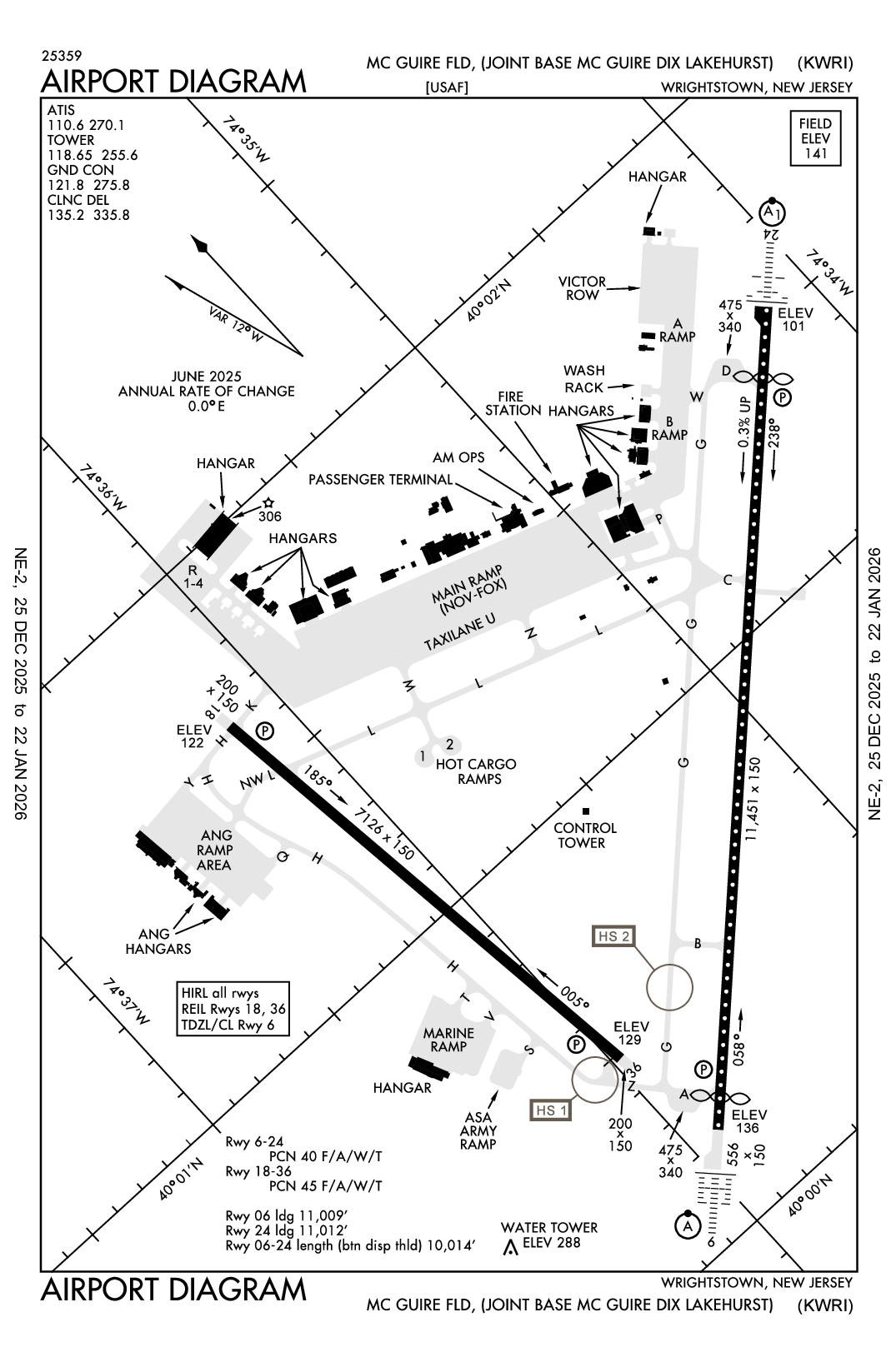

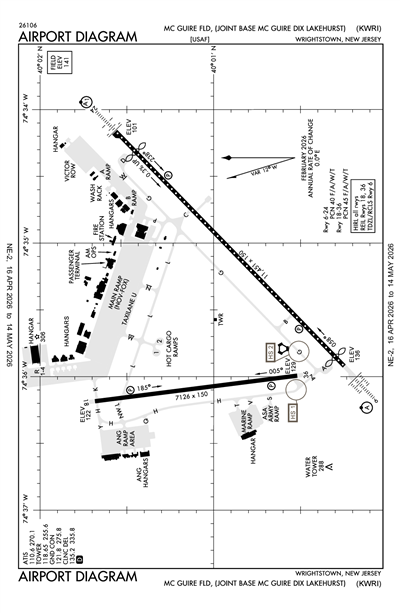

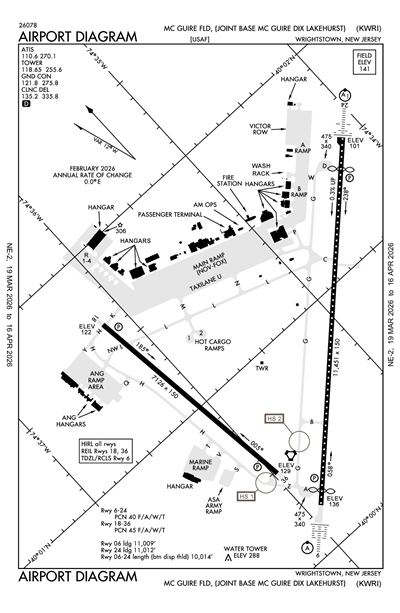

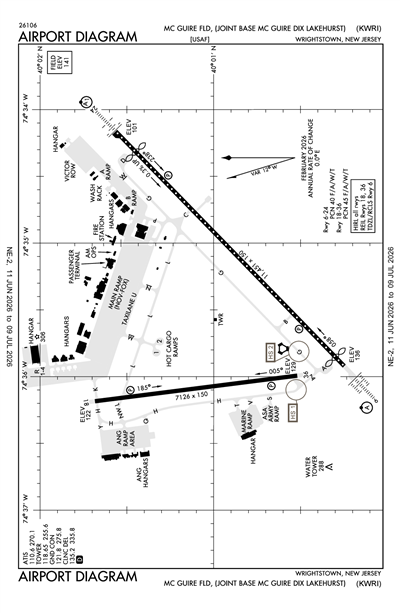

MC GUIRE FLD (JOINT BASE MC GUIRE DIX LAKEHURST) - Airport Diagram
LiveATC.net: Live Air Traffic - From Their Headsets to You

KWRI
MC GUIRE FLD (JOINT BASE MC GUIRE DIX LAKEHURST)
PrivatePVT

2 miles SE of WRIGHTSTOWN, NJ
View on Map
LiveATC.net: Live Air Traffic - From Their Headsets to You
Operational
40° 00' 56"N 74° 35' 30"W
140' MSL
1140' MSL
12W
None Listed
NEW YORK (ISP)
NEW YORK
NEW YORK (ZNY)
5/16/24-6/13/24
KWRI VFR
2:55 PM EDT
Broken 3,500'
10sm
74°F
58°F
30.00"Hg
Calm
SLP158 T02340146
KWRI 201855Z 00000KT 10SM BKN035 23/15 A3000 RMK SLP158 T02340146
List Your Business

KWRI FBOs, Flight Schools and Ground Support

No FBOs, flight schools or aircraft ground support businesses are listed for this airport.

KWRI Ground Transportation (Taxi, Limo, Car Service)

No ground transportation services are listed for this airport.

KWRI Hotels

No hotels are listed for this airport.

KWRI Restaurants

No restaurants are listed for this airport.

KWRI Other Airport-Related Businesses

No other airport-related businesses are listed for this airport.
X

Send Message to Airport Company
Enter your information and message below.

Your Information

Processing
-- --

ATIS

D-ATIS
C609-754-2847
 110.6

Approach/Departure

APCH/P DEP/P
 126.475

Clearance Delivery

CD/P
 135.2

Emergency

EMERG
 121.5

Ground

GND/P
 121.8

Tower

LCL/P
 118.65

Other

ARMY OPS
FM
 36.3
COMD POST
 134.1
HARRISBURG STAR
 126.475
RANGE CTL
FM
 34.3
WAALK STAR
 126.475

Terminal Area Forecast

KWRI
Mon, 5/20 6:00 AM EDT
Mon, 5/20 6:00 AM EDT - Tue, 5/21 12:00 PM EDT
LIFR
6:00 AM EDT - 7:00 AM EDT
Mist
Broken 200'
4.97sm
30.03"Hg
040° 4kts
MVFR
Becoming 7:00 AM EDT - 12:00 PM EDT
Broken 1,500'
Few 700'
6sm
30.03"Hg
040° 6kts
VFR
Becoming 12:00 PM EDT - 6:00 PM EDT
Scattered 2,500'
6sm
29.97"Hg
060° 6kts
MVFR
Becoming 6:00 PM EDT - 1:00 AM EDT
Broken 2,000'
6sm
30.00"Hg
VRB° 4kts
IFR
Becoming 1:00 AM EDT - 12:00 PM EDT
Mist
Overcast 1,500'
Broken 900'
4.97sm
30.00"Hg
180° 5kts
TAF KWRI 201000Z 2010/2116 04004KT 8000 BR BKN002 QNH3003INS
   BECMG 2011/2012 04006KT 9999 NSW FEW007 BKN015 QNH3002INS
   BECMG 2016/2017 06006KT 9999 SCT025 QNH2998INS
   BECMG 2022/2023 VRB04KT 9999 BKN020 QNH2999INS
   BECMG 2105/2106 18005KT 8000 BR BKN009 OVC015 QNH3001INS TX24/2020Z TN11/2110Z
KWRI
Military
5/23/241400Z QUIET HOURS IN EFFECT AIRBORNE OPERATIONS RESTRICTED TO FULL-STOP ARRIVAL ONLY TO RWY 06/24. NON-BASE ASSIGNED AIRCRAFT TRANSITIONS AND/OR PATTERN WORK PROHIBITED.AIRCREWS WILL AVOID OVERFLIGHT OF THE MCGUIRE MAINGATE AREA TO THE MAXIMUM EXTENT POSSIBLE. MISSION PLANNERS SHOULD AVOID AIRCRAFT ARRIVAL/DEPARTURE TIMES DURING THE SPECIFIED WINDOW.
5/20/241849Z RWY 36 RUNWAY END IDENTIFIER LGTS UNSERVICEABLE.
5/20/241718Z M0901/24 NOTAMC M0900/24
5/20/241245Z M0898/24 NOTAMC M0897/24
5/20/240135Z M0895/24 NOTAMC M0844/24
5/19/242246Z M0894/24 NOTAMC M0893/24
5/19/241809Z M0892/24 NOTAMC M0891/24
5/19/241315Z M0890/24 NOTAMC M0887/24
5/19/241310Z M0889/24 NOTAMC M0883/24
5/19/240507Z M0888/24 NOTAMC M0886/24
5/18/242226Z M0885/24 NOTAMC M0884/24
5/17/242105Z MAIN RAMP PARKING SPOT I2 CLSD
5/17/242102Z M0881/24 NOTAMC M0779/24
5/17/241255Z V ROW SPECIALIZED FUELING OPERATIONS ARE BEING CONDUCTED. CONTACT 305 OSS/OSO AT DSN: 650-3076 FOR DATES AND TIMES
5/17/241100Z !KWRI M0879/24 WRI NAV VORTAC NOT MNT (GXU) 2405171100-2407172359
5/12/240856Z OBST ERECTED: CRANE LOCATED 40°02'06"N 74°34'04"W (MSA) AGL: 105FT MSL: 215FT
5/6/241759Z MAIN RAMP SPOT F2 TOW-OFF ONLY. TOW UNTIL AIRCRAFT TAIL IS ABEAM WITH F3.
5/6/241000Z MAIN RAMP SPOTS F1 AND G1 CLOSED
5/6/240607Z TWY C DIRECTIONAL SIGN LOCATED ON RWY06 NOT LIT.
4/24/242050Z OBST - TOWER LOCATED AT BLDG1901, 40°01'50N 74°34'25W, UNKNOWN HEIGHT, NOT LGTD.
4/1/241252Z TWY P CAUTION: EQUIPMENT WITHIN 200FT LATERAL CLEARANCE ZONE OF TAXIWAY PAPA. EQUIPMENT IS LOCATED 189FT WEST OF TAXIWAY PAPA.
2/21/241407Z THE 305 OSS WEATHER FLIGHT WILL BE IMPLEMENTING A CHANGE IN SERVICE HOURS, VALID FOR 90 DAYS OR UNTIL RESCINDED. THE STANDBY FORECASTER CAN BE REACHED AT (609) 668-1211 DURING THE FOLLOWING DATE/TIMES: SATURDAYS-SUNDAYS: 0000L-2359L FEDERAL HOLIDAYS AND AMC FAMILY DAYS: 0000L-2359L THE WEATHER FLIGHT WILL BE MANNED 24/7 DURING ANG/ARC DRILL WEEKENDS
Yes
ALL
USAF JB MCGUIRE DIX LAKEHURST
2901 FALCON LANE
MCGUIRE, NJ 08641
Phone: 609-754-2714
CHIEF AIRFIELD MANAGEMENT
2901 FALCON LANE
MCGUIRE, NJ 08641
Phone: 609-754-6466
NEW YORK FSS (ISP)
Toll Free: 1-800-WX-BRIEF
WRI
--
--
N/A
Yes
No
No
Hangar
Landing Rights Airport
NOT an Airport of Entry
0
0
0
0
0
0
Major
Major
None
High & Low Pressure
Cargo Handling

Runway 06/24

10014 ft. x 150 ft.
ASPH
CONC
GRVD
HIGH
40 /F/A/W/T
--
--
--
--
  Runway 06 Runway 24
True Heading 45°225°
Traffic Pattern Left Right
Markings PIR PIR
Markings Condition
Latitude 40° 00' 16"N 40° 01' 25"N
Longitude 74° 35' 51"W 74° 34' 19"W
Elevation 131' 103'
Threshold Crossing Height 76 ft. AGL 76 ft. AGL
Visual Glide Path Angle 3° 3°
Visual Slope Indicator P4L P4L
Approach Lights ALSF2 ALSF1
Centerline Lights Yes Yes
Runway End Identifier Lights No No

Runway 18/36

7126 ft. x 150 ft.

CONC
NONE
HIGH
45 /F/A/W/T
--
--
--
--
  Runway 18 Runway 36
True Heading 173°353°
Traffic Pattern Right Left
Markings NPI NPI
Markings Condition
Latitude 40° 01' 39"N 40° 00' 29"N
Longitude 74° 36' 11"W 74° 35' 60"W
Elevation 122' 128'
Threshold Crossing Height 68 ft. AGL 46 ft. AGL
Visual Glide Path Angle 3° 3°
Visual Slope Indicator P4L P4L
Approach Lights
Centerline Lights
Runway End Identifier Lights Yes Yes
A110-1SERVICE: AOE.
A110-26RSTD: ALL INBD PAX/CARGO ACFT CTC COMD POST NO LATER THAN 30 MIN PRIOR TO LDG.
A110-27CAUTION: RWY 18/36 LANDING ZONE MARKINGS MID-FIELD.
A110-3JASU: (C26) (MD-3) 6(MA-1A) (MA-1).
A110-30REMARK: 72 HR PPR FOR ARMY RAMP AND LDG ALL ICTN ON FT DIX RESERVATION DSN 562-6377/5287.
A110-32RWY 18/36 ONLY HAS 200 FT PAVED ASPHALT NON-GROOVED OVERRUNS, REMAINDER OF RWY NOT GROOVED.
A110-37ASA RAMP OPR 1230-2130Z WKD. WKEND HR BY PRIOR APVL. FAC LCTD ON SW SIDE OF AFLD. 72 HR PPR FOR ARMY RAMP AND LDG ALL LCTN ON FT DIX RESERVAION DSN 562-3451, CELL 609-649-3743. TRAN ACFT CTC ARMY OPS PRIOR TO LDG.
A110-4FUEL: A++
A110-40MISC: ALL CLASSIFIED MATERIAL MUST BE STORED AT THE JB COMD POST DSN 650-3935/3936. AFLD MGMT HAS NO CLASSIFIED STORAGE CAPABILITIES.
A110-41MISC: FIRST 431 FT RWY 36 CONC REMAINING 6695 FT ASPH.
A110-43CAUTION: NSTD MRK ON VICTOR ROW FOR ALERT MSN, X-RAY ROW (PRIM), AND ROMEO ROW (ALTN) FOR COMBAT OFF LOAD OPS.
A110-5FLUID: SP PRESAIR LHOX LOX (C-5, KC-10, 747 DE-ICING LTD TO WG ONLY. 3 HR PN RQR.)
A110-6OIL: O-128-133-148-156.
A110-61SERVICE-LGT: RWY 18 PAR AND PAPI NOT COINCIDENTAL.
A110-63180 DEG TURNS RSTD TO CONC PORTIONS OF RWYS ONLY.
A110-65ASA RAMP OPR 1230-2130++.
A110-67RWY COND CODES (RWYCC) UNAVBL.
A110-7TRAN ALERT: SVC AVBL H24 DLY.
A110-70RSTD: TRAN ACFT RQR CUST MUST COORD WITH AIRFIELD MGMT AT TIME OF PPR REQ.
A110-71AN/FMQ-19 AUTOMATED OBSERVING SYS IN USE, AUGMENTED BY HUMAN OBS WHEN NEC DURG AIRFIELD HRS. VIS OF AIRFIELD RSTR FR BASE WX OPS NW-SE DURG MAN AUGMENTATION BY WX FORECASTER. WX SVC AVBL H24. WX FLT DSN 650-1130, C609-754-1130. WHEN WX SVC CLSD, TRAN CREWS CTC 15 OPR WX SQDN (OWS) AT SCOTT AFB H24 DSN 576-9755/9702, C618-256-9755/9702. DURG EVAC OF WX FLT CTC 15OWS AT NR ABV. RON TRAN CREW RQR WX BRIEF PRIOR TO LDG ATC WILL SUPPL OBS AS NEEDED.
A110-8MISC: ALL TRAN ACFT RQR PPR. REQ APVL THRU AFLD MGMT OPS DSN 650-2714, C609-754-2714; PPRS WILL BE REQ NO EARLIER THAN SEVEN DAYS, AND NO LATER THAN 24 HR PRIOR TO ARR, 48 HR FOR ACFT CARRYING DANGEROUS/HAZ CARGO. AIRCREWS WITH APV PPR THAT DEVIATE FROM COORD ARR TIME BY MORE THAN ONE HR MUST NOTIFY AMOPS ASAP. IF NO NOTIFICATION RCVD AFTER ONE HR, PPR WILL BE TERMINATED.
A110-9RSTD: DUR BASH PHASE II, ONE-TIME DEP/ARR AUTH'D +/- 1 HR SR/SS UNDER REAL-TIME BWC. REAL-TIME BWC CAN ONLY BE DETERMINED WHEN THE FLD COND ARE AT LEAST 3000 FT/5 STATUTE MILES AND IF TWR CAN VISUALLY CONFIRM A BWC LESS THAN SEVERE. TKOFF AND LDG ARE NOT AUTHORIZED UNLESS APV BY 305 OG/CC FOR 305 AMW, AND USAF TRAN ACFT OR OPS GP COMDR SVC EQUIVALENT FOR TENANT UNITS. ALFA ALERT ACFT ARE EXEMPT FROM THIS REQUIREMENT. COORD WAIVERS THRU COMD POST.
MC GUIRE FLD (JOINT BASE MC GUIRE DIX LAKEHURST) (ICAO: KWRI, IATA: WRI) is a private airport located in WRIGHTSTOWN, NJ.
