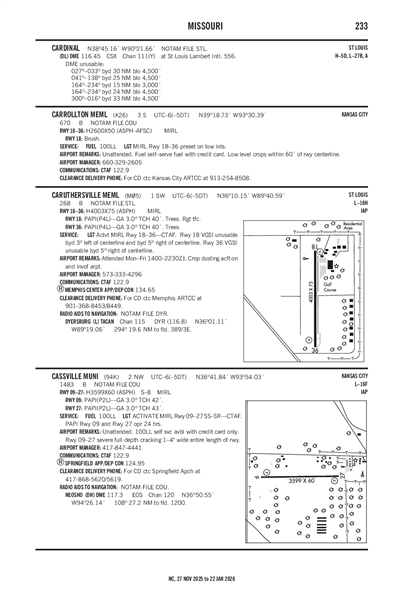

CARUTHERSVILLE MEML - Airport Diagram
LiveATC.net: Live Air Traffic - From Their Headsets to You

M05
CARUTHERSVILLE MEML
PublicPUB

1 miles SW of CARUTHERSVILLE, MO
View on Map
LiveATC.net: Live Air Traffic - From Their Headsets to You
Operational
36° 10' 09"N 89° 40' 35"W
268' MSL
1268' MSL
00E
None Listed
SAINT LOUIS (STL)
ST LOUIS
MEMPHIS (ZME)
5/16/24-6/13/24
KHKA (16nm) MVFR
2:53 PM CDT
Mist
Clear
3sm
89°F
32°F
29.90"Hg
200° 6kts
AO2 SLP121 T0317 $
KHKA 201953Z AUTO 20006KT 3SM BR CLR 32/ A2990 RMK AO2 SLP121 T0317 $
List Your Business

M05 FBOs, Flight Schools and Ground Support

Promote Listing
Dyersburg Avionics
Phone: (573) 333-4296
No Rating Available
0 Reviews (Read | Sign In To Write)
Independent
As of 4/27
 100LL Jet A Jet A+ Mogas UL94
Self Serve 5.45
Full Serve

M05 Ground Transportation (Taxi, Limo, Car Service)

No ground transportation services are listed for this airport.

M05 Hotels

No hotels are listed for this airport.

M05 Restaurants

No restaurants are listed for this airport.

M05 Other Airport-Related Businesses

Promote Listing
Dyersburg Avionics of Caruthersville
Phone: (573) 333-4296
No Rating Available
0 Reviews (Read | Sign In To Write)
X

Send Message to Airport Company
Enter your information and message below.

Your Information

Processing
-- 122.9

No communication frequencies available for this airport.

FAA A/FD Pages

Airport Diagrams

  • No Documents

Airport Minimums

Departure Procedures

  • No Documents

Hotspot

  • No Documents

Standard Term. Arrival

  • No Documents

Instrument Approach

Terminal Area Forecast

KMKL (51nm)
Mon, 5/20 12:20 PM CDT
Mon, 5/20 1:00 PM CDT - Tue, 5/21 1:00 PM CDT
VFR
1:00 PM CDT - 8:00 PM CDT
Scattered 25,000'
Scattered 5,000'
6sm
190° 6kts
VFR
8:00 PM CDT - 10:00 AM CDT
Few 25,000'
6sm
180° 3kts
VFR
10:00 AM CDT - 1:00 PM CDT
Scattered 25,000'
Scattered 5,000'
6sm
190° 10kts
Gusts 18kts
KMKL 201720Z 2018/2118 19006KT P6SM SCT050 SCT250
   FM210100 18003KT P6SM FEW250
   FM211500 19010G18KT P6SM SCT050 SCT250
M05
Domestic
4/18/241515Z !STL 04/340 M05 RWY 36 PAPI UNUSABLE 2404181515-2410182111EST
FDC
3/18/242107Z !FDC 4/8518 M05 IAP CARUTHERSVILLE MEML, CARUTHERSVILLE, MO.
RNAV (GPS) RWY 36, AMDT 1B...
LNAV MDA 700/HAT 434.
2403182107-2603182107EST
8/2/231842Z !FDC 3/7067 M05 ODP CARUTHERSVILLE MEML, CARUTHERSVILLE, MO.
TAKEOFF MINIMUMS AND (OBSTACLE) DEPARTURE PROCEDURES ORIG A...
TAKEOFF OBSTACLE NOTES: NOTE: RWY 18: TREE, FENCE, SMOKESTACK BEGINNING 14 FT FROM DER, 353 FT LEFT OF CENTERLINE, UP TO 301 FT MSL. TREES BEGINNING 1126 FT FROM DER, 263 FT LEFT OF CENTERLINE, UP TO 354 FT MSL. TREES BEGINNING 1132 FT FROM DER, 59 FT RIGHT OF CENTERLINE, UP TO 346 FT MSL. TREES BEGINNING 1379 FT FROM DER, 93 FT LEFT OF CENTERLINE, UP TO 356 FT MSL.
ALL OTHER DATA REMAINS AS PUBLISHED. 2308021842-2508021842EST
No
MON-FRI 0800-1630
CITY OF CARUTHERSVILLE
200 W 3RD ST.
CARUTHERSVILLE, MO 63830
Phone: 573-333-2142
JERRIE DAVIS
200 W 3RD ST.
CARUTHERSVILLE, MO 63830
Phone: 573-333-4296
SAINT LOUIS FSS (STL)
Toll Free: 1-800-WX-BRIEF
STL
--
ACTVT MIRL RWY 18/36 - CTAF.
N/A
Yes - Lighted
Yes
No
Tie-Down
NOT a Landing Rights Airport
NOT an Airport of Entry
12
2
0
0
0
0
None
None
None
None
Crop Dusting
Avionics

Runway 18/36

4003 ft. x 75 ft.
ASPH
Good
NONE
MED

--
--
--
--
  Runway 18 Runway 36
True Heading 179°359°
Traffic Pattern Right Left
Markings NPI NPI
Markings Condition POOR POOR
Latitude 36° 10' 29"N 36° 09' 49"N
Longitude 89° 40' 36"W 89° 40' 35"W
Elevation 268' 266'
Threshold Crossing Height 40 ft. AGL 40 ft. AGL
Visual Glide Path Angle 3° 3°
Visual Slope Indicator P4L P4L
Approach Lights
Centerline Lights
Runway End Identifier Lights No No
A110-1CROP DUSTING ACFT ON & INVOF ARPT.
A110-2FOR CD CTC MEMPHIS ARTCC AT 901-368-8453/8449.
CARUTHERSVILLE MEML (IATA: M05) is a public airport located in CARUTHERSVILLE, MO.
