iFlightPlanner



...

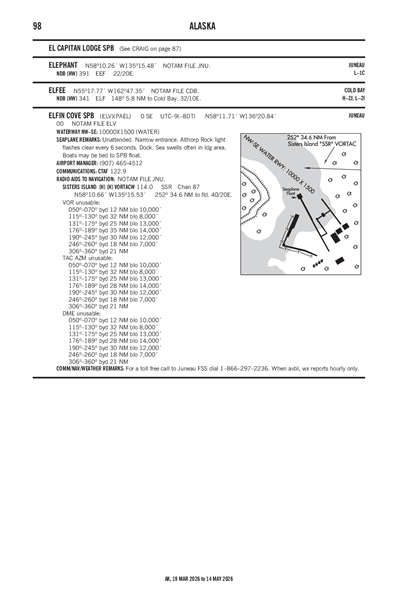

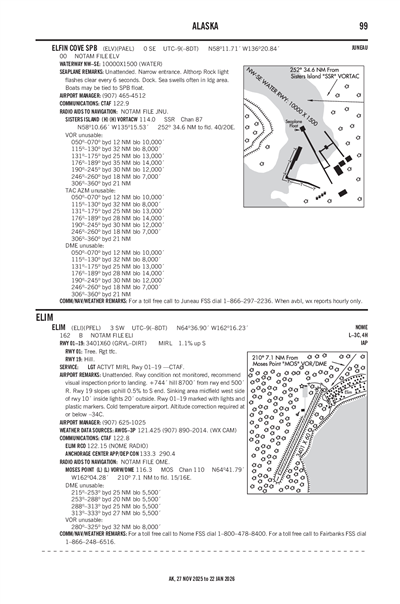

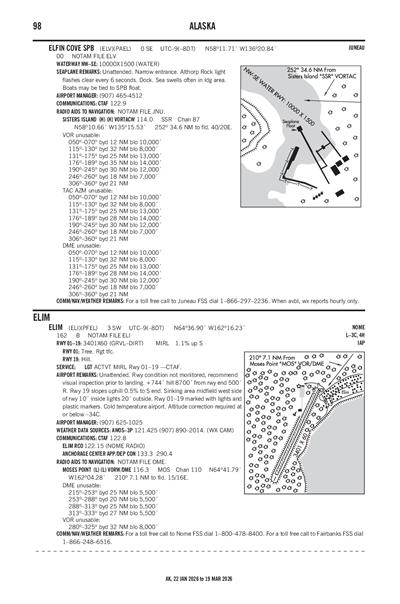

ELFIN COVE - Airport Diagram
LiveATC.net: Live Air Traffic - From Their Headsets to You

PAEL
ELFIN COVE
PublicPUB

0 miles SE of ELFIN COVE, AK
View on Map
LiveATC.net: Live Air Traffic - From Their Headsets to You
Operational
58° 11' 43"N 136° 20' 51"W
0' MSL
1000' MSL
27E
None Listed
JUNEAU (JNU)
JUNEAU
ANCHORAGE (ZAN)
5/16/24-6/13/24
PAEL MVFR
8:50 AM AKDT
Overcast 2,200'
N/A
43°F
34°F
30.01"Hg
180° 7kts
SEA 0 SWELL 3 SW MIN 3.3 NOSPECI
PAEL 201650Z 18007KT 10 OVC022 06/01 A3001 RMK SEA 0 SWELL 3 SW MIN 3.3 NOSPECI
List Your Business

PAEL FBOs, Flight Schools and Ground Support

No FBOs, flight schools or aircraft ground support businesses are listed for this airport.

PAEL Ground Transportation (Taxi, Limo, Car Service)

No ground transportation services are listed for this airport.

PAEL Hotels

No hotels are listed for this airport.

PAEL Restaurants

No restaurants are listed for this airport.

PAEL Other Airport-Related Businesses

No other airport-related businesses are listed for this airport.
X

Send Message to Airport Company
Enter your information and message below.

Your Information

Processing
-- 122.9

No communication frequencies available for this airport.

FAA A/FD Pages

Airport Diagrams

  • No Documents

Airport Minimums

  • No Documents

Departure Procedures

  • No Documents

Hotspot

  • No Documents

Standard Term. Arrival

  • No Documents

Instrument Approach

  • No Documents

Terminal Area Forecast

PAGS (25nm)
Mon, 5/20 9:33 AM AKDT
Mon, 5/20 10:00 AM AKDT - Tue, 5/21 10:00 AM AKDT
MVFR
10:00 AM AKDT - 5:00 PM AKDT
Light Showers and Rain
Overcast 3,500'
Broken 2,300'
6sm
130° 10kts
VFR
5:00 PM AKDT - 7:00 AM AKDT
Overcast 5,000'
6sm
220° 3kts
VFR
7:00 AM AKDT - 10:00 AM AKDT
Broken 10,000'
6sm
Calm
PAGS 201733Z 2018/2118 13010KT P6SM -SHRA BKN023 OVC035
   FM210100 22003KT P6SM OVC050
   FM211500 00000KT P6SM BKN100 AMD LTD TO CLD VIS AND WIND
PAEL
No NOTAM Available
No
UNATNDD
ALASKA DOT&PF SOUTHCOAST REGION
6860 GLACIER HWY
JUNEAU, AK 99801-7999
Phone: (907) 465-4512
STEVE BELL
P.O. BOX 112506
JUNEAU, AK 99811-2506
Phone: (907) 465-4512
JUNEAU FSS (JNU)
Toll Free: 1-866-297-2236
ELV
--
--
N/A
ALTHROP ROCK LGT FLASHES CLEAR EVERY 6 SECONDS.
N/A
N/A
No
None
NOT a Landing Rights Airport
NOT an Airport of Entry
0
0
0
0
0
0
None
None
None
None
None

Runway NW/SE

10000 ft. x 1500 ft.
WATER
Excellent
NONE


--
--
--
--
  Runway NW Runway SE
True Heading Not ListedNot Listed
Traffic Pattern Left Left
Markings NONE NONE
Markings Condition
Latitude N/A N/A
Longitude N/A N/A
Elevation 0' 0'
Threshold Crossing Height -- --
Visual Glide Path Angle -- --
Visual Slope Indicator -- --
Approach Lights
Centerline Lights
Runway End Identifier Lights
A110-1NARROW ENTRANCE.
A110-10WHEN AVBL WX RPRTS HRLY ONLY.
A110-2BOATS MAY BE TIED TO SPB FLOAT.
A110-99SEA SWELLS OFTEN IN LDG AREA.
ELFIN COVE (ICAO: PAEL, IATA: ELV) is a public seaplane base located in ELFIN COVE, AK.
