iFlightPlanner



...

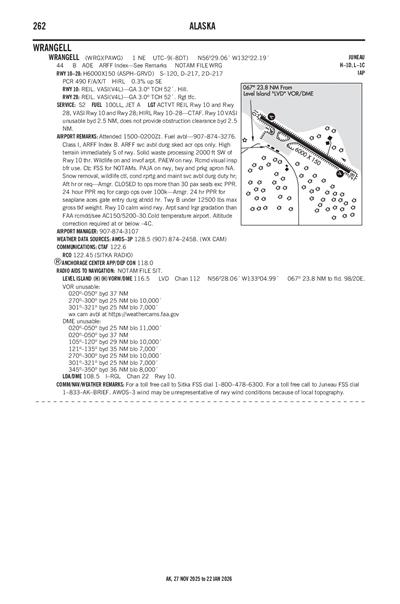

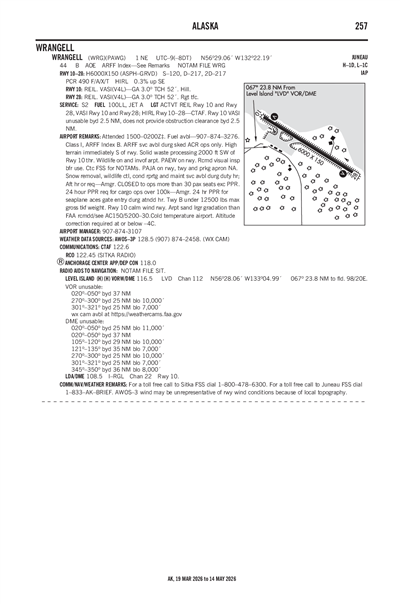

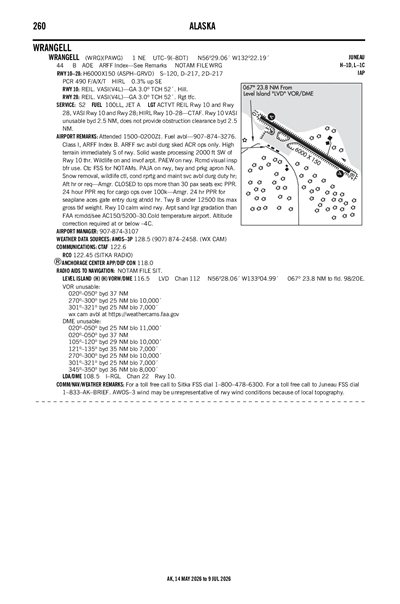

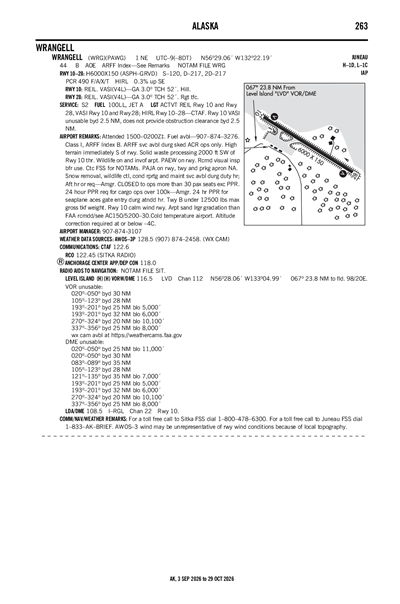

WRANGELL - Airport Diagram
LiveATC.net: Live Air Traffic - From Their Headsets to You

PAWG
WRANGELL
PublicPUB

1 miles NE of WRANGELL, AK
View on Map
LiveATC.net: Live Air Traffic - From Their Headsets to You
Operational
56° 29' 04"N 132° 22' 11"W
44' MSL
1044' MSL
20E
Jet A, 100LL
SITKA (SIT)
JUNEAU
ANCHORAGE (ZAN)
5/16/24-6/13/24
PAWG MVFR
9:56 PM AKDT
Light Rain
Overcast 4,000'
Broken 2,900'
Few 900'
9sm
46°F
41°F
30.21"Hg
Calm
PAWG 200556Z 00000KT 9SM -RA FEW009 BKN029 OVC040 08/05 A3021
List Your Business

PAWG FBOs, Flight Schools and Ground Support

No FBOs, flight schools or aircraft ground support businesses are listed for this airport.

PAWG Ground Transportation (Taxi, Limo, Car Service)

No ground transportation services are listed for this airport.

PAWG Hotels

No hotels are listed for this airport.

PAWG Restaurants

No restaurants are listed for this airport.

PAWG Other Airport-Related Businesses

No other airport-related businesses are listed for this airport.
X

Send Message to Airport Company
Enter your information and message below.

Your Information

Processing
-- 122.6

AWOS-3P

AWOS-3P
907-874-2458
 128.5

FAA A/FD Pages

Airport Diagrams

  • No Documents

Airport Minimums

Departure Procedures

Hotspot

  • No Documents

Standard Term. Arrival

  • No Documents

Instrument Approach

Terminal Area Forecast

PAWG
Mon, 5/20 3:26 AM AKDT
Mon, 5/20 4:00 AM AKDT - Tue, 5/21 4:00 AM AKDT
MVFR
4:00 AM AKDT - 8:00 AM AKDT
Light Rain and Mist
Broken 3,000'
Scattered 900'
6sm
VRB° 5kts
MVFR
8:00 AM AKDT - 10:00 PM AKDT
Overcast 4,000'
Broken 2,000'
Few 900'
6sm
210° 6kts
MVFR
10:00 PM AKDT - 4:00 AM AKDT
Broken 1,500'
Scattered 900'
6sm
VRB° 2kts
PAWG 201126Z 2012/2112 VRB05KT 6SM -RA BR SCT009 BKN030
   FM201600 21006KT P6SM FEW009 BKN020 OVC040
   FM210600 VRB02KT P6SM SCT009 BKN015 AMD NOT SKED 2012/2015
PAWG
Domestic
5/14/240700Z !WRG 05/036 WRG SVC AUTOMATED WX BCST SYSTEM U/S DLY 0700-1500 2405140700-2408311500EST
5/12/240521Z !WRG 05/029 WRG SVC AUTOMATED WX BCST SYSTEM NOT AVBL 2405120521-2407311500EST
4/4/242215Z !WRG 04/007 WRG AIRSPACE SEE FDC 4/7004 MONITORING LANDSLIDES 2404042215-2405210900
FDC
5/6/242139Z !FDC 4/9436 WRG ODP WRANGELL, Wrangell, AK.
LEVEL ISLAND THREE DEPARTURE ...
DEPARTURE PROCEDURE NA EXCEPT FOR AIRCRAFT EQUIPPED WITH SUITABLE RNAV SYSTEM WITH GPS,
LVD VOR/DME OUT OF SERVICE. 2405062139-2406062139EST
5/6/242139Z !FDC 4/9435 WRG IAP WRANGELL, Wrangell, AK.
LDA-C, AMDT 8A...
LDA-D, AMDT 7A...
PROCEDURE NA EXCEPT FOR AIRCRAFT EQUIPPED WITH SUITABLE RNAV SYSTEM WITH GPS,
LVD VOR/DME OUT OF SERVICE. 2405062139-2406062139EST
No
0600-1700
ALASKA DOT&PF SOUTHCOAST REGION
6860 GLACIER HWY
JUNEAU, AK 99801-7999
Phone: 907-465-1786
GARY ALLEN
BOX 1351
WRANGELL, AK 99929
Phone: 907-874-3107
SITKA FSS (SIT)
Toll Free: 1-800-478-6300
WRG
--
ACTVT REIL RWY 10 & 28; VASI RWY 10 & 28; HIRL RWY 10/28 - CTAF.
N/A
Yes - Lighted
Yes
No
Hangar
NOT a Landing Rights Airport
Airport of Entry
9
0
0
0
0
0
Minor
Minor
None
None
Cargo Handling

Runway 10/28

6000 ft. x 150 ft.
ASPH
Good
GRVD
HIGH
49 /F/B/X/T
75,000lbs
175,000lbs
175,000lbs
--
  Runway 10 Runway 28
True Heading 121°301°
Traffic Pattern Left Right
Markings PIR PIR
Markings Condition GOOD GOOD
Latitude 56° 29' 19"N 56° 28' 48"N
Longitude 132° 22' 57"W 132° 21' 26"W
Elevation 27' 44'
Threshold Crossing Height 52 ft. AGL 52 ft. AGL
Visual Glide Path Angle 3° 3°
Visual Slope Indicator V4L V4L
Approach Lights
Centerline Lights
Runway End Identifier Lights Yes Yes
A110-10PAEW ON RWY. RCMD VISUAL INSP BFR USE. CTC FSS FOR NOTAMS.
A110-11PAJA ON RWY, TWY & PRKG APRON NA.
A110-16LEVEL ISLAND WX CAMERAS AVBL ON INTERNET AT HTTPS://WEATHERCAMS.FAA.GOV
A110-17ARPT SAND LRGR GRADATION THAN FAA RCMDD/SEE AC150/5200-30.
A110-18CLSD TO OPS MORE THAN 30 PAX SEATS EXC PPR. 24 HR PPR CARGO OPS OVER 100K - AMGR.
A110-19TWY B UNDER 12500 LB MAX GROSS TKOF WEIGHT.
A110-2024 HR PPR FOR SEAPLANE ACES GATE ENTRY DURG ATNDD HR.
A110-21COLD TEMPERATURE AIRPORT. ALTITUDE CORRECTION REQUIRED AT OR BELOW -5C.
A110-22SOLID WASTE PROCESSING 2000 FT SW OF RWY 10 THR.
A110-23WILDLIFE ON & INVOF ARPT.
A110-24FUEL AVBL - 907-874-3276.
A110-5SNOW REMOVAL, WILDLIFE CTL, COND RPRTG & MAINT SVC AVBL DURG DUTY HR; AFT HR OR REQ - AMGR.
A110-7HIGH TRRN IMT S OF RWY.
WRANGELL (ICAO: PAWG, IATA: WRG) is a public airport located in WRANGELL, AK.
