iFlightPlanner



...

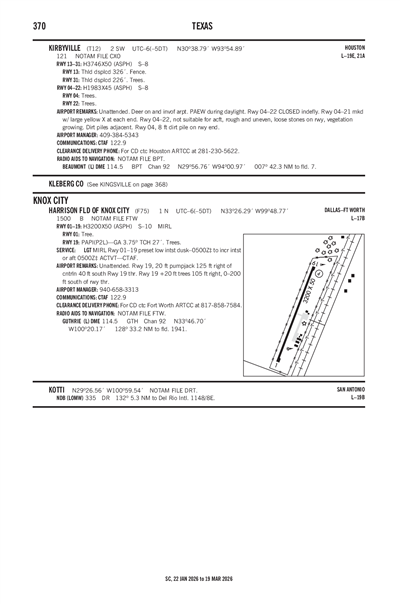

KIRBYVILLE - Airport Diagram
LiveATC.net: Live Air Traffic - From Their Headsets to You

T12
KIRBYVILLE
PublicPUB

2 miles SW of KIRBYVILLE, TX
View on Map
LiveATC.net: Live Air Traffic - From Their Headsets to You
Operational
30° 38' 48"N 93° 54' 54"W
121' MSL
1121' MSL
05E
None Listed
MONTGOMERY COUNTY (CXO)
HOUSTON
HOUSTON (ZHU)
5/16/24-6/13/24
KJAS (16nm) VFR
2:55 PM CDT
Clear
10sm
90°F
63°F
29.87"Hg
120° 5kts
Gusts 14kts
AO2
KJAS 201955Z AUTO 12005G14KT 10SM CLR 32/17 A2987 RMK AO2
List Your Business

T12 FBOs, Flight Schools and Ground Support

No FBOs, flight schools or aircraft ground support businesses are listed for this airport.

T12 Ground Transportation (Taxi, Limo, Car Service)

No ground transportation services are listed for this airport.

T12 Hotels

No hotels are listed for this airport.

T12 Restaurants

No restaurants are listed for this airport.

T12 Other Airport-Related Businesses

No other airport-related businesses are listed for this airport.
X

Send Message to Airport Company
Enter your information and message below.

Your Information

Processing
-- 122.9

No communication frequencies available for this airport.

FAA A/FD Pages

Airport Diagrams

  • No Documents

Airport Minimums

  • No Documents

Departure Procedures

  • No Documents

Hotspot

  • No Documents

Standard Term. Arrival

  • No Documents

Instrument Approach

  • No Documents

Terminal Area Forecast

KBPT (42nm)
Mon, 5/20 12:35 PM CDT
Mon, 5/20 1:00 PM CDT - Tue, 5/21 1:00 PM CDT
VFR
1:00 PM CDT - 1:00 AM CDT
Scattered 3,500'
6sm
150° 10kts
MVFR
1:00 AM CDT - 10:00 AM CDT
Broken 2,500'
6sm
120° 6kts
VFR
10:00 AM CDT - 1:00 PM CDT
Scattered 3,500'
6sm
150° 14kts
Gusts 22kts
KBPT 201735Z 2018/2118 15010KT P6SM SCT035
   FM210600 12006KT P6SM BKN025
   FM211500 15014G22KT P6SM SCT035
T12
Domestic
5/19/241710Z !CXO 05/791 T12 OBST TOWER LGT (ASR 1050705) 304100.50N0935035.10W (4.4NM ENE T12) 610.9FT (491.8FT AGL) U/S 2405191710-2408170400
5/17/240309Z !CXO 05/694 T12 OBST TOWER LGT (ASR 1239661) 304331.80N0935514.90W (4.7NM N T12) 461.9FT (315.0FT AGL) U/S 2405170309-2409140309
5/14/240537Z !CXO 05/517 T12 OBST TOWER LGT (ASR 1307667) 304132.40N0940951.20W (13.2NM WNW T12) 592FT (422FT AGL) U/S 2405140537-2406142300
4/28/240616Z !CXO 04/799 T12 OBST TOWER LGT (ASN 2017-ASW-8576-OE) 304120N0935244W (3.2NM NE T12) 332FT (213FT AGL) U/S 2404280616-2406120616
4/20/242002Z !CXO 04/581 T12 OBST TOWER LGT (ASN 2018-ASW-8609-OE) 304132N0940951W (13.2NM WNW T12) 592FT (422FT AGL) U/S 2404202002-2406042001
No
UNATNDD
JASPER COUNTY
JASPER COUNTY COURTHOUSE, 121 N AUSTIN ST
JASPER, TX 75951
Phone: 409-384-2612
MARK ALLEN
JASPER COUNTY COURTHOUSE, 121 N AUSTIN ST
JASPER, TX 75951
Phone: 409-384-2612
MONTGOMERY COUNTY FSS (CXO)
Toll Free: 1-800-WX-BRIEF
CXO
--
--
N/A
Yes
No
No
None
NOT a Landing Rights Airport
NOT an Airport of Entry
5
1
0
0
0
1
None
None
None
None
None

Runway 04/22

1983 ft. x 45 ft.
ASPH
L
NONE


8,000lbs
--
--
--
  Runway 04 Runway 22
True Heading 44°224°
Traffic Pattern Left Left
Markings
Markings Condition
Latitude 30° 38' 36"N 30° 38' 50"N
Longitude 93° 54' 59"W 93° 54' 43"W
Elevation 117' 117'
Threshold Crossing Height -- --
Visual Glide Path Angle -- --
Visual Slope Indicator -- --
Approach Lights
Centerline Lights
Runway End Identifier Lights

Runway 13/31

3746 ft. x 50 ft.
ASPH
Fair
NONE


8,000lbs
--
--
--
  Runway 13 Runway 31
True Heading 133°312°
Traffic Pattern Left Left
Markings BSC BSC
Markings Condition FAIR FAIR
Latitude 30° 39' 03"N 30° 38' 37"N
Longitude 93° 55' 11"W 93° 54' 40"W
Elevation 120' 115'
Threshold Crossing Height -- --
Visual Glide Path Angle -- --
Visual Slope Indicator -- --
Approach Lights
Centerline Lights
Runway End Identifier Lights
A110-2PAEW DURG DALGT.
A110-3DEER ON AND INVOF ARPT.
A110-4FOR CD CTC HOUSTON ARTCC AT 281-230-5622.
KIRBYVILLE (IATA: T12) is a public airport located in KIRBYVILLE, TX.
