BEAVER MUNI - Airport Diagram
LiveATC.net: Live Air Traffic - From Their Headsets to You

U52
BEAVER MUNI
PublicPUB

4 miles SW of BEAVER, UT
View on Map
LiveATC.net: Live Air Traffic - From Their Headsets to You
Operational
38° 13' 50"N 112° 40' 31"W
5863' MSL
6863' MSL
14E
100LL
CEDAR CITY (CDC)
LAS VEGAS
SALT LAKE CITY (ZLC)
5/16/24-6/13/24
KU52 VFR
3:15 PM MDT
Few 9,500'
10sm
66°F
32°F
29.85"Hg
VRB° 6kts
Gusts 13kts
AO2
KU52 202115Z AUTO VRB06G13KT 10SM FEW095 19/00 A2985 RMK AO2
List Your Business

U52 FBOs, Flight Schools and Ground Support

Promote Listing
Beaver Municipal Airport
Freq: 122.9
Phone: (435) 438-2451
No Rating Available
0 Reviews (Read | Sign In To Write)
World Fuel
As of 5/14
 100LL Jet A Jet A+ Mogas UL94
Self Serve 5.95
Full Serve

U52 Ground Transportation (Taxi, Limo, Car Service)

No ground transportation services are listed for this airport.

U52 Hotels

No hotels are listed for this airport.

U52 Restaurants

No restaurants are listed for this airport.

U52 Other Airport-Related Businesses

No other airport-related businesses are listed for this airport.
X

Send Message to Airport Company
Enter your information and message below.

Your Information

Processing
-- 122.9

AWOS-3PT

AWOS-3PT
435-438-5829
 119.925

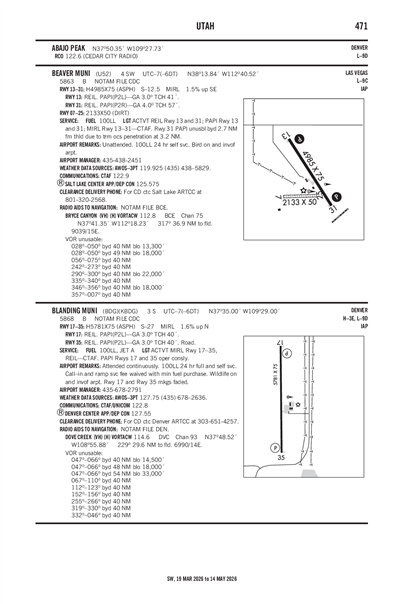

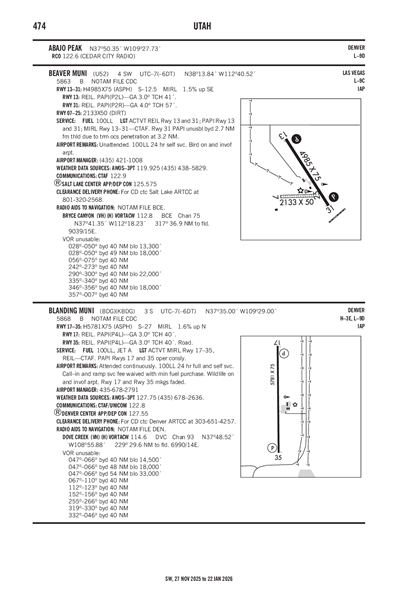

FAA A/FD Pages

Airport Diagrams

  • No Documents

Airport Minimums

Departure Procedures

  • No Documents

Hotspot

  • No Documents

Standard Term. Arrival

  • No Documents

Instrument Approach

Terminal Area Forecast

KCDC (37nm)
Mon, 5/20 11:34 AM MDT
Mon, 5/20 12:00 PM MDT - Tue, 5/21 12:00 PM MDT
VFR
12:00 PM MDT - 4:00 PM MDT
Scattered 10,000'
6sm
220° 12kts
Gusts 24kts
VFR
4:00 PM MDT - 9:00 PM MDT
Light Showers and Rain
Overcast 10,000'
Few 7,000'
6sm
270° 15kts
Gusts 27kts
VFR
9:00 PM MDT - 12:00 AM MDT
Showers in vicinity
Broken 10,000'
Few 7,000'
6sm
350° 12kts
Gusts 24kts
VFR
12:00 AM MDT - 12:00 PM MDT
Scattered 10,000'
6sm
360° 8kts
KCDC 201734Z 2018/2118 22012G24KT P6SM SCT100
   FM202200 27015G27KT P6SM -SHRA FEW070 OVC100
   FM210300 35012G24KT P6SM VCSH FEW070 BKN100
   FM210600 36008KT P6SM SCT100
U52
No NOTAM Available
No
UNATNDD
BEAVER CITY
PO BOX 271
BEAVER, UT 84713
Phone: 435-438-2451
JASON BROWN
30 WEST 300 NORTH, PO BOX 271
BEAVER, UT 84713
Phone: (435) 421-1008
CEDAR CITY FSS (CDC)
Toll Free: 1-800-WX-BRIEF
CDC
--
ACTVT REIL RWY 13 & 31; PAPI RWY 13 & 31; MIRL RWY 13/31 - CTAF.
N/A
Yes
Yes
No
Tie-Down
NOT a Landing Rights Airport
NOT an Airport of Entry
2
0
1
0
0
0
None
None
None
None
None

Runway 07/25

2150 ft. x 50 ft.
DIRT
Fair
NONE


--
--
--
--
  Runway 07 Runway 25
True Heading 87°267°
Traffic Pattern Left Left
Markings NONE NONE
Markings Condition POOR POOR
Latitude 38° 13' 40"N 38° 13' 41"N
Longitude 112° 40' 50"W 112° 40' 23"W
Elevation 5,842' 5,844'
Threshold Crossing Height -- --
Visual Glide Path Angle -- --
Visual Slope Indicator -- --
Approach Lights
Centerline Lights
Runway End Identifier Lights

Runway 13/31

4984 ft. x 75 ft.
ASPH
Excellent
NONE
MED

12,000lbs
--
--
--
  Runway 13 Runway 31
True Heading 148°328°
Traffic Pattern Left Left
Markings NPI NPI
Markings Condition GOOD GOOD
Latitude 38° 14' 15"N 38° 13' 33"N
Longitude 112° 40' 46"W 112° 40' 12"W
Elevation 5,791' 5,863'
Threshold Crossing Height 40 ft. AGL 59 ft. AGL
Visual Glide Path Angle 3° 4°
Visual Slope Indicator P2L P2R
Approach Lights
Centerline Lights
Runway End Identifier Lights Yes Yes
A110-1BIRDS ON & INVOF ARPT.
A110-3FOR CD CTC SALT LAKE ARTCC AT 801-320-2568.
BEAVER MUNI (IATA: U52) is a public airport located in BEAVER, UT.
