Y70
IONIA COUNTY
Public
PUB
3 miles S of IONIA, MI
View on
Map
Status
Operational
Coordinates
42° 56' 17"N
85° 03' 38"W
Elevation
818' MSL
Pattern Alt
1818' MSL
Mag Variation
05W
Fuel
100LL
FSS
LANSING (LAN)
Sectional
CHICAGO
ARTCC
CHICAGO (ZAU)
Data Effective
5/16/24-6/13/24
KY70
VFR
4:35 PM EDT
RAW
Clear
Viz
10sm
Temp
80°F
Dew
64°F
Pres
29.85"Hg
Wind
090° 8kts
RMK
AO2 T02660175
KY70 202035Z AUTO 09008KT 10SM CLR 27/18 A2985 RMK AO2 T02660175
Services
Frequencies & Documents
Freqs & Docs
TAF
NOTAM
Operations
Runways
Remarks
List Your Business
Y70 FBOs, Flight Schools and Ground Support
Ionia County Airport
Freq: 122.8
Phone: (616) 523-9136
Other: (616) 902-2281
1 Review
(
Read
|
Sign In To Write
)
1 out of 1 Recommend
Independent
As of
5/14
100LL
Jet
A
Jet
A+
Mogas
UL94
Self Serve
6.10
Full Serve
Y70 Ground Transportation (Taxi, Limo, Car Service)
No ground transportation services are listed for this airport.
Y70 Hotels
No hotels are listed for this airport.
Y70 Restaurants
No restaurants are listed for this airport.
Y70 Other Airport-Related Businesses
No other airport-related businesses are listed for this airport.
X
Send Message to Airport Company
Enter your information and message below.
Your Information
Business
x
UNICOM
122.8
CTAF
122.8
AWOS-3
AWOS-3
616-523-1852
118.9

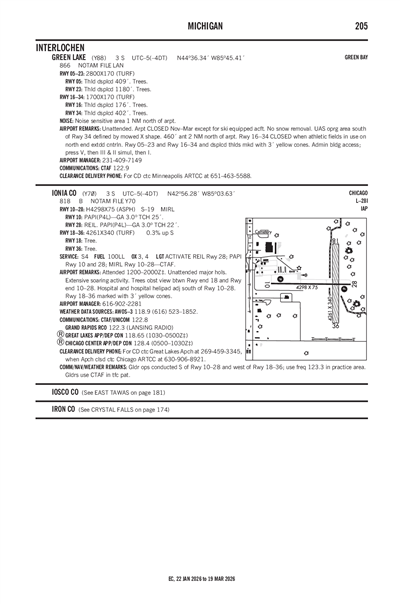

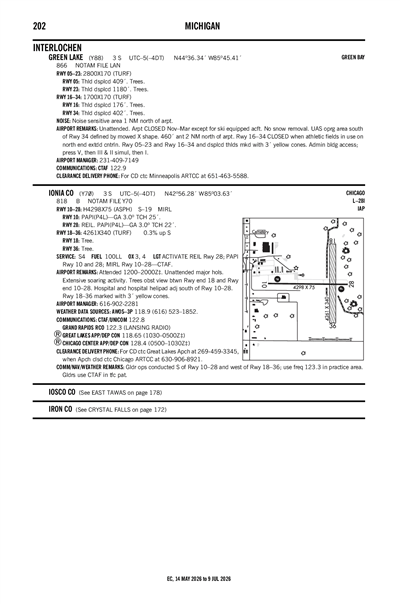

FAA A/FD Pages
FAA A/FD Page
Airport Diagrams
No Documents
Airport Minimums
ALTERNATE MINIMUMS
TAKEOFF MINIMUMS
Departure Procedures
No Documents
Hotspot
No Documents
Standard Term. Arrival
No Documents
Instrument Approach
RNAV (GPS) RWY 10
RNAV (GPS) RWY 28
Terminal Area Forecast
KGRR (21nm)
RAW
Reported
Mon, 5/20 1:20 PM EDT
Valid
Mon, 5/20 2:00 PM EDT - Tue, 5/21 2:00 PM EDT
VFR
2:00 PM EDT - 8:00 PM EDT
Broken 25,000'
Scattered 4,000'
Viz
6sm
Wind
200° 12kts
Gusts 22kts
MVFR
8:00 PM EDT - 12:00 AM EDT
Light Thunderstorm and Rain and Mist
Broken 4,000'
Scattered 1,500'
Viz
5sm
Wind
210° 11kts
Gusts 20kts
MVFR
12:00 AM EDT - 5:00 AM EDT
Mist and Showers in vicinity
Overcast 1,200'
Scattered 700'
Viz
5sm
Wind
250° 7kts
IFR
5:00 AM EDT - 10:00 AM EDT
Mist
Overcast 600'
Scattered 400'
Viz
3sm
Wind
270° 5kts
VFR
10:00 AM EDT - 2:00 PM EDT
Broken 4,000'
Viz
6sm
Wind
150° 5kts
KGRR 201720Z 2018/2118 20012G22KT P6SM SCT040 BKN250
FM210000 21011G20KT 5SM -TSRA BR SCT015 BKN040CB
FM210400 25007KT 5SM BR VCSH SCT007 OVC012
FM210900 27005KT 3SM BR SCT004 OVC006
FM211400 15005KT P6SM BKN040
Y70
Domestic
5/18/24
2012Z
!LAN 05/294 Y70 OBST TOWER LGT (ASR 1015214) 425954.00N0850314.00W (3.7NM NE Y70) 1051.8FT (234.9FT AGL) U/S 2405182012-2409152012
3/15/24
1909Z
!LAN 03/222 Y70 RWY 28 RWY END ID LGT U/S 2403151909-2409172111EST
FDC
3/23/23
1825Z
!FDC 3/1759 Y70 IAP IONIA COUNTY, IONIA, MI.
RNAV (GPS) RWY 10, ORIG...
RNAV (GPS) RWY 28, AMDT 1...
CIRCLING CAT C MDA 1380/HAA 562.
2303231825-2503311825EST
ATC Tower
No
Attendance
0800-1700
UNATNDD MAJOR HOLS.
Owner
IONIA COUNTY
COURT HOUSE, 100 W MAIN ST
IONIA, MI 48846-1651
Phone: 616-527-5300
Manager
MATT KUHNS
468 E SPRAGUE RD
IONIA, MI 48846
Phone: 616-523-9136
FSS
LANSING FSS (LAN)
Toll Free: 1-800-WX-BRIEF
NOTAM
LAN
Light Schedule
--
Lights
ACTVT REIL RWY 28; PAPI RWY 10 & 28; MIRL RWY 10/28 - CTAF.
Beacon
N/A
Wind Indicator
Yes - Lighted
Segmented Cir.
Yes
Landing Fee
No
Parking
Hanger, Tie-Down
Int'l Operations
NOT a Landing Rights Airport
NOT an Airport of Entry
# Single Engine
41
# Multi Engine
4
# Jets
0
# Helicopters
0
# Military
0
# Ultralights
0
Airframe Repair
Major
Pwrplant Repair
Major
Bottled Oxygen
High & Low Pressure
Bulk Oxygen
None
Other Services
Glider Service
Pilot Instruction
Aircraft Rental
Glider Towing
Runway 10/28
Dimensions
4298 ft. x 75 ft.
Surface Type
ASPH
Surface Cond
Fair
Treatment
NONE
Rwy Edge Lgts
MED
Pavement Class
Single Wheel
19,000lbs
Double Wheel
--
Double Tandem
--
Dual Dbl Tand
--
Runway 10
Runway 28
True Heading
91°
271°
Traffic Pattern
Left
Left
Markings
NPI
NPI
Markings Condition
FAIR
FAIR
Latitude
42° 56' 17"N
42° 56' 16"N
Longitude
85° 04' 16"W
85° 03' 18"W
Elevation
814'
802'
Threshold Crossing Height
25 ft. AGL
22 ft. AGL
Visual Glide Path Angle
3°
3°
Visual Slope Indicator
P4L
P4L
Approach Lights
Centerline Lights
Runway End Identifier Lights
No
Yes
Runway 18/36
Dimensions
4261 ft. x 340 ft.
Surface Type
TURF
Surface Cond
Fair
Treatment
NONE
Rwy Edge Lgts
Pavement Class
Single Wheel
--
Double Wheel
--
Double Tandem
--
Dual Dbl Tand
--
Runway 18
Runway 36
True Heading
180°
0°
Traffic Pattern
Left
Left
Markings
Markings Condition
Latitude
42° 56' 38"N
42° 55' 56"N
Longitude
85° 03' 29"W
85° 03' 29"W
Elevation
804'
818'
Threshold Crossing Height
--
--
Visual Glide Path Angle
--
--
Visual Slope Indicator
--
--
Approach Lights
Centerline Lights
Runway End Identifier Lights
A110-1
EXTENSIVE SOARING ACTIVITY.
A110-2
ACFT PARKED ADJ TO RWY 10/28 & 18/36 DURG GLDR OPS.
A110-3
GLDR OPS CONDUCTED SOUTH OF RWY 10/28 & WEST OF RWY 18/36; USE FREQ 123.3 IN PRACTICE AREA. GLDRS USE CTAF IN TFC PAT.
A110-5
TREES OBST VIEW BTWN RWY END 18 WITH RWY END 10 & 28.
A110-6
HOSPITAL & HOSPITAL HELI ADJ SOUTH OF RWY 10/28.
A110-7
FOR CD CTC GREAT LAKES APCH AT 269-459-3345, WHEN APCH CLSD CTC CHICAGO ARTCC AT 630-906-8921.
IONIA COUNTY (IATA: Y70) is a public airport located in IONIA, MI.
