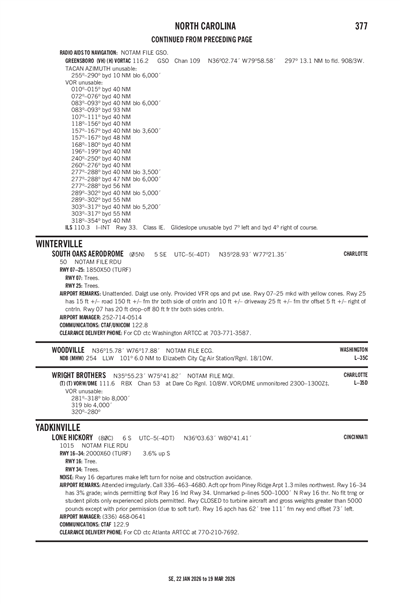

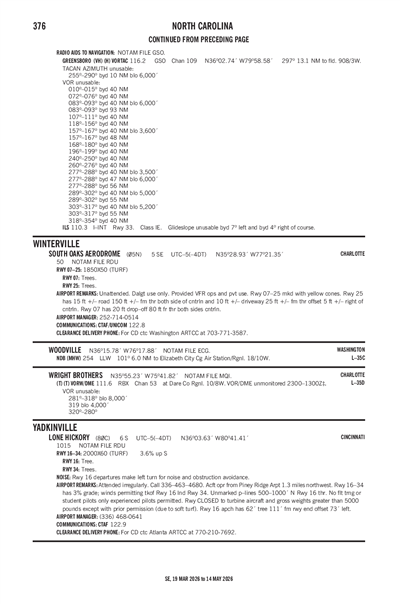

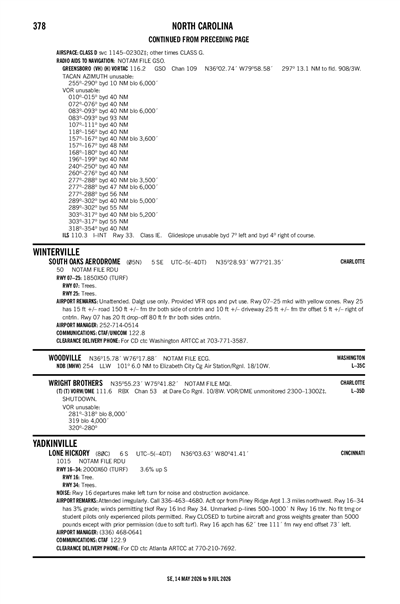

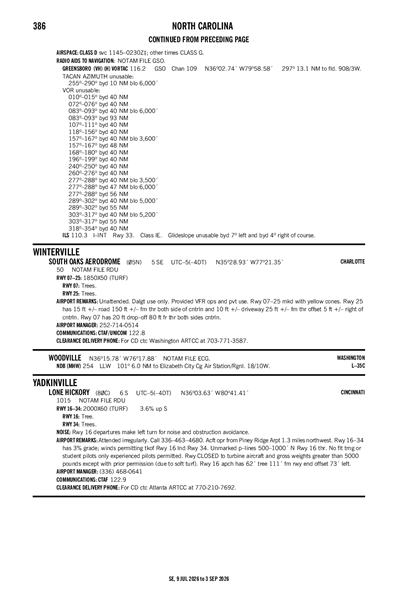

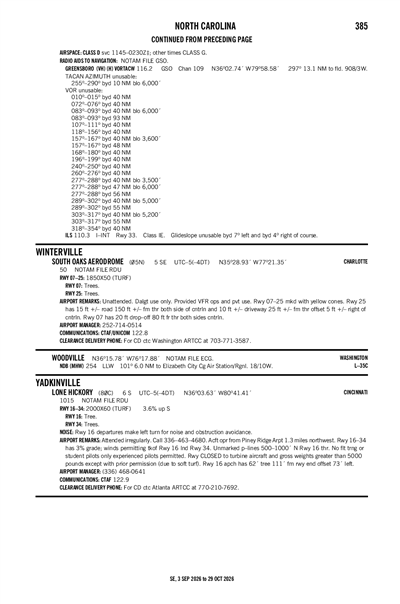

SOUTH OAKS AERODROME - Airport Diagram
LiveATC.net: Live Air Traffic - From Their Headsets to You

05N
SOUTH OAKS AERODROME
PublicPUB

5 miles SE of WINTERVILLE, NC
View on Map
LiveATC.net: Live Air Traffic - From Their Headsets to You
Operational
35° 28' 56"N 77° 21' 21"W
50' MSL
1050' MSL
00E
None Listed
RALEIGH (RDU)
CHARLOTTE
WASHINGTON (ZDC)
9/5/24-10/3/24
KPGV (9nm) VFR
6:10 PM EDT
Clear
10sm
81°F
68°F
29.90"Hg
070° 5kts
AO2
KPGV 202210Z AUTO 07005KT 10SM CLR 27/20 A2990 RMK AO2
Add Your Business

05N FBOs

No FBOs (Fixed Base Operators) are listed for this airport.
X

Send Message to Airport Company
Enter your information and message below.

Your Information

Processing
122.8 122.8

No communication frequencies available for this airport.

FAA A/FD Pages

Airport Diagrams

  • No Documents

Airport Minimums

  • No Documents

Departure Procedures

  • No Documents

Hotspot

  • No Documents

Standard Term. Arrival

  • No Documents

Instrument Approach

  • No Documents

Terminal Area Forecast

KPGV (9nm)
Fri, 9/20 1:21 PM EDT
Fri, 9/20 2:00 PM EDT - Sat, 9/21 2:00 PM EDT
VFR
2:00 PM EDT - 8:00 PM EDT
Scattered 4,500'
6sm
040° 6kts
VFR
8:00 PM EDT - 3:00 AM EDT
Sky Clear
6sm
VRB° 3kts
MVFR
3:00 AM EDT - 5:00 AM EDT
Mist
Few 1,500'
5sm
Calm
MVFR
5:00 AM EDT - 9:00 AM EDT
Mist
Scattered 800'
3sm
Calm
VFR
9:00 AM EDT - 2:00 PM EDT
Sky Clear
6sm
Calm
KPGV 201721Z 2018/2118 04006KT P6SM SCT045
   FM210000 VRB03KT P6SM SKC
   FM210700 00000KT 5SM BR FEW015
   FM210900 00000KT 3SM BR SCT008
   FM211300 00000KT P6SM SKC AMD LTD TO CLD VIS AND WIND
05N
Domestic
9/20/240629Z !RDU 09/264 05N OBST TOWER LGT (ASR 1015712) 352536.30N0771333.30W (7.1NM ESE 05N) 394.0FT (349.1FT AGL) U/S 2409200629-2410050529
9/10/240043Z !RDU 09/093 05N OBST TOWER LGT (ASR 1050603) 353236.00N0771901.00W (4.2NM NNE 05N) 320.9FT (254.9FT AGL) U/S 2409100043-2412312359
8/23/240128Z !RDU 08/422 05N OBST TOWER LGT (ASR 1251551) 353215.90N0772505.20W (4.5NM NW 05N) 363.2FT (303.1FT AGL) U/S 2408230128-2411012359
No
UNATNDD
CHARLES A. LEWIS JR
5245 COUNTY HOME ROAD
WINTERVILLE, NC 28590
Phone: 252-714-0514
CHARLES A. LEWIS JR
5245 COUNTY HOME ROAD
WINTERVILLE, NC 28590
Phone: 252-714-0514
RALEIGH FSS (RDU)
Toll Free: 1-800-WX-BRIEF
RDU
--
--
N/A
Yes
No
No
Tie-Down
No
0
0
0
0
0
0
None
None
None
None
Pilot Instruction

Runway 07/25

1850 ft. x 50 ft.
TURF
Good
NONE


--
--
--
--
  Runway 07 Runway 25
True Heading 75°255°
Traffic Pattern
Markings
Markings Condition
Latitude 35° 28' 53"N 35° 28' 58"N
Longitude 77° 21' 32"W 77° 21' 10"W
Elevation 43' 49'
Threshold Crossing Height -- --
Visual Glide Path Angle -- --
Visual Slope Indicator -- --
Approach Lights
Centerline Lights
Runway End Identifier Lights
A110-1RWY 07/25 MKD WITH YELLOW CONES.
A110-2DALGT USE ONLY.
A110-3FOR CD CTC WASHINGTON ARTCC AT 703-771-3587.
A110-4RWY 25 HAS 15 FT+/- ROAD 150 FT +/- FM THR BOTH SIDE OF CNTRLN AND 10 FT+/- DRIVEWAY 25 FT +/- FM THR OFFSET 5 FT +/- RIGHT OF CNTRLN.
A110-5RWY 07 HAS 20 FT DROP-OFF 80 FT FR THR BOTH SIDES CNTRLN.
SOUTH OAKS AERODROME (IATA: 05N) is a public airport located in WINTERVILLE, NC.
