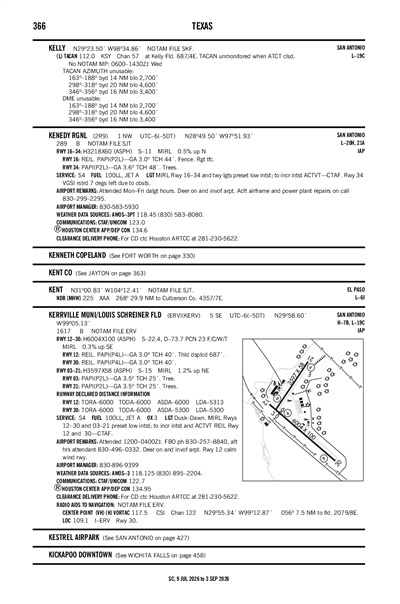

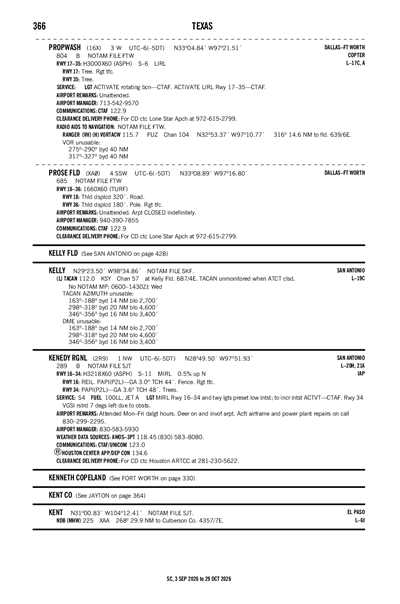

KENEDY RGNL - Airport Diagram
LiveATC.net: Live Air Traffic - From Their Headsets to You

2R9
KENEDY RGNL
PublicPUB

1 miles NW of KENEDY, TX
View on Map
LiveATC.net: Live Air Traffic - From Their Headsets to You
Operational
28° 49' 30"N 97° 51' 56"W
289' MSL
1289' MSL
05E
JET A, 100LL
SAN ANGELO (SJT)
SAN ANTONIO
HOUSTON (ZHU)
5/16/24-6/13/24
K2R9 VFR
10:15 PM CDT
Clear
10sm
83°F
75°F
29.90"Hg
090° 6kts
AO2 T02810241
K2R9 020315Z AUTO 09006KT 10SM CLR 28/24 A2990 RMK AO2 T02810241
Add Your Business

2R9 FBOs

Promote Listing
Stetson Aviation
UNICOM: 123.0
Phone: (830) 583-9884
Other: (830) 583-5930
No Rating Available
1 Review (Read | Sign In To Write)
0 out of 1 Recommend
Other
As of 5/29
 100LL JET A JET A (FSII) MOGAS UL94
Self Serve 5.59 4.99
Full Serve
Fuel Notes
Prices include tax
X

Send Message to Airport Company
Enter your information and message below.

Your Information

Processing
123.0 123.0

AWOS-3PT

AWOS-3PT
830-583-8080
 118.45

FAA A/FD Pages

Airport Diagrams

  • No Documents

Airport Minimums

Departure Procedures

  • No Documents

Hotspot

  • No Documents

Standard Term. Arrival

  • No Documents

Instrument Approach

Terminal Area Forecast

KSSF (44nm)
Sat, 6/1 6:34 PM CDT
Sat, 6/1 7:00 PM CDT - Sun, 6/2 7:00 PM CDT
VFR
7:00 PM CDT - 2:00 AM CDT
Scattered 5,000'
6sm
120° 12kts
MVFR
2:00 AM CDT - 10:00 AM CDT
Broken 1,200'
6sm
130° 6kts
MVFR
10:00 AM CDT - 12:00 PM CDT
Broken 2,500'
6sm
150° 8kts
VFR
12:00 PM CDT - 7:00 PM CDT
Few 4,000'
6sm
150° 10kts
KSSF 012334Z 0200/0224 12012KT P6SM SCT050
   FM020700 13006KT P6SM BKN012
   FM021500 15008KT P6SM BKN025
   FM021700 15010KT P6SM FEW040
2R9
Domestic
6/1/241449Z !SJT 06/010 2R9 OBST TOWER LGT (ASR 1051158) 284827.80N0974855.90W (2.8NM ESE 2R9) 751.0FT (408.1FT AGL) U/S 2406011449-2407161445
6/1/241352Z !SJT 06/009 2R9 OBST TOWER LGT (ASR 1207569) 284442.20N0975230.70W (4.8NM S 2R9) 809.7FT (319.9FT AGL) U/S 2406011352-2409291352
6/1/241352Z !SJT 06/008 2R9 OBST TOWER LGT (ASR 1207802) 284902.30N0974928.40W (2.2NM ESE 2R9) 629.9FT (319.9FT AGL) U/S 2406011352-2409291352
6/1/241351Z !SJT 06/007 2R9 OBST TOWER LGT (ASR 1267022) 284730.60N0975008.20W (2.5NM SE 2R9) 658.1FT (228.0FT AGL) U/S 2406011351-2409291351
6/1/240155Z !SJT 06/003 2R9 OBST TOWER LGT (ASR 1217246) 284429.40N0973354.60W (16.7NM ESE 2R9) 559.1FT (253.9FT AGL) U/S 2406010155-2408290400
5/30/241904Z !SJT 05/578 2R9 OBST TOWER LGT (ASR 1048049) 290839.40N0980137.90W (20.8NM NNW 2R9) 922.2FT (473.1FT AGL) U/S 2405301904-2407141900
FDC
10/20/221824Z !FDC 2/6917 2R9 IAP KENEDY RGNL, KENEDY, TX.
RNAV (GPS) RWY 34, ORIG-D...
STRAIGHT-IN AREA 254/30 INBOUND CW 074 INBOUND TO FORLU MINIMUM ALTITUDE 2200 (NOPT).
2210201824-2410201824EST
10/20/221824Z !FDC 2/6916 2R9 IAP KENEDY RGNL, KENEDY, TX.
RNAV (GPS) RWY 16, ORIG-D...
STRAIGHT-IN AREA 254/30 INBOUND CW 074 INBOUND TO WONIX MINIMUM ALTITUDE 2200.
2210201824-2410201824EST
No
MON-FRI DALGT
CITY OF KENEDY
303 W.MAIN
KENEDY, TX 78119
Phone: 830-583-2230
RON HYDE
P.O. BOX 569
KENEDY, TX 78119
Phone: (830) 583-5930
SAN ANGELO FSS (SJT)
Toll Free: 1-800-WX-BRIEF
SJT
--
MIRL RWY 16/34 & TWY LGTS PRESET LOW INTST; TO INCR INTST ACTVT - CTAF.
N/A
Yes - Lighted
Yes
No
Tie-Down
NOT a Landing Rights Airport
NOT an Airport of Entry
12
2
0
0
0
0
Major
Major
None
None
Pilot Instruction

Runway 16/34

3218 ft. x 60 ft.
ASPH
Excellent
NONE
MED

11,000lbs
--
--
--
  Runway 16 Runway 34
True Heading 169°349°
Traffic Pattern Right Left
Markings NPI NPI
Markings Condition GOOD GOOD
Latitude 28° 49' 46"N 28° 49' 14"N
Longitude 97° 51' 59"W 97° 51' 53"W
Elevation 289' 272'
Threshold Crossing Height 44 ft. AGL 48 ft. AGL
Visual Glide Path Angle 3° 3.6°
Visual Slope Indicator P2L P2L
Approach Lights
Centerline Lights
Runway End Identifier Lights Yes
A110-1DEER ON & INVOF ARPT.
A110-2ACFT AIRFRAME & POWER PLANT REPAIRS ON CALL 830-299-2295.
A110-4FOR CD CTC HOUSTON ARTCC AT 281-230-5622.
KENEDY RGNL (IATA: 2R9) is a public airport located in KENEDY, TX.
