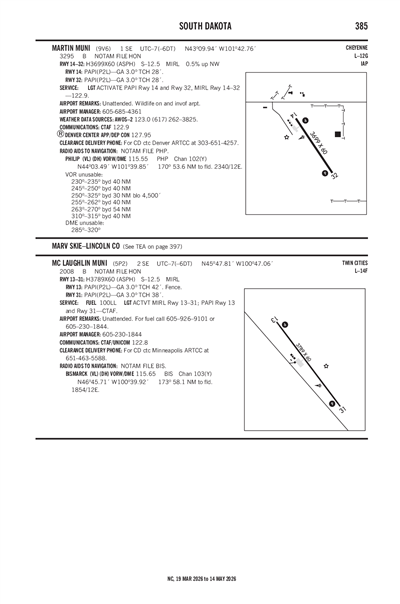

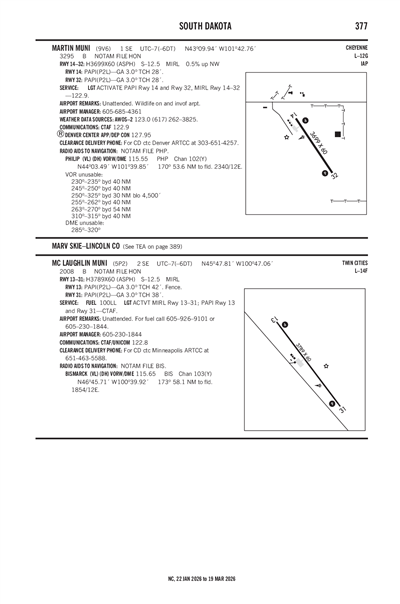

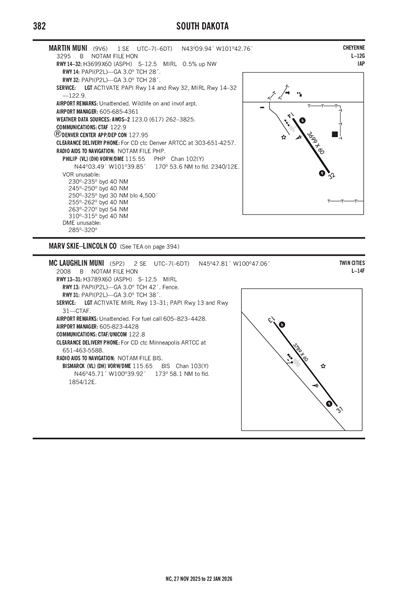

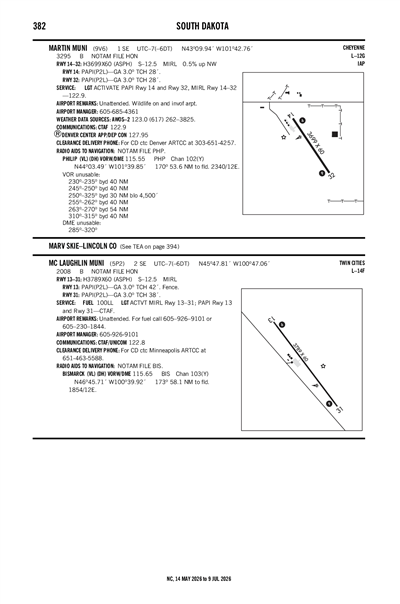

MC LAUGHLIN MUNI - Airport Diagram
LiveATC.net: Live Air Traffic - From Their Headsets to You

5P2
MC LAUGHLIN MUNI
PublicPUB

2 miles SE of MC LAUGHLIN, SD
View on Map
LiveATC.net: Live Air Traffic - From Their Headsets to You
Operational
45° 47' 49"N 100° 47' 03"W
2008' MSL
3008' MSL
09E
None Listed
HURON (HON)
TWIN CITIES
MINNEAPOLIS (ZMP)
5/16/24-6/13/24
KMBG (22nm) VFR
6:52 PM CDT
Clear
10sm
77°F
48°F
29.84"Hg
070° 4kts
AO2 SLP099 T02500089 10256 20217 56019
KMBG 012352Z AUTO 07004KT 10SM CLR 25/09 A2984 RMK AO2 SLP099 T02500089 10256 20217 56019
Add Your Business

5P2 FBOs

No FBOs (Fixed Base Operators) are listed for this airport.
X

Send Message to Airport Company
Enter your information and message below.

Your Information

Processing
122.8 122.8

No communication frequencies available for this airport.

FAA A/FD Pages

Airport Diagrams

  • No Documents

Airport Minimums

  • No Documents

Departure Procedures

  • No Documents

Hotspot

  • No Documents

Standard Term. Arrival

  • No Documents

Instrument Approach

  • No Documents

Terminal Area Forecast

KMBG (22nm)
Sat, 6/1 6:31 PM CDT
Sat, 6/1 7:00 PM CDT - Sun, 6/2 7:00 PM CDT
VFR
7:00 PM CDT - 9:00 PM CDT
Sky Clear
6sm
VRB° 3kts
VFR
9:00 PM CDT - 7:00 AM CDT
Few 25,000'
6sm
110° 7kts
VFR
7:00 AM CDT - 1:00 PM CDT
Scattered 20,000'
6sm
140° 14kts
Gusts 21kts
VFR
1:00 PM CDT - 3:00 PM CDT
Broken 12,000'
6sm
170° 15kts
Gusts 24kts
VFR
3:00 PM CDT - 6:00 PM CDT
Scattered 18,000'
6sm
240° 10kts
VFR
6:00 PM CDT - 7:00 PM CDT
Scattered 15,000'
6sm
310° 12kts
Gusts 20kts
KMBG 012331Z 0200/0224 VRB03KT P6SM SKC
   FM020200 11007KT P6SM FEW250
   FM021200 14014G21KT P6SM SCT200
   FM021800 17015G24KT P6SM BKN120
   FM022000 24010KT P6SM SCT180
   FM022300 31012G20KT P6SM SCT150
5P2
Domestic
5/24/241150Z !HON 05/082 5P2 OBST TOWER LGT (ASR 1058311) 454454.00N1004830.00W (3.1NM SSW 5P2) 2670.6FT (620.1FT AGL) U/S 2405241150-2406242359
5/24/240803Z !HON 05/081 5P2 OBST TOWER LGT (ASR 1266778) 455022.50N1003104.30W (11.4NM ENE 5P2) 2418.0FT (196.9FT AGL) U/S 2405240803-2406242359
No
UNATNDD
CITY OF MCLAUGHLIN
PO BOX 169
MCLAUGHLIN, SD 57642
Phone: 605-823-4428
NATE THOMPSON
PO BOX 392
MCLAUGHLIN, SD 57642
Phone: 605-823-4428
HURON FSS (HON)
Toll Free: 1-800-WX-BRIEF
HON
--
ACTVT MIRL RWY 13/31; PAPI RWY 13 & 31 - CTAF.
N/A
Yes - Lighted
Yes
No
Tie-Down
NOT a Landing Rights Airport
NOT an Airport of Entry
8
0
0
1
0
0
None
None
None
None
Crop Dusting

Runway 13/31

3789 ft. x 60 ft.
ASPH
Good
NONE
MED

12,000lbs
--
--
--
  Runway 13 Runway 31
True Heading 140°320°
Traffic Pattern Left Left
Markings NPI NPI
Markings Condition GOOD GOOD
Latitude 45° 48' 03"N 45° 47' 34"N
Longitude 100° 47' 21"W 100° 46' 46"W
Elevation 1,997' 2,001'
Threshold Crossing Height 42 ft. AGL 38 ft. AGL
Visual Glide Path Angle 3° 3°
Visual Slope Indicator P2L P2L
Approach Lights
Centerline Lights No No
Runway End Identifier Lights No No
A110-1(A70) FOR FUEL CALL 605-823-4428.
A110-2FOR CD CTC MINNEAPOLIS ARTCC AT 651-463-5588.
MC LAUGHLIN MUNI (IATA: 5P2) is a public airport located in MC LAUGHLIN, SD.
