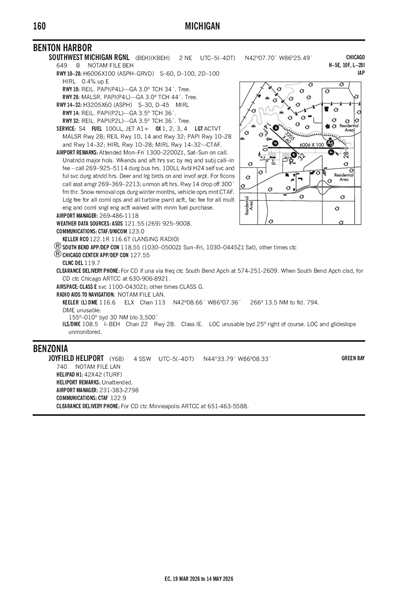

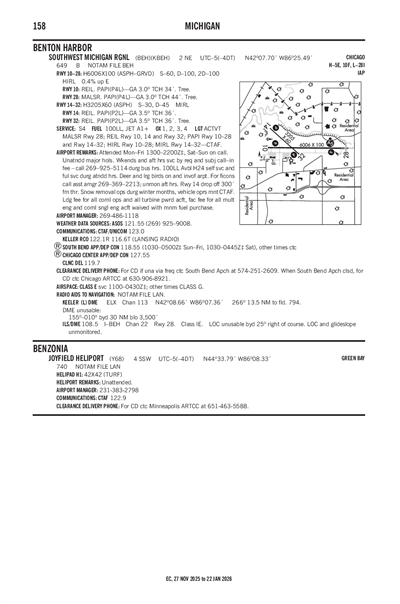

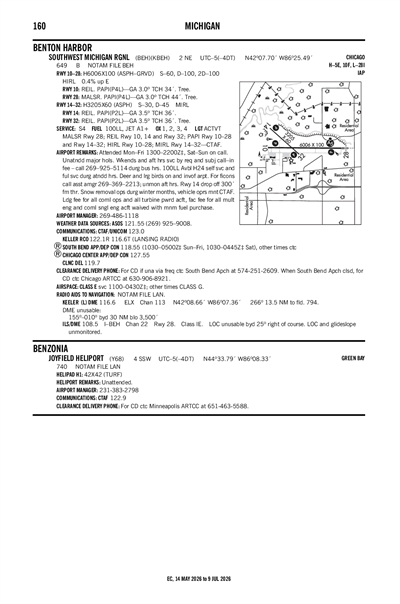

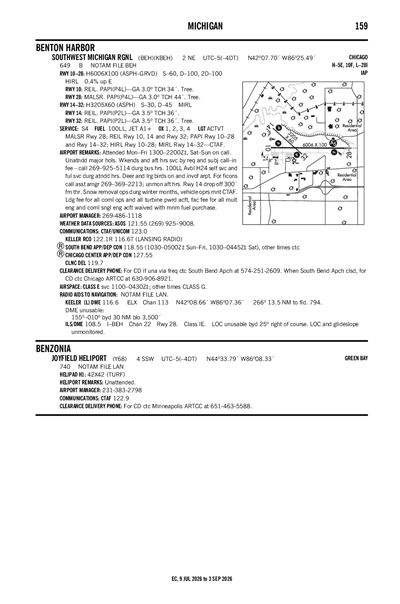

SOUTHWEST MICHIGAN RGNL - Airport Diagram

KBEH

SOUTHWEST MICHIGAN RGNL

PublicPUB

2 miles NE of BENTON HARBOR, MI

View on Map

Status

Operational

Coordinates

42° 07' 42"N 86° 25' 30"W

Elevation

649' MSL

Pattern Alt

1649' MSL

Mag Variation

04W

Fuel

JET A-1+, 100LL

FSS

LANSING (LAN)

Sectional

CHICAGO

ARTCC

CHICAGO (ZAU)

Data Effective

5/16/24-6/13/24

KBEH VFR

9:30 PM EDT RAW

Overcast 7,500'
Broken 5,000'
Scattered 1,400'

Viz

10sm

Temp

68°F

Dew

64°F

Pres

29.92"Hg

Wind

160° 7kts

RMK

AO2 T02000178

KBEH 020130Z AUTO 16007KT 10SM SCT014 BKN050 OVC075 20/18 A2992 RMK AO2 T02000178

Add Your Business

KBEH FBOs

Promote Listing

Skyway Aviation

UNICOM: 123.0

Phone: (269) 925-5114

0 Reviews (Read | Sign In To Write)

Independent

As of 5/9	100LL	JET A	JET A (FSII)	MOGAS	UL94
Self Serve	5.69		6.99
Full Serve	6.69		6.99

Fuel Notes

Prices include tax

Your Information

Business

UNICOM 123.0 CTAF 123.0

ASOS

269-925-9008

121.55

FAA A/FD Pages

FAA A/FD Page

Airport Diagrams

No Documents

Airport Minimums

Departure Procedures

No Documents

Hotspot

No Documents

Standard Term. Arrival

No Documents

Instrument Approach

Terminal Area Forecast

KSBN (26nm)

RAW

Reported

Sat, 6/1 9:01 PM EDT

Valid

Sat, 6/1 9:00 PM EDT - Sun, 6/2 8:00 PM EDT

IFR

9:00 PM EDT - 12:00 AM EDT

Light Rain

Overcast 11,000'
Broken 6,000'
Broken 800'

Viz

6sm

Wind

160° 7kts

MVFR

12:00 AM EDT - 8:00 AM EDT

Overcast 1,000'

Viz

6sm

Wind

160° 6kts

MVFR

8:00 AM EDT - 1:00 PM EDT

Broken 3,000'

Viz

6sm

Wind

VRB° 5kts

VFR

1:00 PM EDT - 8:00 PM EDT

Sky Clear

Viz

6sm

Wind

340° 7kts

KSBN 020101Z 0201/0224 16007KT P6SM -RA BKN008 BKN060 OVC110
   FM020400 16006KT P6SM OVC010
   FM021200 VRB05KT P6SM BKN030
   FM021700 34007KT P6SM SKC

KBEH

Domestic
5/22/242315Z	!BEH 05/015 BEH OBST TOWER LGT (ASR 1009876) 420509.00N0862413.00W (2.7NM SSE BEH) 944.2FT (303.1FT AGL) U/S 2405222315-2406062215
4/27/241416Z	!BEH 04/017 BEH TWY A BTN TWY D AND CORPORATE RAMP CLSD 2404271416-2406302200
4/27/241414Z	!BEH 04/016 BEH RWY 14/32 CLSD 2404271414-2407312200
4/8/241100Z	!BEH 04/005 BEH TWY D CLSD 2404081100-2407032100

ATC Tower

Attendance

MON-FRI 0800-1700
SAT-SUN ON CALL
CALL 269-925-5114 DURG BUS HRS TO REQ AFT HRS SVC SUBJ CALL-IN FEE. UNATNDD MAJOR HOLS.

Owner

BENTON HARBOR/ST JOSEPH
1123 TERRITORIAL RD
BENTON HARBOR, MI 49022-2939
Phone: 269-927-3194

Manager

VINCENT DESJARDINS
1123 TERRITORIAL RD
BENTON HARBOR, MI 49022-2939
Phone: 269-927-3194

FSS

LANSING FSS (LAN)
Toll Free: 1-800-WX-BRIEF

NOTAM

BEH

Light Schedule

Lights

ACTVT MALSR RWY 28; REIL RWY 10, 14, & 32; PAPI RWY 10, 28, 14, & 32; HIRL RWY 10/28; MIRL RWY 14/32 - CTAF.

Beacon

N/A

Wind Indicator

Yes - Lighted

Segmented Cir.

Yes

Landing Fee

Yes

Parking

Hanger, Tie-Down

Int'l Operations

NOT a Landing Rights Airport
NOT an Airport of Entry

# Single Engine

# Multi Engine

# Jets

# Helicopters

# Military

# Ultralights

Airframe Repair

Major

Pwrplant Repair

Major

Bottled Oxygen

High & Low Pressure

Bulk Oxygen

High & Low Pressure

Other Services

None

Runway 10/28

Dimensions

6006 ft. x 100 ft.

Surface Type

ASPH

Surface Cond

Good

Treatment

GRVD

Rwy Edge Lgts

HIGH

Pavement Class

Single Wheel

60,000lbs

Double Wheel

100,000lbs

Double Tandem

100,000lbs

Dual Dbl Tand

	Runway 10	Runway 28
True Heading	90°	270°
Traffic Pattern	Left	Left
Markings	PIR	PIR
Markings Condition	GOOD	GOOD
Latitude	42° 07' 41"N	42° 07' 40"N
Longitude	86° 26' 02"W	86° 24' 42"W
Elevation	628'	649'
Threshold Crossing Height	34 ft. AGL	44 ft. AGL
Visual Glide Path Angle	3°	3°
Visual Slope Indicator	P4L	P4L
Approach Lights		MALSR
Centerline Lights
Runway End Identifier Lights	Yes

Runway 14/32

Dimensions

3205 ft. x 60 ft.

Surface Type

ASPH

Surface Cond

Fair

Treatment

NONE

Rwy Edge Lgts

MED

Pavement Class

Single Wheel

30,000lbs

Double Wheel

45,000lbs

Double Tandem

Dual Dbl Tand

	Runway 14	Runway 32
True Heading	132°	312°
Traffic Pattern	Left	Left
Markings	BSC	BSC
Markings Condition	GOOD	GOOD
Latitude	42° 07' 56"N	42° 07' 35"N
Longitude	86° 25' 60"W	86° 25' 28"W
Elevation	627'	631'
Threshold Crossing Height	36 ft. AGL	36 ft. AGL
Visual Glide Path Angle	3.5°	3.5°
Visual Slope Indicator	P2L	P2L
Approach Lights
Centerline Lights
Runway End Identifier Lights	Yes	Yes

A110-1	BIRDS & DEER ON & INVOF ARPT.
A110-11	FOR FLD CONDS CALL 269-369-2213, UNMON AFT ATNDD HRS.
A110-13	FOR CD IF UNA VIA FREQ CTC SOUTH BEND APCH AT 574-251-2609. WHEN SOUTH BEND APCH CLSD, FOR CD CTC CHICAGO ARTCC AT 630-906-8921.
A110-14	(CONTACT PHONE NR) CELL.
A110-2	RWY 14 DROP OFF BEGINS 90 FT FM PAVED SFC.
A110-6	SNOW REMOVAL OPS DURG WINTER MONTHS, VEHICLE OPRS MNT CTAF.

SOUTHWEST MICHIGAN RGNL (ICAO: KBEH, IATA: BEH) is a public airport located in BENTON HARBOR, MI.
