iFlightPlanner



...

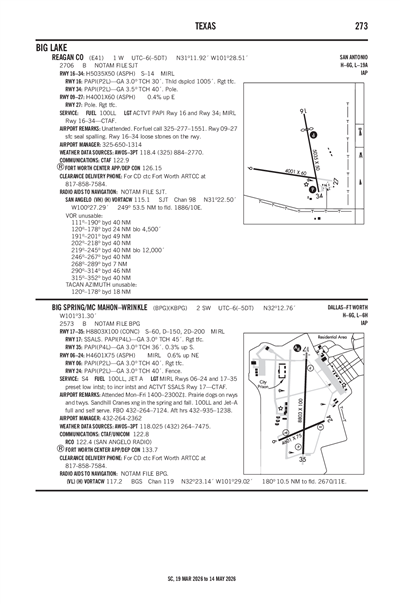

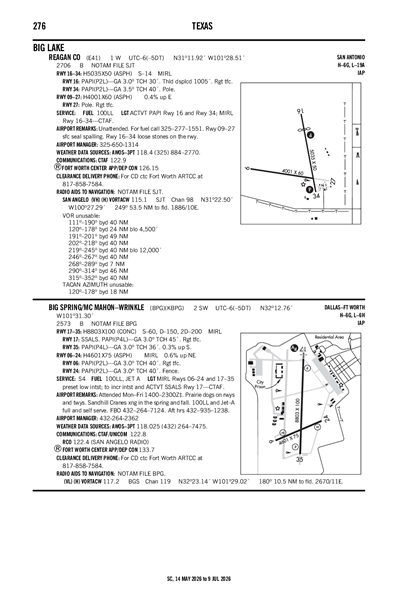

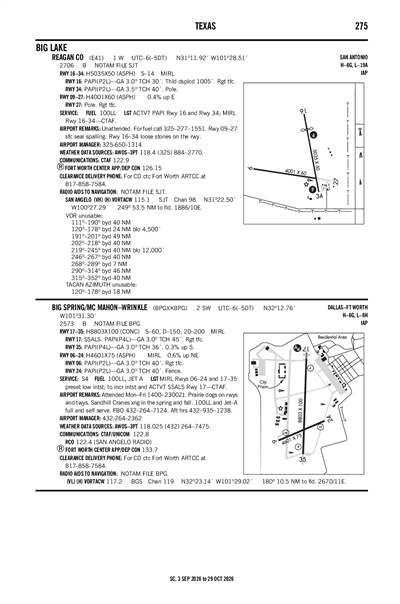

BIG SPRING MC MAHON-WRINKLE - Airport Diagram
LiveATC.net: Live Air Traffic - From Their Headsets to You

KBPG
BIG SPRING MC MAHON-WRINKLE
PublicPUB

2 miles SW of BIG SPRING, TX
View on Map
LiveATC.net: Live Air Traffic - From Their Headsets to You
Operational
32° 12' 45"N 101° 31' 18"W
2573' MSL
3573' MSL
07E
JET A, 100LL
SAN ANGELO (SJT)
DALLAS-FT WORTH
FORT WORTH (ZFW)
5/16/24-6/13/24
KBPG VFR
5:55 PM CDT
Scattered 7,500'
10sm
93°F
62°F
29.88"Hg
130° 15kts
AO2 T03380164
KBPG 012255Z AUTO 13015KT 10SM SCT075 34/16 A2988 RMK AO2 T03380164
Add Your Business

KBPG FBOs

Promote Listing
Big Spring McMahon-Wrinkle Airport
UNICOM: 122.8
Phone: (432) 264-7124
Other: (432) 264-2362
No Rating Available
0 Reviews (Read | Sign In To Write)
Avfuel
As of 5/28
 100LL JET A JET A (FSII) MOGAS UL94
Self Serve 5.40 4.30
Full Serve 5.10
Fuel Notes
Prices include tax
X

Send Message to Airport Company
Enter your information and message below.

Your Information

Processing
122.8 122.8

AWOS-3PT

AWOS-3PT
432-264-7475
 118.025

FAA A/FD Pages

Airport Diagrams

  • No Documents

Airport Minimums

Departure Procedures

  • No Documents

Hotspot

  • No Documents

Standard Term. Arrival

  • No Documents

Instrument Approach

Terminal Area Forecast

KMAF (38nm)
Sat, 6/1 4:57 PM CDT
Sat, 6/1 5:00 PM CDT - Sun, 6/2 1:00 PM CDT
VFR
5:00 PM CDT - 1:00 AM CDT
Scattered 20,000'
6sm
140° 12kts
VFR
1:00 AM CDT - 9:00 AM CDT
Broken 25,000'
6sm
140° 10kts
VFR
9:00 AM CDT - 1:00 PM CDT
Broken 10,000'
Scattered 3,000'
6sm
180° 14kts
Gusts 22kts
KMAF 012157Z 0122/0218 14012KT P6SM SCT200
   FM020600 14010KT P6SM BKN250
   FM021400 18014G22KT P6SM SCT030 BKN100
KBPG
Domestic
5/27/241904Z !BPG 05/009 BPG OBST TOWER LGT (ASR 1227381) 321714.60N1012040.20W (10.1NM ENE BPG) 2687.7FT (277.9FT AGL) U/S 2405271904-2407111903
5/13/241820Z !BPG 05/008 BPG OBST TOWER LGT (ASR 1030251) 315121.70N1010142.50W (32.9NM ESE BPG) 3050FT (414FT AGL) U/S 2405131820-2409102359
5/4/241608Z !BPG 05/004 BPG OBST TOWER LGT (ASR 1232972) 321745.70N1011750.10W (12.5NM ENE BPG) 2725.1FT (310.0FT AGL) U/S 2405041608-2408030400
5/3/242043Z !BPG 05/003 BPG OBST TOWER LGT (ASR 1290993) 315526.80N1013137.30W (17.2NM S BPG) 3120.1FT (419.9FT AGL) U/S 2405032043-2408312359
FDC
5/24/241000Z !FDC 4/8795 BPG IAP BIG SPRING MC MAHON-WRINKLE, BIG SPRING, TX.
RNAV (GPS) RWY 6, ORIG-C...
LPV CAT A/B DA 2919.HAT 356. VIS CAT A/B 1.
LNAV/VNAV DA 2849/HAT 286. VIS CAT A/B 7/8.
LNAV CAT A/B MDA 2960/HAT 397.
TEMPORARY RIGS, 2707 MSL, BEGINNING 3903FT SW OF RWY 06 (2022-ASW-12204/12205-OE).
2405241000-2409161923EST
5/24/241000Z !FDC 4/8794 BPG ODP BIG SPRING MC MAHON-WRINKLE, BIG SPRING, TX.
TAKEOFF MINIMUMS AND (OBSTACLE) DEPARTURE PROCEDURES AMDT 3...
TAKEOFF MINIMUMS RWY 24, 300-1 OR STANDARD WITH MINIMUM CLIMB OF 332FT PER NM TO 2800. TAKEOFF OBSTACLE NOTES RWY 24, TEMPORARY RIGS, BEGINNING 3856FT FROM DER, BEGINNING 600FT LEFT OF CENTERLINE, 169 AGL/2707 MSL (2022-ASW-12204/12205-OE). ALL OTHER DATA REMAINS AS PUBLISHED. 2405241000-2409161923EST
9/28/221837Z !FDC 2/5215 BPG ODP BIG SPRING MC MAHON-WRINKLE, BIG SPRING, TX.
TAKEOFF MINIMUMS AND (OBSTACLE) DEPARTURE PROCEDURES AMDT 3...
TAKEOFF MINIMUMS RWY 6, 400-1 1/2 OR STANDARD WITH MINIMUM CLIMB OF 412 FT PER NM TO 3100.
DEPARTURE PROCEDURE: RWY 17, CLIMB HEADING 174.89 TO 3500 BEFORE TURNING LEFT.
TAKEOFF OBSTACLE NOTES: RWY 6, TANK, 1.08 NM FROM DER, 2180 FT LEFT OF CENTERLINE, 135 AGL/2860 MSL (48-005851). ALL OTHER DATA REMAINS AS PUBLISHED. 2209281837-2409281837EST
No
MON-FRI 0800-1700
CITY OF BIG SPRING
310 NOLAN
BIG SPRING, TX 79720
Phone: 432-264-2400
MICHAEL FEELEY
3200 RICKABAUGH DRIVE WEST
BIG SPRING, TX 79720
Phone: 432-264-2362
SAN ANGELO FSS (SJT)
Toll Free: 1-800-WX-BRIEF
BPG
--
MIRL RWYS 06/24 & 17/35 PRESET LOW INTST; TO INCR INTST & ACTVT SSALS RWY 17 - CTAF.
N/A
Yes - Lighted
Yes
No
Hanger, Tie-Down
No
25
3
3
1
0
0
Major
Major
None
None
Crop Dusting
Pilot Instruction

Runway 06/24

4601 ft. x 75 ft.
ASPH
Good
NONE
MED

--
--
--
--
  Runway 06 Runway 24
True Heading 67°247°
Traffic Pattern Right
Markings NPI NPI
Markings Condition GOOD GOOD
Latitude 32° 12' 22"N 32° 12' 40"N
Longitude 101° 31' 45"W 101° 30' 55"W
Elevation 2,547' 2,573'
Threshold Crossing Height 40 ft. AGL 40 ft. AGL
Visual Glide Path Angle 3° 3°
Visual Slope Indicator P2L P2L
Approach Lights
Centerline Lights
Runway End Identifier Lights

Runway 17/35

8802 ft. x 100 ft.
CONC
Good
NONE
MED

60,000lbs
150,000lbs
200,000lbs
--
  Runway 17 Runway 35
True Heading 182°2°
Traffic Pattern Right Left
Markings NPI NPI
Markings Condition GOOD GOOD
Latitude 32° 13' 37"N 32° 12' 10"N
Longitude 101° 31' 15"W 101° 31' 18"W
Elevation 2,550' 2,562'
Threshold Crossing Height 45 ft. AGL 36 ft. AGL
Visual Glide Path Angle 3° 3°
Visual Slope Indicator P4L P4L
Approach Lights SSALS
Centerline Lights
Runway End Identifier Lights
A110-2FBO 432-264-7124. AFT HRS 432-935-1238.
A110-4SANDHILL CRANES XNG IN THE SPRING & FALL.
A110-5PRAIRIE DOGS ON RWYS & TWYS.
A110-7FOR CD CTC FORT WORTH ARTCC AT 817-858-7584.
A110-8FUEL FULL & SELF SERVE.
BIG SPRING MC MAHON-WRINKLE (ICAO: KBPG, IATA: BPG) is a public airport located in BIG SPRING, TX.
