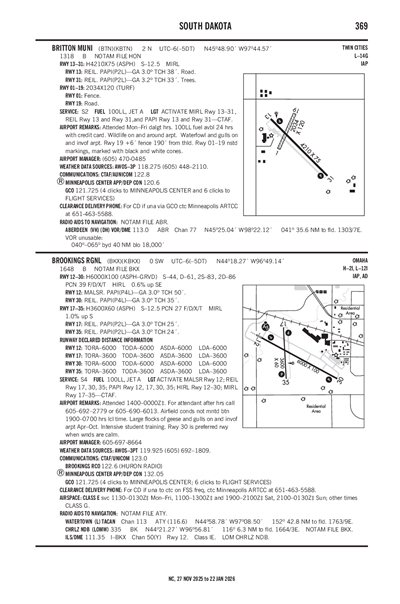

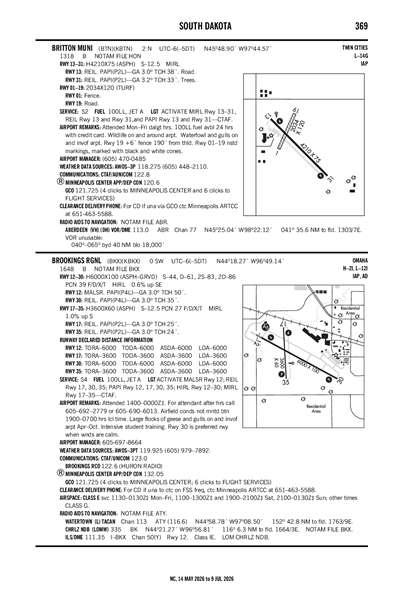

BRITTON MUNI - Airport Diagram
LiveATC.net: Live Air Traffic - From Their Headsets to You

KBTN
BRITTON MUNI
PublicPUB

2 miles N of BRITTON, SD
View on Map
LiveATC.net: Live Air Traffic - From Their Headsets to You
Operational
45° 48' 54"N 97° 44' 34"W
1318' MSL
2318' MSL
04E
None Listed
HURON (HON)
TWIN CITIES
MINNEAPOLIS (ZMP)
5/16/24-6/13/24
KBTN VFR
9:35 PM CDT
Few 9,500'
10sm
63°F
45°F
29.86"Hg
110° 6kts
AO2
KBTN 020235Z AUTO 11006KT 10SM FEW095 17/07 A2986 RMK AO2
Add Your Business

KBTN FBOs

Promote Listing
Dakota Ag Service
UNICOM: 122.8
Phone: (605) 448-2264
No Rating Available
0 Reviews (Read | Sign In To Write)
Independent
As of 5/30
 100LL JET A JET A (FSII) MOGAS UL94
Self Serve
Full Serve
Fuel Notes
Prices include tax
X

Send Message to Airport Company
Enter your information and message below.

Your Information

Processing
122.8 122.8

AWOS-3P

AWOS-3P
605-448-2110
 118.275

FAA A/FD Pages

Airport Diagrams

  • No Documents

Airport Minimums

Departure Procedures

  • No Documents

Hotspot

  • No Documents

Standard Term. Arrival

  • No Documents

Instrument Approach

Terminal Area Forecast

KABR (36nm)
Sat, 6/1 6:31 PM CDT
Sat, 6/1 7:00 PM CDT - Sun, 6/2 7:00 PM CDT
VFR
7:00 PM CDT - 10:00 PM CDT
Few 9,000'
6sm
VRB° 6kts
VFR
10:00 PM CDT - 3:00 AM CDT
Few 9,000'
6sm
090° 6kts
VFR
3:00 AM CDT - 6:00 AM CDT
Scattered 25,000'
6sm
150° 7kts
VFR
6:00 AM CDT - 9:00 AM CDT
Scattered 25,000'
6sm
160° 12kts
VFR
9:00 AM CDT - 6:00 PM CDT
Broken 9,000'
6sm
170° 21kts
Gusts 29kts
VFR
6:00 PM CDT - 7:00 PM CDT
Thunderstorm in vicinity
Broken 8,000'
Few 6,000'
6sm
180° 13kts
Gusts 20kts
KABR 012331Z 0200/0224 VRB06KT P6SM FEW090
   FM020300 09006KT P6SM FEW090
   FM020800 15007KT P6SM SCT250
   FM021100 16012KT P6SM SCT250
   FM021400 17021G29KT P6SM BKN090
   FM022300 18013G20KT P6SM VCTS FEW060CB BKN080
KBTN
Domestic
3/28/242021Z !HON 03/145 BTN SVC AUTOMATED WX BCST SYSTEM T/PRESENT WX UNREL 2403282021-2408022200
3/15/240044Z !HON 03/032 BTN AD AP FUEL NOT AVBL 2403150044-2407012359
3/15/240042Z !HON 03/031 BTN OBST CRANE (ASN UNKNOWN) 455003N0974011W (3.5NM NE BTN) 1318FT (120FT AGL) FLAGGED NOT LGTD 2403150042-2503152359
No
MON-FRI DALGT
CITY OF BRITTON
803 8TH ST
BRITTON, SD 57430
Phone: 605-448-5721
RYAN FURMAN
PO BOX 941
BRITTON, SD 57430
Phone: (605) 470-0485
HURON FSS (HON)
Toll Free: 1-800-WX-BRIEF
HON
--
ACTVT MIRL, REIL & PAPI RYS 13 & 31 - CTAF.
N/A
Yes - Lighted
No
No
Hanger, Tie-Down
NOT a Landing Rights Airport
NOT an Airport of Entry
8
2
0
0
0
0
Minor
Minor
None
None
Crop Dusting

Runway 01/19

2034 ft. x 120 ft.
TURF
Fair
NONE


--
--
--
--
  Runway 01 Runway 19
True Heading 23°203°
Traffic Pattern Left Left
Markings NSTD NSTD
Markings Condition
Latitude 45° 48' 50"N 45° 49' 09"N
Longitude 97° 44' 46"W 97° 44' 35"W
Elevation 1,312' 1,313'
Threshold Crossing Height -- --
Visual Glide Path Angle -- --
Visual Slope Indicator -- --
Approach Lights
Centerline Lights No No
Runway End Identifier Lights No No

Runway 13/31

4210 ft. x 75 ft.
ASPH
Good
NONE
MED

12,000lbs
--
--
--
  Runway 13 Runway 31
True Heading 135°315°
Traffic Pattern Left Left
Markings NPI NPI
Markings Condition GOOD GOOD
Latitude 45° 49' 06"N 45° 48' 37"N
Longitude 97° 44' 52"W 97° 44' 10"W
Elevation 1,315' 1,318'
Threshold Crossing Height 38 ft. AGL 33 ft. AGL
Visual Glide Path Angle 3° 3.2°
Visual Slope Indicator P2L P2L
Approach Lights
Centerline Lights No No
Runway End Identifier Lights Yes Yes
A110-2RY 19 +6 FT FENCE 190 FT FM THLD.
A110-3WATERFOWL AND GULLS ON & INVOF ARPT.
A110-4GCO AVBL ON FREQ 121.725 (4 CLICKS TO MINNEAPOLIS CENTER AND 6 CLICKS TO FLT SVCS)
A110-5WILDLIFE ON AND AROUND AIRPORT
A110-6FOR CD IF UNA VIA GCO CTC MINNEAPOLIS ARTCC AT 651-463-5588.
BRITTON MUNI (ICAO: KBTN, IATA: BTN) is a public airport located in BRITTON, SD.
