iFlightPlanner



...

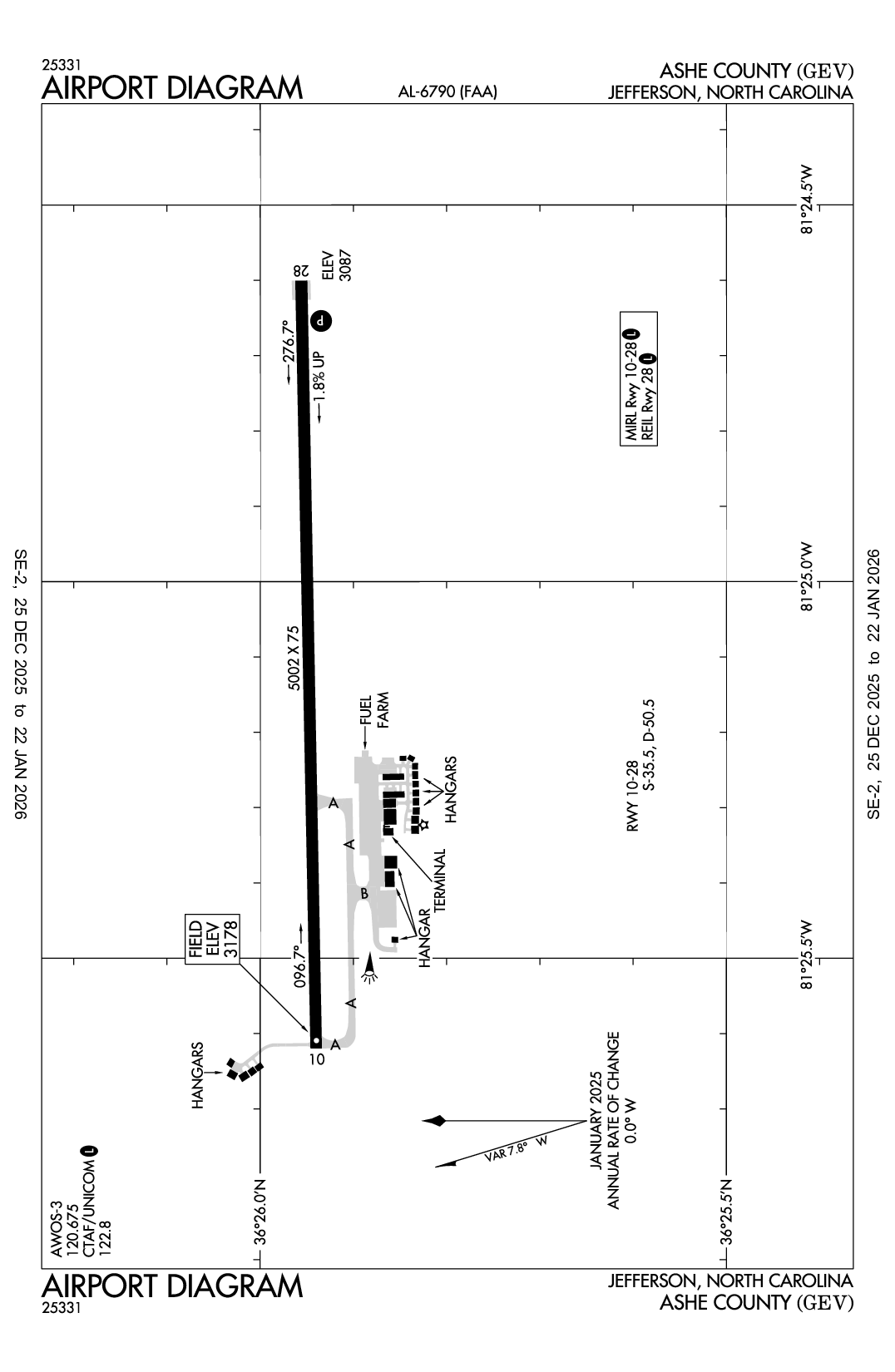

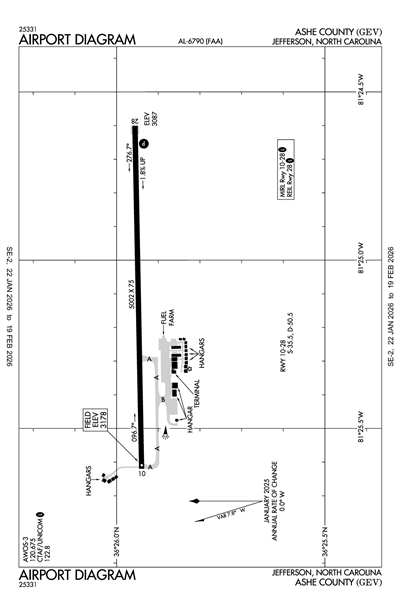

ASHE COUNTY - Airport Diagram
LiveATC.net: Live Air Traffic - From Their Headsets to You

KGEV
ASHE COUNTY
PublicPUB

3 miles E of JEFFERSON, NC
View on Map
LiveATC.net: Live Air Traffic - From Their Headsets to You
Operational
36° 25' 57"N 81° 25' 07"W
3178' MSL
4178' MSL
07W
JET A-1+, 100LL
RALEIGH (RDU)
CINCINNATI
ATLANTA (ZTL)
5/16/24-6/13/24
KGEV VFR
7:05 PM EDT
Clear
10sm
62°F
48°F
30.24"Hg
Calm
AO2 T01660089
KGEV 012305Z AUTO 00000KT 10SM CLR 17/09 A3024 RMK AO2 T01660089
Add Your Business

KGEV FBOs

Promote Listing
Ashe County Airport
UNICOM: 122.8
Phone: (336) 982-5144
No Rating Available
0 Reviews (Read | Sign In To Write)
Titan
As of 5/28
 100LL JET A JET A (FSII) MOGAS UL94
Self Serve 5.40 5.30
Full Serve 5.40
Fuel Notes
Prices include tax
X

Send Message to Airport Company
Enter your information and message below.

Your Information

Processing
122.8 122.8

AWOS-3

AWOS-3
336-982-5555
 120.675

FAA A/FD Pages

Airport Diagrams

  • No Documents

Airport Minimums

Departure Procedures

  • No Documents

Hotspot

  • No Documents

Standard Term. Arrival

  • No Documents

Instrument Approach

Terminal Area Forecast

KHKY (42nm)
Sat, 6/1 1:40 PM EDT
Sat, 6/1 2:00 PM EDT - Sun, 6/2 2:00 PM EDT
VFR
2:00 PM EDT - 9:00 PM EDT
Scattered 25,000'
6sm
190° 6kts
VFR
9:00 PM EDT - 4:00 AM EDT
Broken 24,000'
6sm
VRB° 2kts
VFR
4:00 AM EDT - 7:00 AM EDT
Broken 9,000'
6sm
170° 3kts
VFR
7:00 AM EDT - 11:00 AM EDT
Broken 7,000'
6sm
190° 3kts
MVFR
7:00 AM EDT - 11:00 AM EDT
Showers and Rain and Mist
No Clouds
5sm
Calm
VFR
11:00 AM EDT - 2:00 PM EDT
Broken 4,500'
6sm
190° 6kts
MVFR
11:00 AM EDT - 2:00 PM EDT
Thunderstorm and Rain and Mist
Broken 2,500'
4sm
Calm
KHKY 011740Z 0118/0218 19006KT P6SM SCT250
   FM020100 VRB02KT P6SM BKN240
   FM020800 17003KT P6SM BKN090
   FM021100 19003KT P6SM BKN070
   PROB30 0211/0215 5SM SHRA BR
   FM021500 19006KT P6SM BKN045
   PROB30 0215/0218 4SM TSRA BR BKN025CB
KGEV
FDC
12/18/231604Z !FDC 3/7213 GEV IAP ASHE COUNTY, JEFFERSON, NC.
LOC RWY 28, AMDT 4...
PROCEDURE NA EXCEPT FOR AIRCRAFT EQUIPPED WITH SUITABLE RNAV SYSTEM WITH GPS,
BZM VOR OUT OF SERVICE. 2312181604-2407291604EST
No
0830-1630
UNATNDD THANKSGIVING AND CHRISTMAS.
FOR SVC AFT HRS CALL 336-877-1102.
ASHE COUNTY
150 GOVERNMENT CIRCLE, SUITE 2500
JEFFERSON, NC 28640
Phone: 336-846-5501
ERIC PAYNE
639 AIRPORT ROAD
JEFFERSON, NC 28640
Phone: 336-982-5144
RALEIGH FSS (RDU)
Toll Free: 1-800-WX-BRIEF
GEV
--
ACTVT REIL RWY 28; PAPI RWY 28; MIRL RWY 10/28 - CTAF.
N/A
Yes - Lighted
Yes
No
Tie-Down
No
24
0
0
0
0
0
Major
Major
None
None
Crop Dusting
Pilot Instruction
Aircraft Rental

Runway 10/28

5002 ft. x 75 ft.
ASPH
Excellent
NONE
MED

36,000lbs
50,000lbs
--
--
  Runway 10 Runway 28
True Heading 89°269°
Traffic Pattern Left Left
Markings NPI NPI
Markings Condition GOOD GOOD
Latitude 36° 25' 56"N 36° 25' 57"N
Longitude 81° 25' 37"W 81° 24' 36"W
Elevation 3,178' 3,087'
Threshold Crossing Height -- 48 ft. AGL
Visual Glide Path Angle -- 3°
Visual Slope Indicator -- P2L
Approach Lights
Centerline Lights
Runway End Identifier Lights Yes
A110-1RISING TRRN ALL QUADS.
A110-2DEER INVOF ARPT.
A110-3RWYS 10 & 28 SAFETY AREAS HAVE 100 FT DROP-OFFS 270 FT FM THR.
A110-4RWY 28 HAS AN UPHILL GRADE.
A110-5OCNL CROPS AND FARMING EQPT ADJ TO RWY.
A110-6RWY 28 HAS 100 FT DROP-OFFS 90 FT LEFT AND RIGHT OF CNTRLN.
A110-7FOR CD CTC ATLANTA ARTCC AT 770-210-7692.
ASHE COUNTY (ICAO: KGEV, IATA: GEV) is a public airport located in JEFFERSON, NC.
