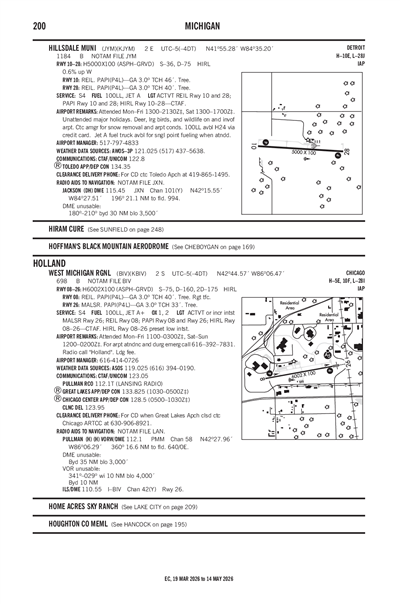

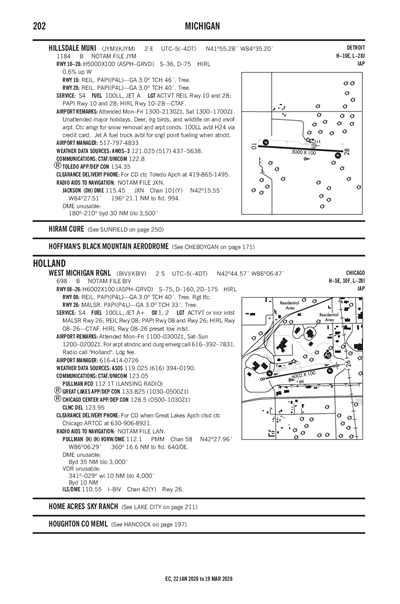

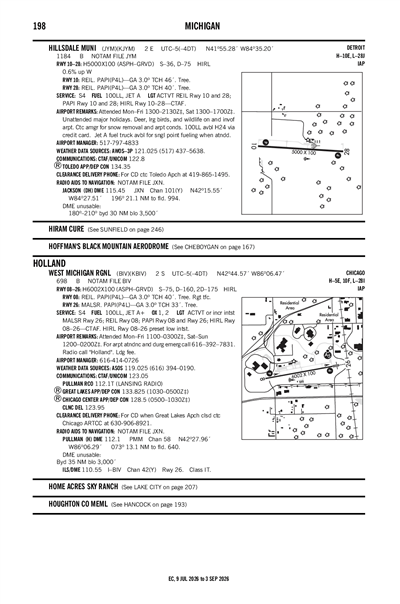

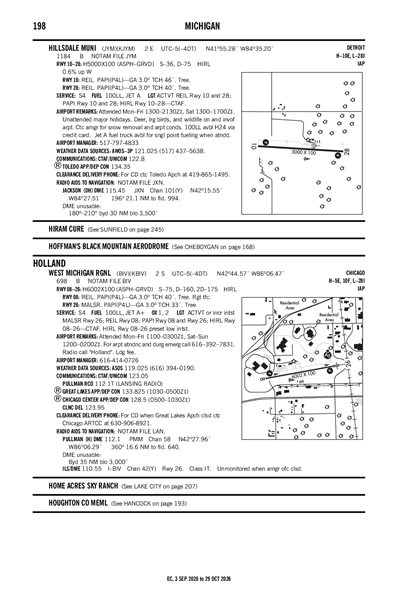

HILLSDALE MUNI - Airport Diagram
LiveATC.net: Live Air Traffic - From Their Headsets to You

KJYM
HILLSDALE MUNI
PublicPUB

3 miles E of HILLSDALE, MI
View on Map
LiveATC.net: Live Air Traffic - From Their Headsets to You
Operational
41° 55' 17"N 84° 35' 12"W
1184' MSL
2184' MSL
07W
JET A, 100LL
LANSING (LAN)
DETROIT
CLEVELAND (ZOB)
5/16/24-6/13/24
KJYM MVFR
8:35 PM EDT
Rain
Overcast 11,000'
Broken 8,500'
Scattered 6,500'
4sm
64°F
57°F
30.01"Hg
Calm
AO2 P0004 T01780140
KJYM 020035Z AUTO 00000KT 4SM RA SCT065 BKN085 OVC110 18/14 A3001 RMK AO2 P0004 T01780140
Add Your Business

KJYM FBOs

Promote Listing
Hillsdale Municipal Airport
UNICOM: 122.8
Phone: (517) 797-4833
Other: (517) 416-0938
No Rating Available
0 Reviews (Read | Sign In To Write)
Avfuel
As of 5/28
 100LL JET A JET A (FSII) MOGAS UL94
Self Serve 5.75 6.78
Full Serve 5.75 6.78
Fuel Notes
Prices include tax
X

Send Message to Airport Company
Enter your information and message below.

Your Information

Processing
122.8 122.8

AWOS-3

AWOS-3
517-437-5638
 121.025

FAA A/FD Pages

Airport Diagrams

  • No Documents

Airport Minimums

Departure Procedures

  • No Documents

Hotspot

  • No Documents

Standard Term. Arrival

  • No Documents

Instrument Approach

Terminal Area Forecast

KJXN (21nm)
Sat, 6/1 7:36 PM EDT
Sat, 6/1 8:00 PM EDT - Sun, 6/2 8:00 PM EDT
MVFR
8:00 PM EDT - 12:00 AM EDT
Light Rain and Mist
Overcast 6,000'
5sm
100° 7kts
MVFR
12:00 AM EDT - 1:00 AM EDT
Light Rain and Mist
Overcast 2,500'
3sm
140° 6kts
IFR
1:00 AM EDT - 7:00 AM EDT
Light Rain and Mist
Overcast 800'
3sm
150° 7kts
LIFR
7:00 AM EDT - 10:00 AM EDT
Mist
Overcast 400'
2sm
230° 6kts
IFR
10:00 AM EDT - 1:00 PM EDT
Mist
Overcast 800'
4sm
230° 6kts
MVFR
1:00 PM EDT - 3:00 PM EDT
Overcast 1,500'
6sm
240° 7kts
MVFR
3:00 PM EDT - 5:00 PM EDT
Broken 2,500'
6sm
260° 8kts
VFR
5:00 PM EDT - 8:00 PM EDT
Broken 3,500'
6sm
330° 8kts
KJXN 012336Z 0200/0224 10007KT 5SM -RA BR OVC060
   FM020400 14006KT 3SM -RA BR OVC025
   FM020500 15007KT 3SM -RA BR OVC008
   FM021100 23006KT 2SM BR OVC004
   FM021400 23006KT 4SM BR OVC008
   FM021700 24007KT P6SM OVC015
   FM021900 26008KT P6SM BKN025
   FM022100 33008KT P6SM BKN035
KJYM
Domestic
5/30/240412Z !JYM 05/007 JYM OBST TOWER LGT (ASR 1221550) 420206.20N0844504.70W (10.0NM NW JYM) 1366.1FT (349.1FT AGL) U/S 2405300412-2409270412
5/26/242221Z !JYM 05/006 JYM OBST TOWER LGT (ASR 1000885) 415746.00N0843814.00W (3.4NM NW JYM) 1406.8FT (244.4FT AGL) U/S 2405262221-2407102221
5/3/241135Z !JYM 05/001 JYM OBST TOWER LGT (ASR 1221314) 415810.60N0844310.80W (6.6NM WNW JYM) 1361.9FT (250.0FT AGL) U/S 2405031135-2408010400
No
MON-FRI 0800-1630
SAT 0800-1200
UNATNDD MAJOR HOLS.
CITY OF HILLSDALE
97 N. BROAD ST
HILLSDALE, MI 49242
Phone: 517-437-6444
GINGER MOORE
1727 ARPT RD
HILLSDALE, MI 49242
Phone: (517) 797-4833
LANSING FSS (LAN)
Toll Free: 1-800-WX-BRIEF
JYM
--
ACTVT HIRL RY 10/28, PAPI RY 10 & 28, AND REIL RY 10 & 28 - CTAF.
N/A
Yes - Lighted
No
No
Hanger, Tie-Down
NOT a Landing Rights Airport
NOT an Airport of Entry
9
0
1
0
0
0
Major
Major
None
None
None

Runway 10/28

5000 ft. x 100 ft.
ASPH
Good
GRVD
HIGH

36,000lbs
75,000lbs
--
--
  Runway 10 Runway 28
True Heading 94°274°
Traffic Pattern Left Left
Markings NPI NPI
Markings Condition GOOD GOOD
Latitude 41° 55' 18"N 41° 55' 15"N
Longitude 84° 35' 45"W 84° 34' 39"W
Elevation 1,155' 1,184'
Threshold Crossing Height 46 ft. AGL 40 ft. AGL
Visual Glide Path Angle 3° 3°
Visual Slope Indicator P4L P4L
Approach Lights
Centerline Lights No No
Runway End Identifier Lights Yes Yes
A110-1BIRDS, DEER & WILDLIFE ON & INVOF ARPT.
A110-2CTC ARPT MGR FOR SNOW REMOVAL INFO AND RWY CONDITIONS.
A110-4FOR CD CTC TOLEDO APCH AT 419-865-1495
HILLSDALE MUNI (ICAO: KJYM, IATA: JYM) is a public airport located in HILLSDALE, MI.
