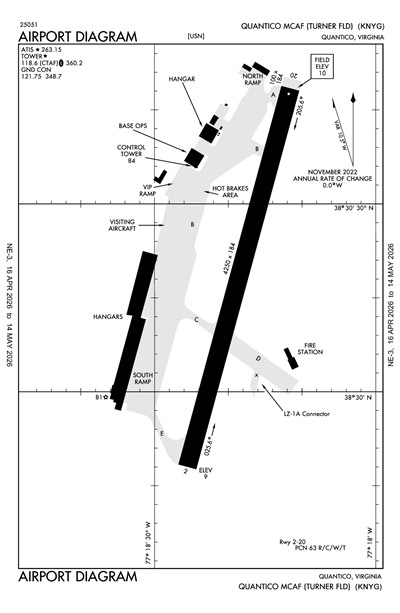

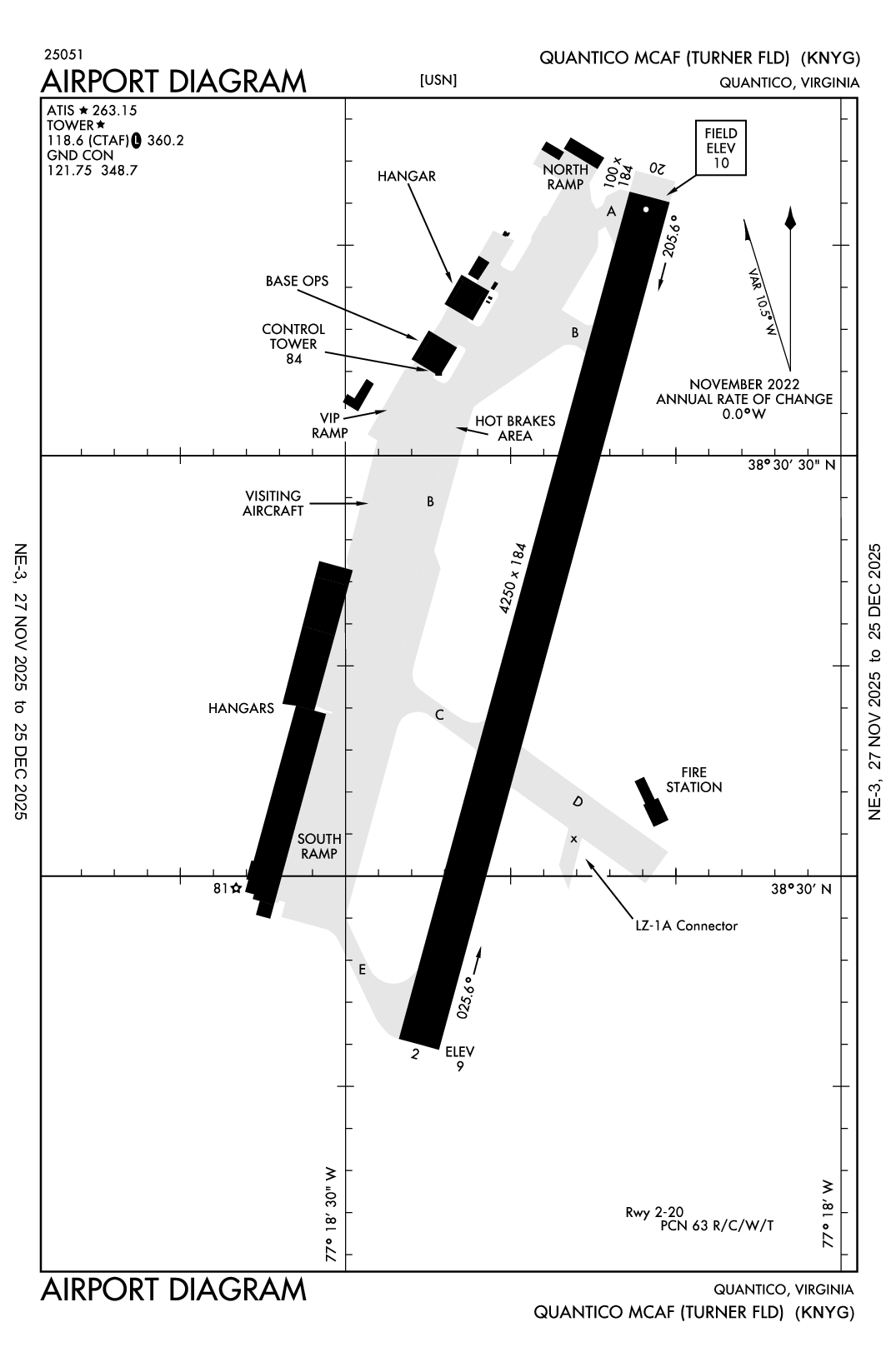

QUANTICO MCAF (TURNER FLD) - Airport Diagram

KNYG

QUANTICO MCAF (TURNER FLD)

PrivatePVT

1 miles S of QUANTICO, VA

View on Map

Status

Operational

Coordinates

38° 30' 13"N 77° 18' 18"W

Elevation

10' MSL

Pattern Alt

1010' MSL

Mag Variation

11W

Fuel

JET A-1+

FSS

LEESBURG (DCA)

Sectional

WASHINGTON

ARTCC

WASHINGTON (ZDC)

Data Effective

5/16/24-6/13/24

KNYG MVFR

7:11 PM EDT RAW

Mist

Clear

Viz

3sm

Temp

77°F

Dew

32°F

Pres

30.14"Hg

Wind

130° 8kts

RMK

AO2 T0250 $

KNYG 012311Z AUTO 13008KT 3SM BR CLR 25/ A3014 RMK AO2 T0250 $

Add Your Business

KNYG FBOs

No FBOs (Fixed Base Operators) are listed for this airport.

Your Information

Business

UNICOM -- CTAF 118.6

Approach/Departure

APCH/P DEP/P

127.05

Emergency

EMERG

121.5

Ground

GND/P

121.75

Tower

LCL/P

118.6

FAA A/FD Pages

FAA A/FD Page

Airport Diagrams

AIRPORT DIAGRAM

Airport Minimums

Departure Procedures

No Documents

Hotspot

No Documents

Standard Term. Arrival

Instrument Approach

Terminal Area Forecast

KNYG

RAW

Reported

Sat, 6/1 4:52 PM EDT

Valid

Sat, 6/1 4:00 PM EDT - Sun, 6/2 11:00 AM EDT

VFR

4:00 PM EDT - 5:00 AM EDT

Sky Clear

Viz

6sm

Pres

30.12"Hg

Wind

VRB° 6kts

VFR

Becoming 5:00 AM EDT - 11:00 AM EDT

Duststorm

Broken 25,000'
Scattered 15,000'

Viz

6sm

Pres

30.12"Hg

Wind

VRB° 6kts

TAF AMD KNYG 0120/0215 VRB06KT 9999 SKC QNH3012INS
BECMG 0209/0211 VRB06KT 9999 SCT150 BKN250 QNH3011INS LAST NO AMENDS 0120/NEXT 0309 AUTOMATED SENSOR METWATCH 0107 TIL 0309 T26/0122Z T17/0210Z AMD 2030

KNYG

Military
4/30/241243Z	!KNYG M0168/24 NYG TWY B EDGE LGTS NOT STD FIRST 100FT AT RWY ENTRANCE/EXIT (NORTH EDGE) LOCATED 20FT FROM USABLE PAVEMENT 2404301243-2407262359
4/3/241201Z	!KNYG M0118/24 NYG TWY A CLSD 2404031201-2406302359
3/27/241853Z	AERODROME PAR COMPLETELY REMOVED.

ATC Tower

Yes

Attendance

MON-THU 1300-0000Z++
FRI 1300-2200Z++
SAT SUN HOLS CLSD

Owner

US NAVY
OCEANOGRAPHIC OFC-CODE 3142
WASHINGTON, DC 20373

Manager

COMMANDING OFFICER
MARINE CORPS AIR STATION
QUANTICO, VA 22134
Phone: 703-784-2084

FSS

LEESBURG FSS (DCA)
Toll Free: 1-800-WX-BRIEF

NOTAM

DCA

Light Schedule

Lights

WHEN TWR CLSD ACTVT REILS RWY 02 & 20; PAPI RWY 02; HIRL RWY 02/20; CL RWY 02; TWY LGTS - CTAF. TO ACTVT & INCR INTS CMSND KEY 118.6 7 TIMES HIGH, 5 TIMES MED, 3 TIMES LOW.

Beacon

N/A

Wind Indicator

N/A

Segmented Cir.

Landing Fee

Parking

None

Int'l Operations

# Single Engine

# Multi Engine

# Jets

# Helicopters

# Military

# Ultralights

Airframe Repair

None

Pwrplant Repair

None

Bottled Oxygen

None

Bulk Oxygen

High Pressure

Other Services

None

Runway 02/20

Dimensions

4250 ft. x 184 ft.

Surface Type

Surface Cond

PEM

Treatment

GRVD

Rwy Edge Lgts

HIGH

Pavement Class

63 /R/C/W/T

Single Wheel

Double Wheel

Double Tandem

Dual Dbl Tand

	Runway 02	Runway 20
True Heading	15°	195°
Traffic Pattern
Markings	PIR	PIR
Markings Condition	FAIR	FAIR
Latitude	38° 29' 53"N	38° 30' 33"N
Longitude	77° 18' 25"W	77° 18' 11"W
Elevation	9'	10'
Threshold Crossing Height	35 ft. AGL	--
Visual Glide Path Angle	3°	--
Visual Slope Indicator	P4L	--
Approach Lights
Centerline Lights	Yes
Runway End Identifier Lights	Yes	Yes

A110-13	FUEL: A++; LTD SUP. EXP NO MORE THAN 10K OVER PPR.
A110-14	TRAN ALERT: NO TRAN MAINT AVBL. REQUIRE QUALIFIED CREW MEMBER TO ASSIST IN COLD REFUELING.
A110-16	BIRD HAZ VCNTY RWY 02-20 SR-SS. HVY MIGRATORY BIRD ACT OCT-MAR, HVY OSPREY ACT MAR-JUL, HVY EAGLE ACT DEC-JUL.
A110-17	NS ABTMT: THE AREA IN AND ARND THE QUANTICO CLASS D AIRSPACE IS NOISE SENSITIVE. COPTER TRANSIT QUANTICO CLASS D AIRSPACE AT OR ABV 1000 FT AGL.
A110-18	MISC: CAT II CRASH/FIRE RESCUE SVC.
A110-19	REMARKS: MCAF QUANTICO HAS NO PROVISIONS FOR SPACE A PASSENGERS. SPACE A PASSENGERS CANNOT BE ON-LOADED OR OFF-LOADED DUE TO SECURITY ISSUES.
A110-20	MISC: MCAF QUANTICO AND R-6608 LIE WITH THE WASHINGTON ADIZ. PILOTS MUST ADHERE TO ADIZ RPRTG PROCS IN BOTH THESE AREAS. TWY A LTD TO R/W DALGT VFR ONLY.
A110-22	CUSTOMS/AGRICULTURE/IMMIGRATION: CSTMS/AG/IMG - AVAILABLE WITH 72 HR PN BY PPR ONLY.
A110-23	RSTD: ALL TRAN ACFT 24 HR PPR; BASE OPS DSN 278-2085/1459, OR C703-784-2085/1459. AFTER 2200Z++ AND ON WEEKEND CALL DSN 378-0920, C703-432-0920 OR C703-675-3623 FOR PPR. MIL AIRCRAFT AND LIGHT CIVIL AIRCRAFT OPR AT OTHER THAN PUBL HR SR-SS ONLY.
A110-25	CAUTION: NO MANDATORY RWY VFR HOLD POSITION SIGNS CO-LOCATED W/MARKINGS ON TWYS A, B, AND D. RWY 02 OVRN 100 FT. RWY 20 NO OVRN.
A110-26	FOR CD WHEN NYG ATCT/APCH ARE CLSD CTC POTOMAC APCH AT 866-709-4993.
A110-27	RWY: NO 180 DEG TURNS ON RWY ASP.
A110-28	MISC: 180 DEG TURNS ONLY ON CONC EOR.
A110-29	MISC: NO STAGGERED ACFT DEVS FR RCL.
A110-30	CAUTION: TWY D SFC CONSISTS OF AM-2 ALUMINUM MATTING WITH NON-SKID ALL WX COATING; NO EDGE LGTNG ON TWY D. LTD LGTNG ON N EDGE OF TWY B BTN RWY AND INT OF PARL TWY.
A110-31	C-17 LANDING ZONE MARKED BUT NOT CERTIFIED. ASSAULT LDGS NA.

QUANTICO MCAF (TURNER FLD) (ICAO: KNYG, IATA: NYG) is a private airport located in QUANTICO, VA.
