iFlightPlanner



...

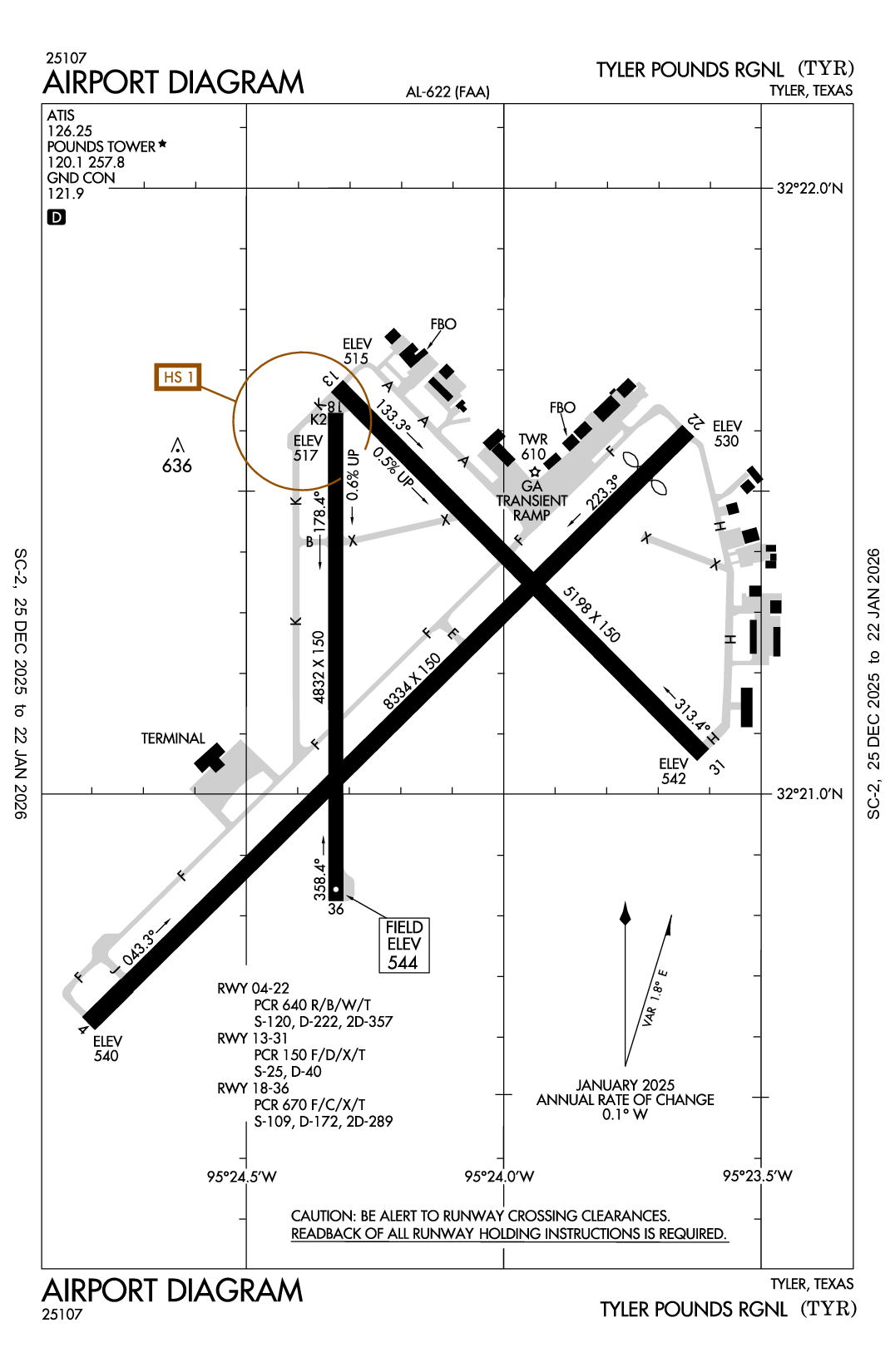

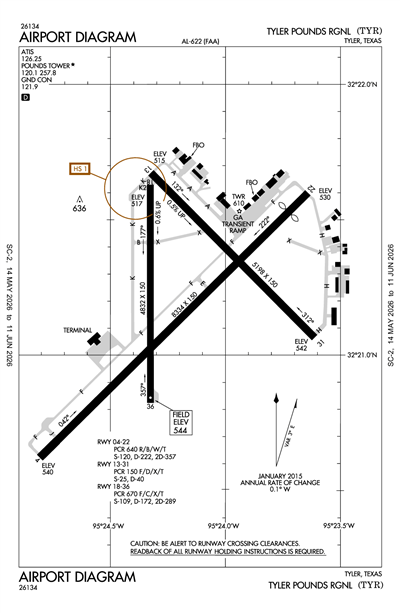

TYLER POUNDS RGNL - Airport Diagram
LiveATC.net: Live Air Traffic - From Their Headsets to You

KTYR
TYLER POUNDS RGNL
PublicPUB

3 miles W of TYLER, TX
View on Map
LiveATC.net: Live Air Traffic - From Their Headsets to You
Operational
32° 21' 13"N 95° 24' 11"W
544' MSL
1544' MSL
03E
JET A, 100LL
FORT WORTH (FTW)
DALLAS-FT WORTH
FORT WORTH (ZFW)
5/16/24-6/13/24
KTYR VFR
7:53 PM CDT
Overcast 10,000'
Broken 8,000'
Few 6,500'
10sm
72°F
67°F
29.94"Hg
120° 3kts
AO2 RAB2357E11 SLP133 P0000 T02220194
KTYR 020053Z 12003KT 10SM FEW065 BKN080 OVC100 22/19 A2994 RMK AO2 RAB2357E11 SLP133 P0000 T02220194
Add Your Business

KTYR FBOs

Promote Listing
Jet Center of Tyler
UNICOM: 130.675
Phone: (903) 597-1334
Other: (903) 539-0998
No Rating Available
0 Reviews (Read | Sign In To Write)
Titan
As of 5/22
 100LL JET A JET A (FSII) MOGAS UL94
Self Serve
Full Serve 5.99 4.46
Fuel Notes
Prices include tax
Promote Listing
Johnson Aviation
UNICOM: 122.95
Phone: (903) 593-4343
No Rating Available
0 Reviews (Read | Sign In To Write)
Avfuel
As of 5/29
 100LL JET A JET A (FSII) MOGAS UL94
Self Serve
Full Serve 5.98 4.49 4.51
Fuel Notes
Prices include tax
X

Send Message to Airport Company
Enter your information and message below.

Your Information

Processing
122.95 120.1

ATIS

ATIS
 126.25

Emergency

EMERG
 121.5

Ground

GND/P
 121.9

Tower

LCL/P
 120.1

FAA A/FD Pages

Airport Diagrams

Airport Minimums

Departure Procedures

  • No Documents

Hotspot

Standard Term. Arrival

  • No Documents

Instrument Approach

Terminal Area Forecast

KTYR
Sat, 6/1 6:20 PM CDT
Sat, 6/1 7:00 PM CDT - Sun, 6/2 7:00 PM CDT
VFR
7:00 PM CDT - 1:00 AM CDT
Thunderstorm in vicinity
Broken 25,000'
Scattered 15,000'
Scattered 4,500'
6sm
VRB° 4kts
MVFR
Temporary 7:00 PM CDT - 10:00 PM CDT
Light Thunderstorm and Rain and Mist
Broken 4,000'
3sm
Calm
VFR
1:00 AM CDT - 7:00 AM CDT
Scattered 25,000'
6sm
150° 5kts
IFR
Temporary 4:00 AM CDT - 7:00 AM CDT
Mist
Broken 800'
5sm
Calm
IFR
7:00 AM CDT - 9:00 AM CDT
Mist
Broken 800'
5sm
150° 4kts
MVFR
9:00 AM CDT - 11:00 AM CDT
Broken 1,500'
6sm
150° 6kts
MVFR
11:00 AM CDT - 7:00 PM CDT
Broken 2,500'
6sm
160° 7kts
KTYR 012320Z 0200/0224 VRB04KT P6SM VCTS SCT045CB SCT150 BKN250
   TEMPO 0200/0203 3SM -TSRA BR BKN040CB
   FM020600 15005KT P6SM SCT250
   TEMPO 0209/0212 5SM BR BKN008
   FM021200 15004KT 5SM BR BKN008
   FM021400 15006KT P6SM BKN015
   FM021600 16007KT P6SM BKN025
KTYR
Domestic
6/1/242116Z !TYR 06/002 TYR OBST TOWER LGT (ASR 1312296) 322321.20N0951627.94W (6.9NM ENE TYR) 710FT (225FT AGL) U/S 2406012116-2407162116
6/1/241208Z !TYR 06/001 TYR OBST TOWER LGT (ASR 1309638) 322852.00N0953117.80W (9.73NM NW TYR) 800FT (260FT AGL) U/S 2406011208-2406292359
5/31/242111Z !TYR 05/064 TYR OBST RIG (ASN 2017-ASW-18545-OE) 322200N0952431W (0.8NM NNW TYR) 591FT FLAGGED AND LGTD 2405312111-2406032359
5/31/242022Z !TYR 05/063 TYR OBST TOWER LGT (ASR 1325361) 322452.66N0952246.47W (3.8NM NNE TYR) 798FT (280FT AGL) U/S 2405312022-2407152015
5/31/241502Z !TYR 05/062 TYR OBST TOWER LGT (ASR 1268856) 321732.00N0953546.10W (10.5NM WSW TYR) 703.7FT (259.8FT AGL) U/S 2405311502-2409281502
5/31/241203Z !TYR 05/061 TYR OBST TOWER LGT (ASR 1047148) 322152.10N0951620.50W (6.7NM E TYR) 982.0FT (499.0FT AGL) U/S 2405311203-2409281203
5/31/240122Z !TYR 05/060 TYR OBST TOWER LGT (ASR 1214845) 321637.80N0951441.20W (9.2NM ESE TYR) 753.0FT (246.1FT AGL) U/S 2405310122-2409280122
5/30/242255Z !TYR 05/059 TYR OBST TOWER LGT (ASR 1060229) 322704.30N0951644.70W (8.6NM NE TYR) 774.0FT (259.8FT AGL) U/S 2405302255-2406142155
5/29/241613Z !TYR 05/054 TYR RWY 04 PAPI U/S 2405291613-2406062000EST
5/29/240210Z !TYR 05/053 TYR OBST TOWER LGT (ASR 1052570) 322621.30N0954050.10W (15.0NM WNW TYR) 945.2FT (410.1FT AGL) U/S 2405290210-2409260210
5/28/241415Z !TYR 05/046 TYR OBST TOWER LGT (ASR 1223914) 322615.00N0952501.40W (5.1NM N TYR) 826.8FT (359.9FT AGL) U/S 2405281415-2409251415
5/25/240310Z !TYR 05/025 TYR OBST TOWER LGT (ASR 1207575) 322255.30N0953203.10W (6.9NM WNW TYR) 889.8FT (259.8FT AGL) U/S 2405250310-2408220400
5/24/241159Z !TYR 05/022 TYR OBST TOWER LGT (ASR 1049088) 322130.20N0951721.20W (5.8NM E TYR) 761.8FT (259.8FT AGL) U/S 2405241159-2408242359
5/19/240835Z !TYR 05/017 TYR OBST TOWER LGT (ASR 1222061) 322328.50N0952005.10W (4.2NM ENE TYR) 692.9FT (256.9FT AGL) U/S 2405190835-2408170400
5/18/240236Z !TYR 05/016 TYR OBST TOWER LGT (ASR 1213988) 322637.00N0951939.50W (6.6NM NE TYR) 798.9FT (254.9FT AGL) U/S 2405180236-2406160001
5/2/241944Z !TYR 05/001 TYR OBST TOWER LGT (ASR 1271578) 322131.50N0951906.10W (4.3NM E TYR) 928.8FT (319.9FT AGL) U/S 2405021944-2408022359
4/30/241842Z !TYR 04/057 TYR OBST TOWER LGT (ASR 1325156) 321733.08N0950830.27W (13.8NM ESE TYR) 762FT (280FT AGL) U/S 2404301842-2406141830
4/23/242156Z !TYR 04/045 TYR OBST TOWER LGT (ASR 1002460) 322801.00N0951955.90W (7.7NM NNE TYR) 1040.0FT (503.9FT AGL) U/S 2404232156-2407232359
4/11/240707Z !TYR 04/026 TYR OBST TOWER LGT (ASR 1229399) 321354.30N0952014.00W (8.0NM SSE TYR) 833.0FT (315.0FT AGL) U/S 2404110707-2407100400
4/9/241613Z !TYR 04/018 TYR OBST TOWER LGT (ASR 1054445) 322033.80N0951529.60W (7.4NM E TYR) 1041.0FT (490.2FT AGL) U/S 2404091613-2407090400
4/9/241040Z !TYR 04/014 TYR OBST TOWER LGT (ASR 1221573) 322822.10N0952909.90W (8.3NM NNW TYR) 911.1FT (307.1FT AGL) U/S 2404091040-2407080400
8/17/231632Z !TYR 08/013 TYR OBST TOWER LGT (ASR 1049932) 321900.00N0951422.00W (8.6NM ESE TYR) 889.1FT (318.2FT AGL) U/S 2308171632-2408312359
FDC
2/12/241957Z !FDC 4/3992 TYR ODP TYLER POUNDS RGNL, TYLER, TX.
TAKEOFF MINIMUMS AND (OBSTACLE) DEPARTURE PROCEDURES AMDT 3A...
TAKEOFF OBSTACLE NOTES RWY 31, TEMPORARY EQUIPMENT, BEGINNING 32FT FROM DER, BEGINNING 277FT RIGHT OF CENTERLINE, 20 AGL/UP TO 534MSL (2022-ASW-5490-NRA), RWY 36, TEMPORARY EQUIPMENT, BEGINNING 179FT FROM DER, BEGINNING 164FT RIGHT OF CENTERLINE, 20 AGL/ UP TO 536 MSL (2022-ASW-5491/5492/5493/5494/5496-NRA AND 2023-ASW-5501-NRA). ALL OTHER DATA REMAINS AS PUBLISHED. 2402121957-2408221957EST
10/25/232012Z !FDC 3/1201 TYR IAP TYLER POUNDS RGNL, TYLER, TX.
RNAV (GPS) RWY 31, AMDT 3A...
LNAV HAT 376 ALL CATS.
2310252012-2406052012EST
Yes
0500-2200
CITY OF TYLER
PO BOX 2039
TYLER, TX 75710
Phone: 903-531-9825
STEVE M. THOMPSON
700 SKYWAY BLVD, SUITE 201
TYLER, TX 75704
Phone: 903-531-2343
FORT WORTH FSS (FTW)
Toll Free: 1-800-WX-BRIEF
TYR
--
WHEN ATCT CLSD ACTVT MALSR RWY 04; REIL RWY 22; HIRL RWY 04/22; MIRL RWY 18/36; TWY LGTS - CTAF. HIRL RWY 13/31 PRESET MED INTST, TO INCR INTST ACTVT - CTAF. PAPI RWYS 04 & 22, VASI RWY 31 OPR CONSLY.
N/A
Yes - Lighted
Yes
No
Hanger, Tie-Down
NOT a Landing Rights Airport
NOT an Airport of Entry
69
24
13
5
0
0
Major
Major
High Pressure
High Pressure
Air Freight
Cargo Handling
Charter Service
Pilot Instruction
Aircraft Rental
Aircraft Sales
Annual Surveying

Runway 04/22

8334 ft. x 150 ft.
CONC
Excellent
GRVD
HIGH
68 /R/C/W/T
120,000lbs
222,000lbs
357,000lbs
--
  Runway 04 Runway 22
True Heading 45°225°
Traffic Pattern Left Left
Markings PIR PIR
Markings Condition GOOD GOOD
Latitude 32° 20' 37"N 32° 21' 36"N
Longitude 95° 24' 48"W 95° 23' 39"W
Elevation 540' 530'
Threshold Crossing Height 55 ft. AGL 54 ft. AGL
Visual Glide Path Angle 3° 3°
Visual Slope Indicator P4L P4L
Approach Lights MALSR
Centerline Lights
Runway End Identifier Lights No Yes

Runway 13/31

5198 ft. x 150 ft.
ASPH
Fair
GRVD
HIGH
9 /F/C/X/T
25,000lbs
40,000lbs
--
--
  Runway 13 Runway 31
True Heading 135°315°
Traffic Pattern Left Left
Markings PIR PIR
Markings Condition GOOD GOOD
Latitude 32° 21' 40"N 32° 21' 04"N
Longitude 95° 24' 19"W 95° 23' 37"W
Elevation 515' 542'
Threshold Crossing Height -- 54 ft. AGL
Visual Glide Path Angle -- 3°
Visual Slope Indicator -- V4L
Approach Lights
Centerline Lights
Runway End Identifier Lights

Runway 18/36

4832 ft. x 150 ft.
ASPH
Good
GRVD
MED
43 /F/B/X/T
109,000lbs
172,000lbs
289,000lbs
--
  Runway 18 Runway 36
True Heading 180°0°
Traffic Pattern Left Left
Markings NPI NPI
Markings Condition GOOD GOOD
Latitude 32° 21' 37"N 32° 20' 49"N
Longitude 95° 24' 20"W 95° 24' 20"W
Elevation 517' 544'
Threshold Crossing Height -- --
Visual Glide Path Angle -- --
Visual Slope Indicator -- --
Approach Lights
Centerline Lights
Runway End Identifier Lights
A110-3HELICOPTERS OPERATING INBOUND OR OUTBOUND TO/FROM THE DOWNTOWN HOSPITALS STATE INTENTION ON 123.075.
A110-6WEST SIDE PSGR TERMINAL RAMP ACCESS RSTD TO ACR.
A110-7NOISE ABATEMENT PROCEDURES IN EFFECT CALL 903-590-3048.
A110-8CONDS NOT MNTD BTN THE HRS OF 9:30 PM AND 6:30 AM LOCAL.
A110-9FOR CD IF UNA TO CTC ON FSS FREQ, CTC FORT WORTH ARTCC AT 817-858-7584.
TYLER POUNDS RGNL (ICAO: KTYR, IATA: TYR) is a public airport located in TYLER, TX.
