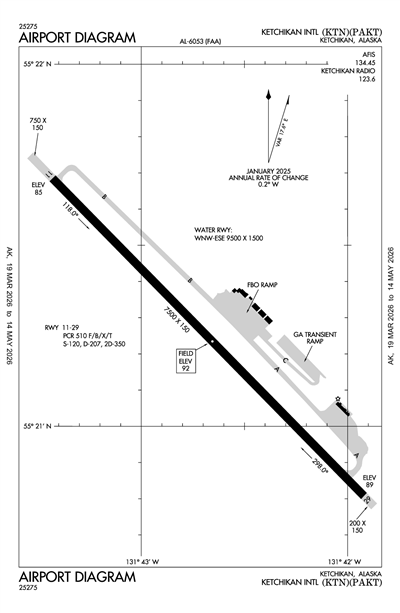

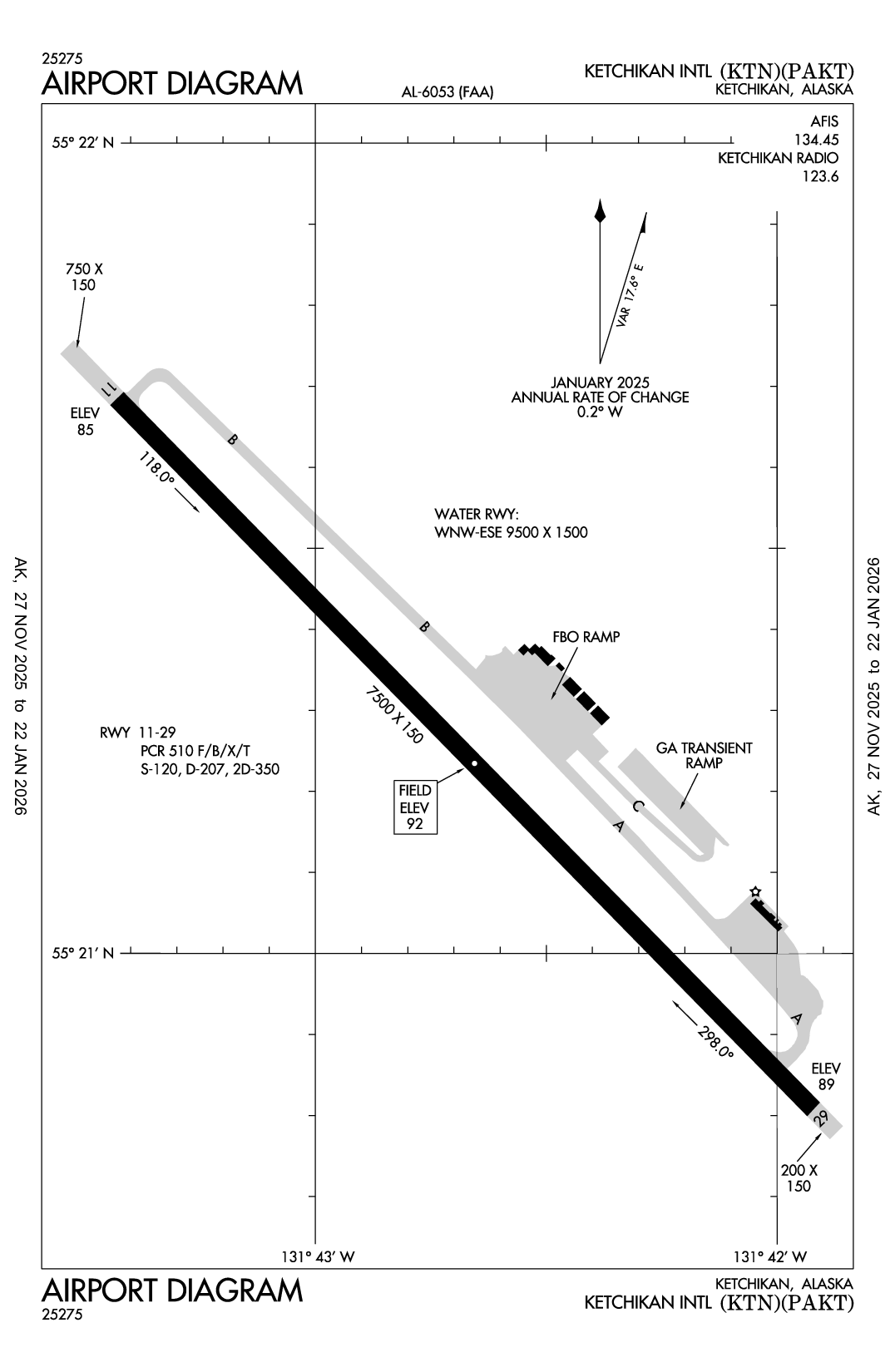

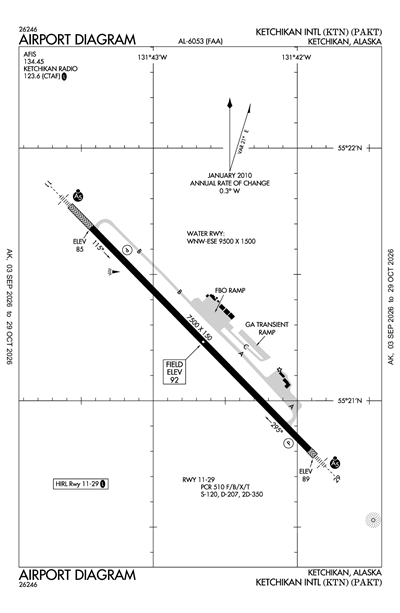

KETCHIKAN INTL - Airport Diagram
LiveATC.net: Live Air Traffic - From Their Headsets to You

PAKT
KETCHIKAN INTL
PublicPUB

1 miles W of KETCHIKAN, AK
View on Map
LiveATC.net: Live Air Traffic - From Their Headsets to You
Operational
55° 21' 15"N 131° 42' 40"W
92' MSL
1092' MSL
21E
JET A, 100LL
KETCHIKAN (KTN)
KETCHIKAN
ANCHORAGE (ZAN)
5/16/24-6/13/24
PAKT VFR
5:53 PM AKDT
Broken 11,000'
Scattered 4,200'
Few 3,300'
10sm
53°F
46°F
29.79"Hg
110° 14kts
AO2 SLP088 HARBOR WIND 10013KT T01170078
PAKT 020153Z 11014KT 10SM FEW033 SCT042 BKN110 12/08 A2979 RMK AO2 SLP088 HARBOR WIND 10013KT T01170078
Add Your Business

PAKT FBOs

Promote Listing
Aero Services
Phone: (907) 247-5701
Fax: (907) 247-5705
No Rating Available
0 Reviews (Read | Sign In To Write)
Independent
As of 5/8
 100LL JET A JET A (FSII) MOGAS UL94
Self Serve
Full Serve 11.62 9.44
Fuel Notes
Prices include tax
X

Send Message to Airport Company
Enter your information and message below.

Your Information

Processing
-- 123.6

ASOS

ASOS
907-247-8801
 134.45

Other

AFIS
 134.45

FAA A/FD Pages

Airport Diagrams

Airport Minimums

Departure Procedures

Hotspot

  • No Documents

Standard Term. Arrival

  • No Documents

Instrument Approach

Terminal Area Forecast

PAKT
Sat, 6/1 3:28 PM AKDT
Sat, 6/1 4:00 PM AKDT - Sun, 6/2 4:00 PM AKDT
VFR
4:00 PM AKDT - 9:00 PM AKDT
Overcast 4,000'
Scattered 2,500'
6sm
130° 11kts
VFR
9:00 PM AKDT - 12:00 AM AKDT
Light Rain
Overcast 3,500'
6sm
130° 8kts
MVFR
12:00 AM AKDT - 6:00 AM AKDT
Light Rain and Mist
Overcast 3,500'
Broken 2,500'
6sm
140° 10kts
VFR
6:00 AM AKDT - 4:00 PM AKDT
Light Rain and Mist
Overcast 3,500'
Scattered 2,500'
6sm
140° 11kts
Gusts 19kts
Shear 150° 30kts @ 2000'
PAKT 012328Z 0200/0224 13011KT P6SM SCT025 OVC040
   FM020500 13008KT P6SM -RA OVC035
   FM020800 14010KT 6SM -RA BR BKN025 OVC035
   FM021400 14011G19KT 6SM -RA BR SCT025 OVC035 WS020/15030KT AMD LTD TO CLD VIS AND WIND 0206/0215
PAKT
Domestic
6/5/241600Z !KTN 05/028 KTN NAV ILS RWY 11 LOC/GP/DME U/S 2406051600-2406052100
5/31/240300Z !KTN 05/027 KTN TWY A SFC PAINTED HLDG PSN MARKINGS NOT STD 2405310300-2406300515
5/22/241424Z !KTN 05/020 KTN AD AP BIRD ACT INCREASED 2405221424-2406231424
FDC
6/1/240303Z !FDC 4/1528 KTN ODP KETCHIKAN INTL, KETCHIKAN, AK.
SKOWL TWO DEPARTURE ...
DEPARTURE PROCEDURE NA EXCEPT FOR ACFT EQUIPPED WITH SUITABLE RNAV SYSTEM WITH GPS,
ANN DME OUT OF SERVICE. 2406010303-2406300303EST
4/30/241243Z !FDC 4/6597 KTN IAP KETCHIKAN INTL, KETCHIKAN, AK.
ILS Y OR LOC Y RWY 11, AMDT 8...
LOC X RWY 11, AMDT 1...
FEEDER ROUTE FROM ANNETTE ISLAND (ANN) VORDME TO COGOX (IAF) NA EXCEPT FOR ACFT EQUIPPED WITH SUITABLE RNAV SYSTEM WITH GPS.
2404301243-2604301243EST
No
0600-2130
ALASKA DOT&PF SOUTHCOAST REGION
6860 GLACIER HIGHWAY
JUNEAU, AK 99801-7999
Phone: 907-465-1786
ALEX PUERA
1000 ARPT TERMINAL WAY
KETCHIKAN, AK 99901
Phone: 907-225-6800
KETCHIKAN FSS (KTN)
Toll Free: LC225-9481
KTN
--
WHEN KTN FSS CLSD ACTVT MALSR RWY 11 & 29; HIRL RWY 11/29 - CTAF. PAPI RWY 11 & 29 ON CONSLY.
WHEN KTN FSS CLSD ON CONSLY.
N/A
Yes - Lighted
Yes
Yes
Hanger, Tie-Down
Landing Rights Airport
NOT an Airport of Entry
3
1
1
0
0
0
None
None
None
None
Beaching Gear
Cargo Handling

Runway 11/29

7500 ft. x 150 ft.
ASPH
Good
GRVD
HIGH
49 /F/B/X/T
75,000lbs
200,000lbs
300,000lbs
--
  Runway 11 Runway 29
True Heading 136°316°
Traffic Pattern Right
Markings PIR PIR
Markings Condition GOOD GOOD
Latitude 55° 21' 41"N 55° 20' 48"N
Longitude 131° 43' 26"W 131° 41' 55"W
Elevation 85' 89'
Threshold Crossing Height 50 ft. AGL 49 ft. AGL
Visual Glide Path Angle 3° 3°
Visual Slope Indicator P4L P4L
Approach Lights MALSR MALSR
Centerline Lights
Runway End Identifier Lights

Runway WNW/ESE

9500 ft. x 1500 ft.

WATER
NONE


--
--
--
--
  Runway ESE Runway WNW
True Heading Not ListedNot Listed
Traffic Pattern
Markings
Markings Condition
Latitude N/A N/A
Longitude N/A N/A
Elevation -- --
Threshold Crossing Height -- --
Visual Glide Path Angle -- --
Visual Slope Indicator -- --
Approach Lights
Centerline Lights
Runway End Identifier Lights
A110-1TRRN CAUSES TURB ON ARR & DEP ROUTES.
A110-13USCG HELI 55-21-27.6N/131-42-19.8W; INVOF KETCHIKAN INTL ARPT & SEAPLAN BASE; MED-VAC MISSIONS ONLY - POC COMMANDER CG DISTRICT 17, 709 W 9TH ST, RM 661. BOX 25517 JUNEAU, AK 99802 - 907-463-2247/2000.
A110-16WX CAMERAS AVBL ON INTERNET AT HTTPS://WEATHERCAMS.FAA.GOV
A110-17TWY C LGTS OTS INDEF.
A110-18PPR FOR LDG DURG UNATNDD HRS - FBO 907-531-9891 FOR ARNGMT & CALL OUT CHARGE.
A110-2ALERT: SPL ATC RULES PART 93 & STD VFR ARR & DEP PROC & PAT INFO - SEE REG NOTICE.
A110-21GA APRON; TWY C; NE SECTION OF MAIN APRON PCN 21/F/B/X/T.
A110-22DOCK W OF ARPT CLSD NOV 1 - APR 1; PPR OVNGT - AMGR; FERRY BTW ARPT & CITY OPR CONSLY WHEN ARPT ATNDD.
A110-4BIRDS ON & INVOF ARPT.
A110-5PRIOR TO OPS ON APRON/TWY ALL ACFT CTC KTN FSS & ADZ INTNS.
A110-6SFC COND RPRTS REFLECT CONDS WHILE ARPT ATNDD ONLY.
A110-7CTN AIR TAXI & BOATS IN HARBOR; FLOATING DEBRIS PSBL.
A110-8SNOW & ICE REMOVAL NA WHEN ARPT UNATTND.
KETCHIKAN INTL (ICAO: PAKT, IATA: KTN) is a public airport located in KETCHIKAN, AK.
